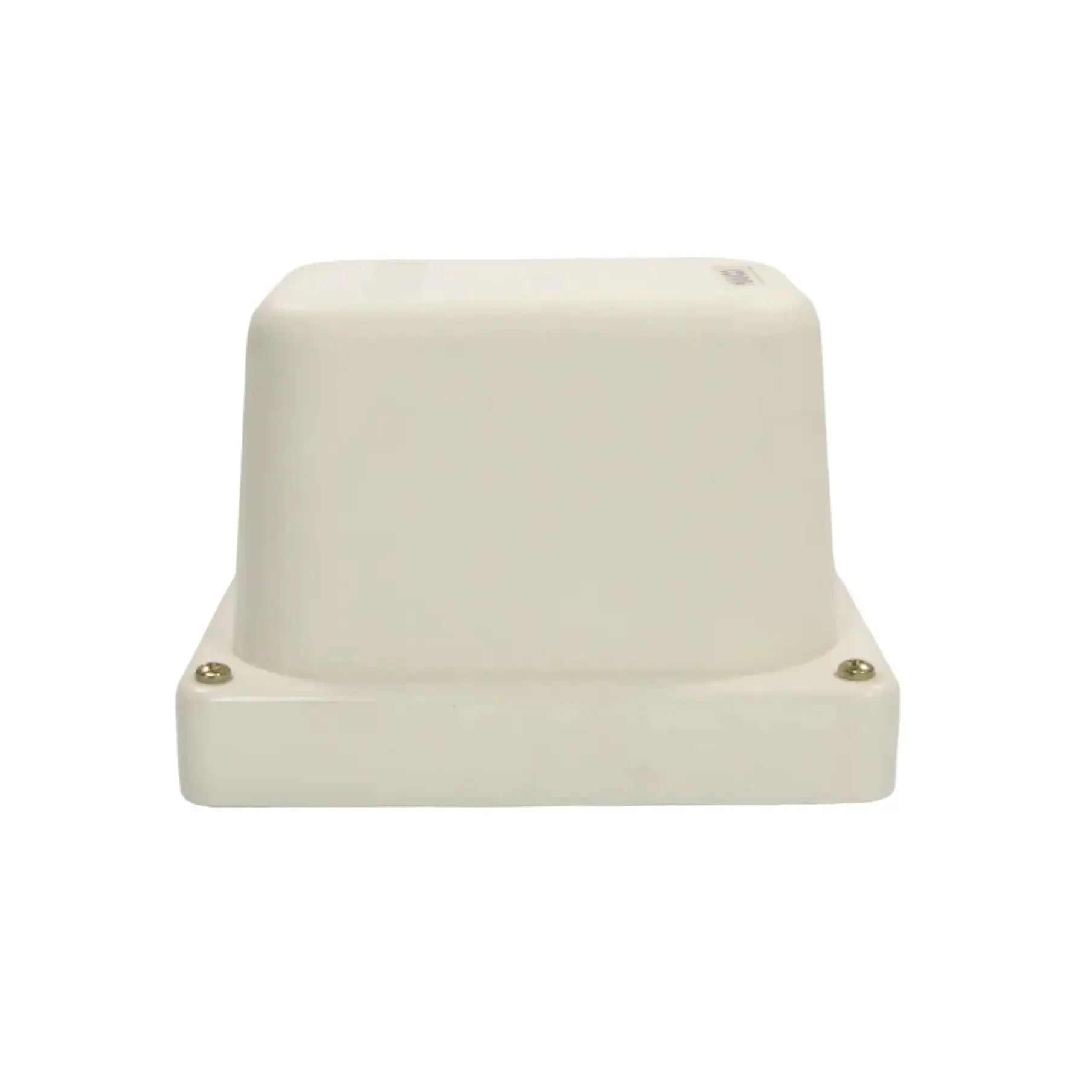

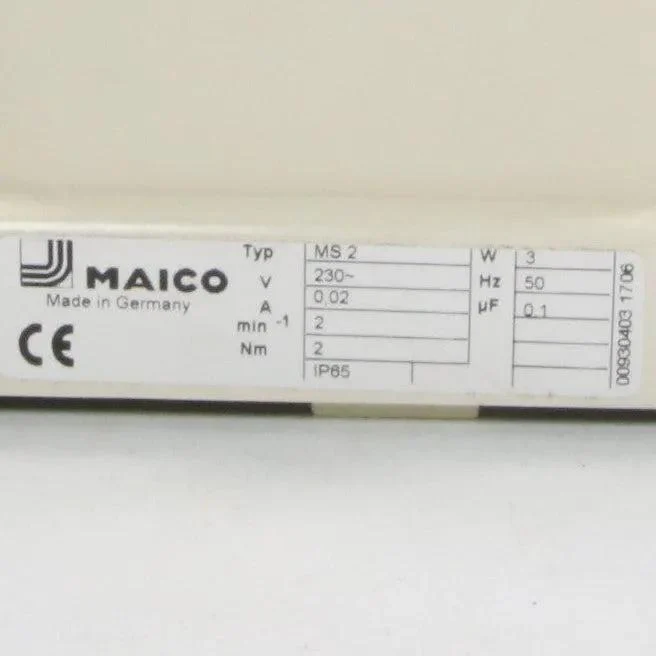

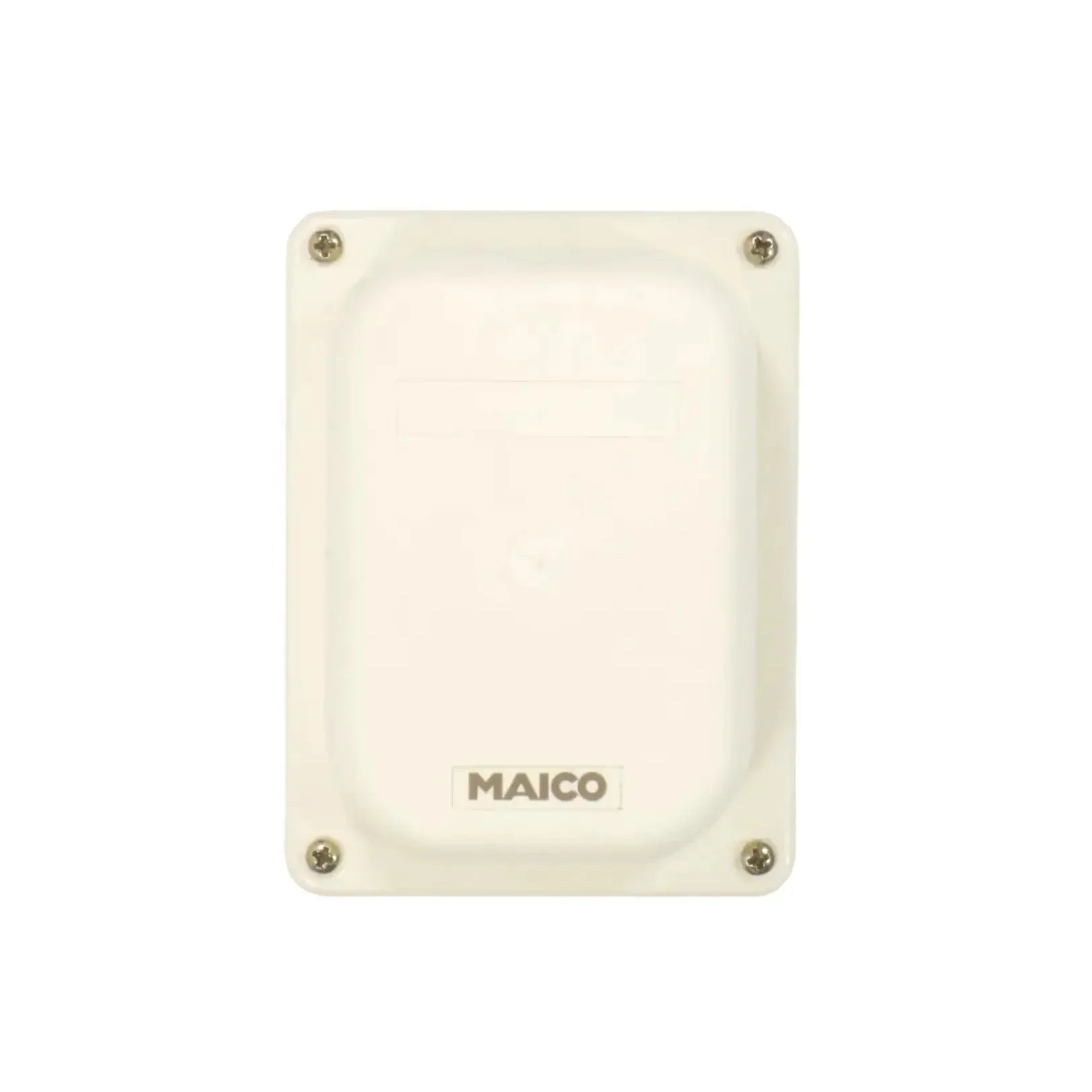

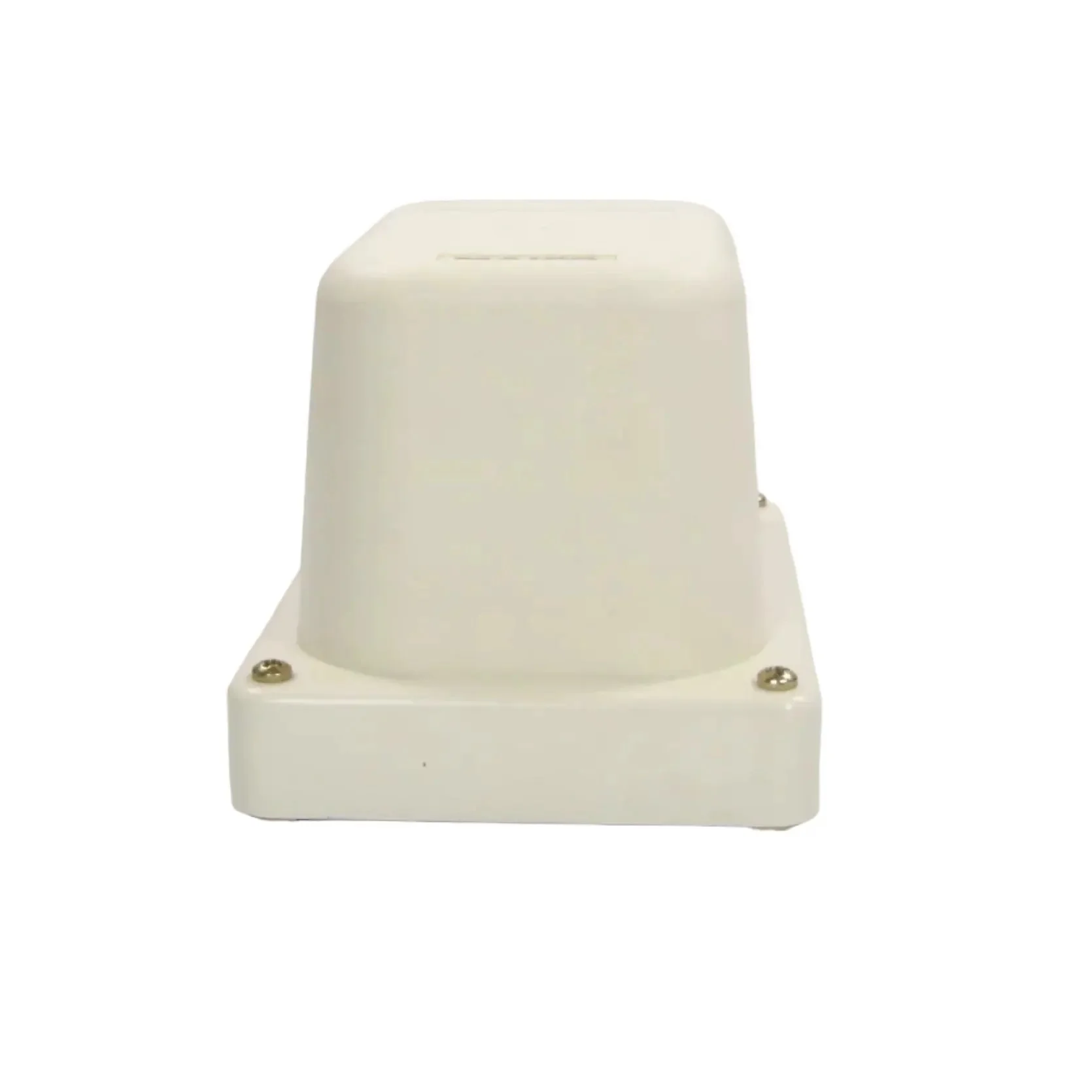

Maico MS 2 Linear Actuator

- Brand: Maico
- Model: MS 2
- Type: Linear Actuator (for air dampers and ventilation flaps)
- Artikel number: 0093.0403
  - Function: Electric linear actuator for precise opening/closing of ventilation dampers, louvers, and flaps in ventilation and air-conditioning systems
  - Actuator Type: Linear spindle drive (reversible)
  - Force: 2 Nm (thrust/pull)
  - Running Speed: 1.5 mm/s
  - Supply Voltage: 230 V AC, 50 Hz
  - Power Consumption: 5 VA
  - Current Consumption: 0.02 A
  - Control: 2-point (open/close)
  - Feedback: Auxiliary switch (1 NO + 1 NC, 230 V AC / 3 A)
  - Manual Override: No
  - Spring Return: No
  - Runtime: Approx. 13 seconds for full stroke
  - Duty Cycle: S4 40%
  - Protection Rating: IP65
  - Ambient Temperature: -10 °C to +60 °C
  - Housing Material: Plastic
  - Connection: Cable (not included)
  - Mounting: Direct mounting on damper spindle or linkage
  - Weight: 650 g
  - Features: Compact design, easy installation, overload protection, long service life
- Dimensions: 135 x 100 x 100 mm
- Country of origin: Germany
- HS code: 850110
