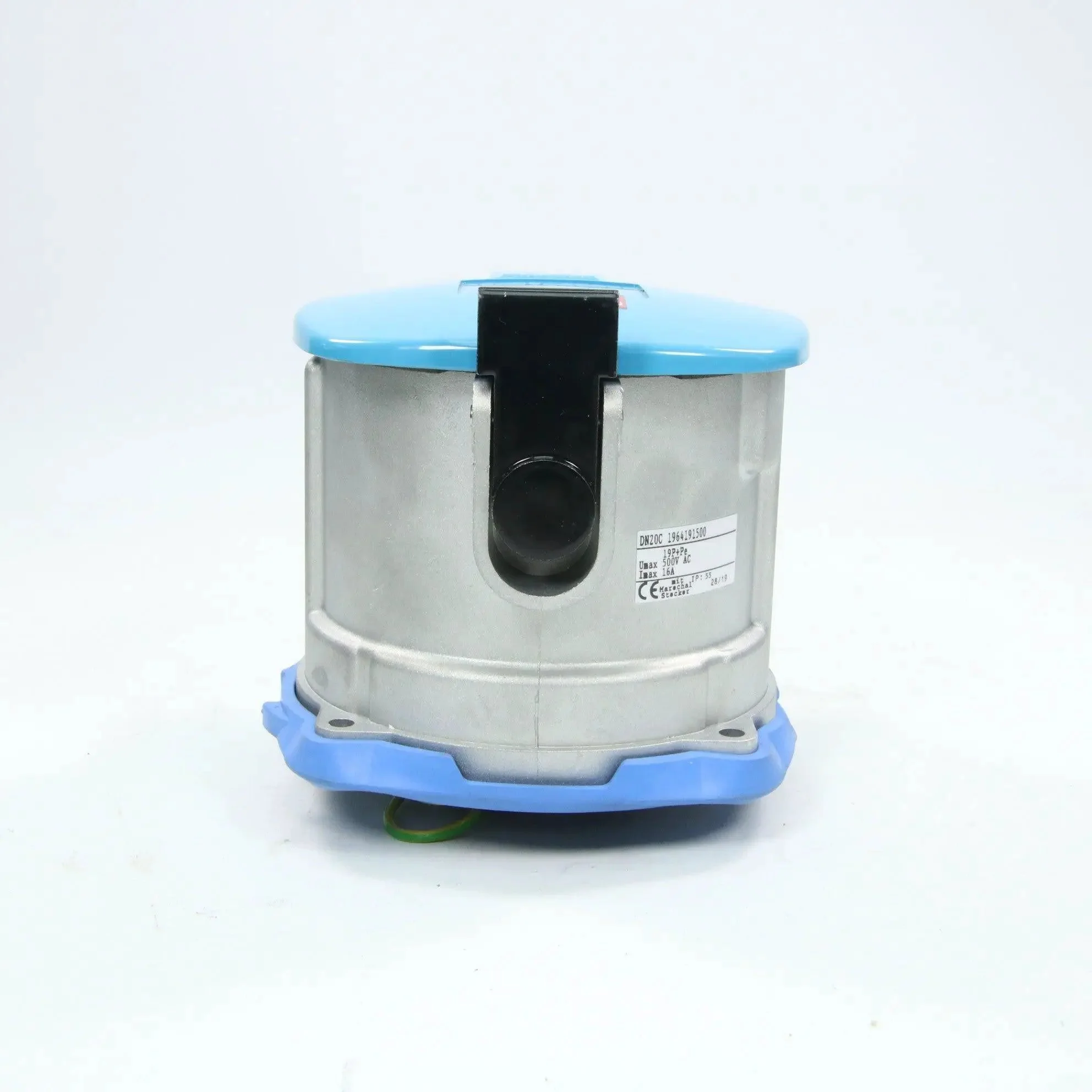

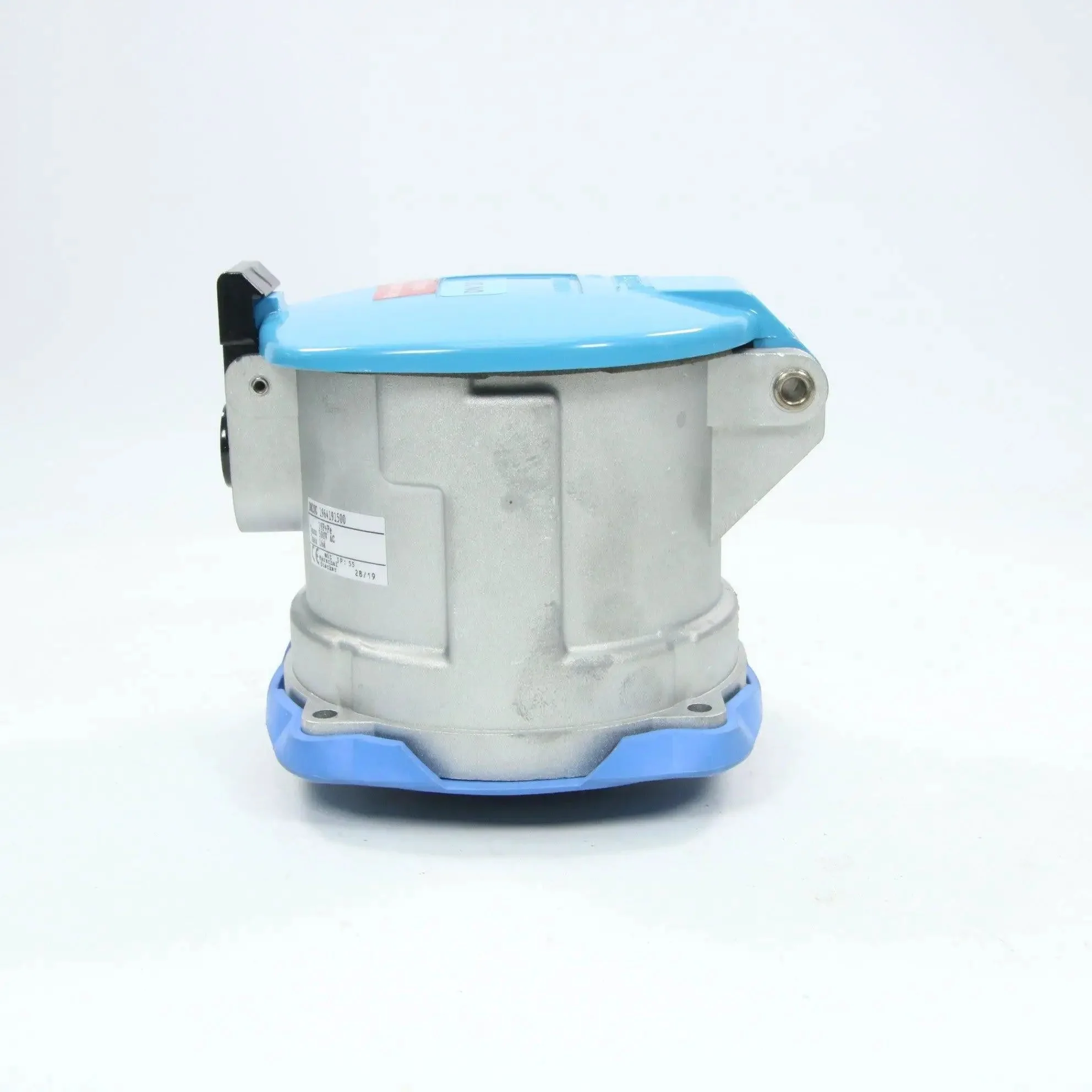

Marechal DN20C 19-4191-500 Multicts socket

Marechal DN20C 19-4191-500 Multicts Socket outlet Female

• Rated current (a): 16
• Phasing: 19PH+E
• Max. rated voltage (v): 500
• Ip rating: IP55
• Rated voltage (v): <500
• Marking: CE
• Material: Metal
• IK: IK09
• Min. operating temperature (°c): -40
• Max. operating temperature (°c): +60
• Min. flexible conductor: 1mm2
• Max. flexible conductor: 6mm2
• Min. stranded conductor: 1,5mm2
• Max. stranded conductor: 10mm2
• Type of connection: to screw
• N° of keying position:
• Notches: 01
• Colour-coded ring: blue
