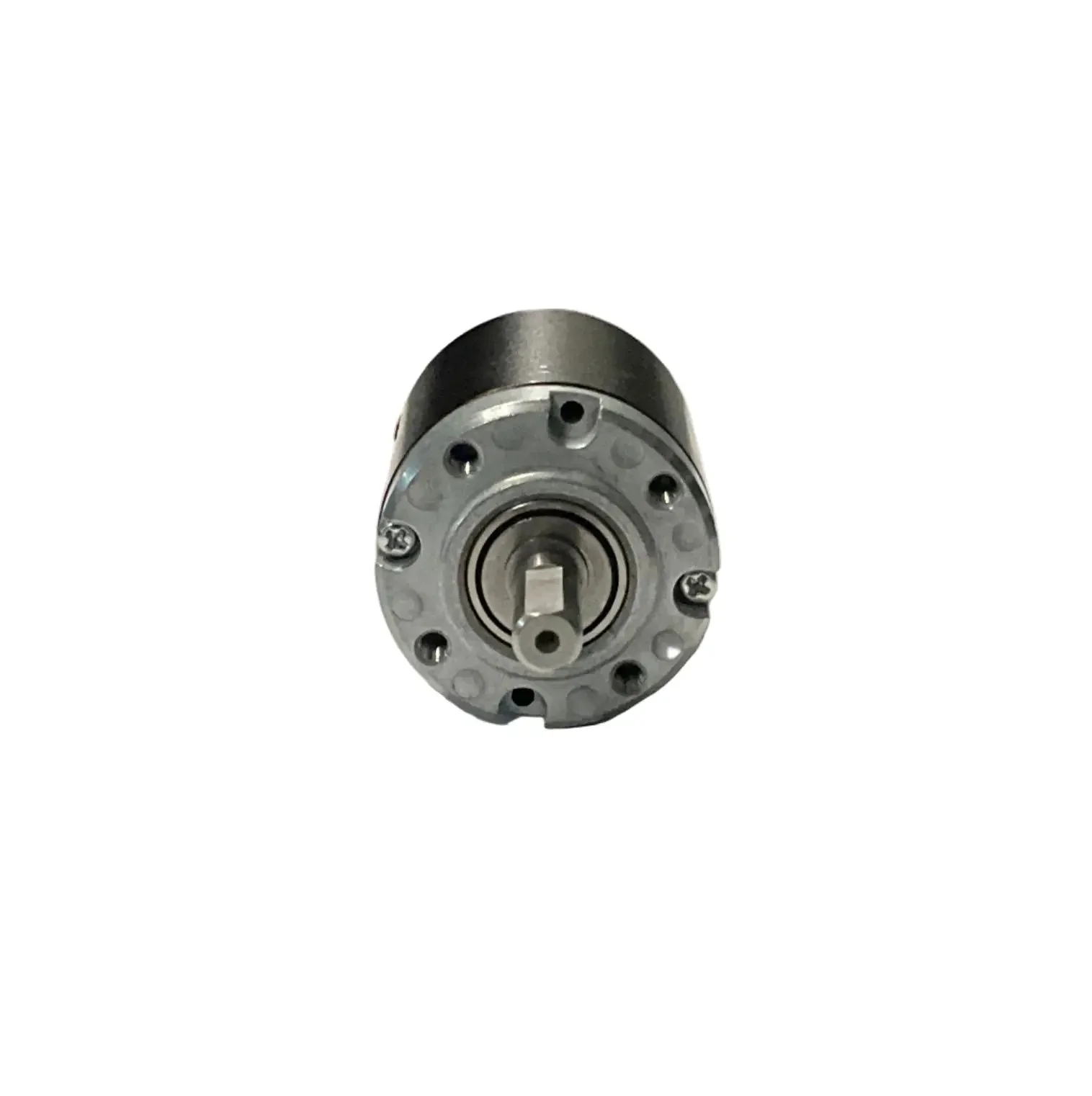

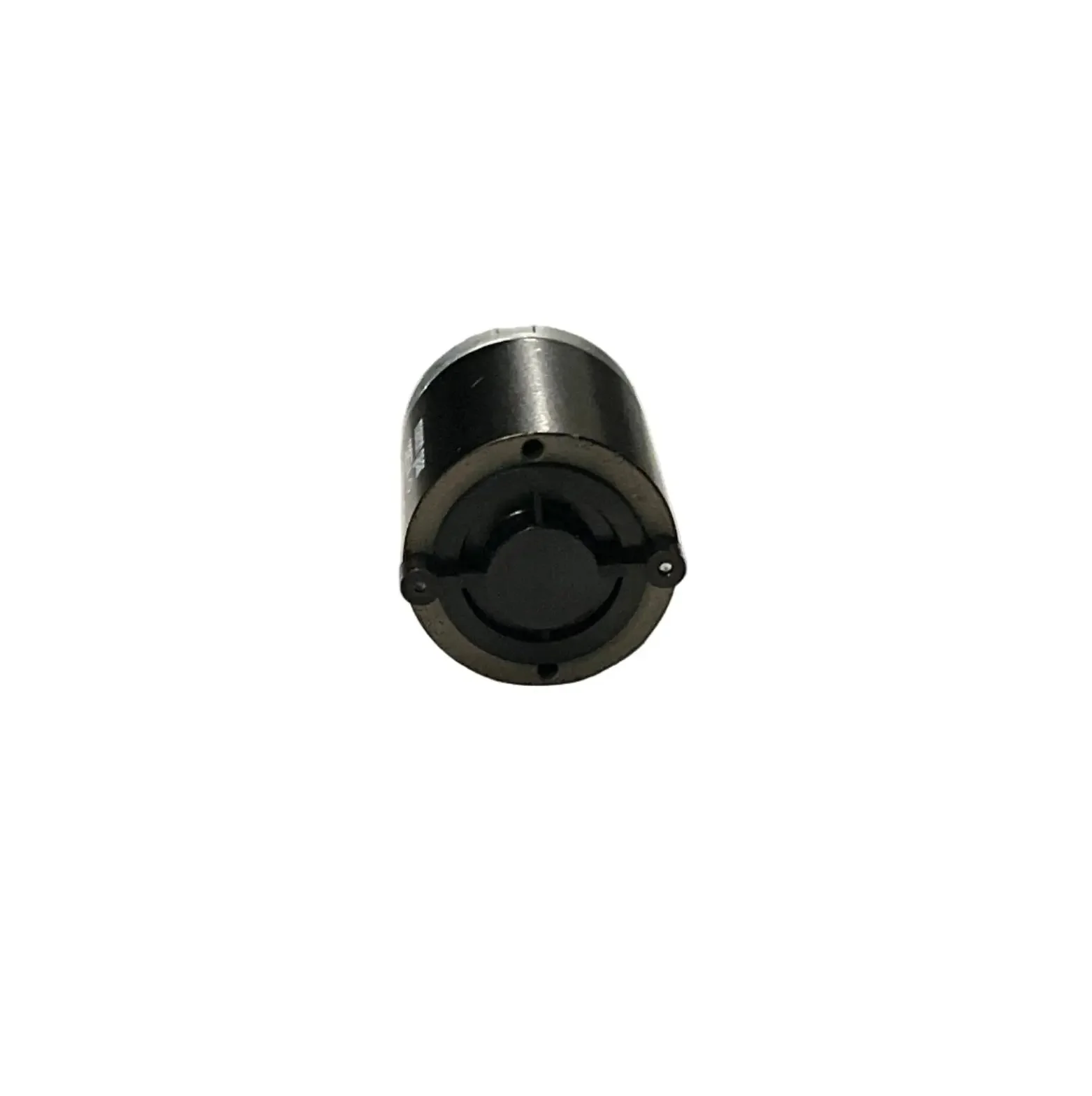

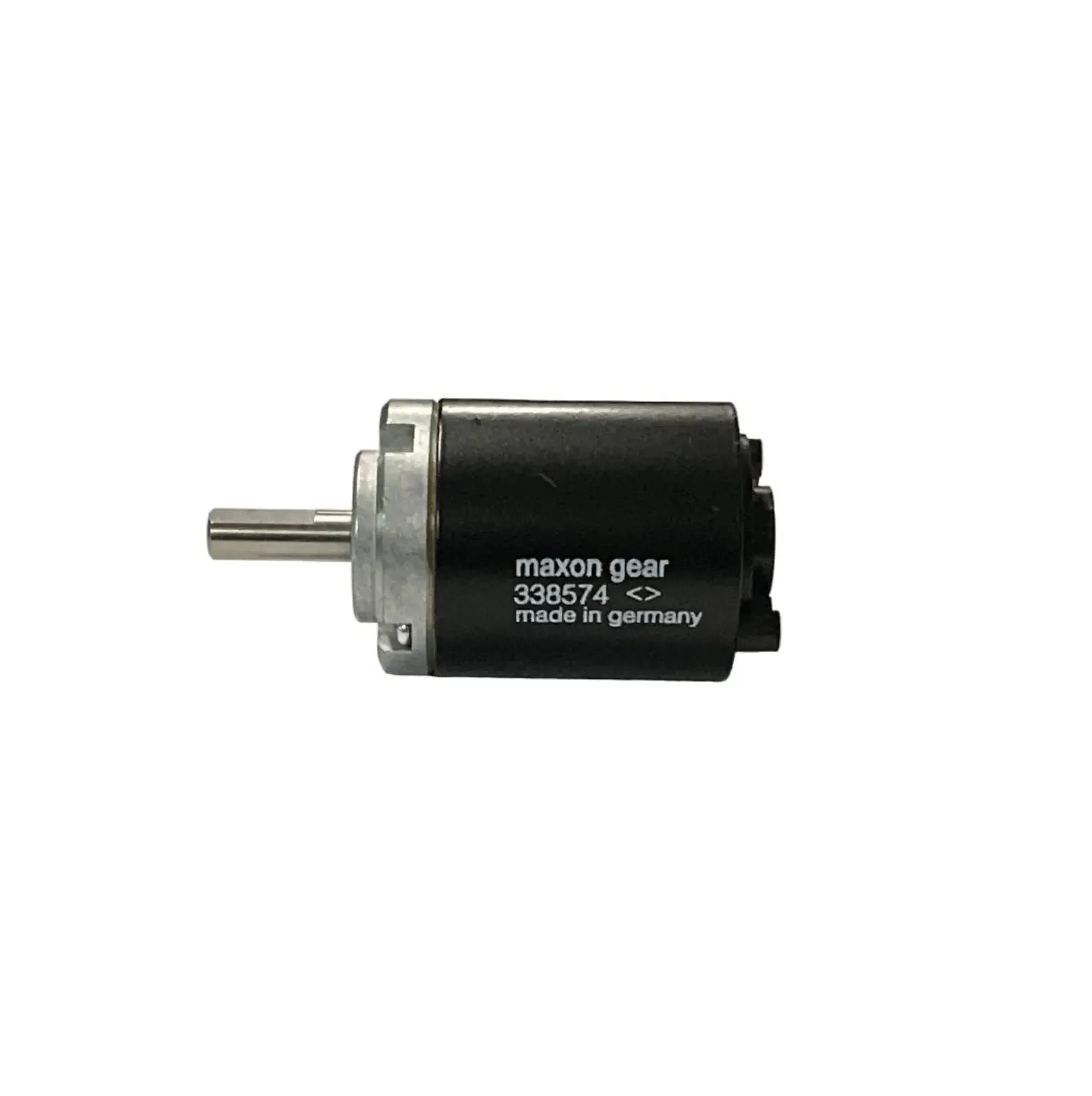

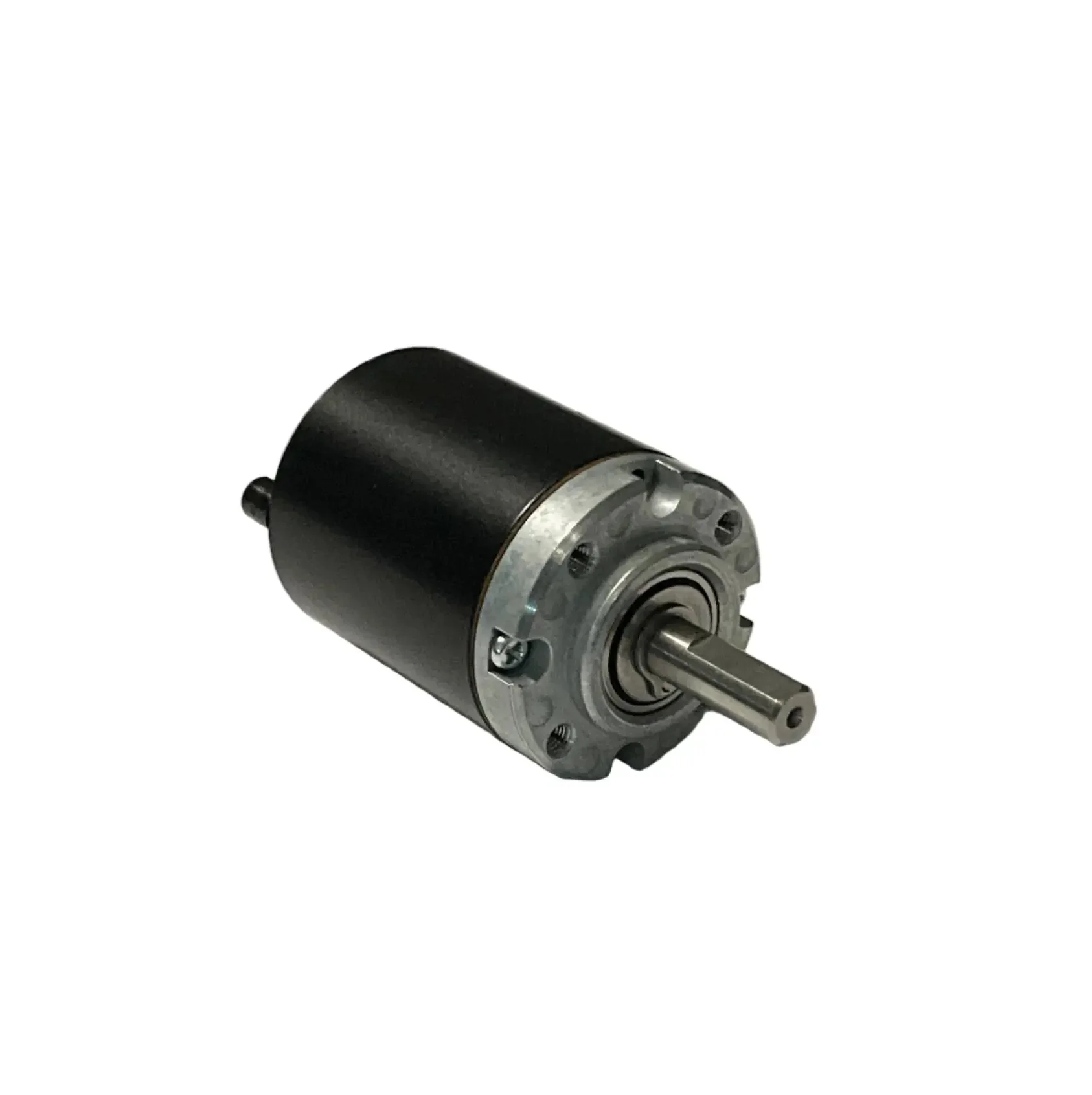

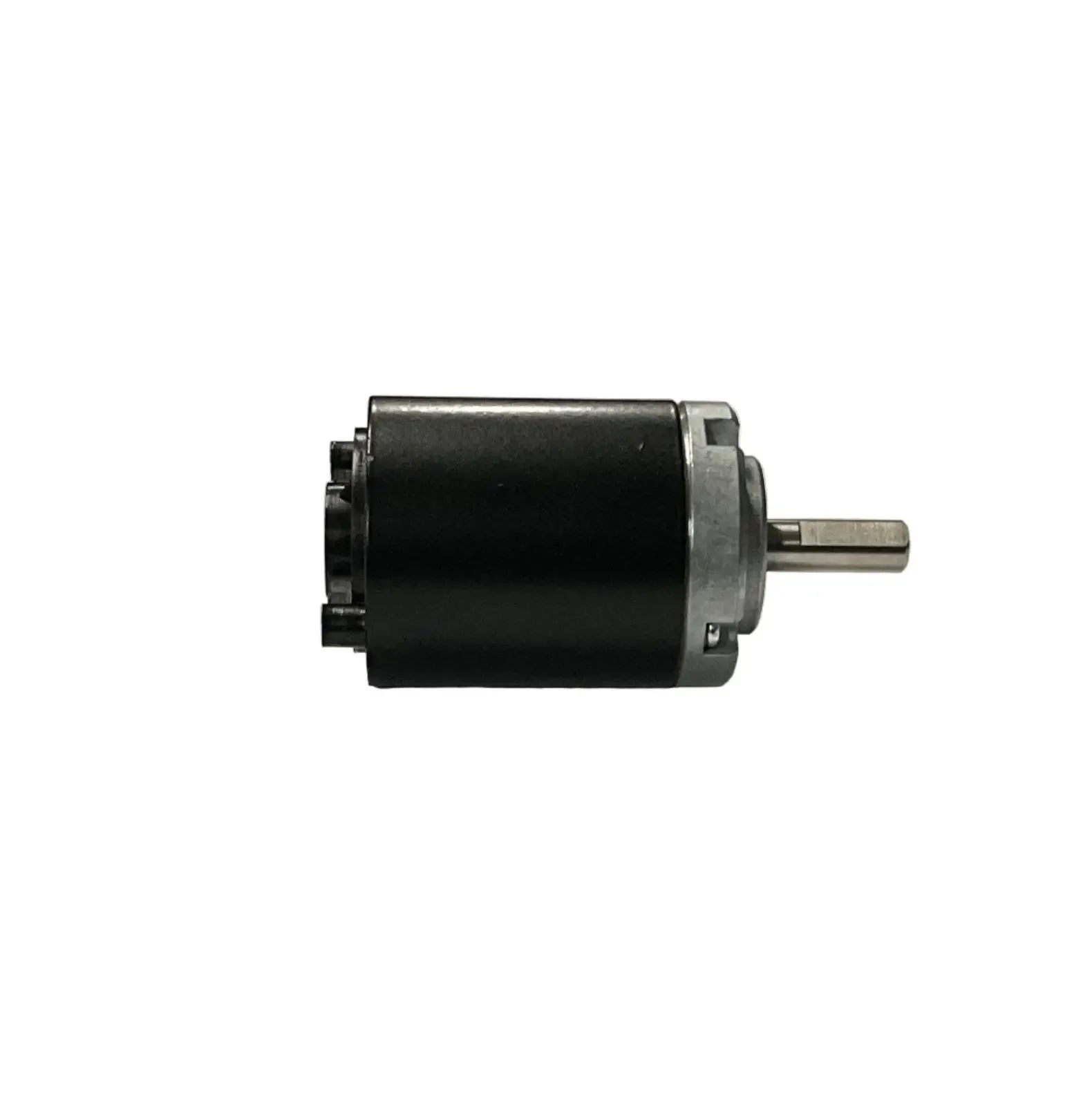

Maxon GP 32 B Planetary Gearhead 338574

Brand: Maxon
Model: GP 32 B
Type: Planetary Gearhead

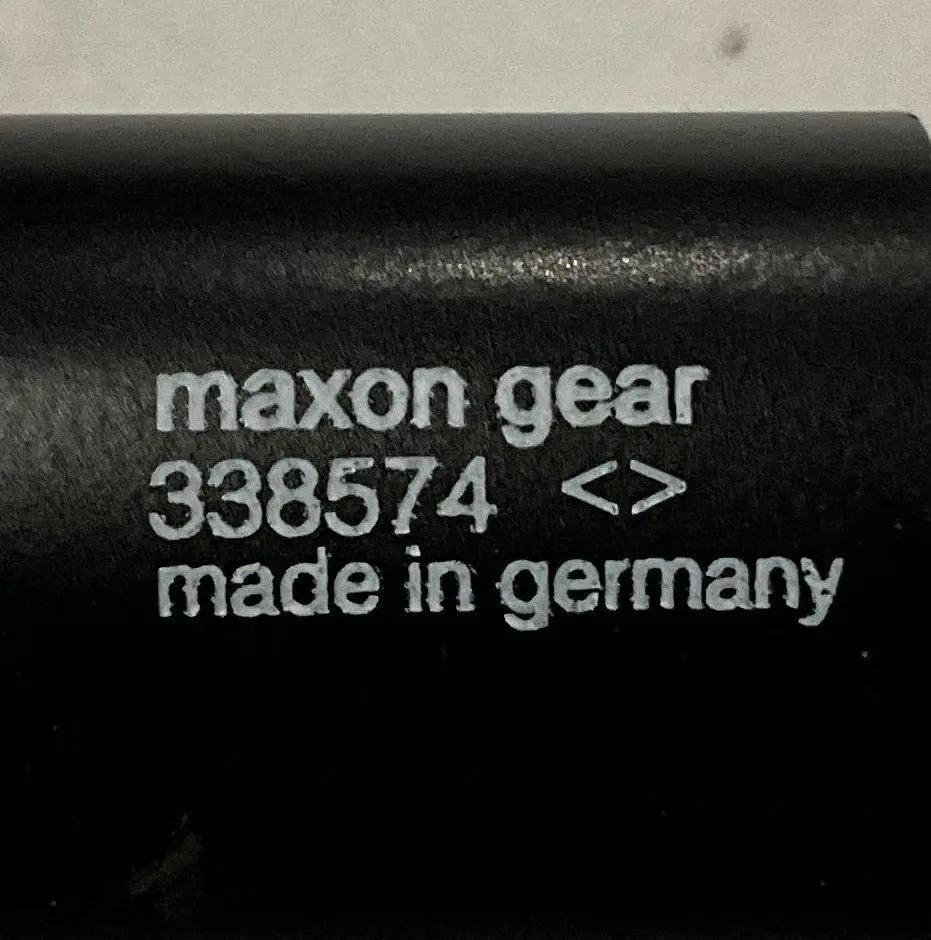

Part Number: 338574

Technical Specs:
- Gearhead Type: Planetary gearhead, straight teeth
- Outer Diameter: 32 mm
- Reduction Ratio: 236:1
- Number of Stages: 3
- Max. Continuous Torque: 4.5 Nm
- Max. Intermittent Torque: 6.2 Nm
- Max. Continuous Input Speed: 4000 rpm
- Max. Efficiency: Up to 70%
- Average Backlash No Load: <1.4°
- Output Shaft Material: Stainless steel, hardened
- Bearing at Output: Ball bearing
- Radial Play: Max. 0.1 mm
- Axial Play: 0.7 mm
- Max. Axial Load (Dynamic): 120 N
- Max. Radial Load: 210 N (12 mm from flange)
- Direction of Rotation: Same as input (drive to output)
- Operating Temperature Range: -30°C to 100°C
- Additional Features:
  - Designed for high torque in a compact size
  - Compatible with Maxon DC motors (e.g., EC motor series)
  - Modular system for direct motor adaptation
- Certifications: CE compliant

Dimensions:
- Diameter: 32 mm
- Length: 70 mm

Weight: 200g

Country of Origin: Switzerland

HS Code: 8483.40
