Merlin Gerlin Circuit Breaker Compact NS100N TM100D

Merlin Gerlin Circuit Breaker Compact NS100N TM100D

Merlin Gerin Compact NS100N Circuit Breaker with TM100D Trip Unit Specifications:

  • Product Type: Molded Case Circuit Breaker (MCCB)
  • Manufacturer: Schneider Electric (Merlin Gerin brand)
  • Model: Compact NS100N with TM100D
  • Device Application: Distribution protection
  • Poles Description: 3P 3d (3 poles, 3 protected)
  • Rated Current (In): 100 A at 40 °C
  • Trip Unit Name: TM100D
  • Trip Unit Technology: Thermal-Magnetic
  • Trip Unit Rating: 80–100 A (adjustable)
  • Protection Type:
    • Long-time overload protection (thermal)
    • Instantaneous short-circuit protection (magnetic)
  • Rated Insulation Voltage (Ui): 750 V AC 50/60 Hz (IEC 60947-2)
  • Rated Impulse Withstand Voltage (Uimp): 8 kV (IEC 60947-2)
  • Rated Operational Voltage (Ue): 690 V AC 50/60 Hz (IEC 60947-2)
  • Network Type: AC
  • Network Frequency: 50/60 Hz
  • Breaking Capacity Code: N
  • Breaking Capacity (Icu):
    • 85 kA at 220/240 V AC 50/60 Hz (IEC 60947-2)
    • 25 kA at 380/415 V AC 50/60 Hz (IEC 60947-2)
    • 20 kA at 440 V AC 50/60 Hz (IEC 60947-2)
    • 15 kA at 500/525 V AC 50/60 Hz (IEC 60947-2)
    • 8 kA at 660/690 V AC 50/60 Hz (IEC 60947-2)
    • 35 kA at 480 V AC 50/60 Hz (UL 508, per some sources)
  • Rated Service Breaking Capacity (Ics):
    • 85 kA at 220/240 V AC 50/60 Hz
    • 25 kA at 380/415 V AC 50/60 Hz
    • 20 kA at 440 V AC 50/60 Hz
    • 15 kA at 500/525 V AC 50/60 Hz
    • 8 kA at 660/690 V AC 50/60 Hz
  • Suitability for Isolation: Yes (IEC 60947-2)
  • Utilization Category: Category A
  • Control Type: Toggle
  • Mounting Mode: Fixed
  • Mounting Support: Backplate
  • Mounting Position: Horizontal, vertical, or flat on the back
  • Connection Type: Bolt-on (front connection, upside and downside)
  • Connection Pitch: 35 mm
  • Long-Time Pick-Up Adjustment Type (Ir): Adjustable (thermal)
  • Long-Time Pick-Up Adjustment Range: 0.8–1 x In (80–100 A)
  • Long-Time Protection Delay: Fixed (thermal curve)
  • Instantaneous Pick-Up Adjustment Type (Im): Fixed (magnetic)
  • Instantaneous Pick-Up Adjustment Range: 800 A
  • Mechanical Durability: 50,000 cycles
  • Electrical Durability:
    • 50,000 cycles at 440 V In/2
    • 25,000 cycles at 440 V In
    • 10,000 cycles at 690 V In
  • IP Degree of Protection: IP40 (IEC 60529)
  • IK Degree of Protection: IK07 (IEC 62262)
  • Electrical Shock Protection Class: Class II (front face)
  • Pollution Degree: 3 (IEC 60664-1)
  • Ambient Air Temperature for Operation: -25 to 70 °C
  • Ambient Air Temperature for Storage: -50 to 85 °C
  • Relative Humidity: 0–95 %
  • Operating Altitude: 0–2000 m without derating; 2000–5000 m with derating
  • Standards Compliance: IEC 60947-2, UL 508, CSA C22.2, CCC, EAC
  • Product Certifications: IEC, UL, CSA, CCC, EAC
  • Dimensions:
    • Width: 105 mm (3P), 140 mm (4P)
    • Height: 161 mm
    • Depth: 86 mm
  • Weight: Approximately 2.2 kg
  • HS Code: 8536.20.90
  • Country of Origin:  France
$224.62
Merlin Gerlin Circuit Breaker Compact NS100N TM100D—
$224.62

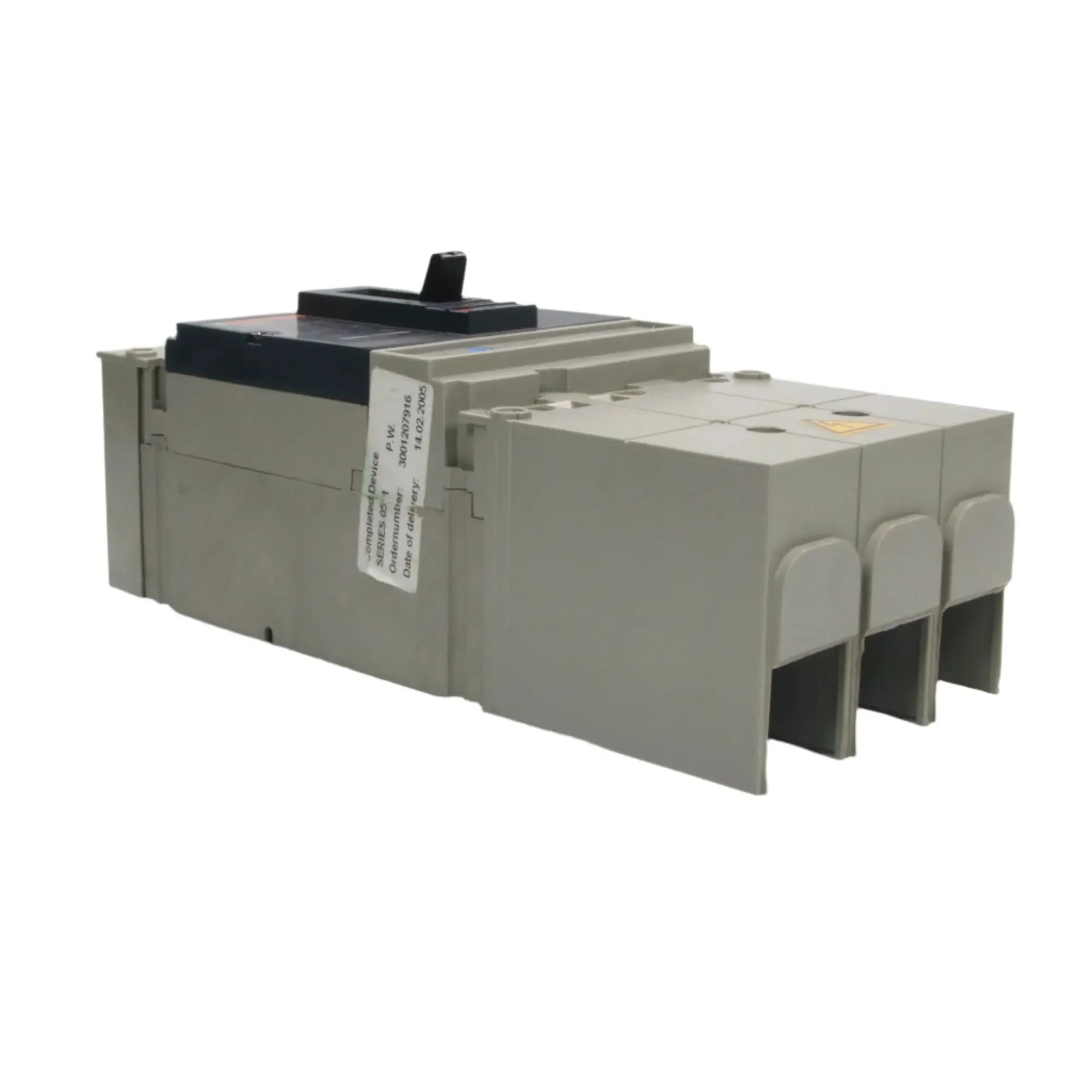

Product image 1

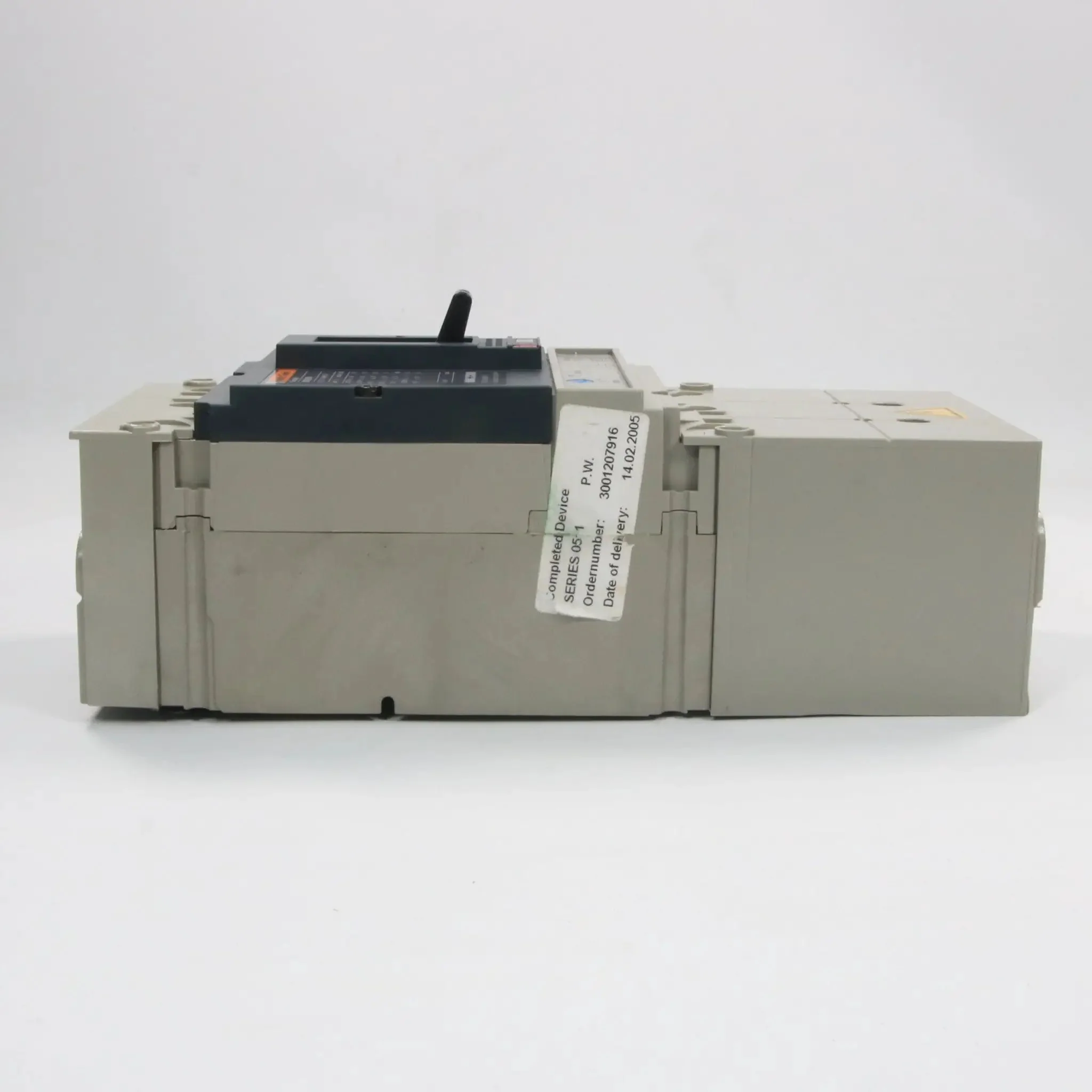

Product image 2

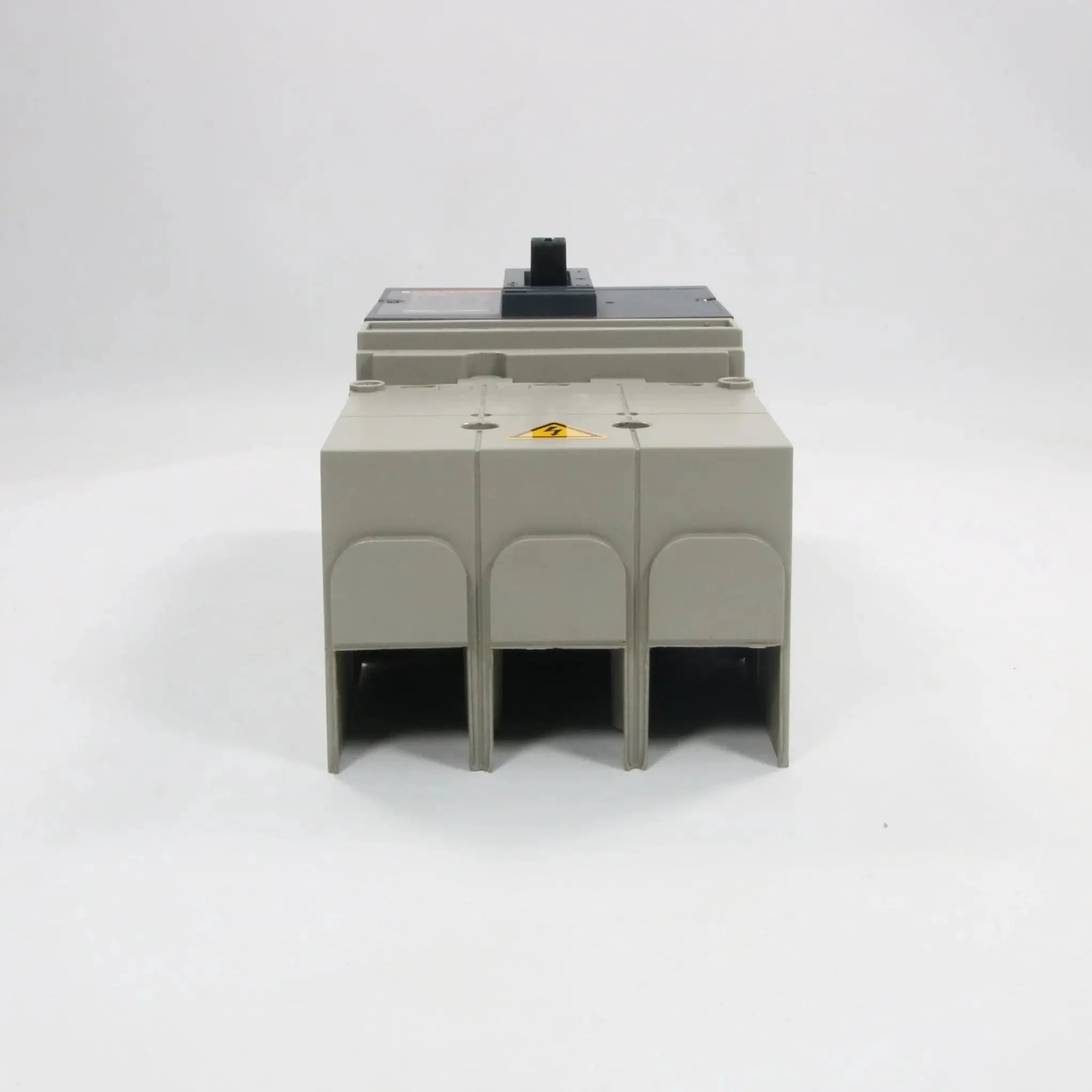

Product image 3

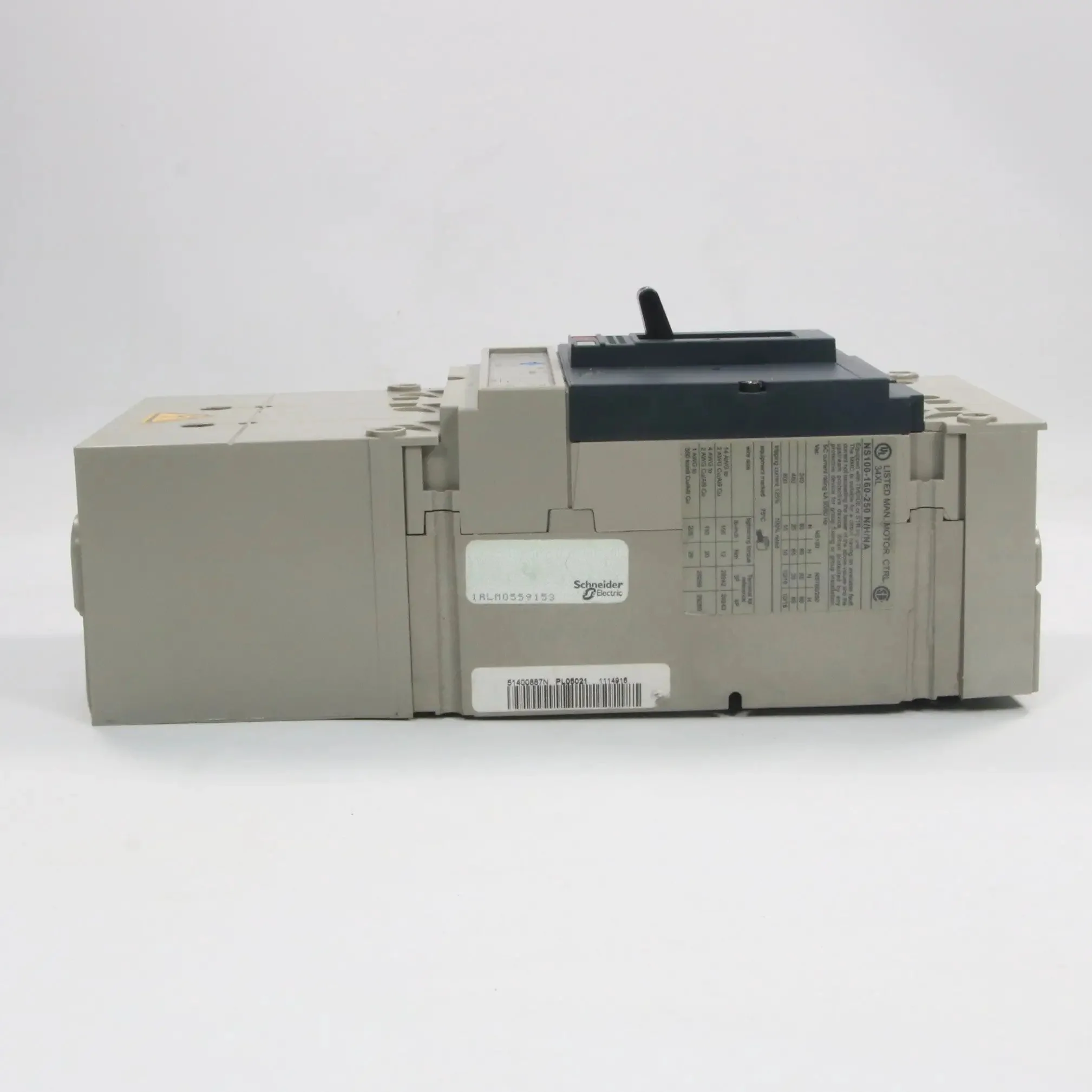

Product image 4

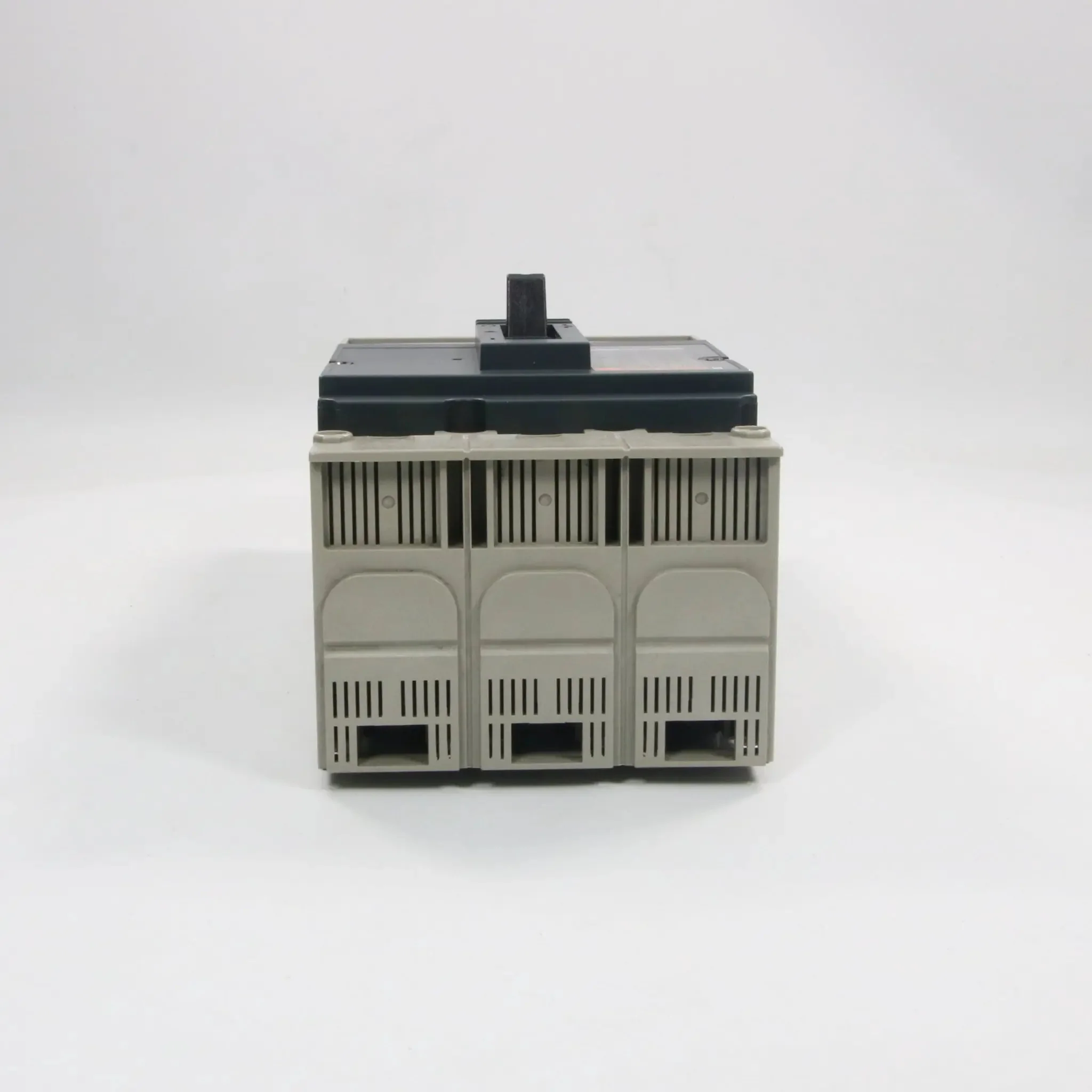

Product image 5
Product image 6

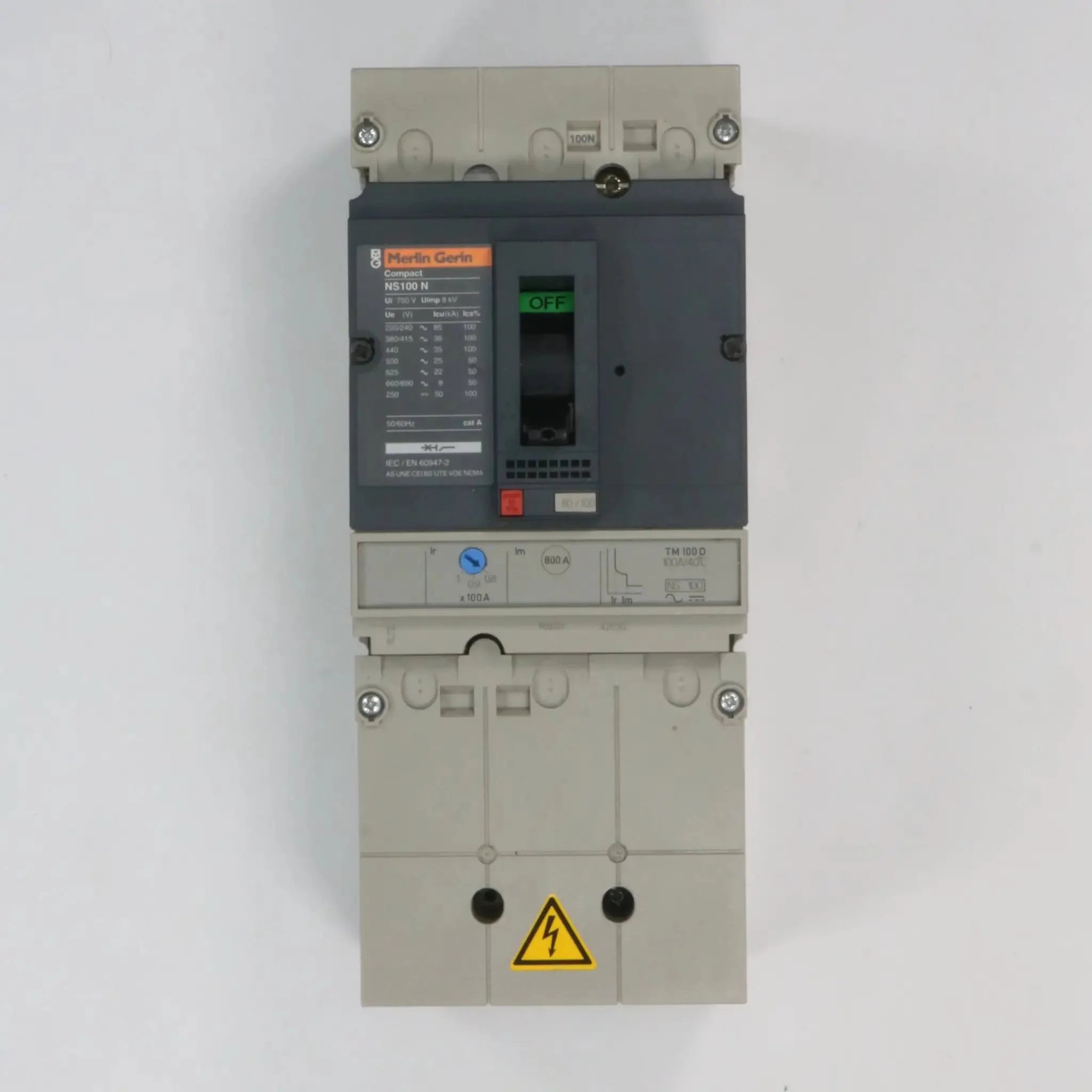

Product image 7
