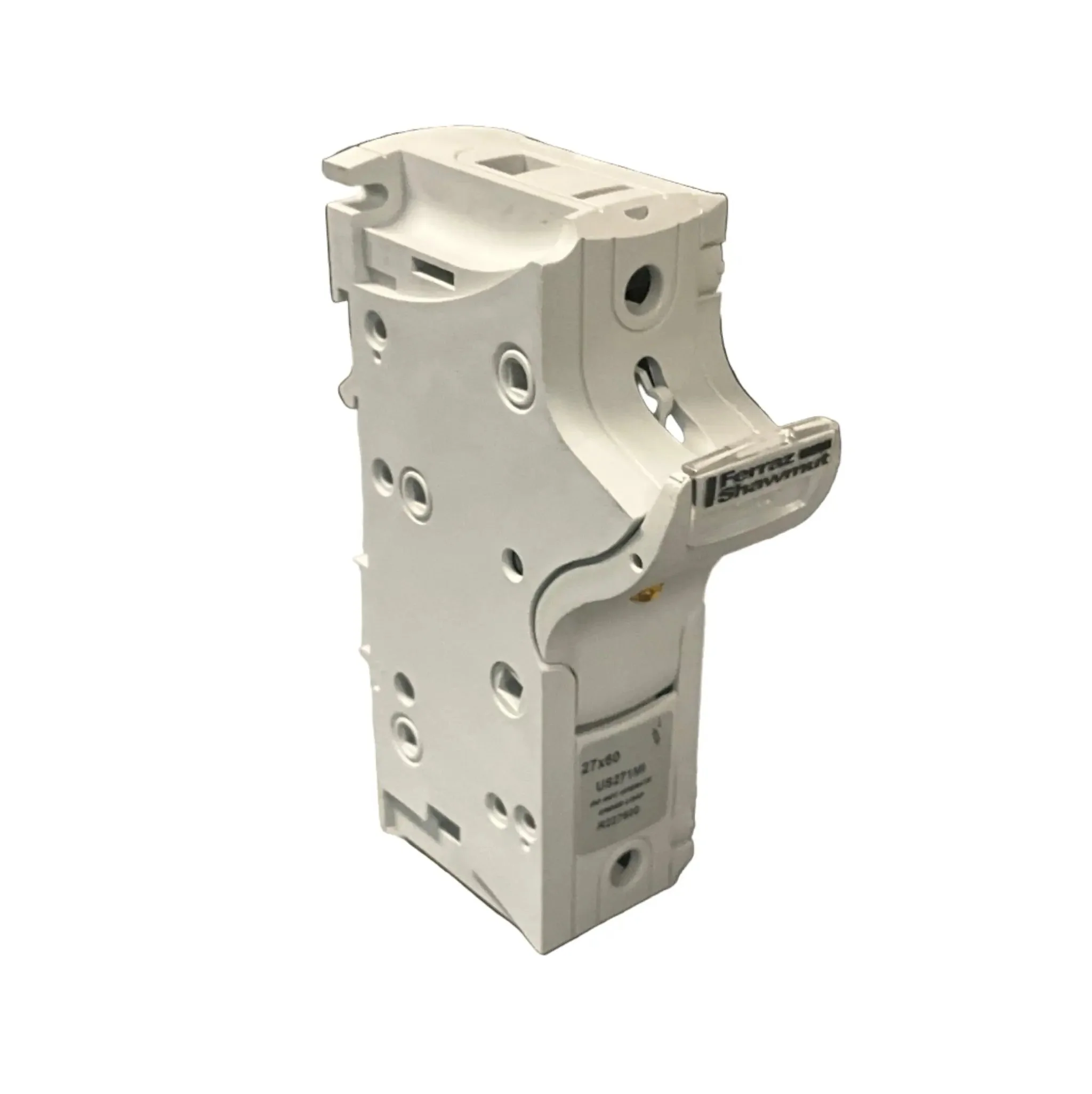

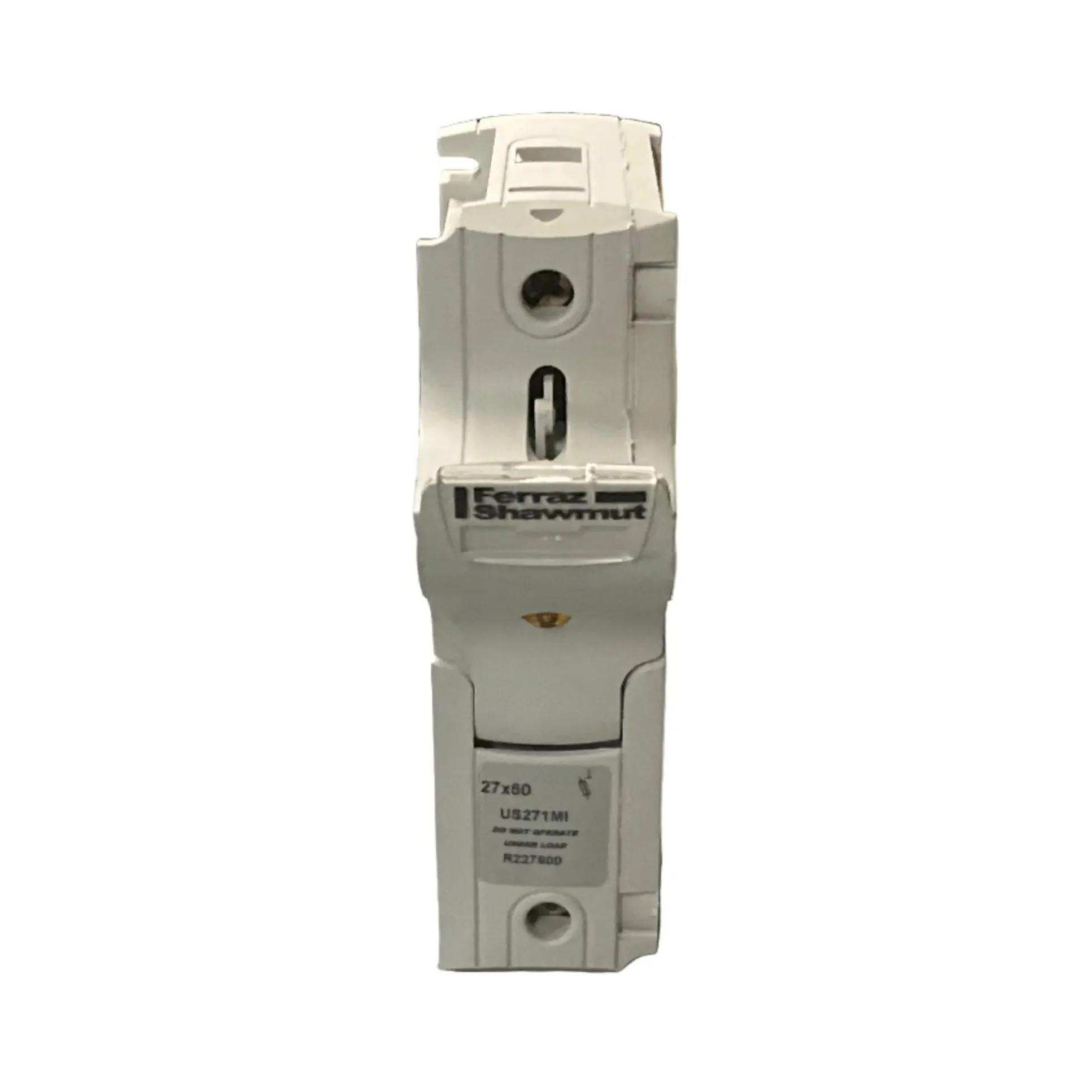

Mersen Modulostar R227600 Modular Fuse Holder

Brand: Mersen
Series: Modulostar® CMS27 – UltraSafe™ US27
Part Number: R227600
Model: US271MI

Specifications:

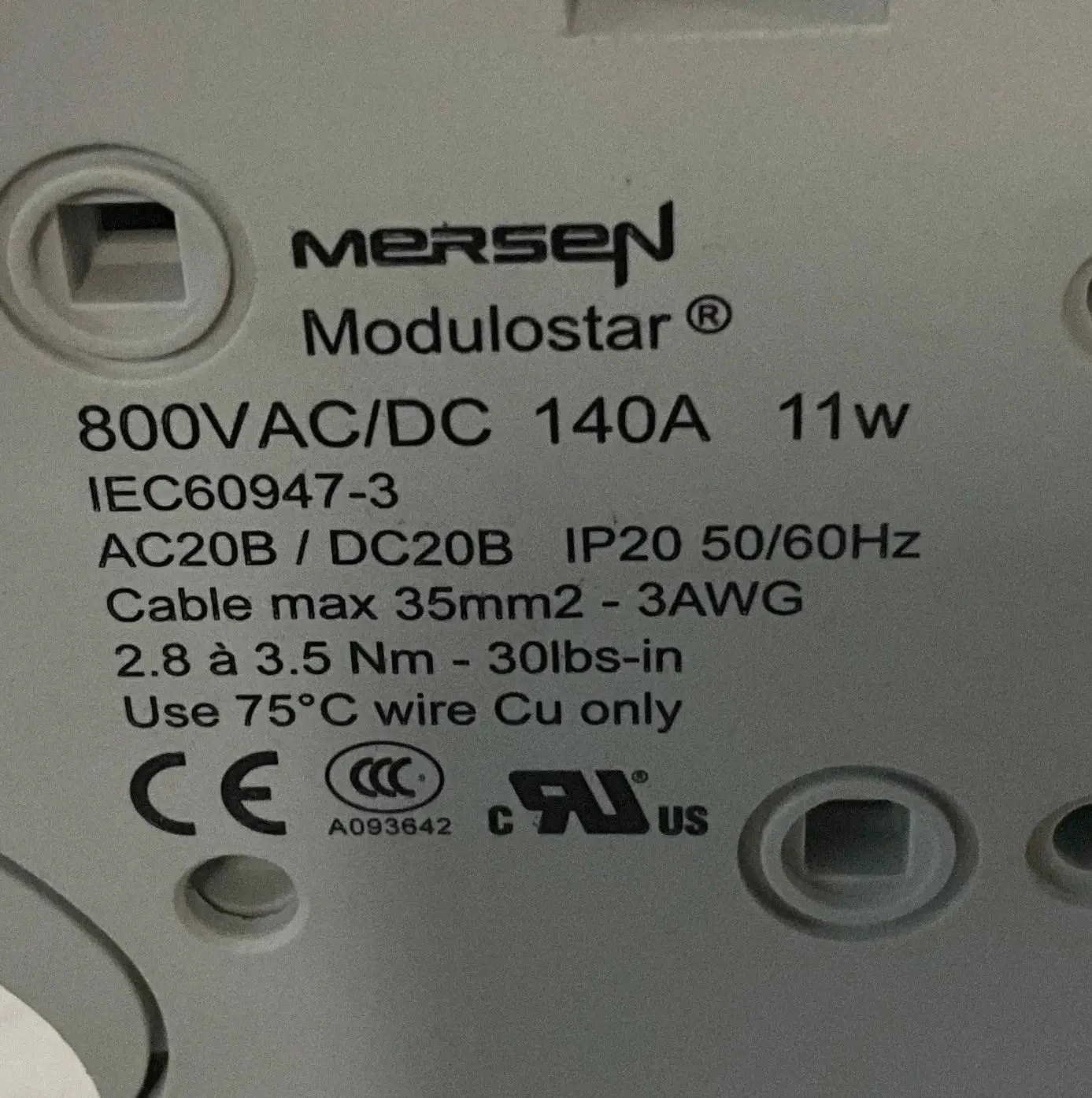

Rated Voltage (AC & DC, UL & IEC): 800 V
Rated Current: 140 A
Rated Insulation Voltage: 800 V
Rated Impulse Withstand Voltage (Uimp): 8 kV
Fuse Size: 27 × 60 mm
Visual Indicator: Yes (blown-fuse indication)
Connector Type: Faston (quick-connect tabs)
Mounting: DIN-rail (EN 60715)
Material: Durable thermoplastic or thermoset
Compliance & Standards:
IEC 60269‑2 and IEC 60947‑3
UL 4248‑1
RoHS
Torque Rating: 3.5 N·m
Max Power Dissipation with Fuse Links (Pn): 11 W
Width: 39.9 mm
Length/Depth: 93.5 mm
Height: 149.4 mm
Product Weight: 380g

Description:
Modular fuse holder, UltraSafe™ design, suitable for 27 × 60 mm fuses. 1‑pole configuration with visual blown-fuse indicator and microswitch.
