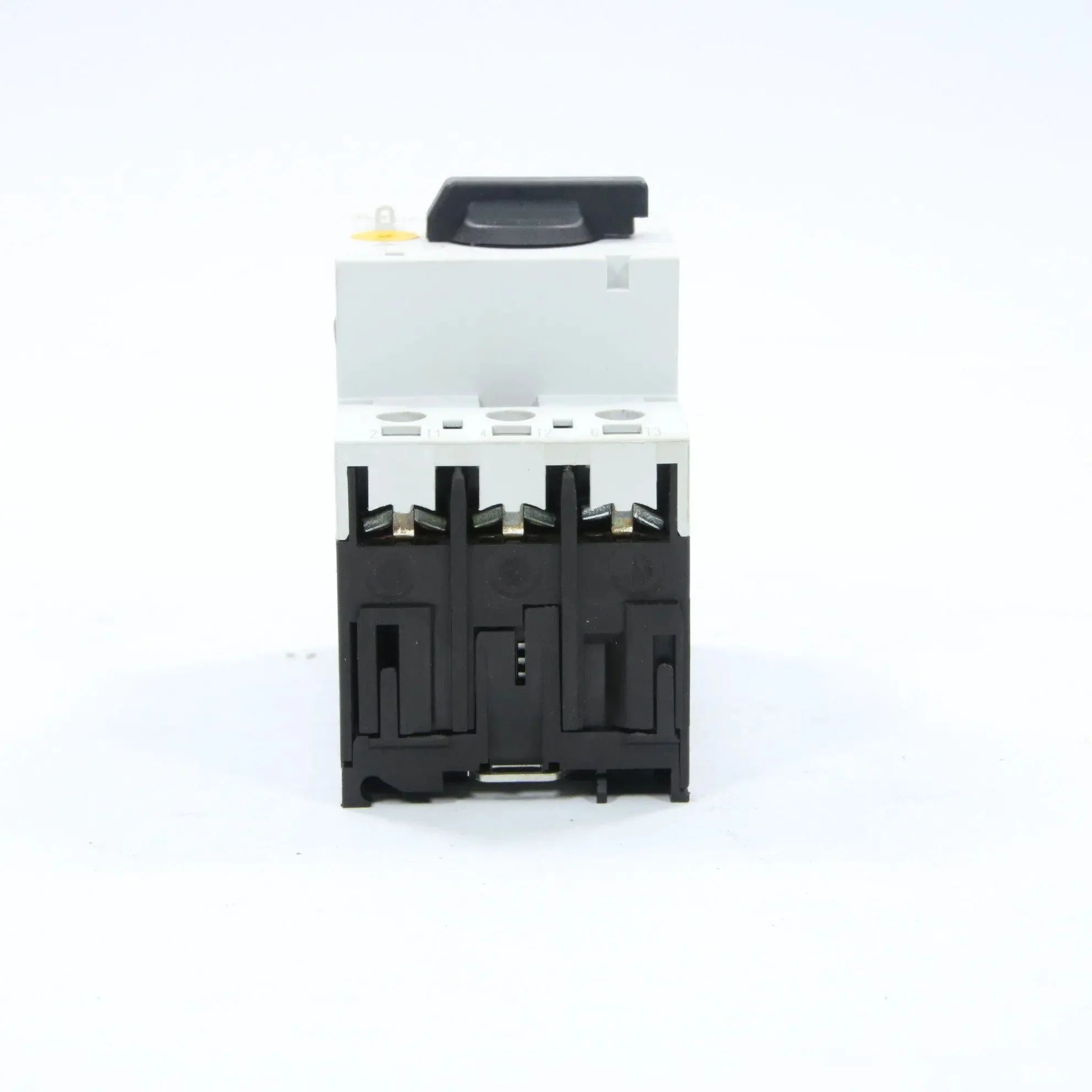

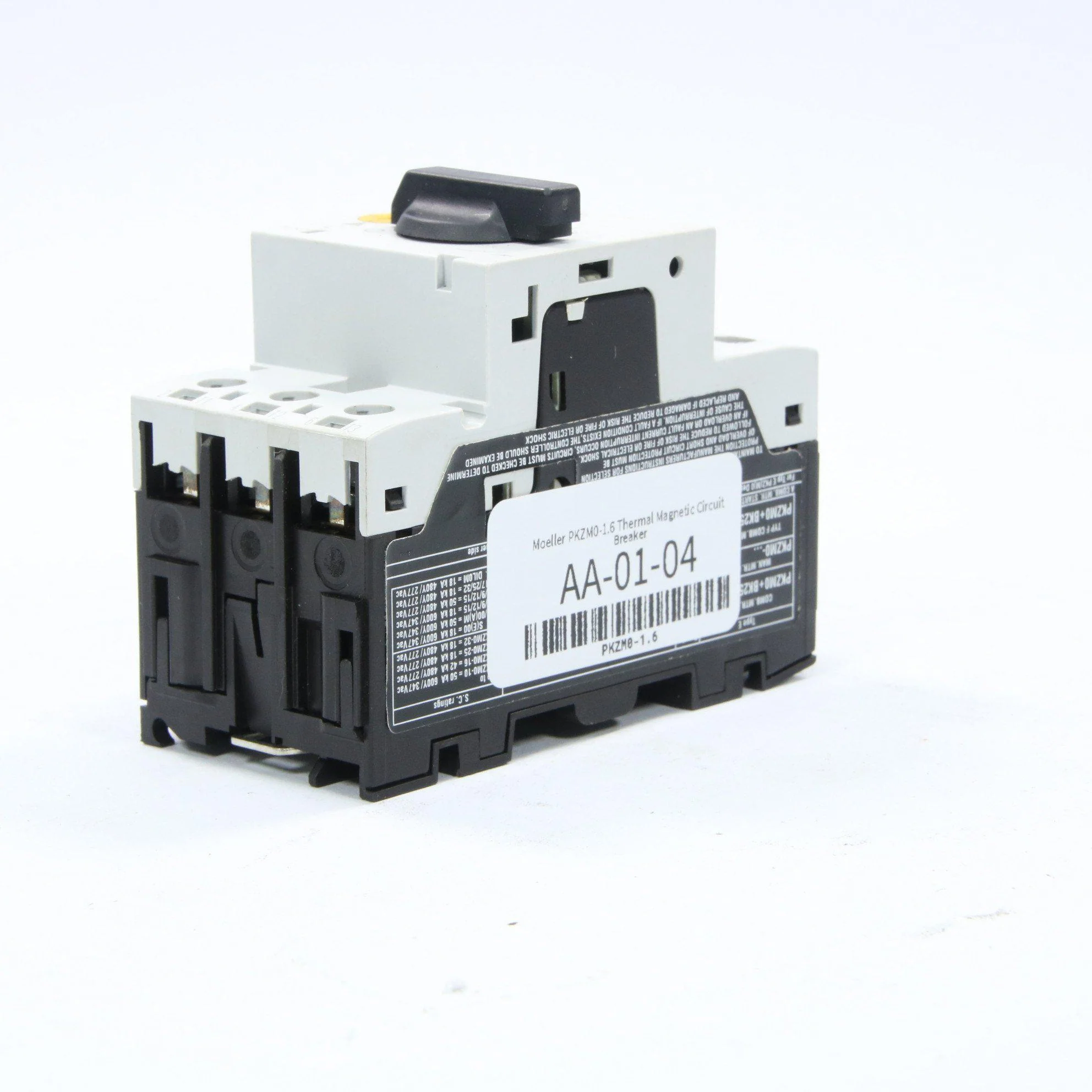

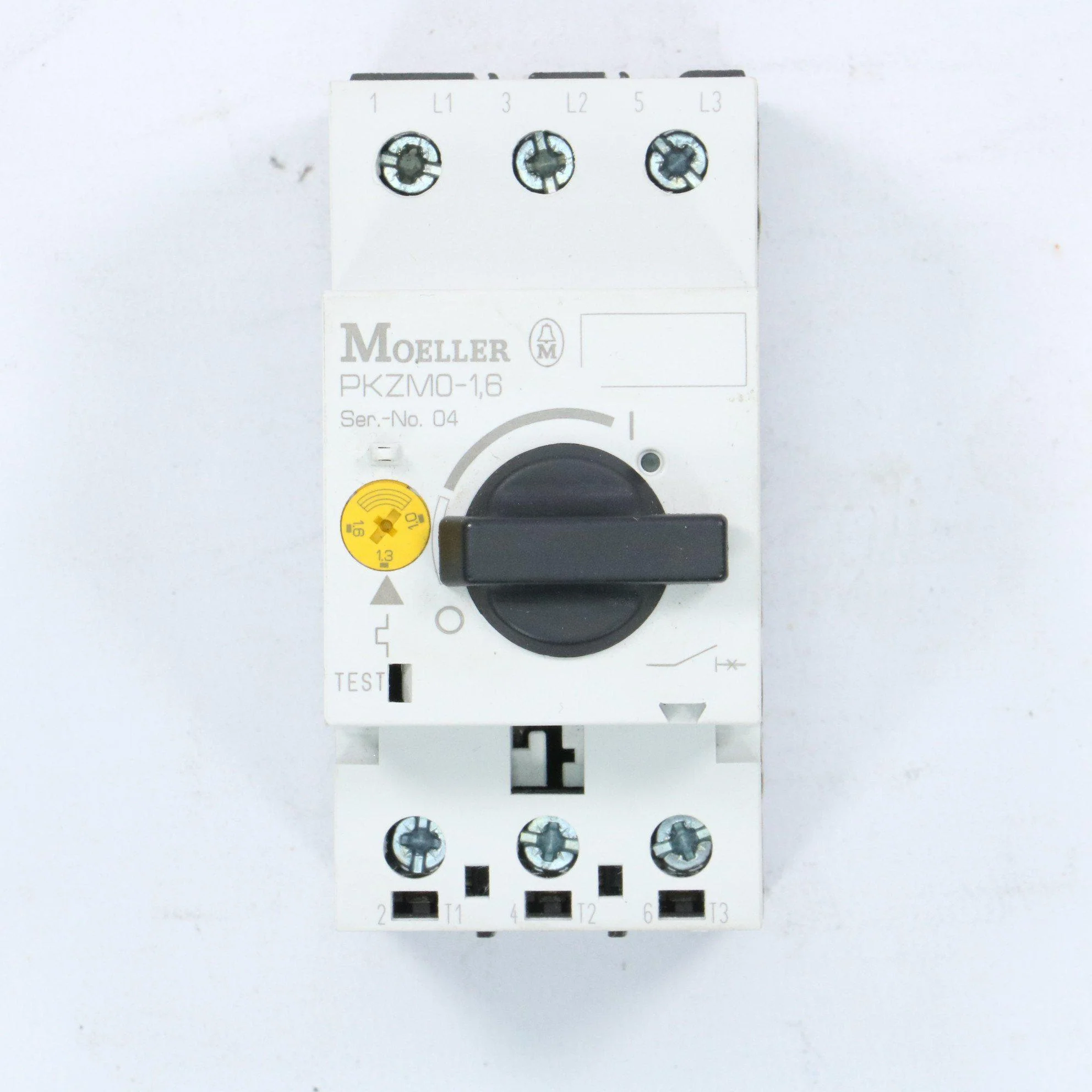

Moeller PKZM0-1.6 Thermal Magnetic Circuit Breaker
Moeller PKZM0-1.6 Thermal Magnetic Circuit Breaker
The PKZM0-1.6 from Eaton Moeller is a three pole motor protective circuit breaker. This device combines short circuit protection and overload protection in a single device which enables short recovery time.
- Setting range of overload releases from 1A to 1.6A
- Screw termination
- 20% tolerance
- Ambient temperature of 20°C
- Short circuit breaking capacity of 150KA
- IEC/EN 60947, CCC, VDE, UL and CSA approved
- Rated uninterrupted current (operational current) of 1.6A
Select Condition
From $67.28
Moeller PKZM0-1.6 Thermal Magnetic Circuit Breaker—
$67.28
Description
Moeller PKZM0-1.6 Thermal Magnetic Circuit Breaker
The PKZM0-1.6 from Eaton Moeller is a three pole motor protective circuit breaker. This device combines short circuit protection and overload protection in a single device which enables short recovery time.
- Setting range of overload releases from 1A to 1.6A
- Screw termination
- 20% tolerance
- Ambient temperature of 20°C
- Short circuit breaking capacity of 150KA
- IEC/EN 60947, CCC, VDE, UL and CSA approved
- Rated uninterrupted current (operational current) of 1.6A
