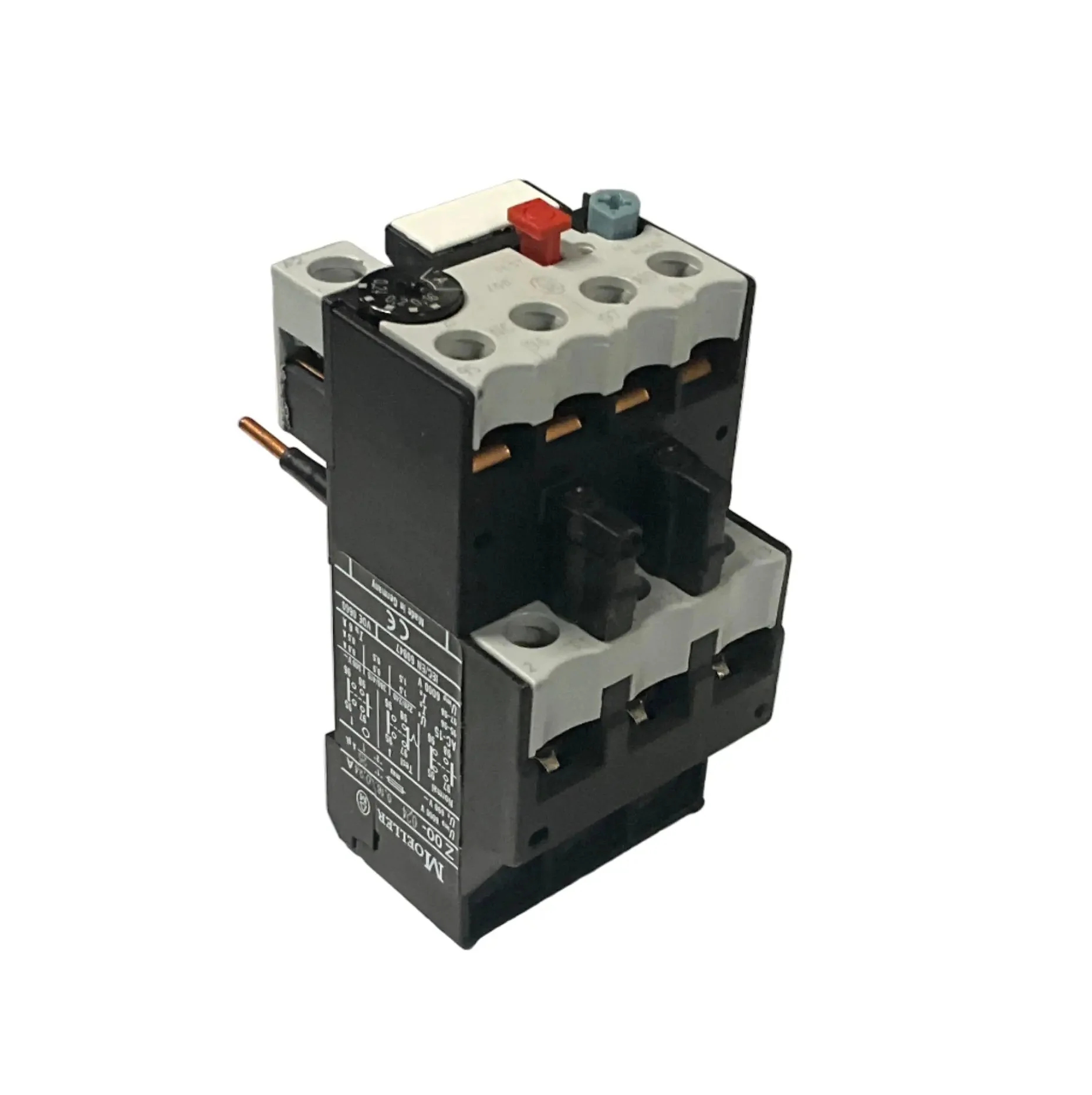

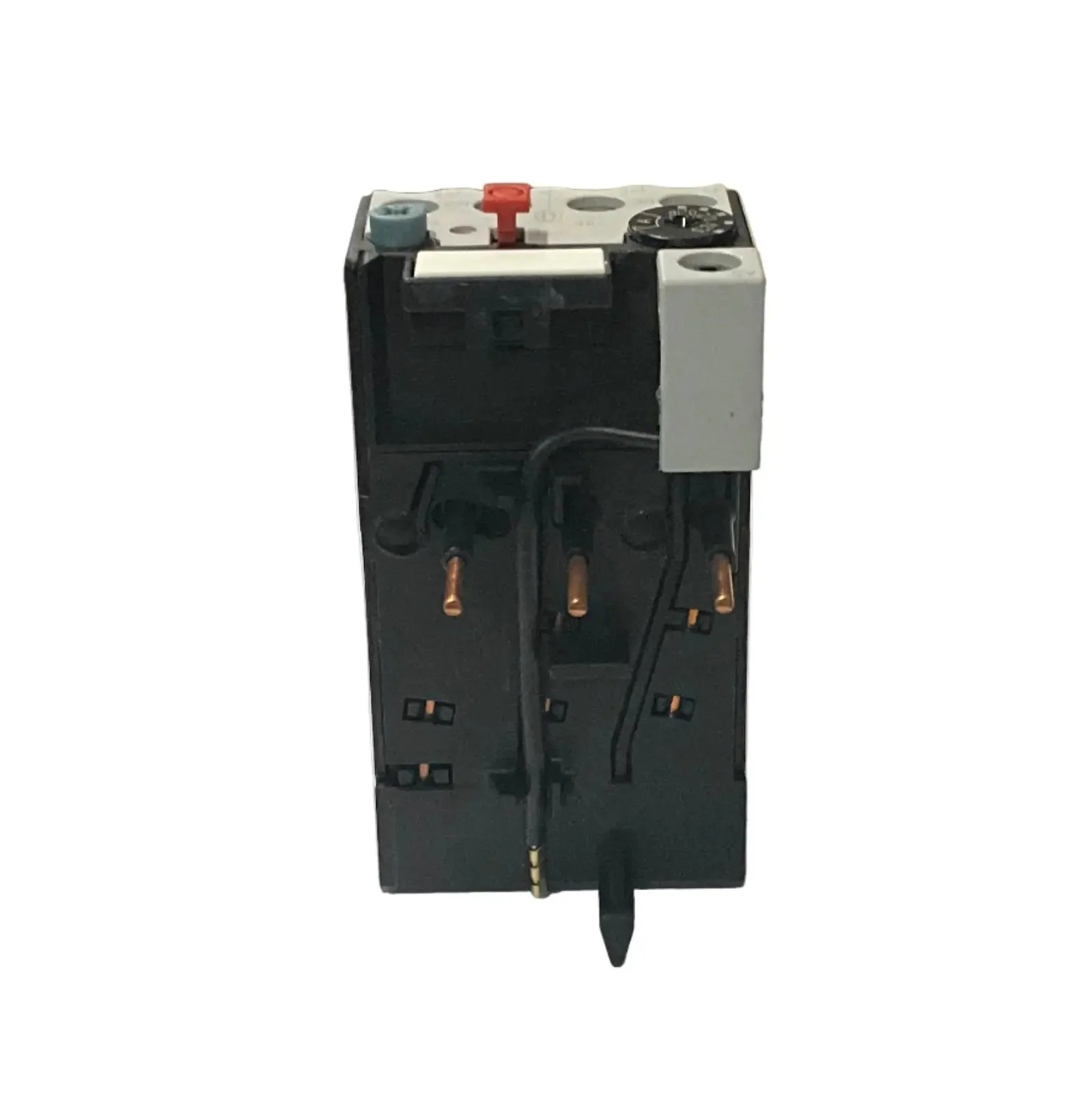

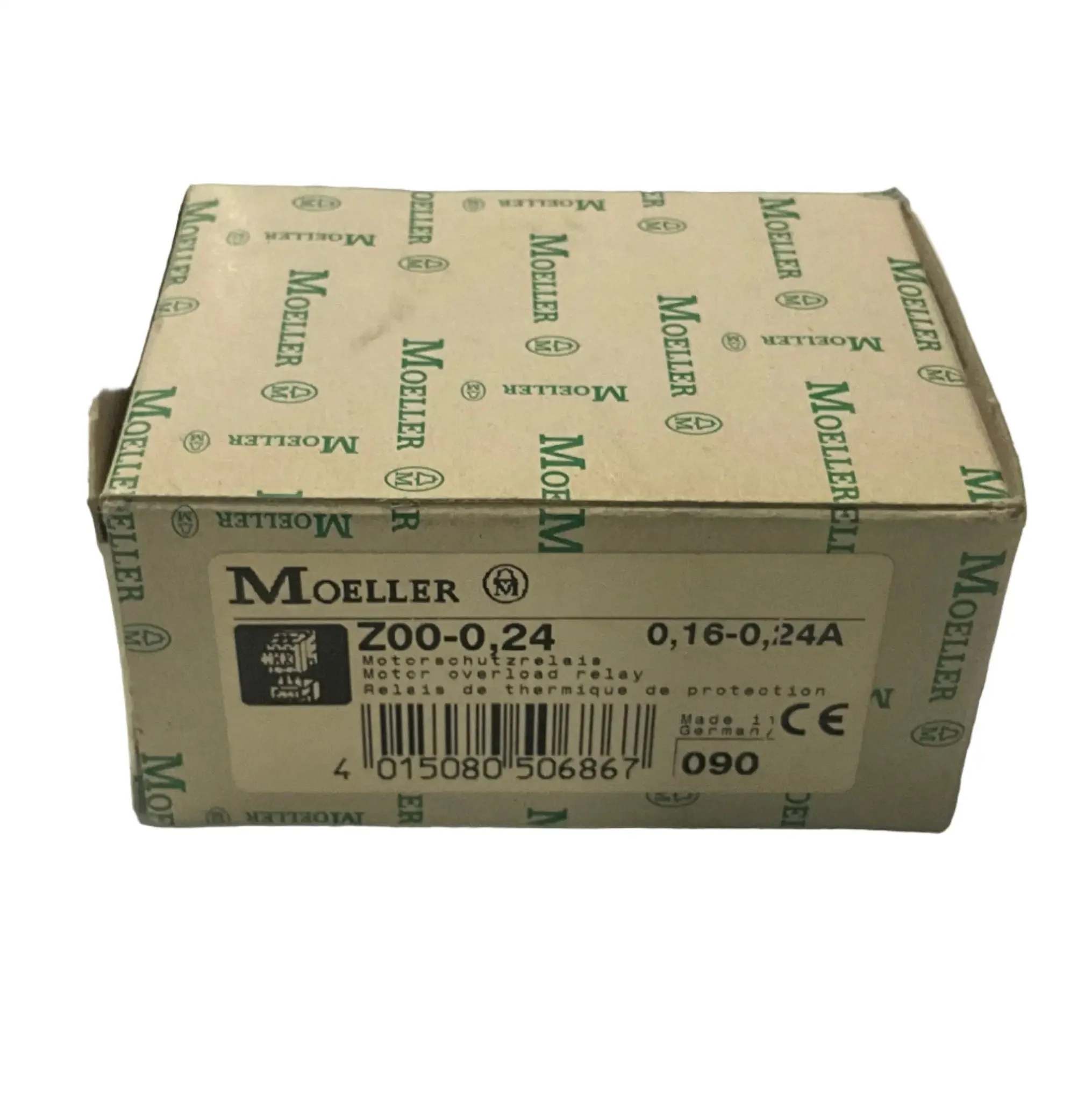

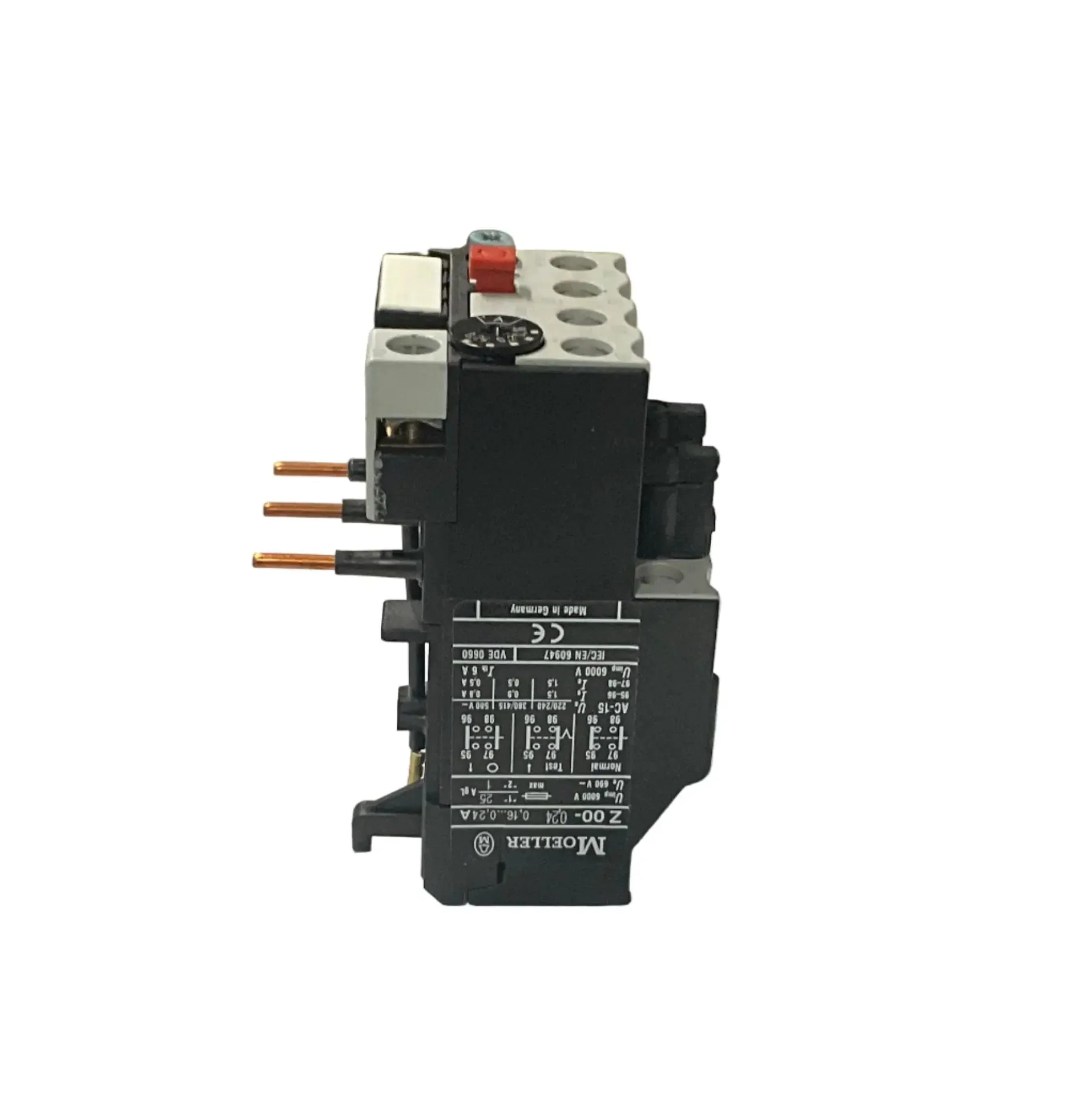

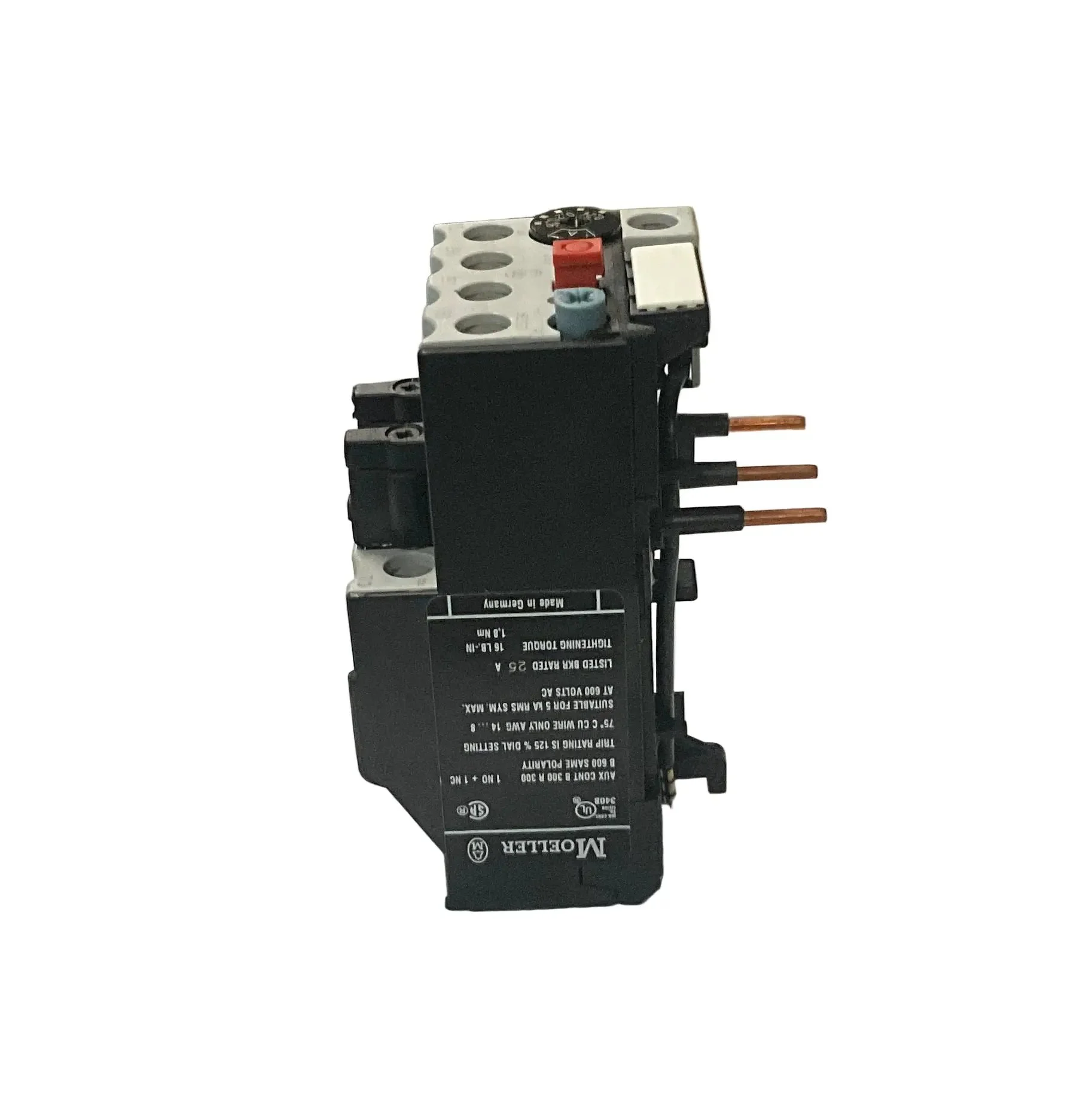

Moeller Z00-0,24 Motor Overload Relay

Brand: Moeller
Model: Z00-0.24
Type: Motor Overload Relay (Thermal Overload Relay)
Part Number: Z00-0.24

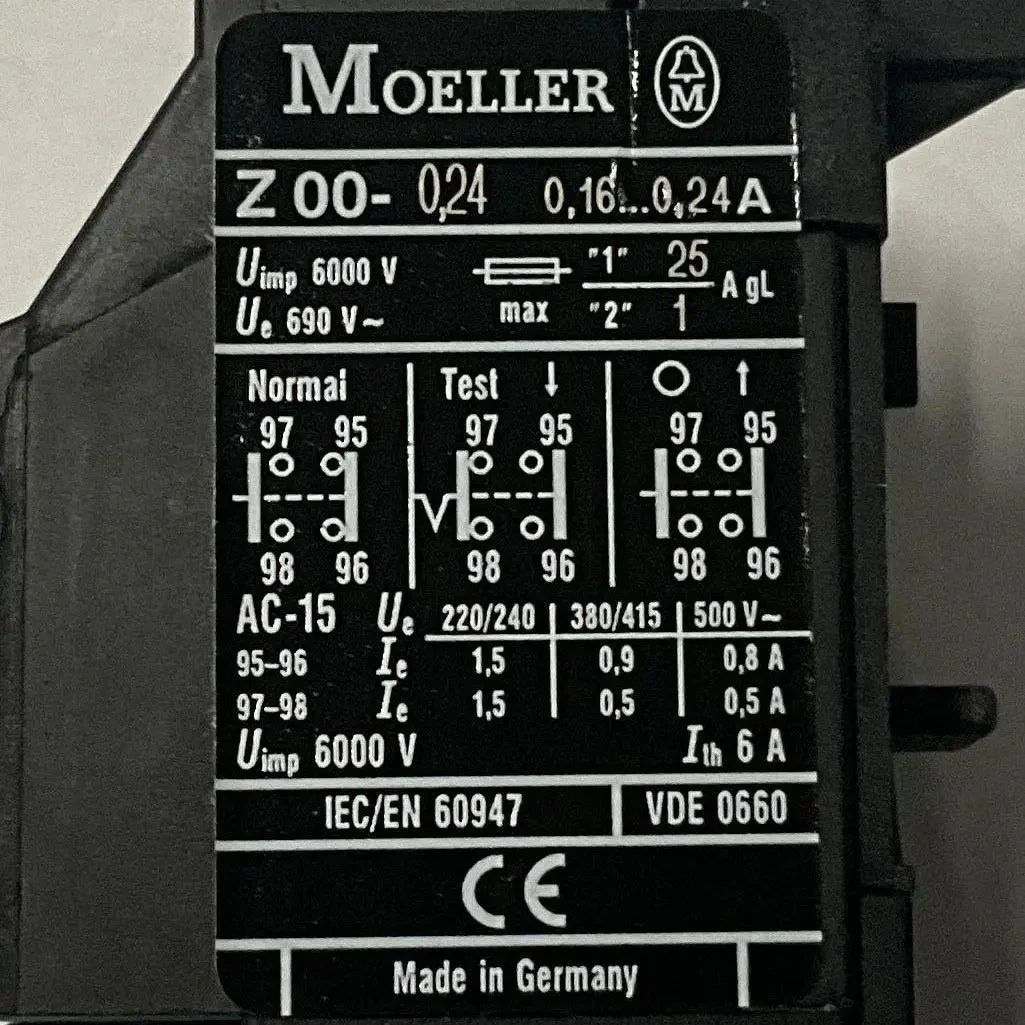

Technical Specs:
- Adjustable Current Range: 0.16 A to 0.24 A
- Number of Poles: 3-pole
- Rated Voltage (Ue): 690 V AC
- Rated Impulse Withstand Voltage (Uimp): 6000 V
- Contact Configuration: 1 Normally Open (NO) and 1 Normally Closed (NC)
- Trip Class: Class 10
- Mounting: Direct mounting
- Connection Type: Screw terminals
- Short-Circuit Protection: By fuses up to 25 A for 0.16-0.24 A range
- Operating Temperature Range: -25°C to 70°C
- Additional Features:
  - Thermal overload protection with manual reset
  - Compact design for DIN rail or panel mounting
  - High reliability for continuous duty
- Certifications: CE compliant

Dimension: 90 x 62 x 45 mm

Weight: 150 g

Country of Origin: Germany

HS Code: 8536.20
