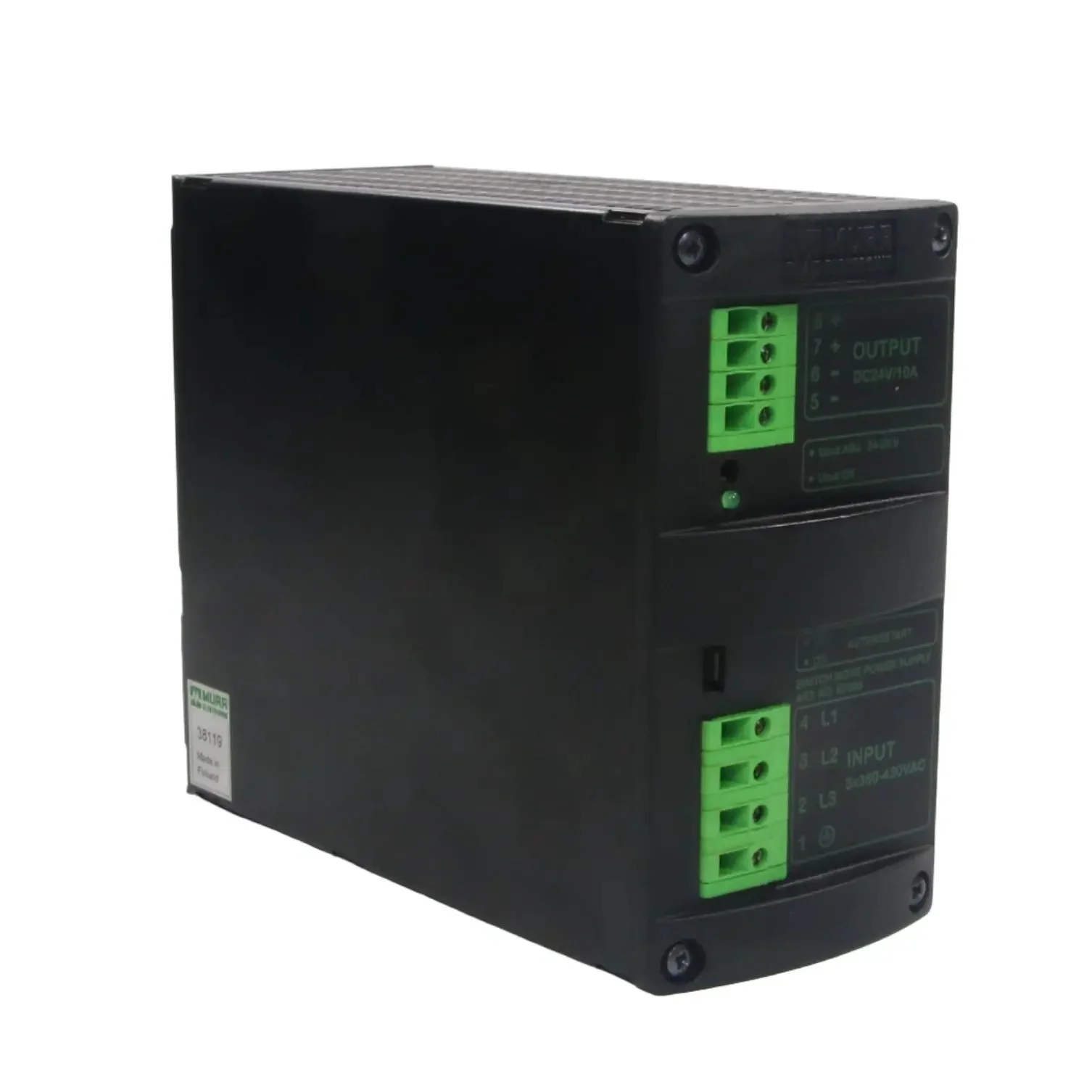

Murr Elektronik MCS10-3X400/24 Switch Mode Power Supply - 85095
Brand: Murr Elektronik
Model: MCS10-3x400/24
Type: Switch Mode Power Supply
Art. Nr.: 85095
- Material: Metal housing

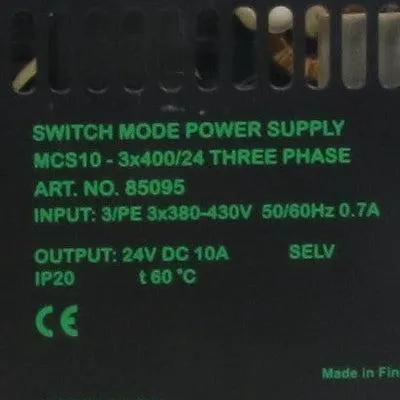

- Input Voltage: 3-phase 3 x 380-430V 50/60Hz
- Input Current: 0.7 A
- Output Voltage: 24 VDC
- Output Current: 10 A
- Efficiency: >90%
- Ripple/Noise: <100 mVpp
- Hold-Up Time: >20 ms at full load
- Protection: Overload (OLP, auto-recovery), overvoltage (OVP), short-circuit (SCP)

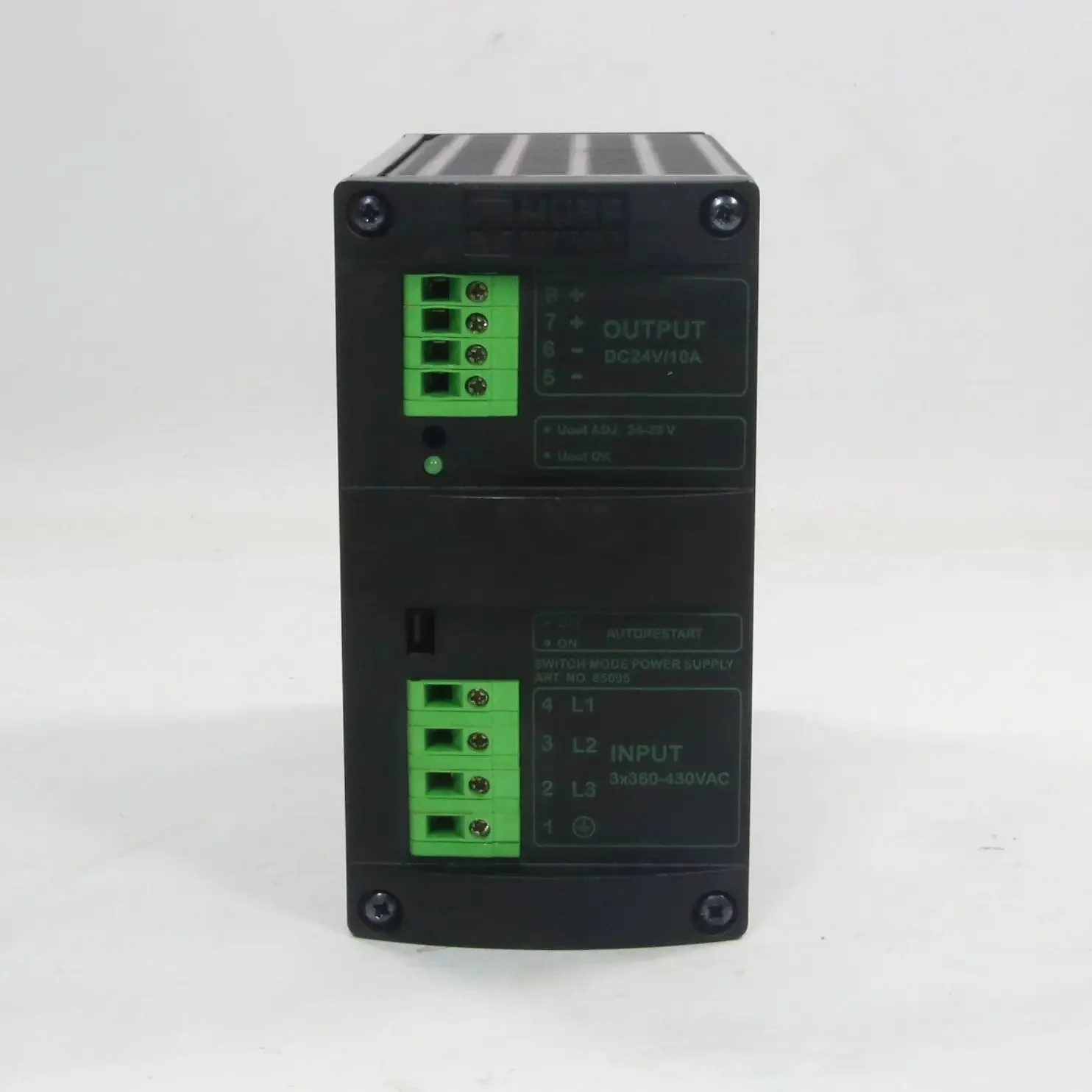

- Connection: Screw terminals
- Operating Temperature Range: -25°C to +70°C
- Storage Temperature Range: -40°C to +85°C
- Altitude: Up to 2000 m
- Standards: IEC/EN 60950-1; EN 61000-6-2/4 (EMC Class B)
- Certification: CE marked; RoHS compliant; UL listed (UL 508); cULus
- Features: Active PFC for power factor correction; parallel operation up to 3 units; LED indicators for power/output; suitable for automation systems
Dimensions: 160 x 130 x 70 mm
Weight: 1.2 kg

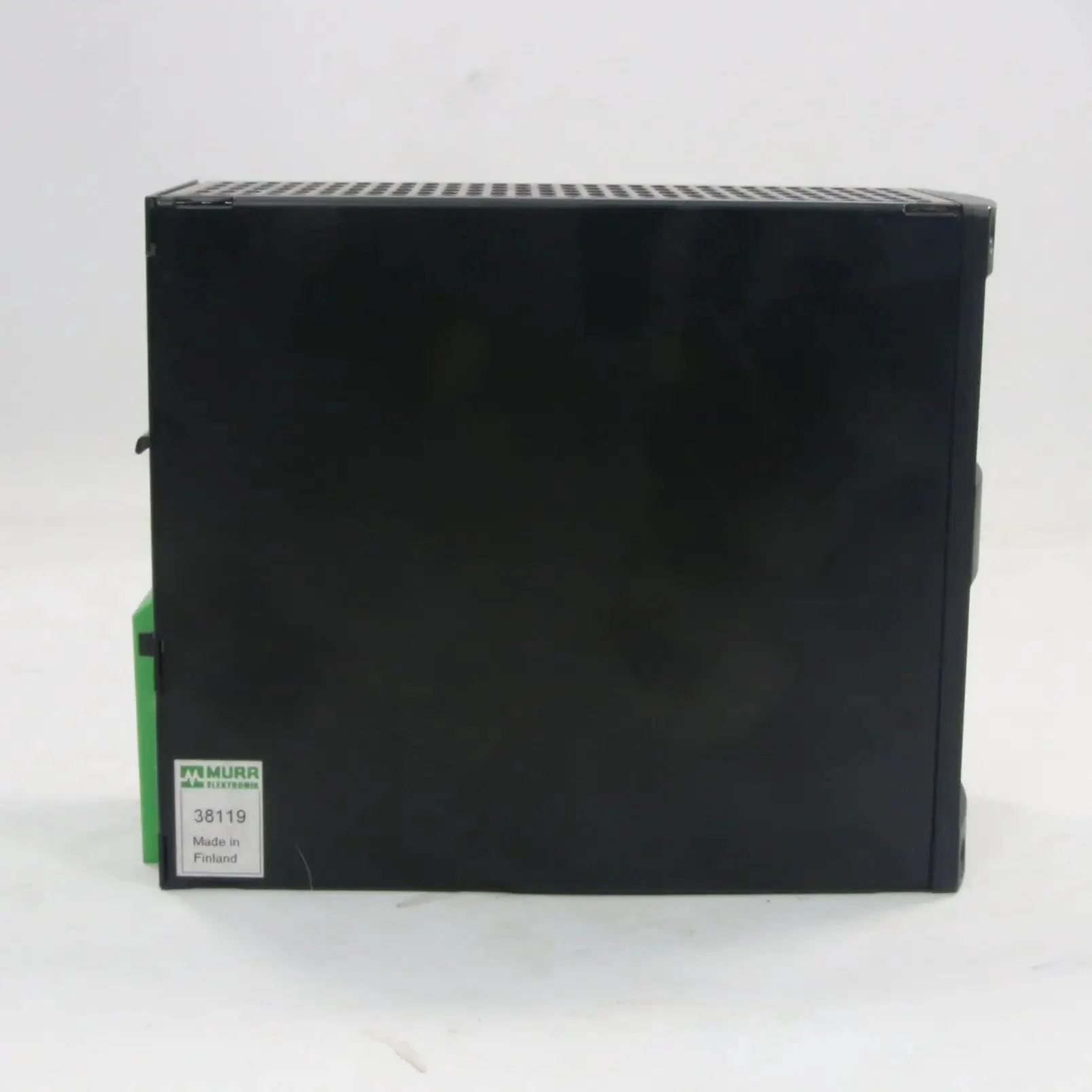

Country of Origin: Finland
HS Code: 8504.40
