Nerimotori T50B2 3 Phase Asynchronous Motor

Brand: Neri Motori
Model: T50B2
Type: Three-phase Asynchronous Motor
Part Number: T50B2

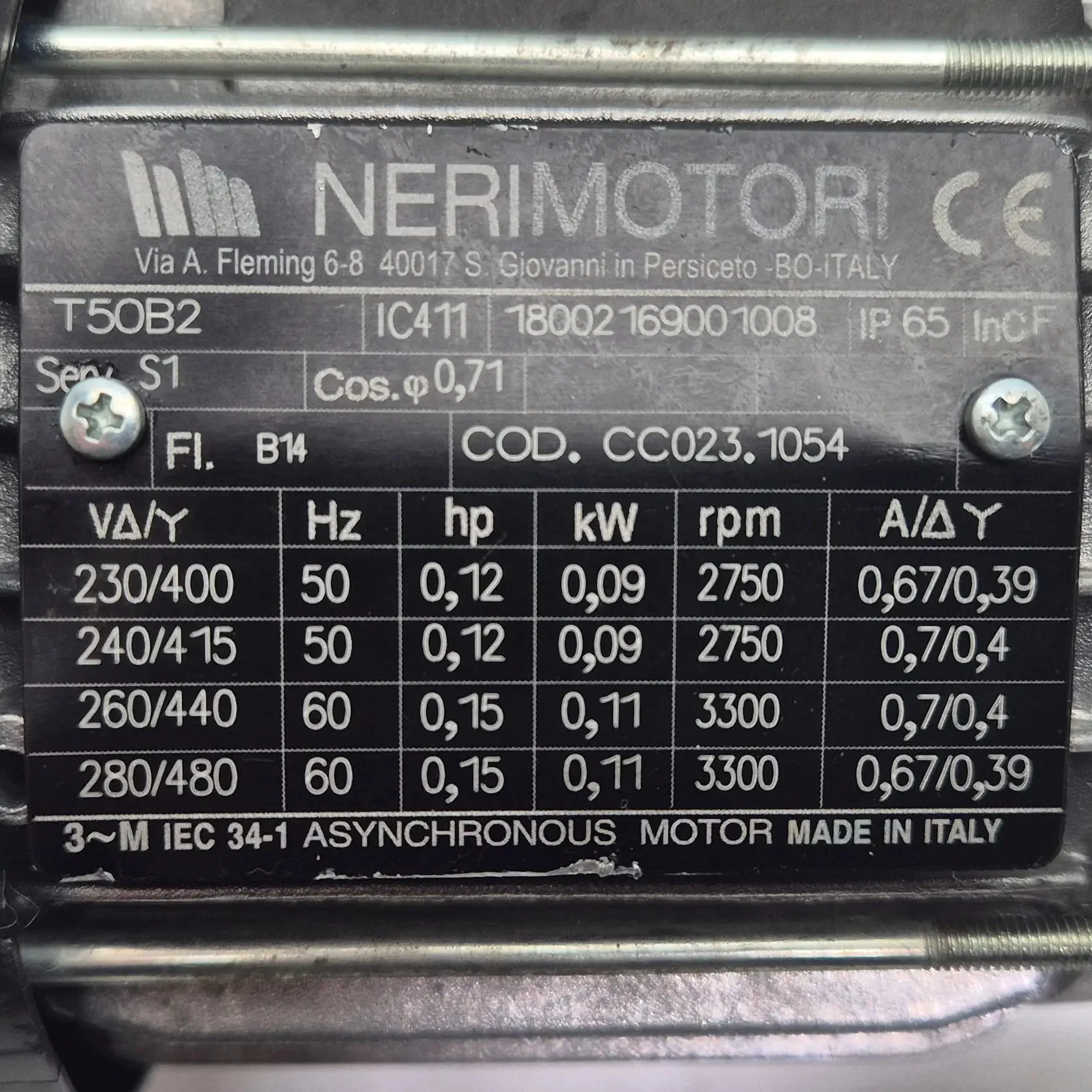

Technical Specs:

Power: 0.09 kW (0.12 hp)

Performance: 2750rpm @ 50Hz

Voltage: 230/415 V (50 Hz)

Current (In): 0.7 A (at 400 V, 50 Hz)

Efficiency (Eff.): 49.0%

Power Factor (Cos φ): 0.71

Pole Configuration: 2 poles

Enclosure Rating: IP65

Insulation Class: F

Ambient Temperature: -15°C to 40°C

Altitude: Designed for operation below 1000 m above sea level

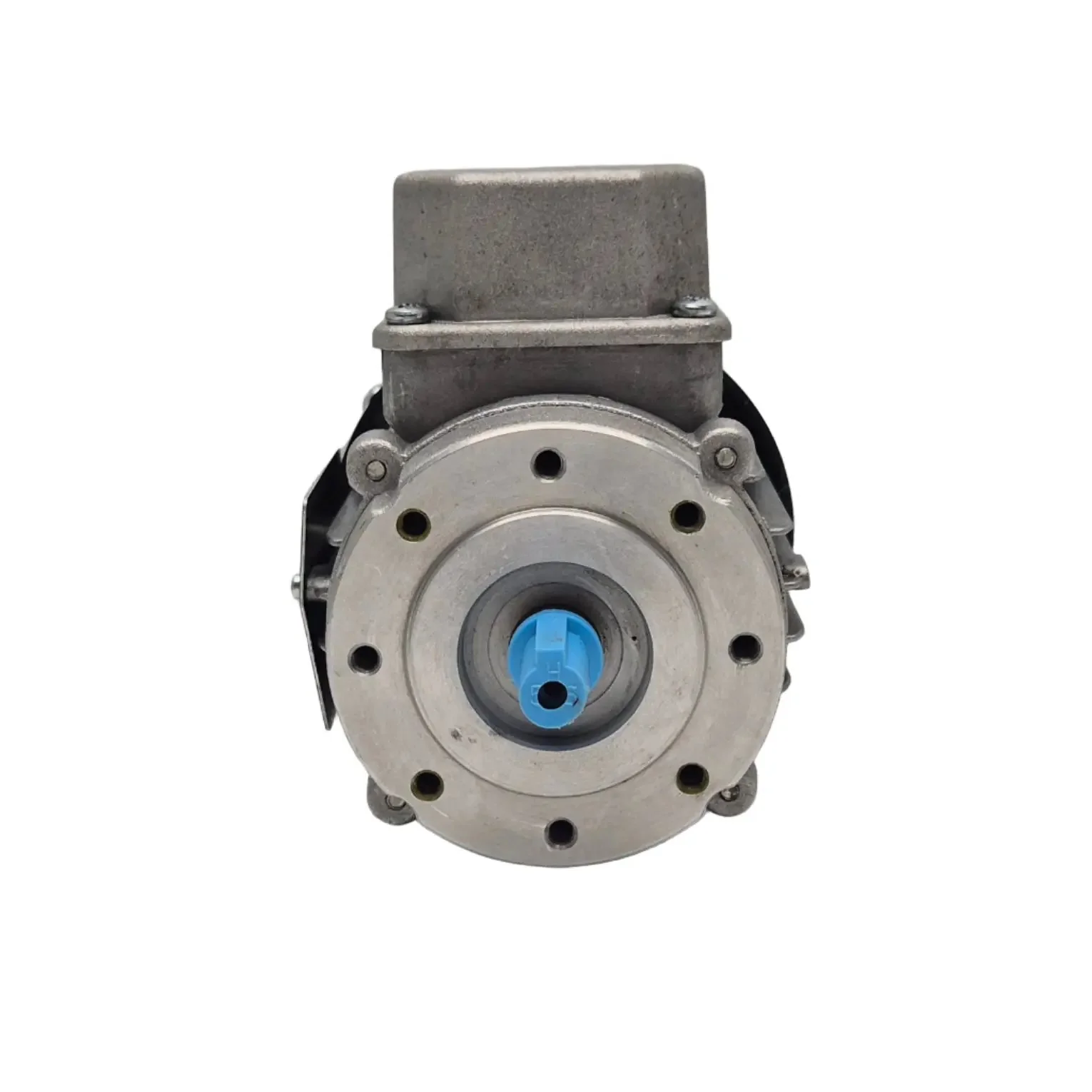

Mounting Configurations: B14 Flange per IEC 34-1

Cooling Method: IC 411 (standard self-cooled)

Stator Winding Insulation: Double-layer insulating enamel on copper wire, NOMEX/D.M./D.M.D. insulation, impregnated with insulating paint and kiln-fired

Frequency Compatibility: 50 Hz standard; 60 Hz operation possible with adjusted performance

Voltage Tolerance: ±10% of rated voltage for three-phase motors

Dimension: 160 x 100 x 80 mm

Weight: 2.4 kg

Country of Origin: Italy

HS Code: 8501.50
