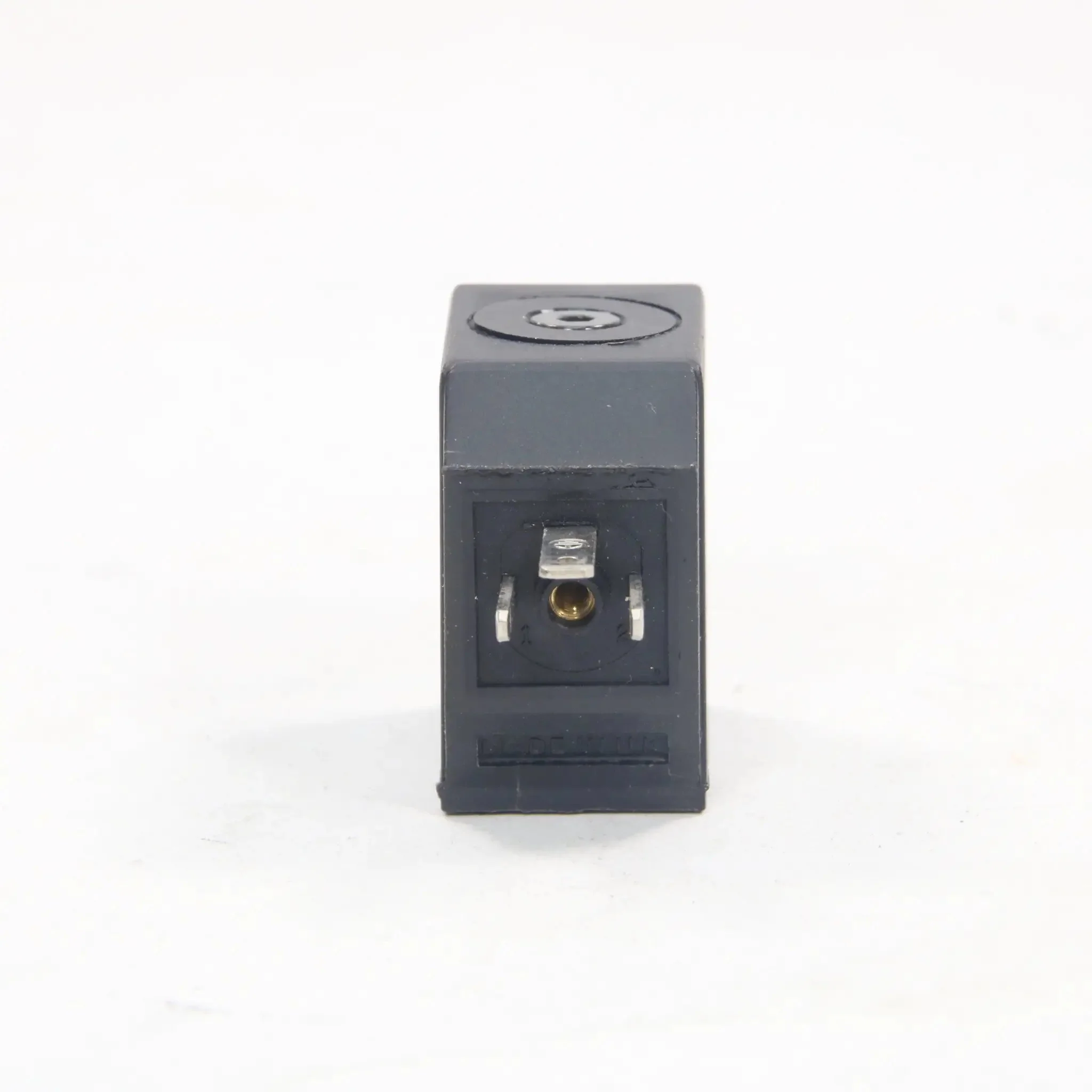

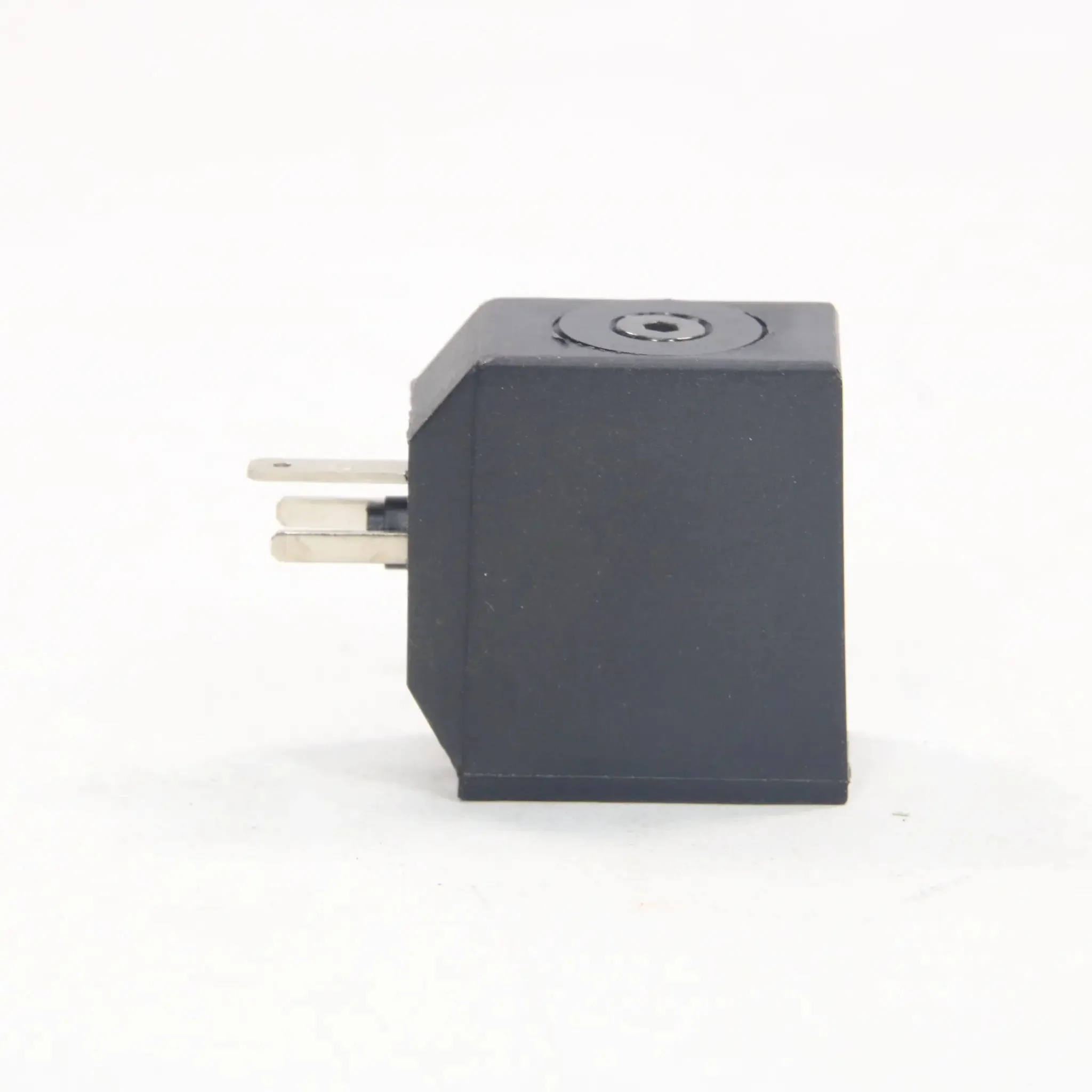

Norgren SPGB/27464 coil / V10025-A19
- Brand: Norgren (IMI Precision Engineering)
- Model: SPGB/27464
- Type: Solenoid coil (for pneumatic valve actuation)
- All Tech Specs:
- Material: Copper coil winding with epoxy or thermoplastic encapsulation for durability
- Voltage: 240V AC (50/60 Hz)
- Power Consumption: 2.5 VA (low-power design for energy efficiency)
- Duty Cycle: 100% ED (continuous duty, suitable for constant energization)
- Insulation Class: Class H (up to 180°C) or Class F (up to 155°C) for thermal resistance
- Electrical Connection: DIN 43650 Form A or B connector; optional flying leads or terminal box
- Protection Rating: IP65 (dust-tight, water-resistant); IP67 with sealed connectors
- Operating Temperature Range: -20°C to +50°C (-4°F to +122°F); extended ranges possible with special insulation
- Compatibility: Designed for Norgren SPGB series valves (e.g., 3/2 or 5/2 directional control valves)
- Response Time: <20 ms for energization/de-energization (dependent on valve characteristics)
- Certification: CE marked; RoHS compliant; ATEX certification available for hazardous environments
- Lifespan: >1 million cycles (with proper valve maintenance and stable power supply)
- Dimension: 28 mm length x 16 mm width x 28 mm height
- Weight: 0.04 kg (estimated, based on compact dimensions and low VA rating)
- Country of Origin: United Kingdom
- HS Code: 8504.50
Description
- Brand: Norgren (IMI Precision Engineering)
- Model: SPGB/27464
- Type: Solenoid coil (for pneumatic valve actuation)
- All Tech Specs:
- Material: Copper coil winding with epoxy or thermoplastic encapsulation for durability
- Voltage: 240V AC (50/60 Hz)
- Power Consumption: 2.5 VA (low-power design for energy efficiency)
- Duty Cycle: 100% ED (continuous duty, suitable for constant energization)
- Insulation Class: Class H (up to 180°C) or Class F (up to 155°C) for thermal resistance
- Electrical Connection: DIN 43650 Form A or B connector; optional flying leads or terminal box
- Protection Rating: IP65 (dust-tight, water-resistant); IP67 with sealed connectors
- Operating Temperature Range: -20°C to +50°C (-4°F to +122°F); extended ranges possible with special insulation
- Compatibility: Designed for Norgren SPGB series valves (e.g., 3/2 or 5/2 directional control valves)
- Response Time: <20 ms for energization/de-energization (dependent on valve characteristics)
- Certification: CE marked; RoHS compliant; ATEX certification available for hazardous environments
- Lifespan: >1 million cycles (with proper valve maintenance and stable power supply)
- Dimension: 28 mm length x 16 mm width x 28 mm height
- Weight: 0.04 kg (estimated, based on compact dimensions and low VA rating)
- Country of Origin: United Kingdom
- HS Code: 8504.50
