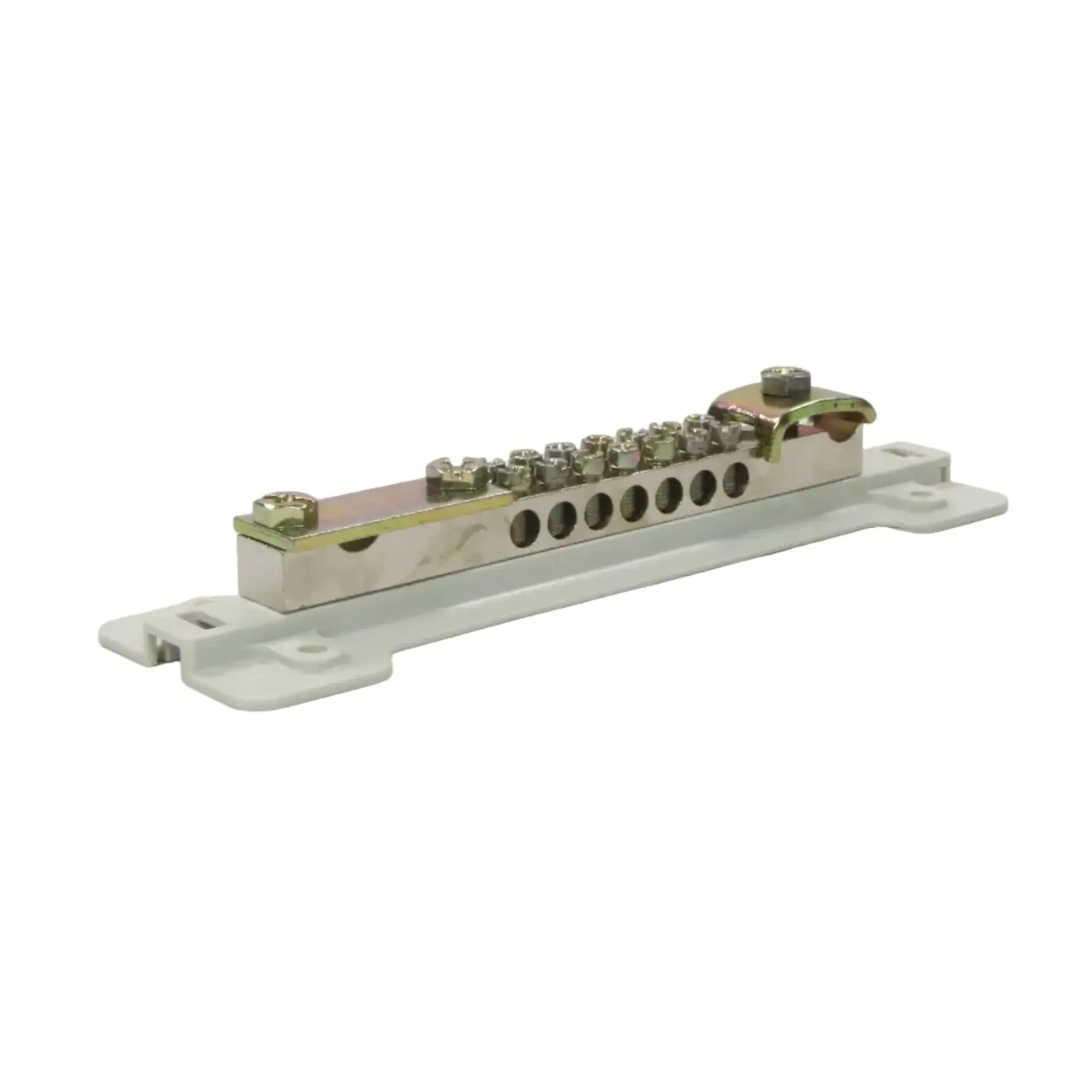

OBO Bettermann 1809 Potential Equalisation Rail
- Brand: OBO Bettermann
- Model: 1809
- Type: Equipotential Bonding Rail / Potential Equalisation Rail
- Part number: 5015 073
- Technical specifications:
- Material of contact rail / clamping rail: Brass (CuZn, nickel-plated)
- Terminal blocks: Contact-secure series terminals made of electrogalvanised steel; suitable for rigid conductors up to 25 mm² x 7, Round conductor: 8-10mm
- Lightning current carrying capacity: 100 kA
- Standards / Compliance: DIN VDE 0618 DIN VDE 0185-305; VDE-tested according to VDE 0618 Part 1
- Additional features: Modular construction with cover ; insulator included; grey color; for indoor use; high corrosion resistance; easy mounting on walls or in distribution boards; compatible with OBO accessories like terminal blocks
Weight: 300 g
Dimensions: 220 x 70 x 70 mm
Country of origin: Germany
HS code: 8536.90
Description
- Brand: OBO Bettermann
- Model: 1809
- Type: Equipotential Bonding Rail / Potential Equalisation Rail
- Part number: 5015 073
- Technical specifications:
- Material of contact rail / clamping rail: Brass (CuZn, nickel-plated)
- Terminal blocks: Contact-secure series terminals made of electrogalvanised steel; suitable for rigid conductors up to 25 mm² x 7, Round conductor: 8-10mm
- Lightning current carrying capacity: 100 kA
- Standards / Compliance: DIN VDE 0618 DIN VDE 0185-305; VDE-tested according to VDE 0618 Part 1
- Additional features: Modular construction with cover ; insulator included; grey color; for indoor use; high corrosion resistance; easy mounting on walls or in distribution boards; compatible with OBO accessories like terminal blocks
Weight: 300 g
Dimensions: 220 x 70 x 70 mm
Country of origin: Germany
HS code: 8536.90
