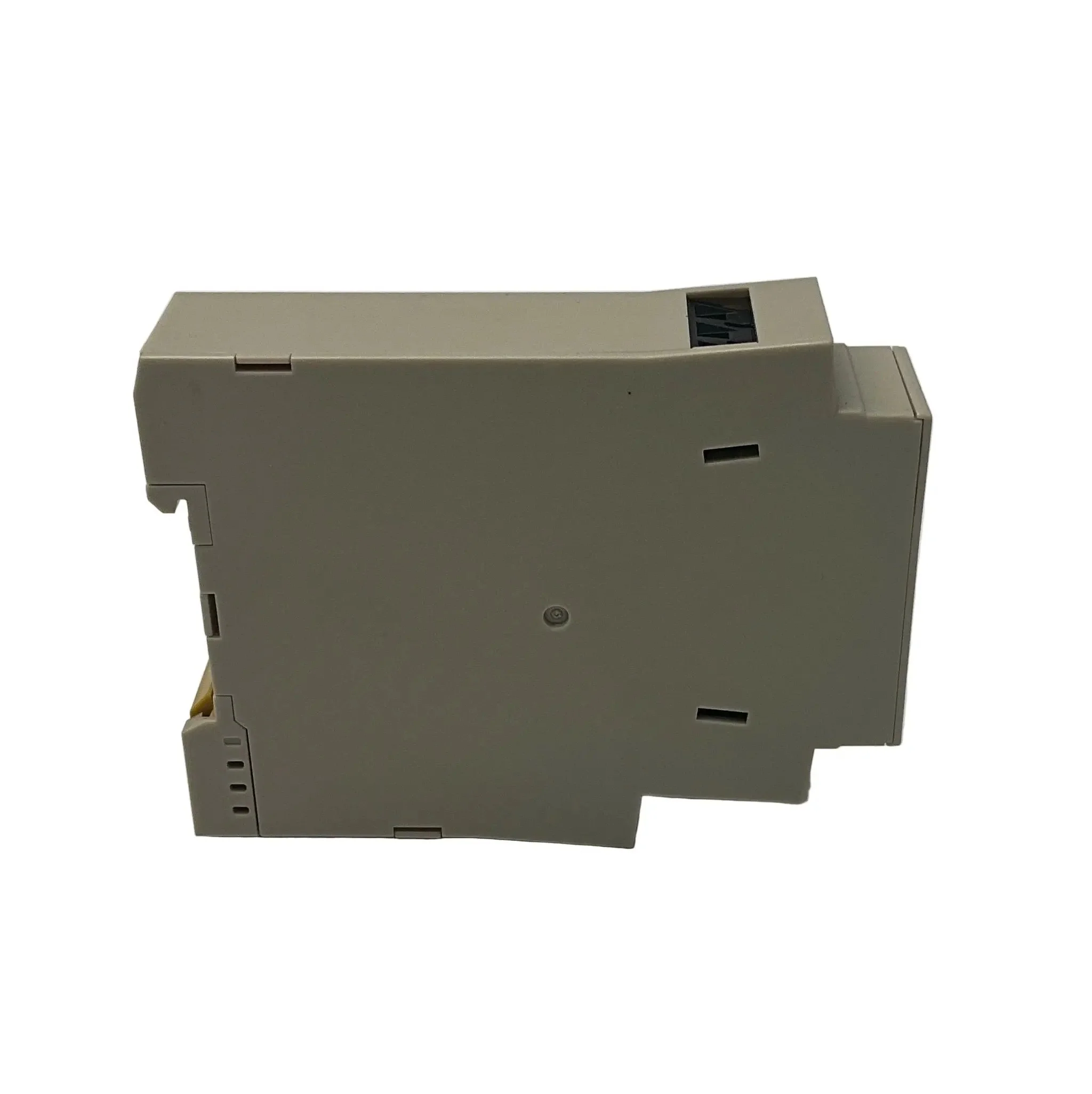

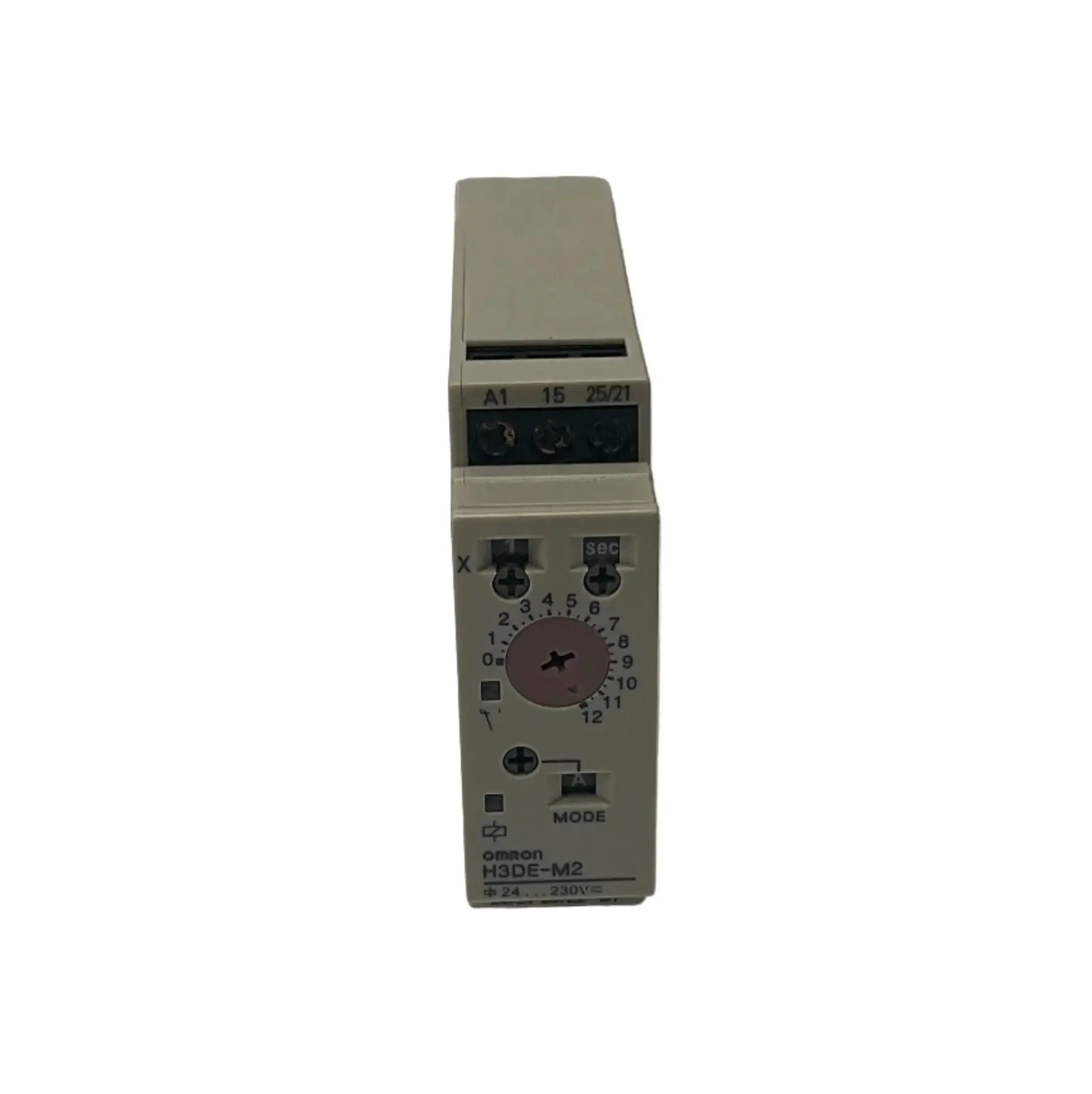

Omron H3DE-M2 Timer Relay
Brand: Omron
Model: H3DE-M2
Type: Timer Relay (Multi-Function Solid-State Timer)
Part Number: H3DE-M2 AC/DC24-230
Technical Specs:

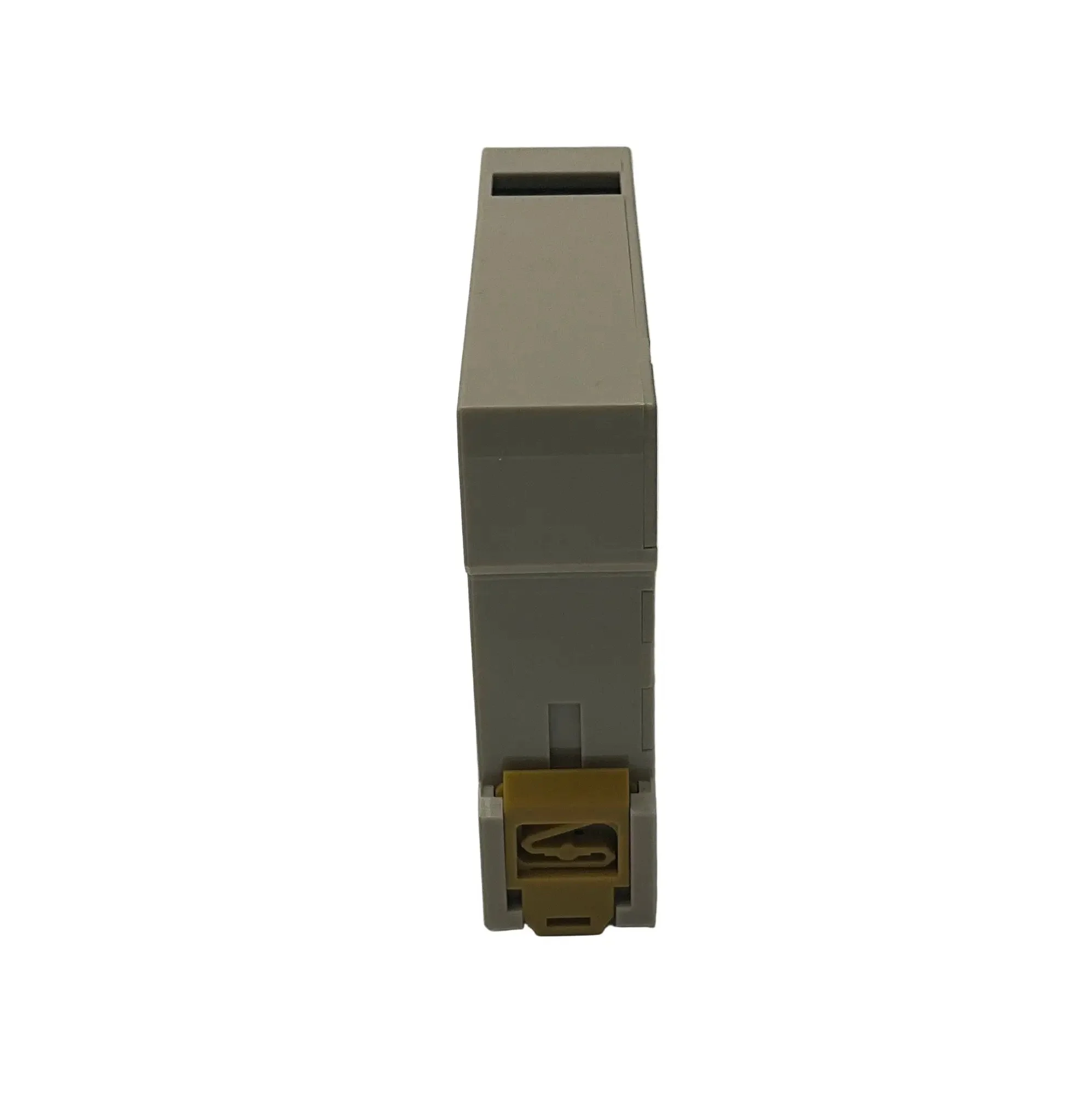

- Mounting: DIN rail
- Supply Voltage: 24 to 230 V AC (50/60 Hz) / 24 to 240 V DC
- Power Consumption: AC: 2.1 VA max, DC: 0.45 W max
- Output Type: 2 changeover contacts (DPDT, 2 SPDT, 5 A at 250 V AC resistive)
- Time Range: 0.1 s to 120 h (8 selectable ranges: 0.1-1 s, 1-10 s, 10-100 s, 1-10 min, 10-100 min, 100-1000 min, 10-100 h, 1-12 h)

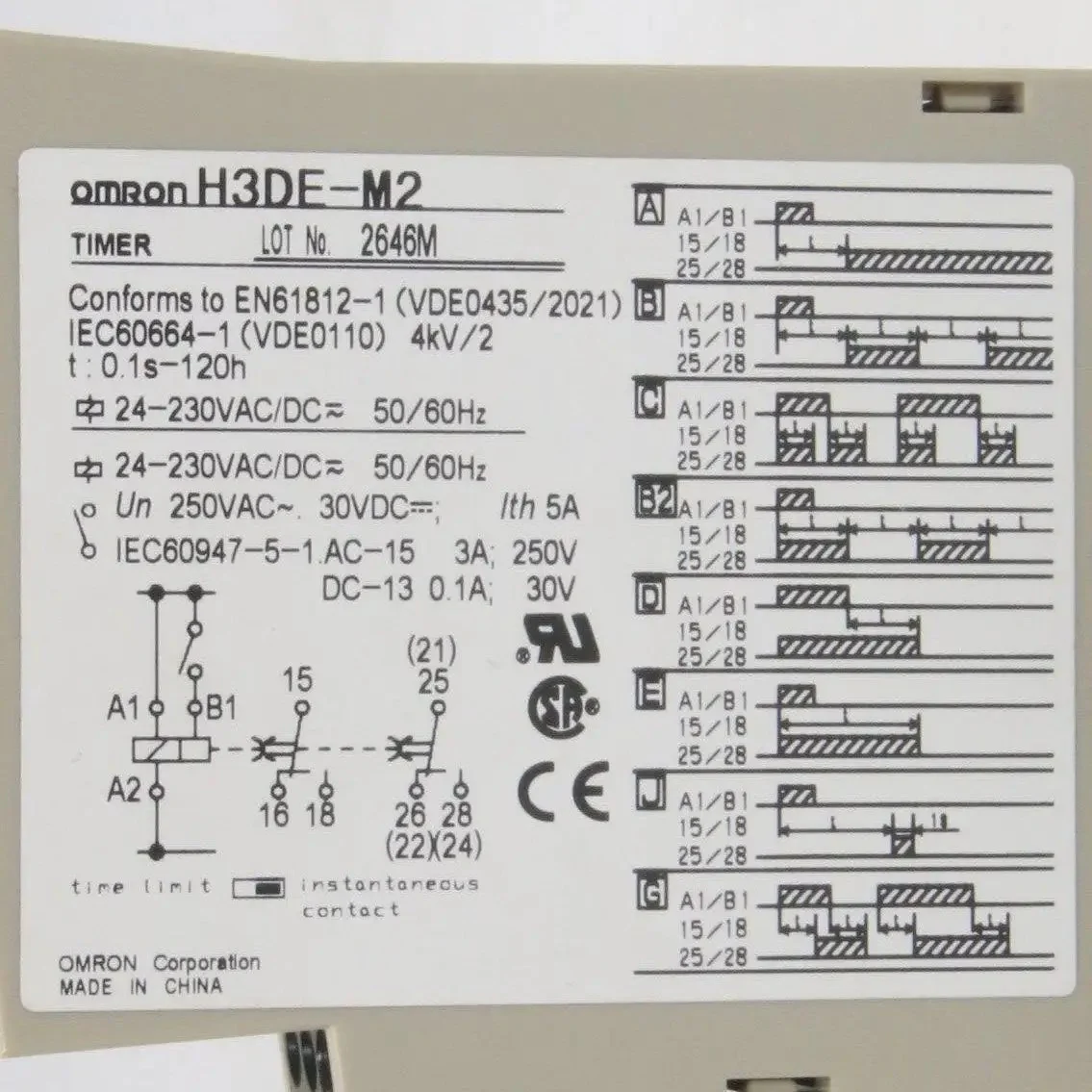

- Operating Modes: 7 modes (A: ON-delay, B: Flicker OFF start, B2: Flicker ON start, C: Signal ON/OFF-delay, D: Signal OFF-delay, E: Interval, G: Signal ON-delay)
- Reset Time: 0.1 s min
- Accuracy of Operating Time: ±1% FS max
- Setting Error: ±1% FS ±0.01 s max
- Influence of Voltage: ±1% FS max
- Influence of Temperature: ±2% FS max
- Number of Timing Operations: 100,000 min
- Mechanical Life: 10,000,000 operations min
- Electrical Life: 100,000 operations min
- Start Input: Signal or power start (terminal B1-A2)
- Gate Input: Not applicable (for H3DE-M2)
- Indicator: Green LED (power ON), Orange LED (output ON)
- Operating Temperature: -20°C to 65°C
- Storage Temperature: -25°C to 65°C
- Humidity: 25% to 85% RH
- EMC: EN 61812-1 (IEC 61812-1)
- Safety Standards: UL 508, CSA C22.2 No.14, EN 60947-5-1, EN 61010-1
- Pollution Degree: 2
- Impulse Withstand Voltage: 4 kV
- Dielectric Strength: 2 kV AC
- Vibration Resistance: 10 to 55 Hz, 1.0 mm double amplitude
- Shock Resistance: 294 m/s² (30 G)
- Additional Features:
- Multi-voltage AC/DC supply reduces inventory needs
- Wide time range and multiple modes for versatile applications
- DIN rail mount with finger-safe terminals
- Output selector switch for time-limit or instantaneous contact
Dimensions: 80 x 55 x 23 mm
Weight: 120 g
Country of Origin: China
HS Code: 8536.49
