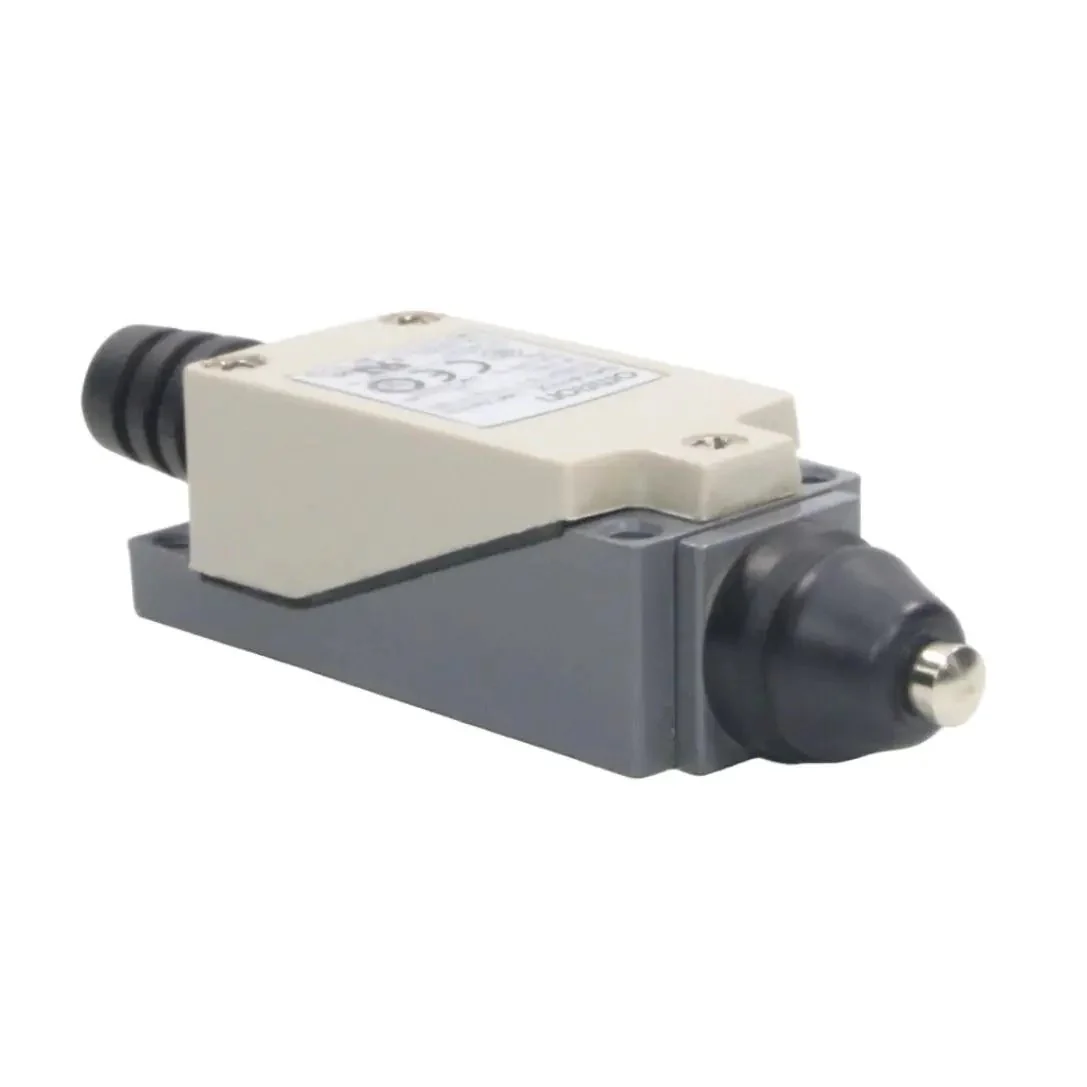

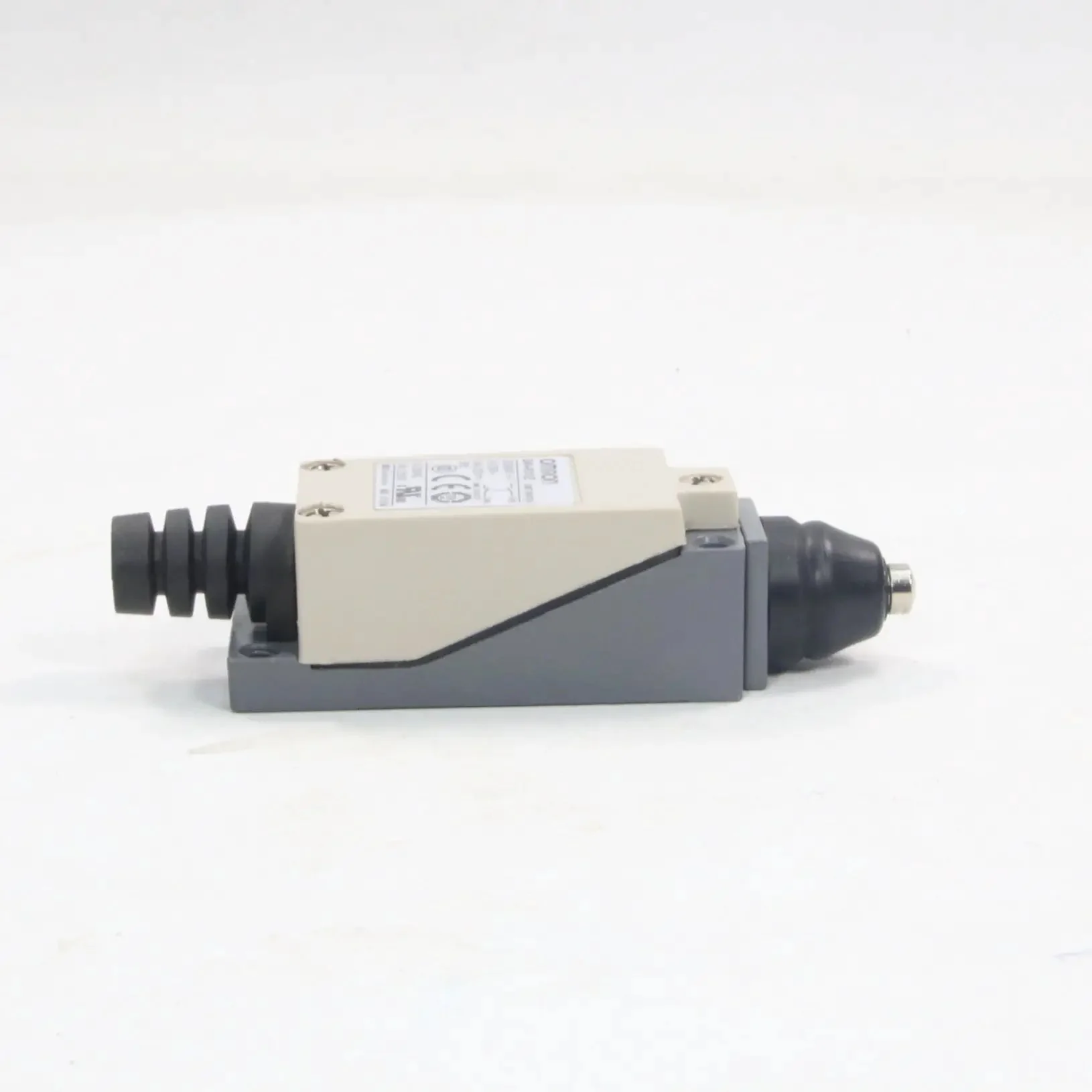

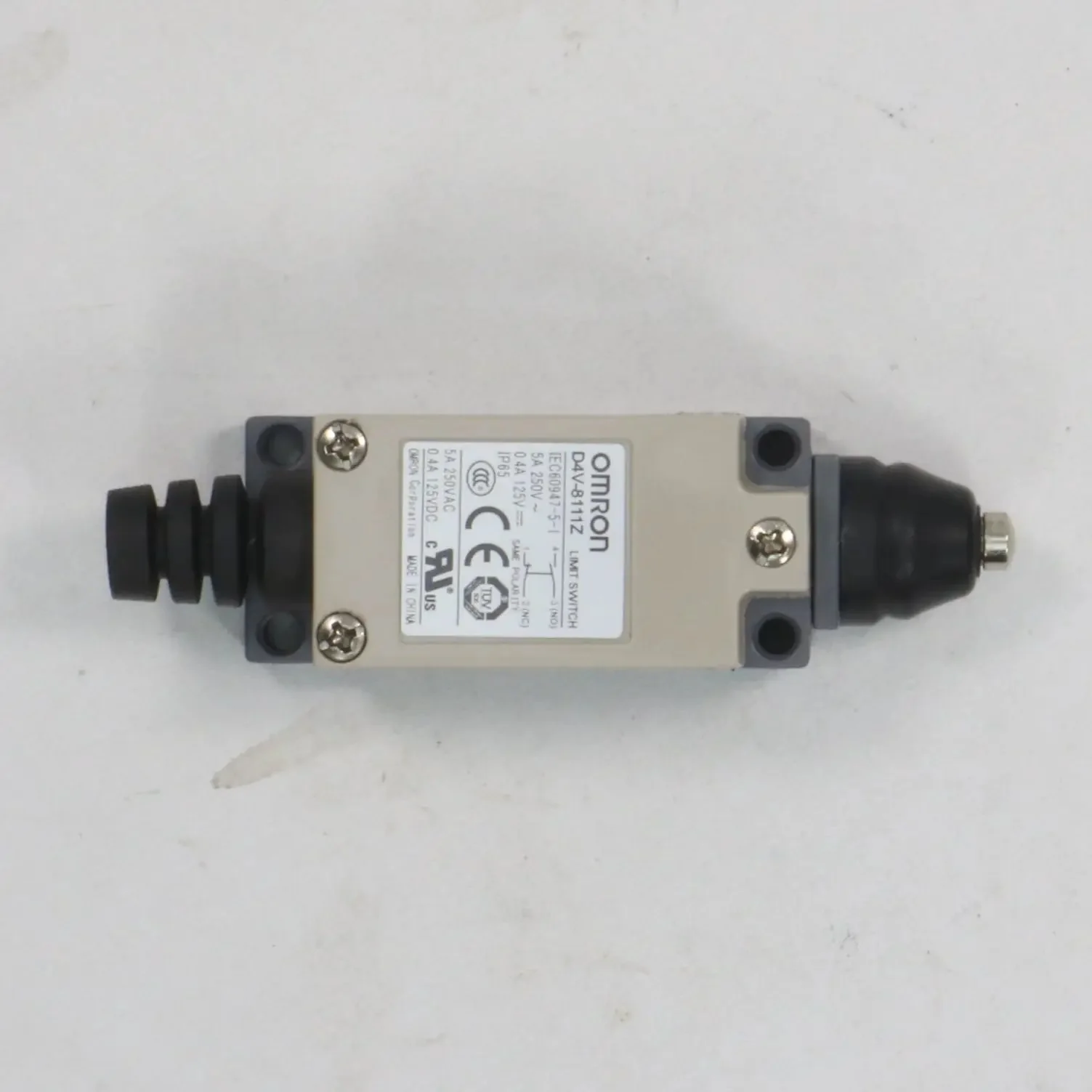

Omron D4V-8111Z Limit Switch

- Brand: Omron
- Model: D4V-8111Z/D4V-8104Z-N
- Type: Limit Switch
- Technical Specifications:

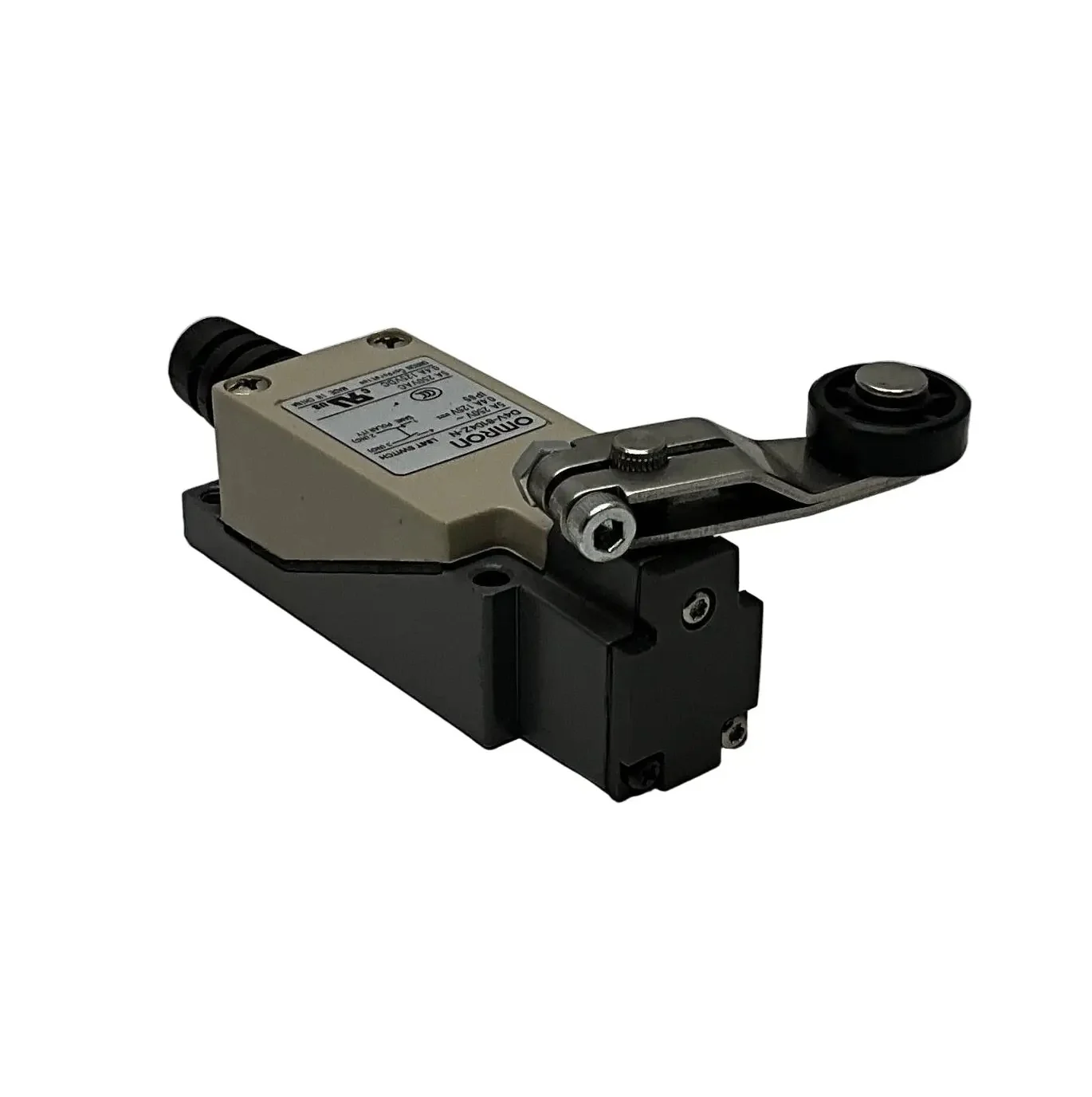

  - Actuator: Push plunger or Roller lever
  - Contact Configuration: 1NO + 1NC
  - Rated Current: 5 A (resistive load at 250 V AC), 0.4 A (resistive load at 125 V DC)
  - Operating Force: 9.8 N
  - Release Force: 1.5 N min
  - Supply Voltage: 250 V AC / 125 V DC
  - Operating Temperature: -10°C to +55°C
  - Ambient Humidity: 35% to 85% RH
  - Vibration Resistance: 10-55 Hz, 1.5 mm amplitude
  - Shock Resistance: 1,000 m/s² (100 G)
  - Degree of Protection: IP65
  - Housing Material: Plastic
  - Terminal Type: Solder terminal
  - Standards: UL, CSA, TUV compliant
  - Features: Oil-resistant model for automotive applications, compact vertical design
  - Dimensions: 14 mm x 32.5 mm x 20.2 mm (cubic design)
- Weight: 130 g
- Country of Origin: China
- HS Code: 853650
