Palas GmbH Aerosoltechnologie GFG-1000 Graphite Aerosol Generator
- Brand: Palas GmbH Aerosoltechnologie
- Model: GFG 1000
- Type: Graphite Aerosol Generator

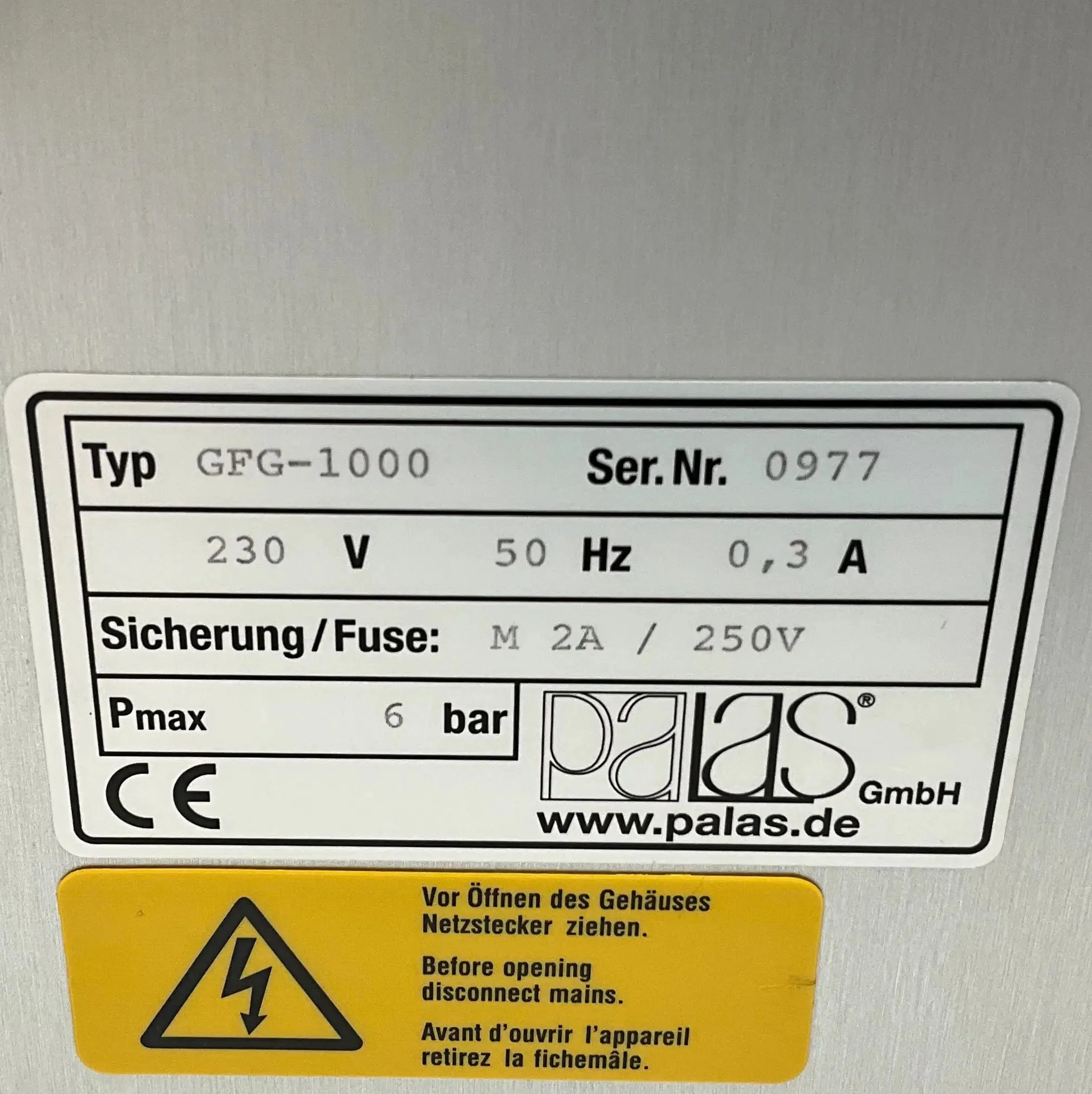

- Serial Number: 0977
Technical Specs:
- Aerosol Material: Pure graphite (carbon black) particles
- Particle Size Range: 20 nm to 3 µm
- Particle Concentration: 10⁶ to 10⁸ particles/cm³ (adjustable)
- Mass Concentration: 1–50 mg/m³
- Carrier Gas: 4–6 bar (Pmax: 6 bar)
- Gas Flow Rate: 1–10 L/min (adjustable)
- Graphite Rod Consumption: ~0.5–2 g/h
- Spark Frequency: Adjustable - 1–10 Hz
- Spark Energy: ~1 mJ per spark
- Operation Mode: Continuous or intermittent
- Control: Manual adjustment
- Power Supply: 230 V AC, 50/60 Hz 0.3 A
- Power Consumption: ~100 W
- Enclosure Rating: IP20
- Operating Temperature: +10 °C to +40 °C
- Standard output: Scales: 0 - 1000; 0.2 - 6.0 mg/h
- Additional Features:
- Pure graphite aerosol without binder or additives
- Reproducible particle size distribution (agglomerated fractal soot)
- Adjustable spark parameters for concentration and size control
- Easy graphite rod replacement
- Compact desktop design
- Certifications: CE
Dimensions: 440 x 470 x 210 mm
Weight: 22 kg
Country of Origin: Germany
HS Code: 9027.89
