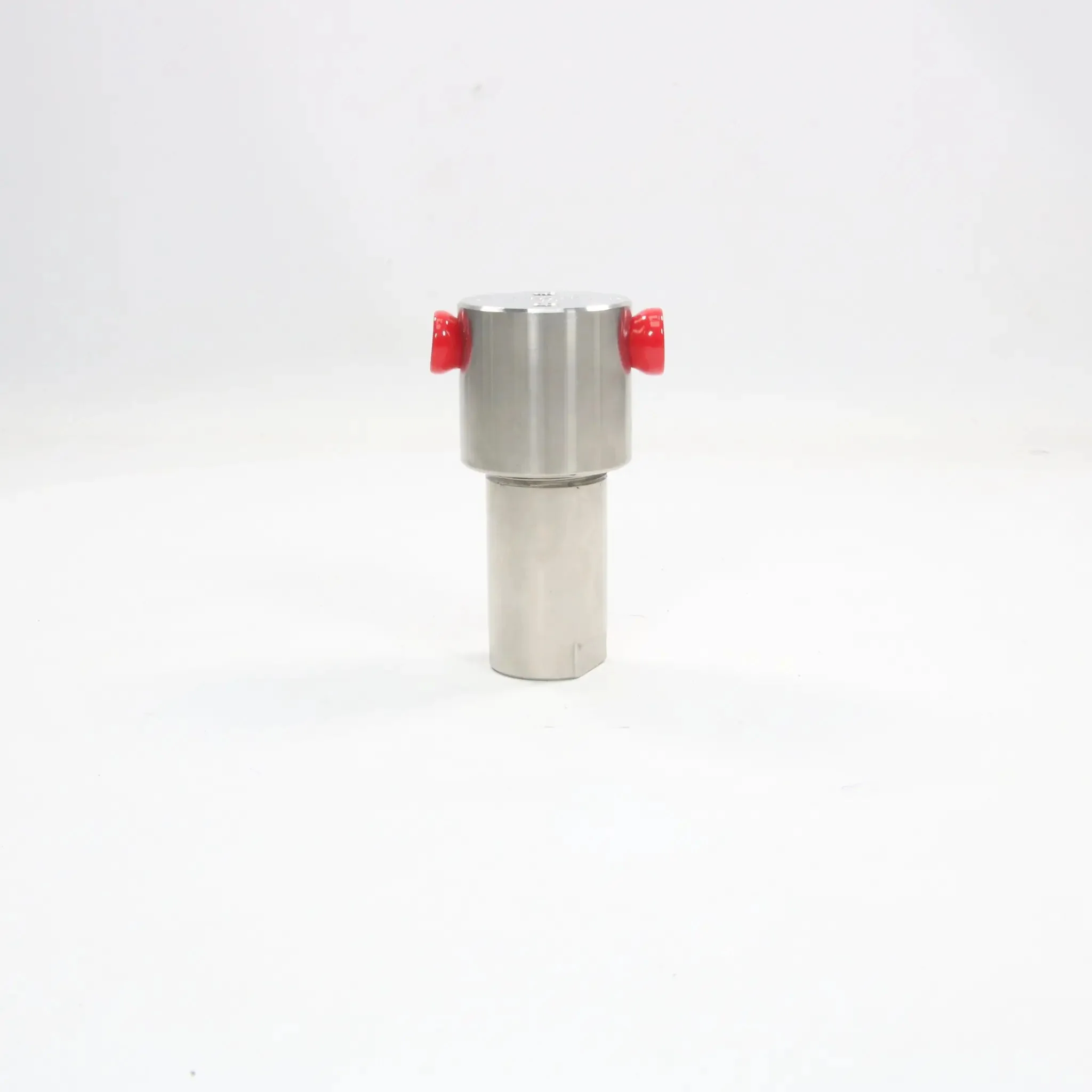

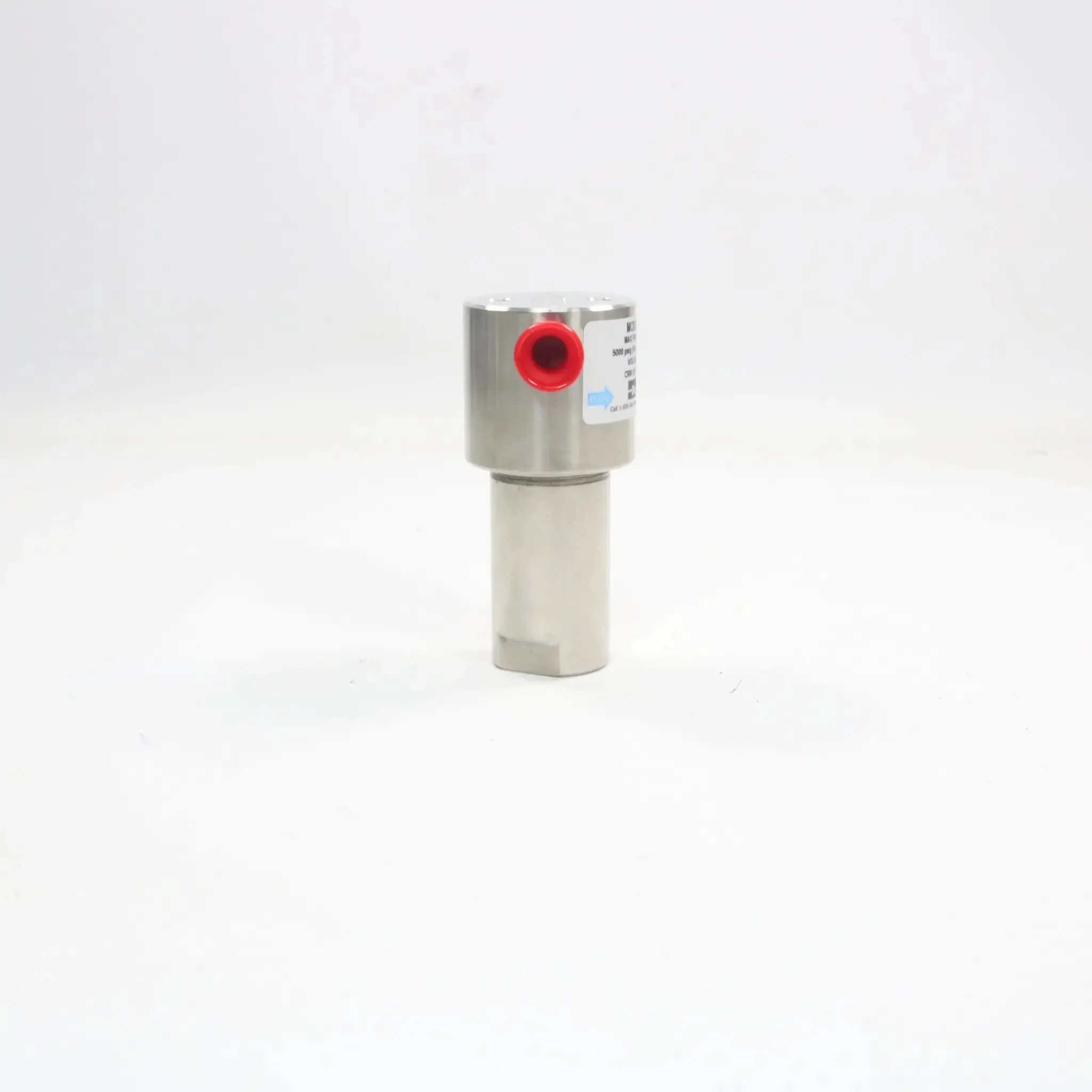

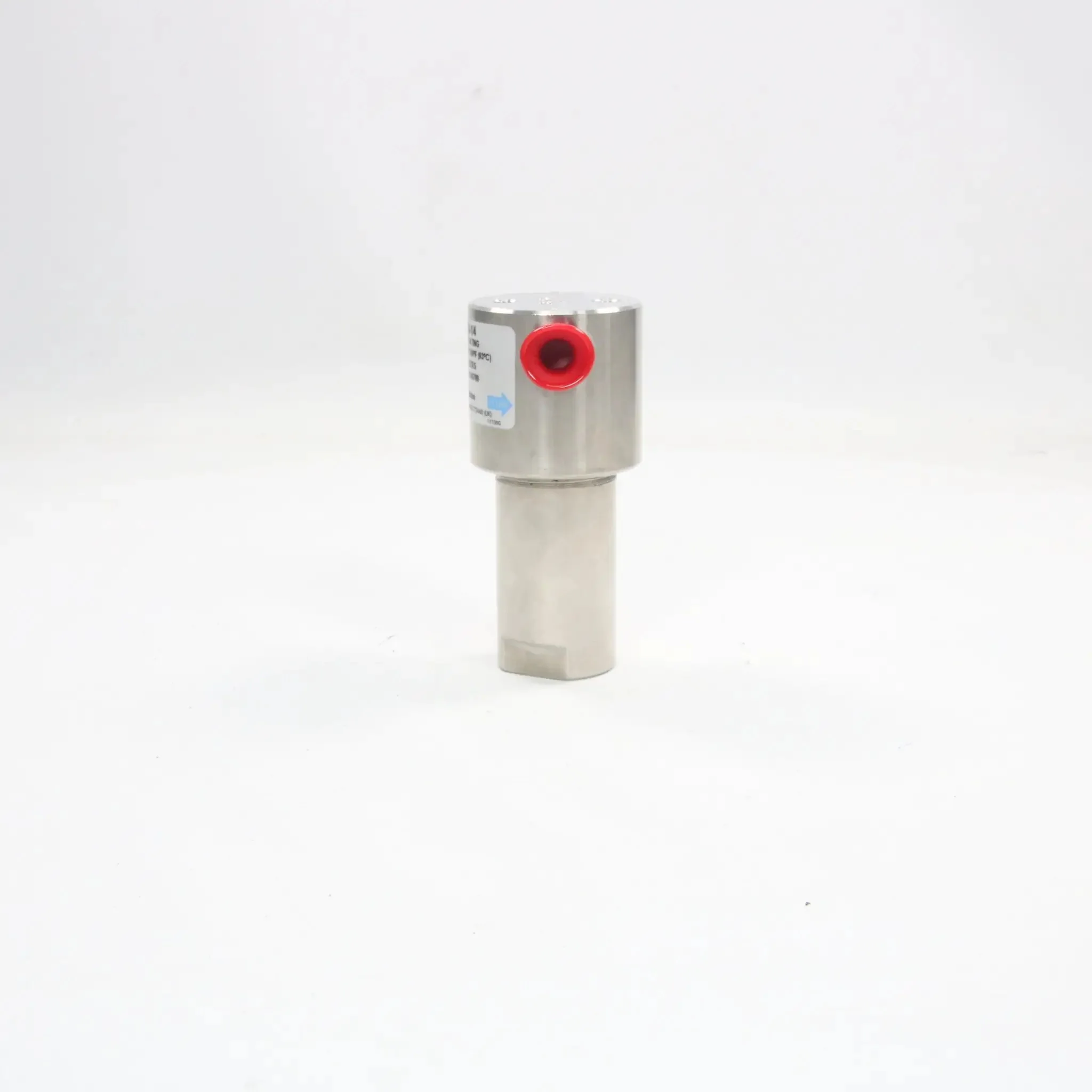

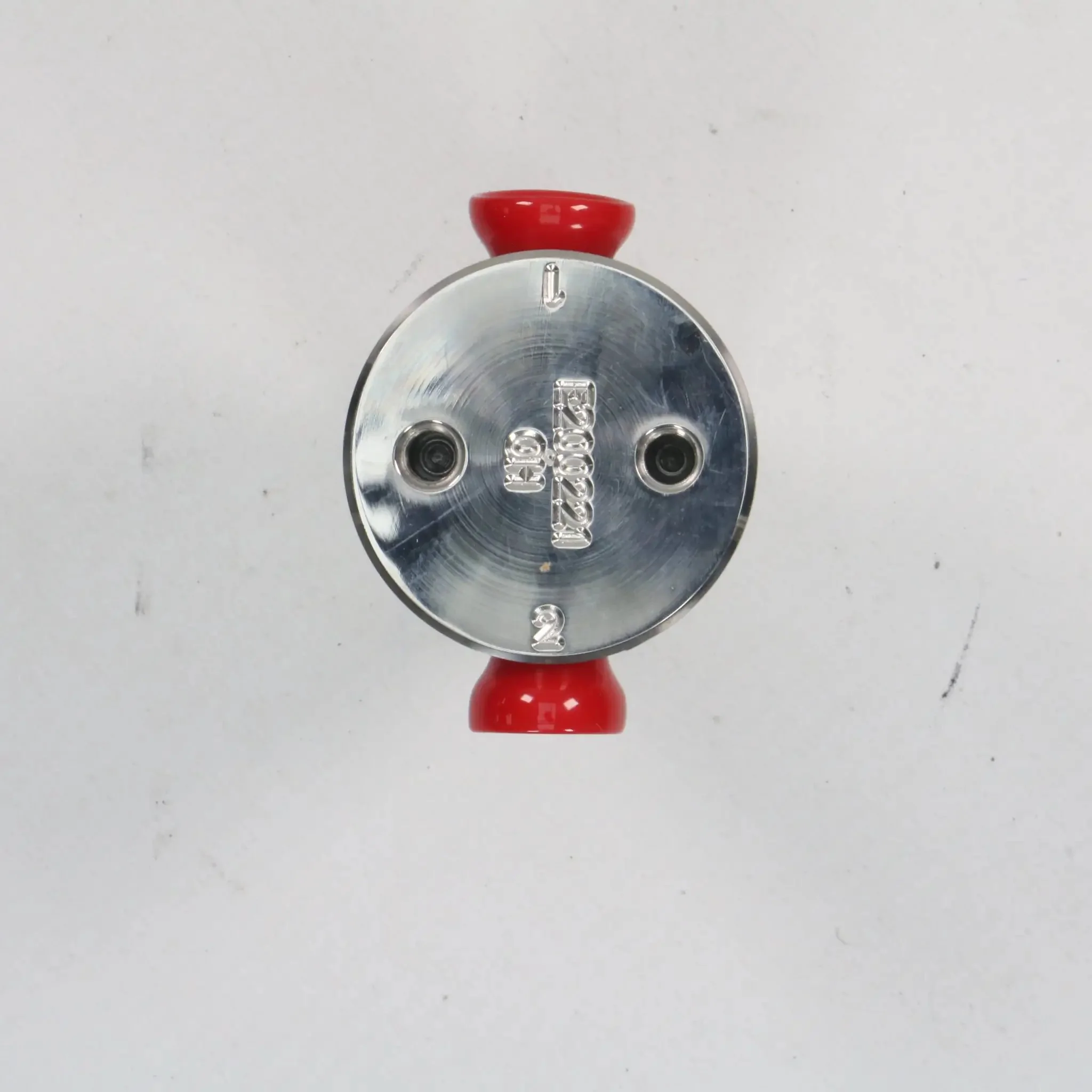

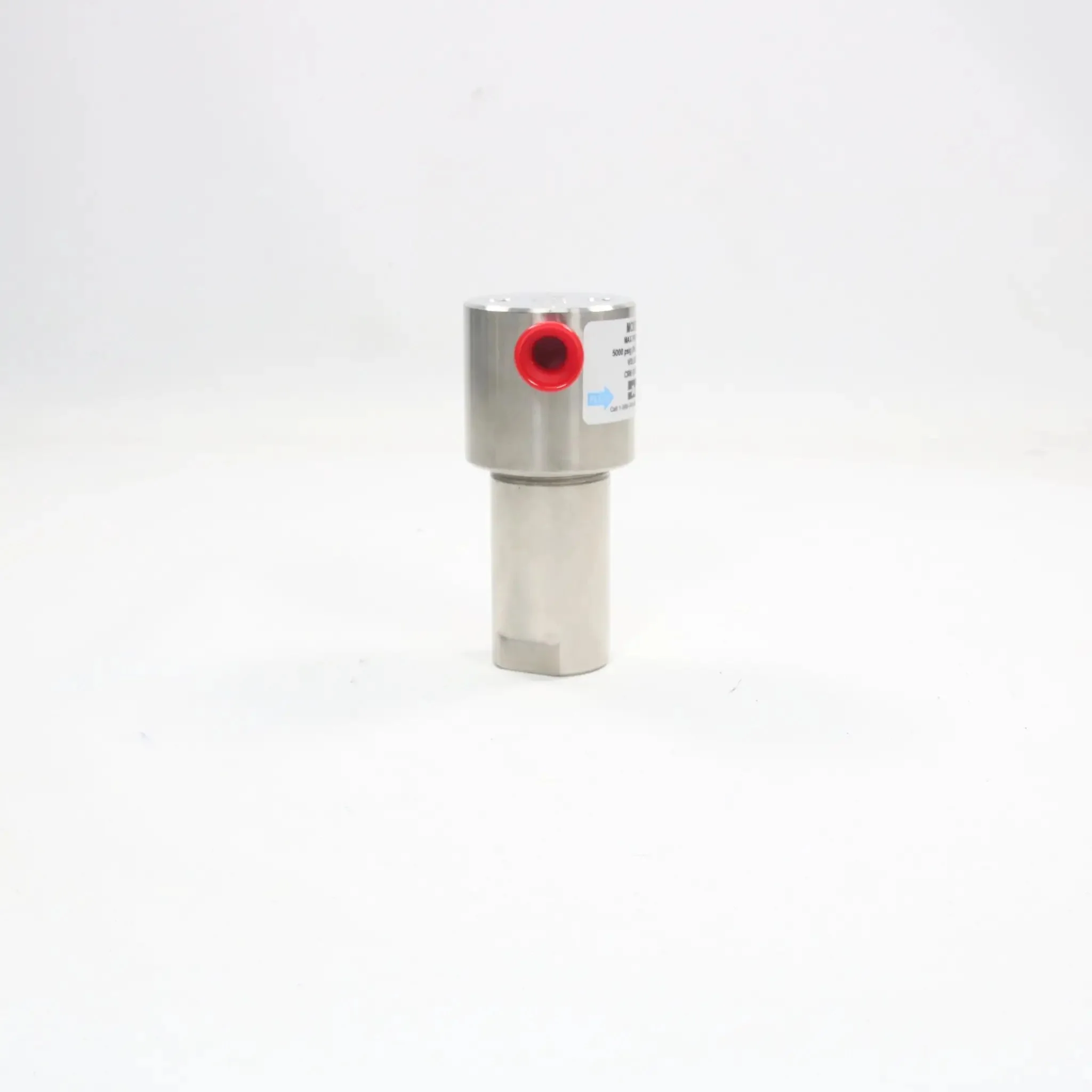

Parker Balston 95S6 Sample Filter

Parker Balston 95S6 Sample Filter Specifications:

• Product Type: Sample Analyzer Filter
• Manufacturer: Parker Hannifin (Balston Division)
• Model: 95S6
• Device Application: Protects analyzers from sample impurities in gas and liquid systems
• Filter Efficiency:
  • Solids: 99.999% at 0.01 micron
  • Liquids: 1 micron or lower
• Filter Element Material: Borosilicate glass microfibers with resin binder (inert to most gases and liquids)
• Housing Material: 316 Stainless Steel
• Seal Material: Viton
• Configuration: T-Type, miniature low volume
• Connection Ports:
  • Inlet/Outlet: 1/4" NPT (threaded female)
  • Drain: 1/4" NPT (threaded female)
• Pressure Rating: Up to 5000 psig (345 barg) at 200 °F (93 °C)
• Temperature Rating: Up to 400 °F (204 °C) at reduced pressures
• Flow Rate: 27 CFM at 100 psig (for 1/4" NPT configuration)
• Holding Volume: 19.8 cm³
• Dimensions:
  • Width: Approximately 50 mm
  • Height: Approximately 100 mm
  • Depth: Approximately 50 mm
• Weight: Approximately 0.7 kg
• Ambient Air Temperature for Operation: 0 to 204 °C (dependent on pressure)
• Ambient Air Temperature for Storage: -40 to 70 °C
• Special Features:
  • Chemical and temperature-resistant housing
  • Suitable for high-pressure gas and liquid sampling
  • Compact design for analyzer protection
• HS Code: 8421.29.00
• Country of Origin:  USA
