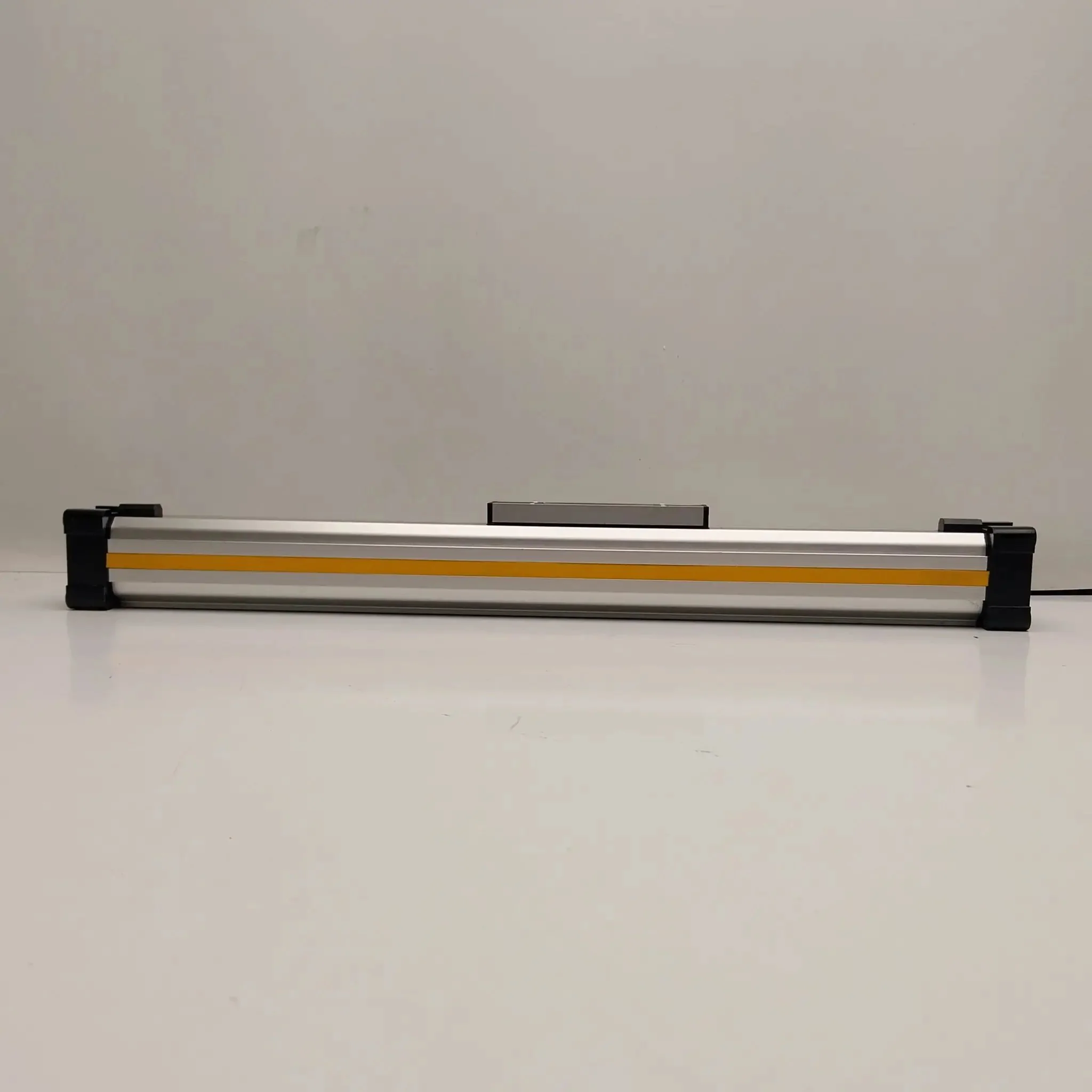

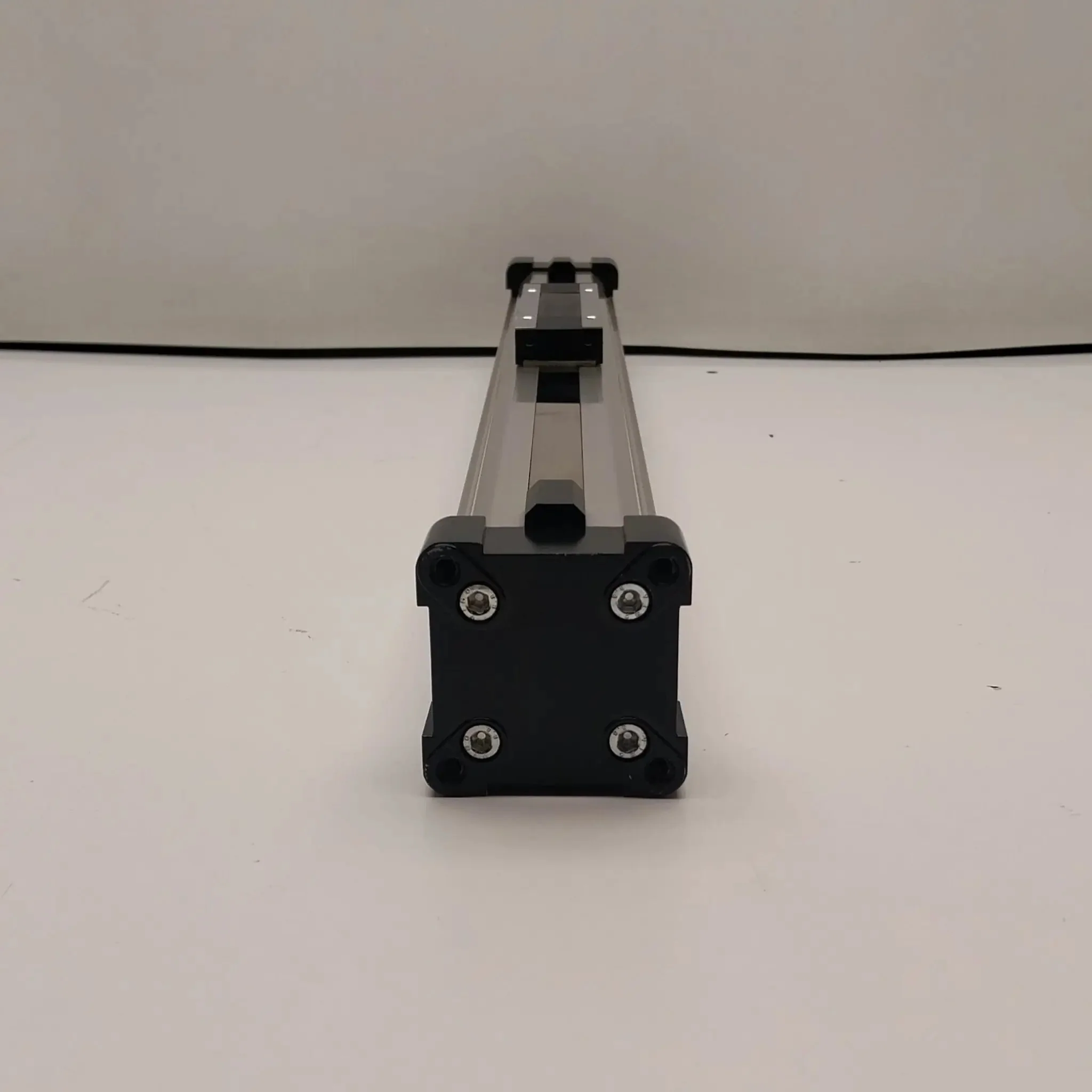

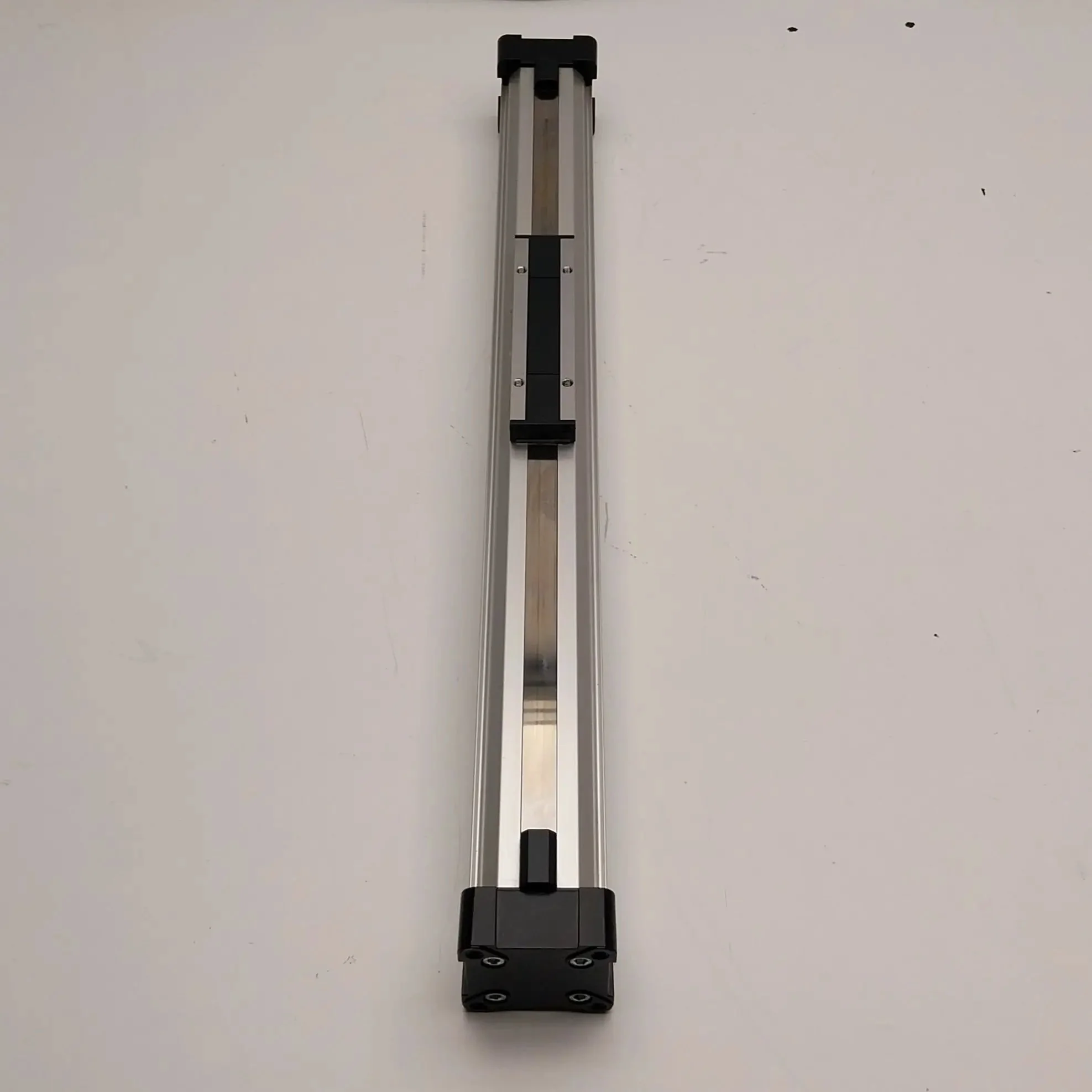

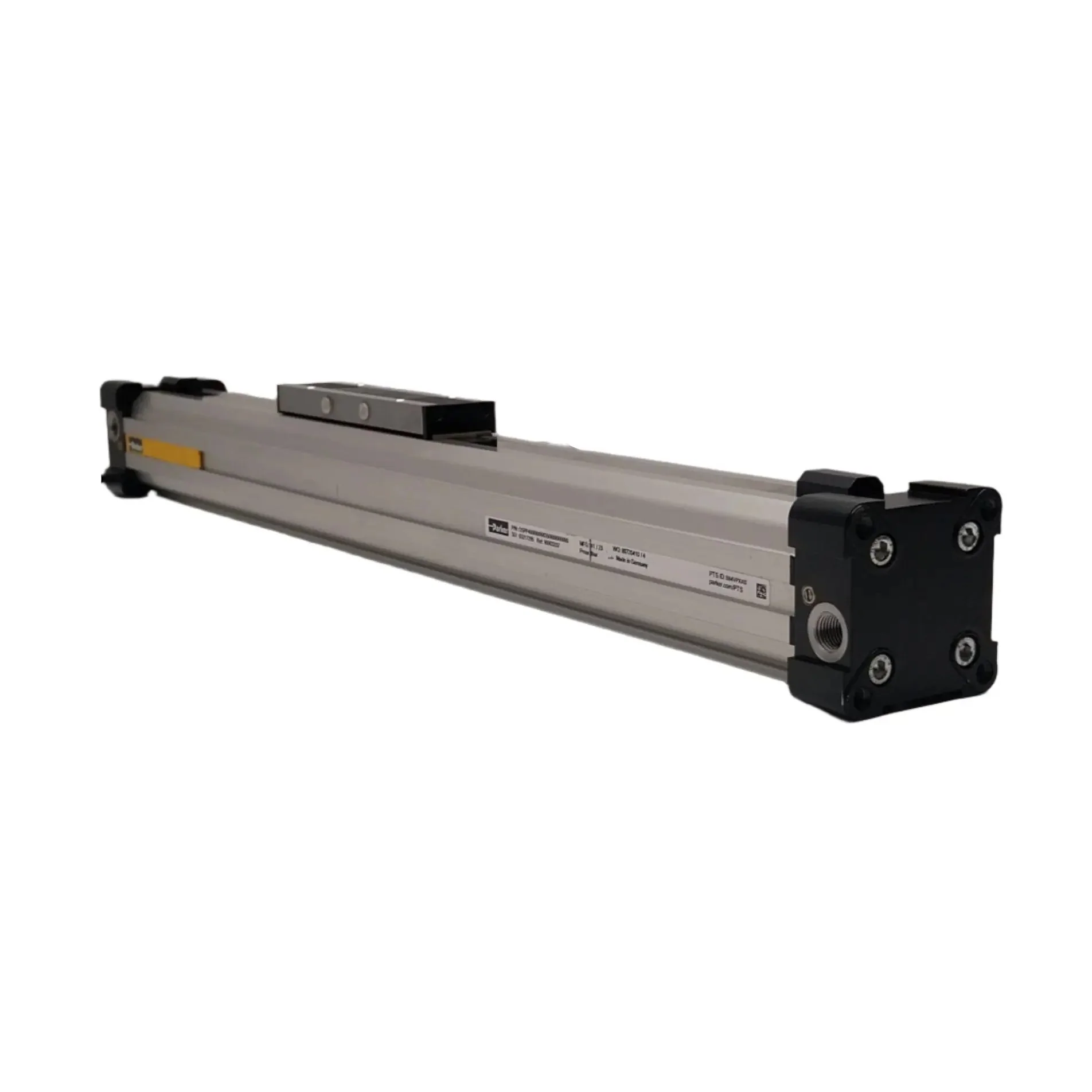

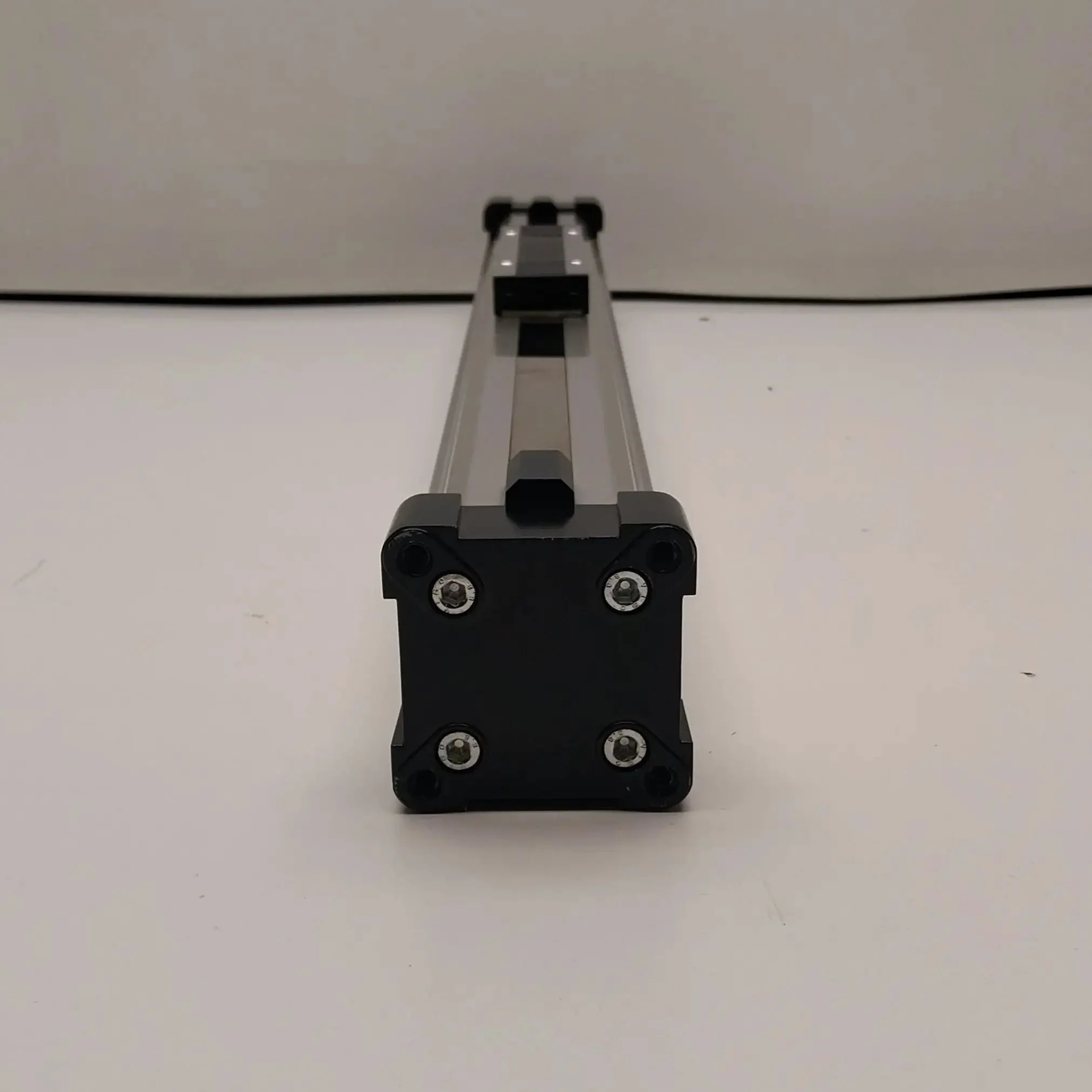

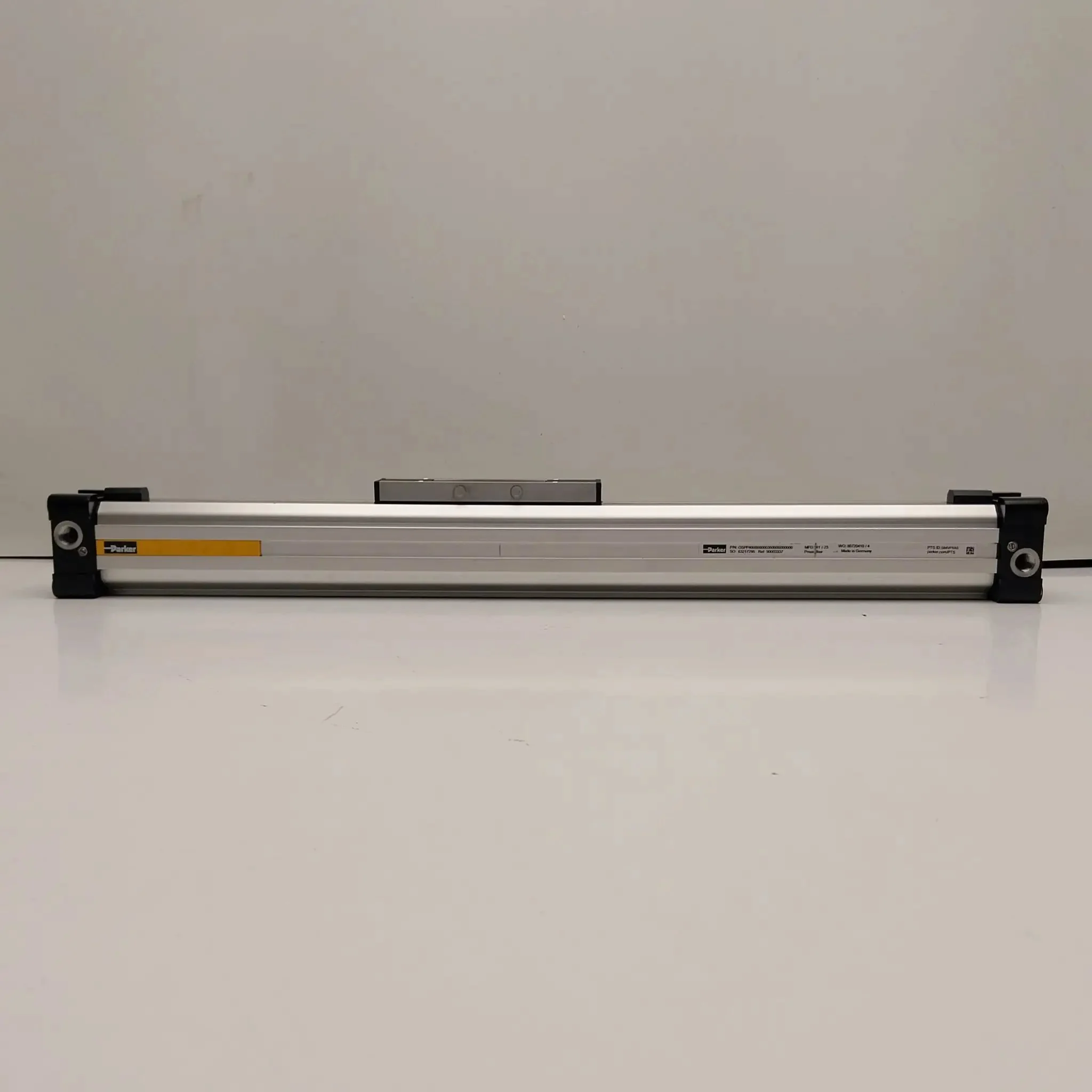

Parker OSP-P Rodless Pneumatic Actuator – Model OSPP400000000350000000000
-
Product Overview:
The Parker OSP-P series rodless actuator is a modular pneumatic linear drive system designed for high-performance applications requiring precise, space-saving motion control. This actuator combines linear guidance, control, and actuation into a single compact unit, making it ideal for point-to-point, reciprocating, and simple traverse/transfer movements. - Key Features:

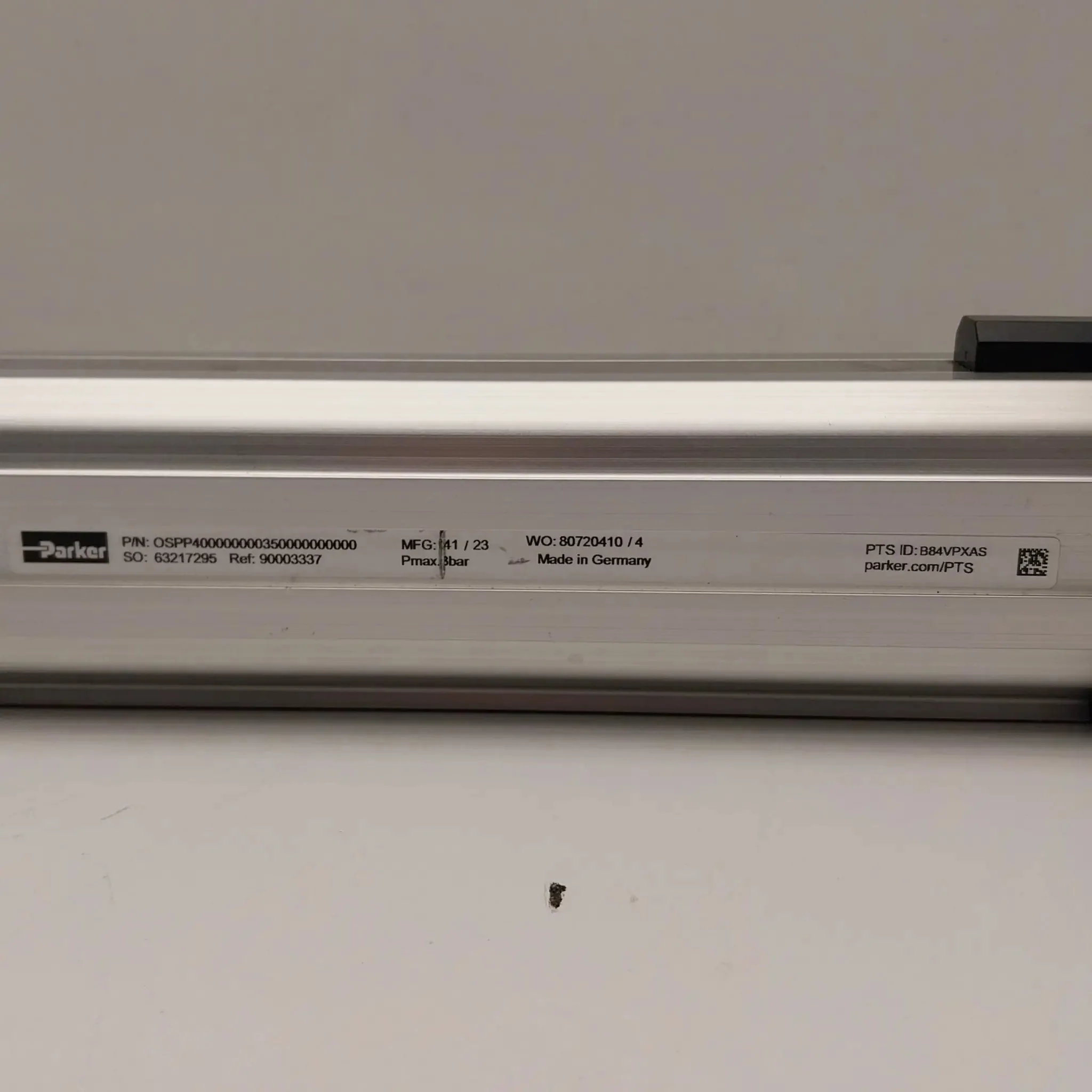

- Model: OSPP400000000350000000000
- Series: OSP-P
- Cylinder Type: Rodless Pneumatic Cylinder
- Bore Diameter: 40 mm
- Stroke Length: 350 mm
- Max Stroke Length: Up to 6,000 mm (236.2 inches)
- Cylinder Action: Double Acting
- Mounting Type: Profile Mounting
- Port Size: G1/2
- Operating Pressure: Up to 8 bar (116 psi)
- Operating Temperature: -10°C to +80°C (14°F to 176°F)
- Materials:
- Body: Anodized Aluminum
- End Caps: Aluminum
- Sealing Band: Corrosion-resistant Steel
- Cushioning Type: Pneumatic or Shock Absorbers
- Position Sensing: Sensor slots on 3 sides
- Corrosion Resistance: Yes
- Performance Specifications:
- Extend Stroke Force: 47 to 3,010 N (at 6 bar)
- Retract Stroke Force: 47 to 3,010 N (at 6 bar)
- Max Speed: Up to 30 m/s
- Lifetime: Up to 8,000 km
$385.88
