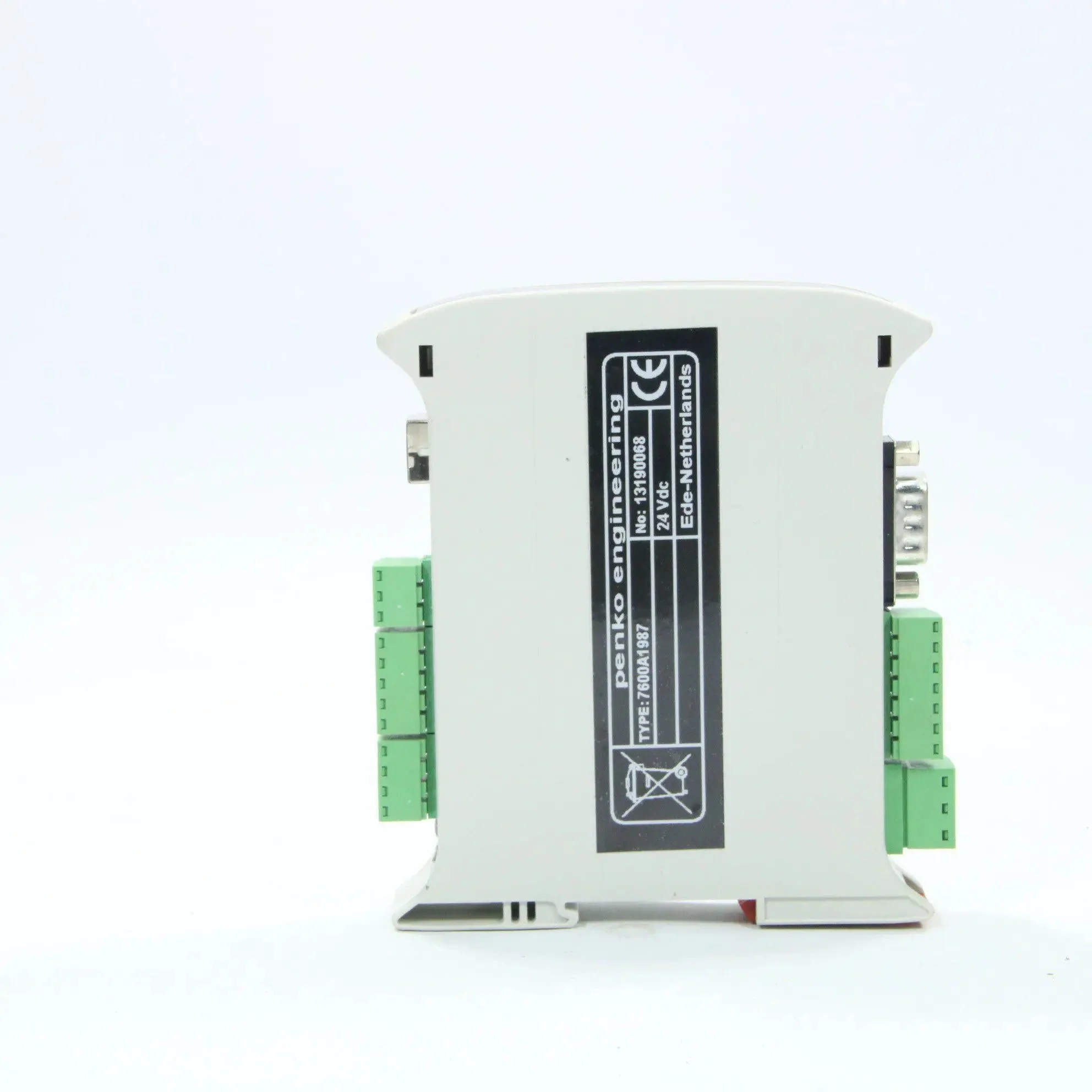

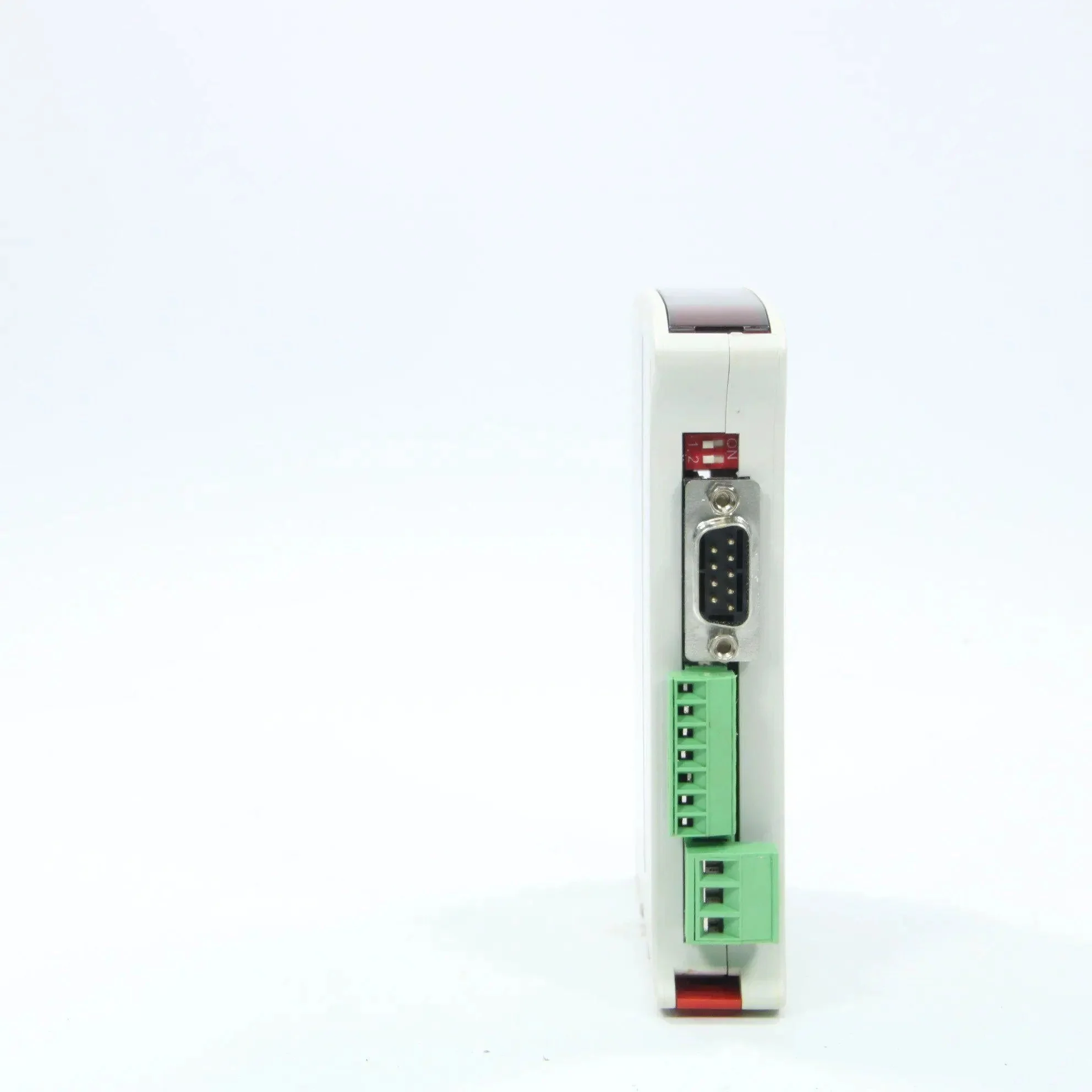

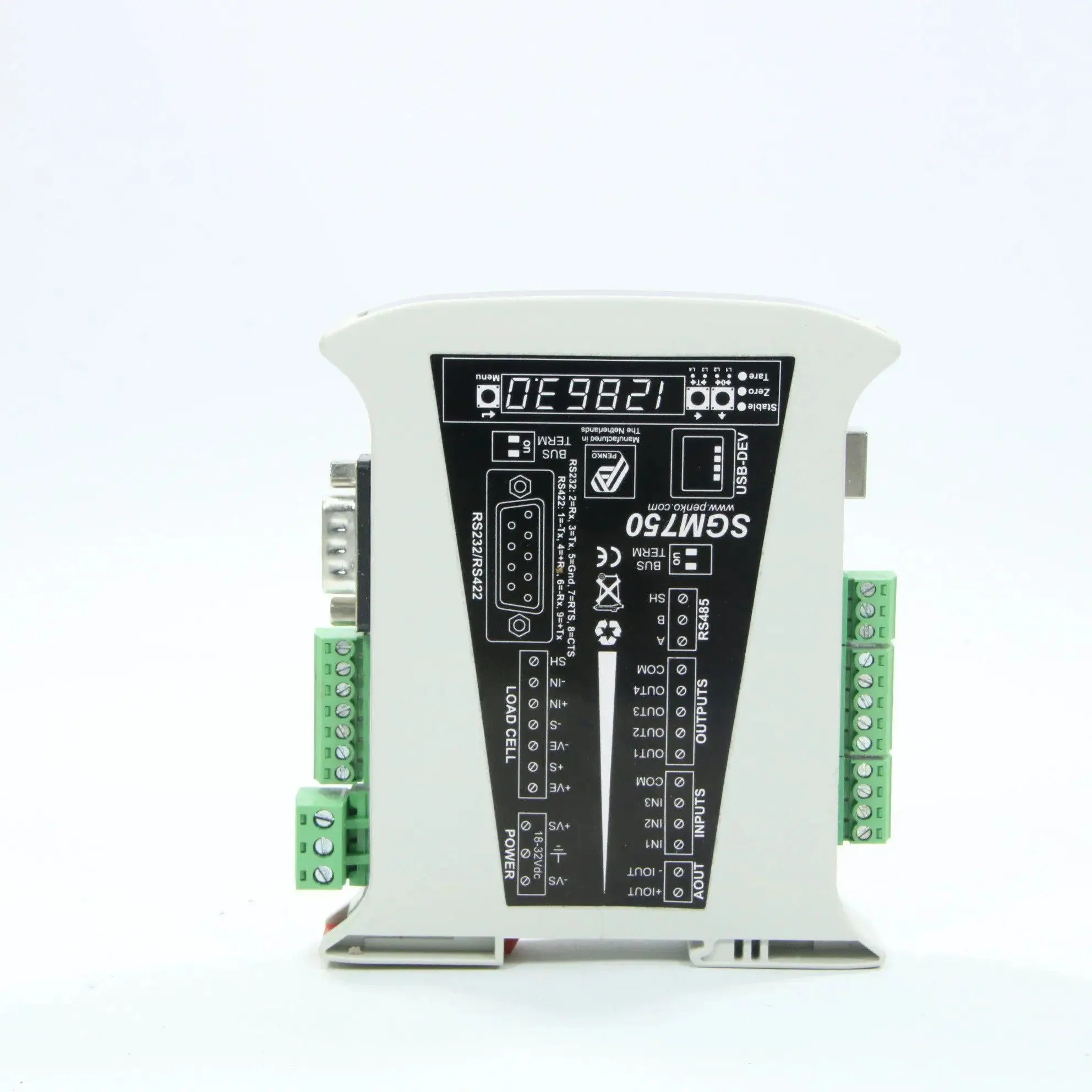

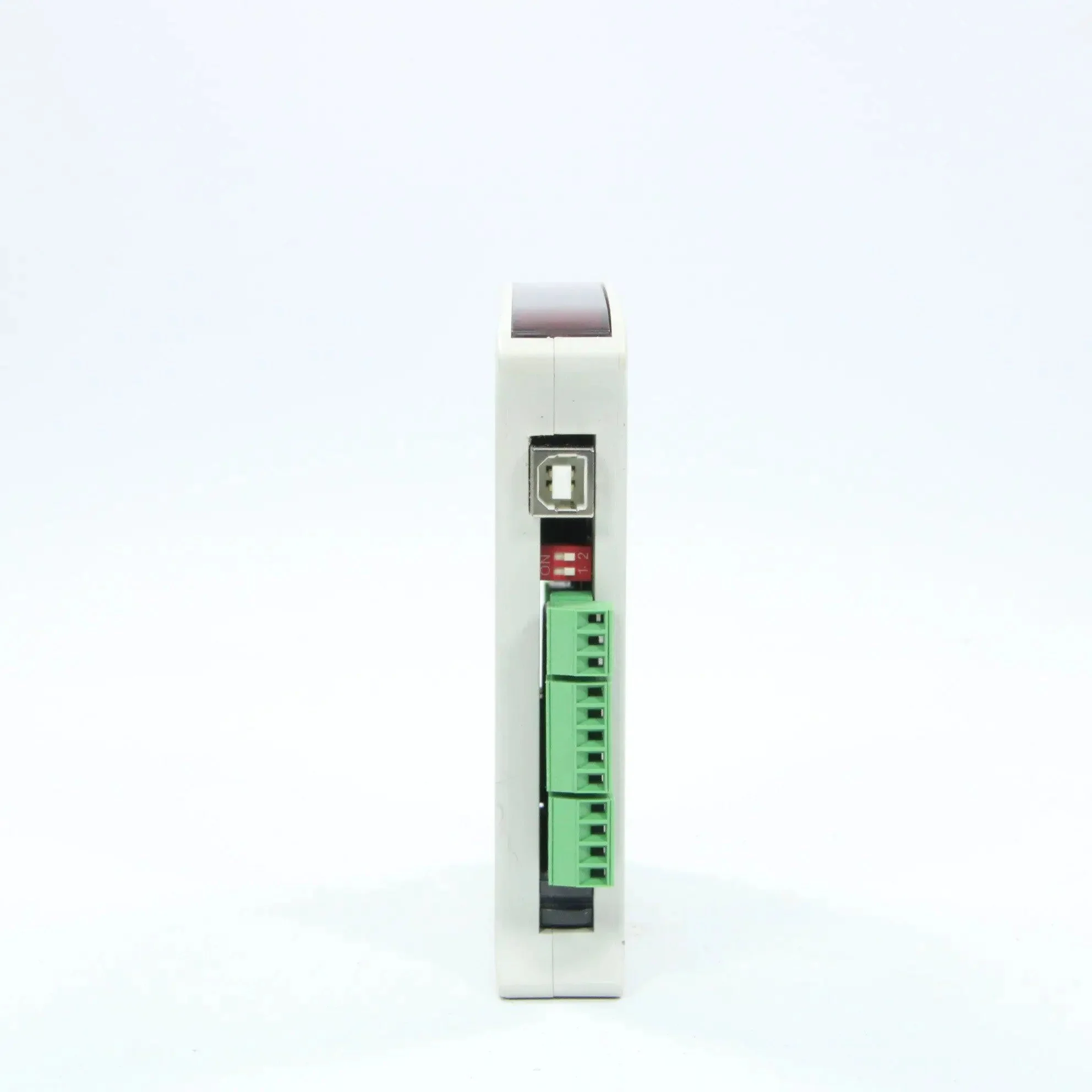

Penko SGM750 7600A1987

Used Penko SGM750 7600A1987

Weighing unit using passive sense, 1600 Samples per second
6x 7 segment led display
Housing with Din-Rail connection
24Vdc
3 Inputs 18 - 28 Vdc

The inputs can be configured to do functions such as Zeroset, Tareset, Print, Keylock and many more.
4 Outputs 25 V ac or dc

The 4 outputs can be configured as Setpoints
For Industrial applications
Local bus via RS485 (this bus can only be used to calibrate multiple SGM’s)
USB-port for easy calibrating via a PC
RS232 and RS422 communication

Communication can be used for:
RS232:
Communicate with PC
Communicate with PLC with ASCII, NPV Slave, HL Viewteq, HL PLC, Modbus RTU and Modbus ASCII
Communicate with PENKO Flex devices
Printing

RS422:
Communicate with PC
Communicate with PLC with ASCII, NPV Slave, HL Viewteq, HL PLC, Modbus RTU and Modbus ASCII
Communicate with PENKO Flex devices
Printing
