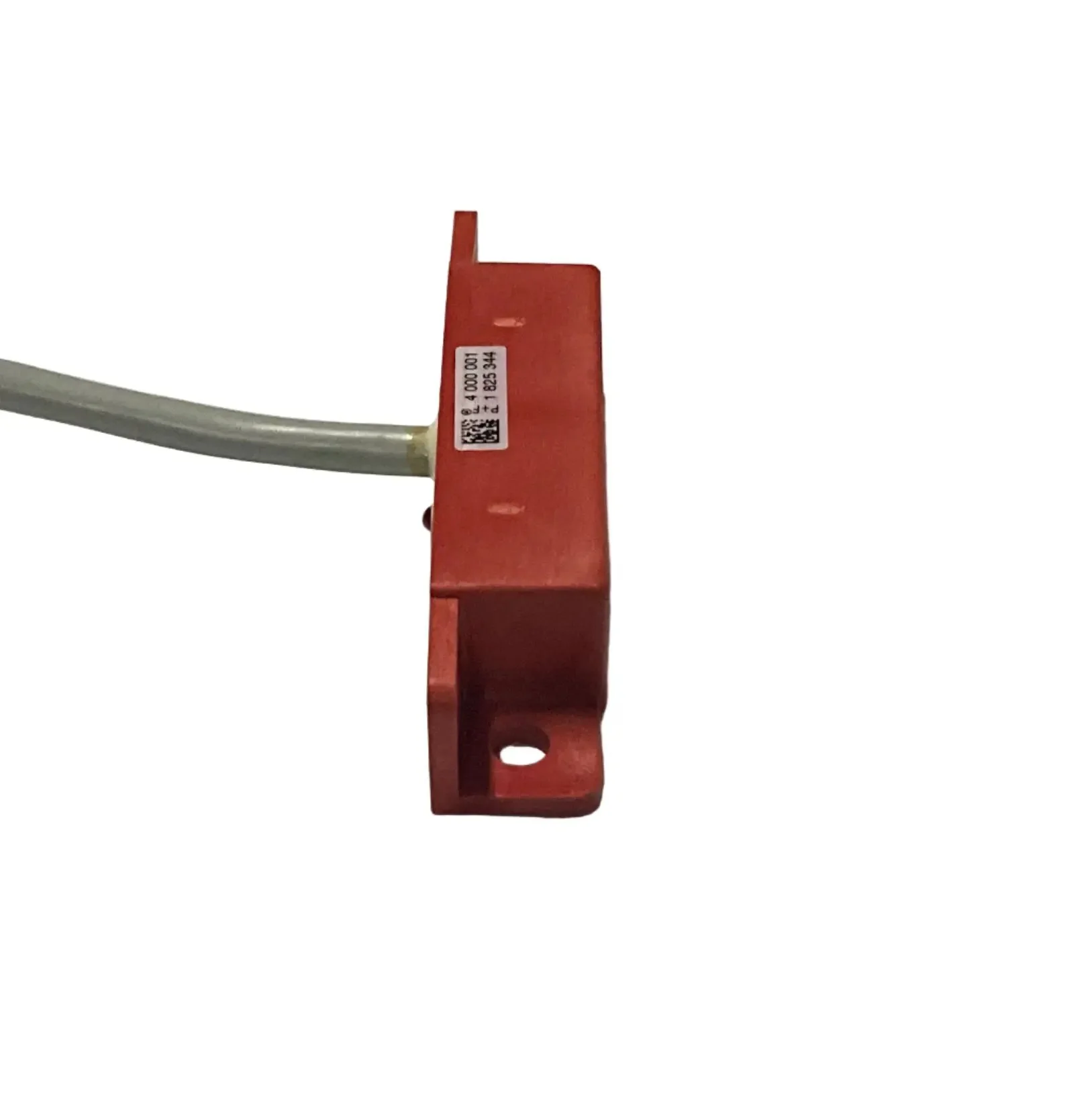

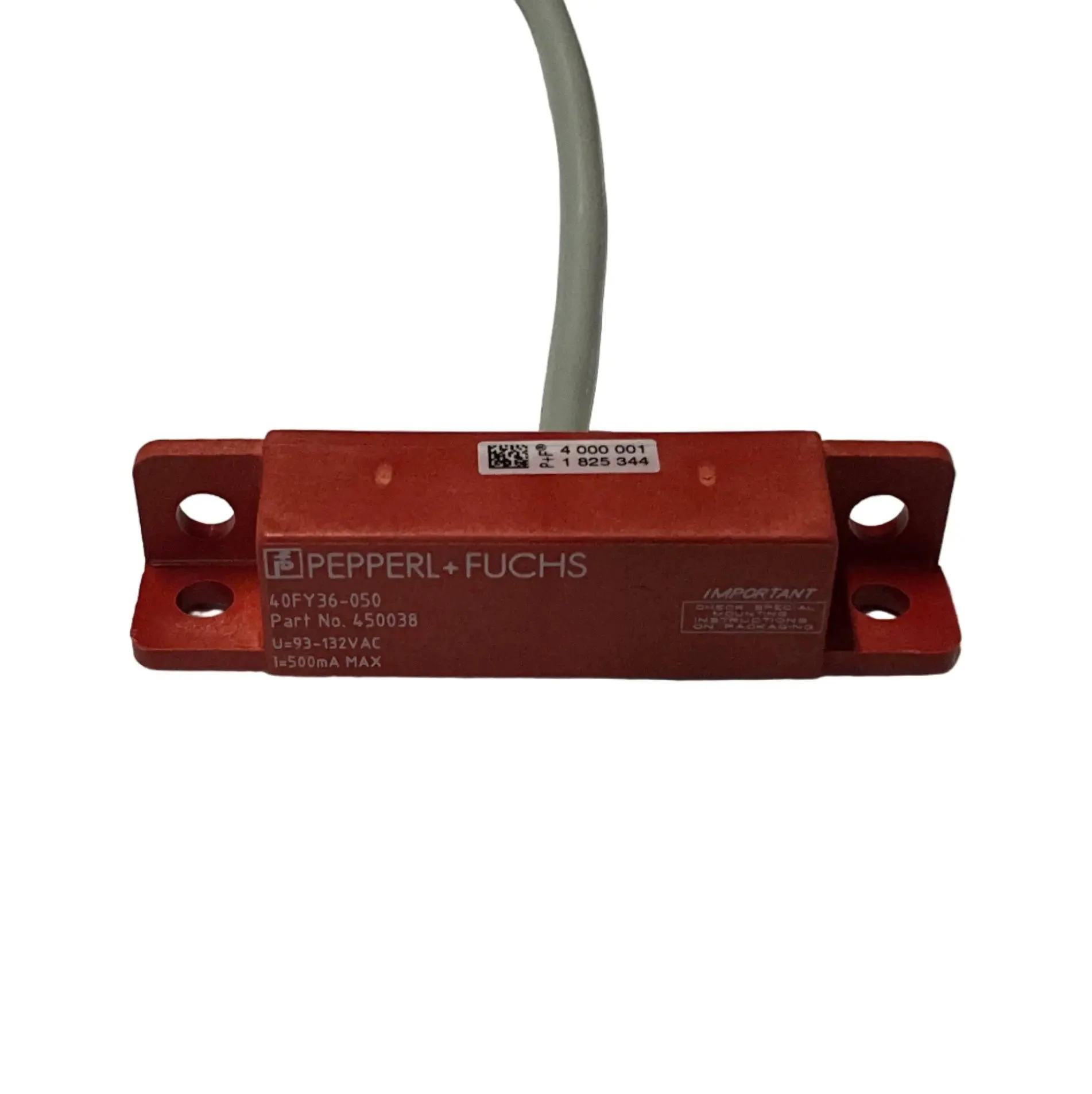

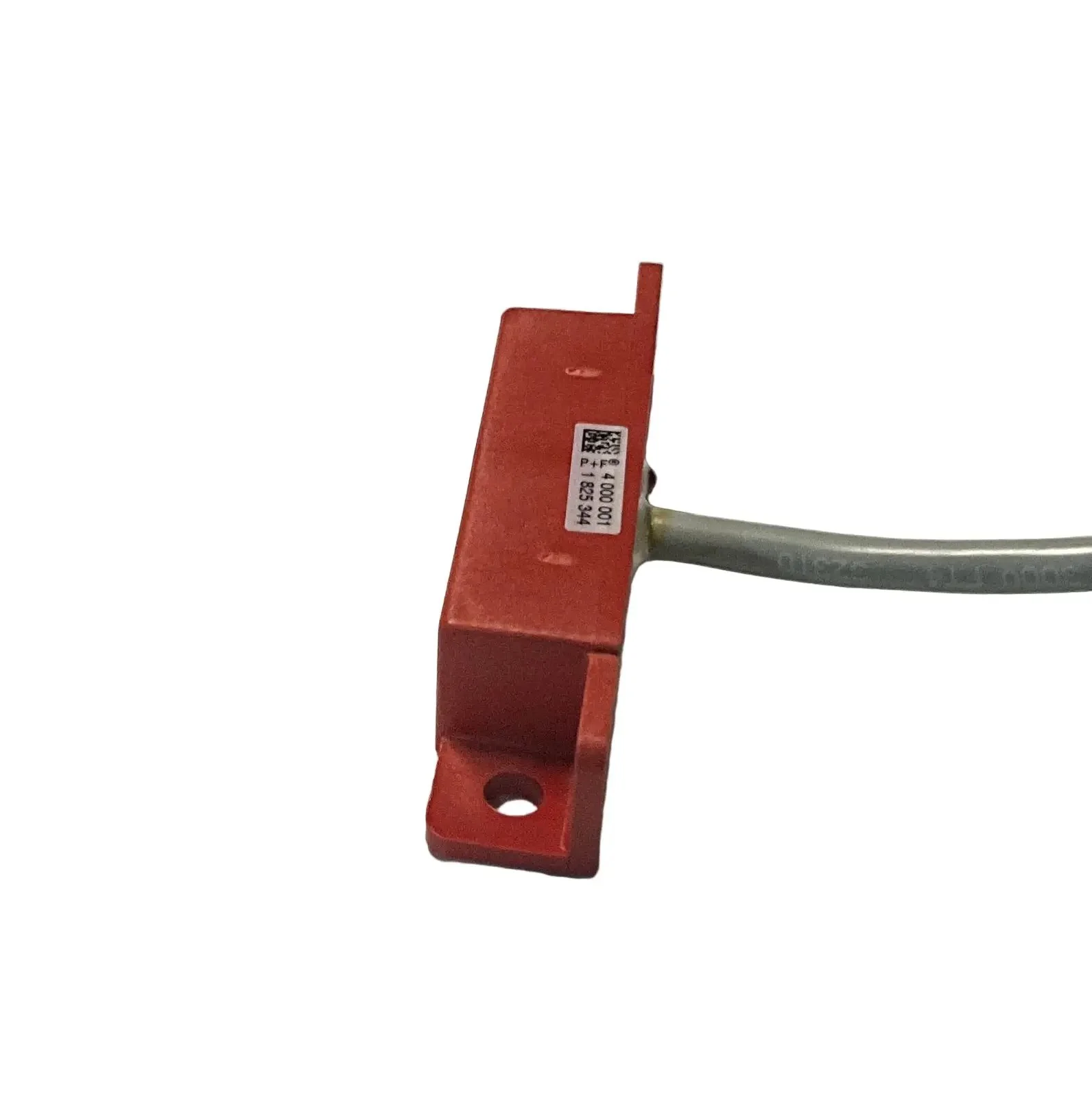

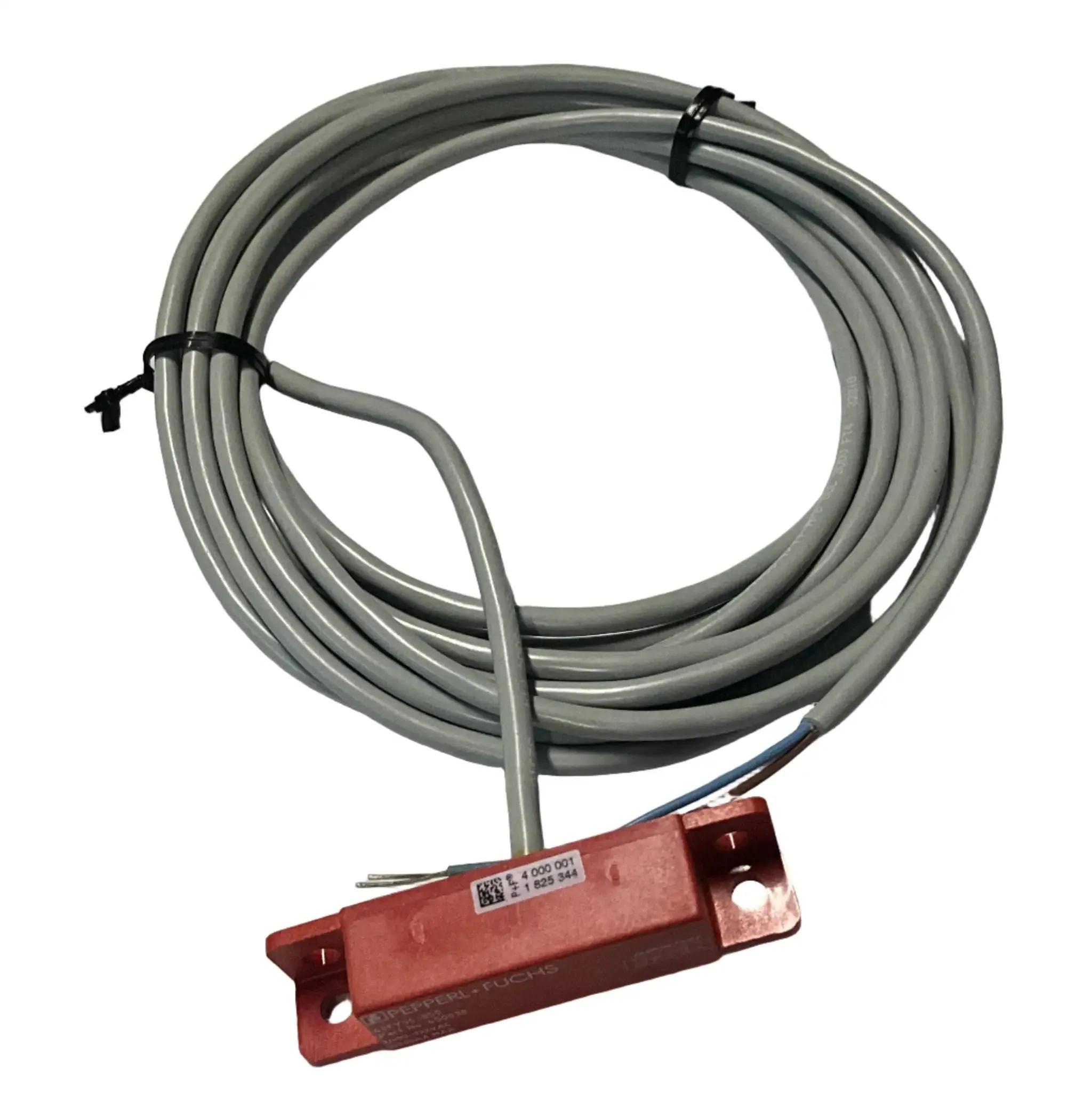

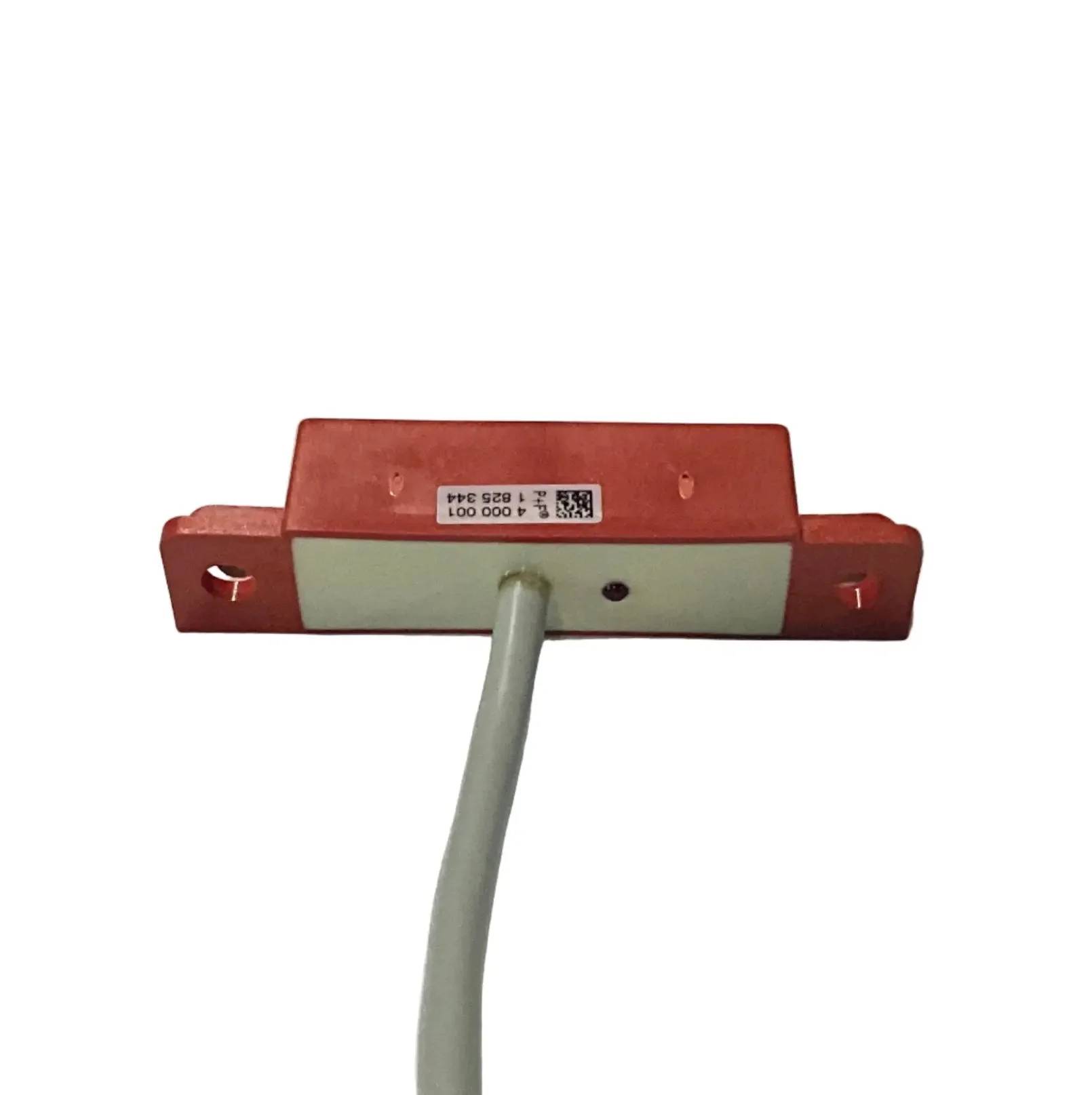

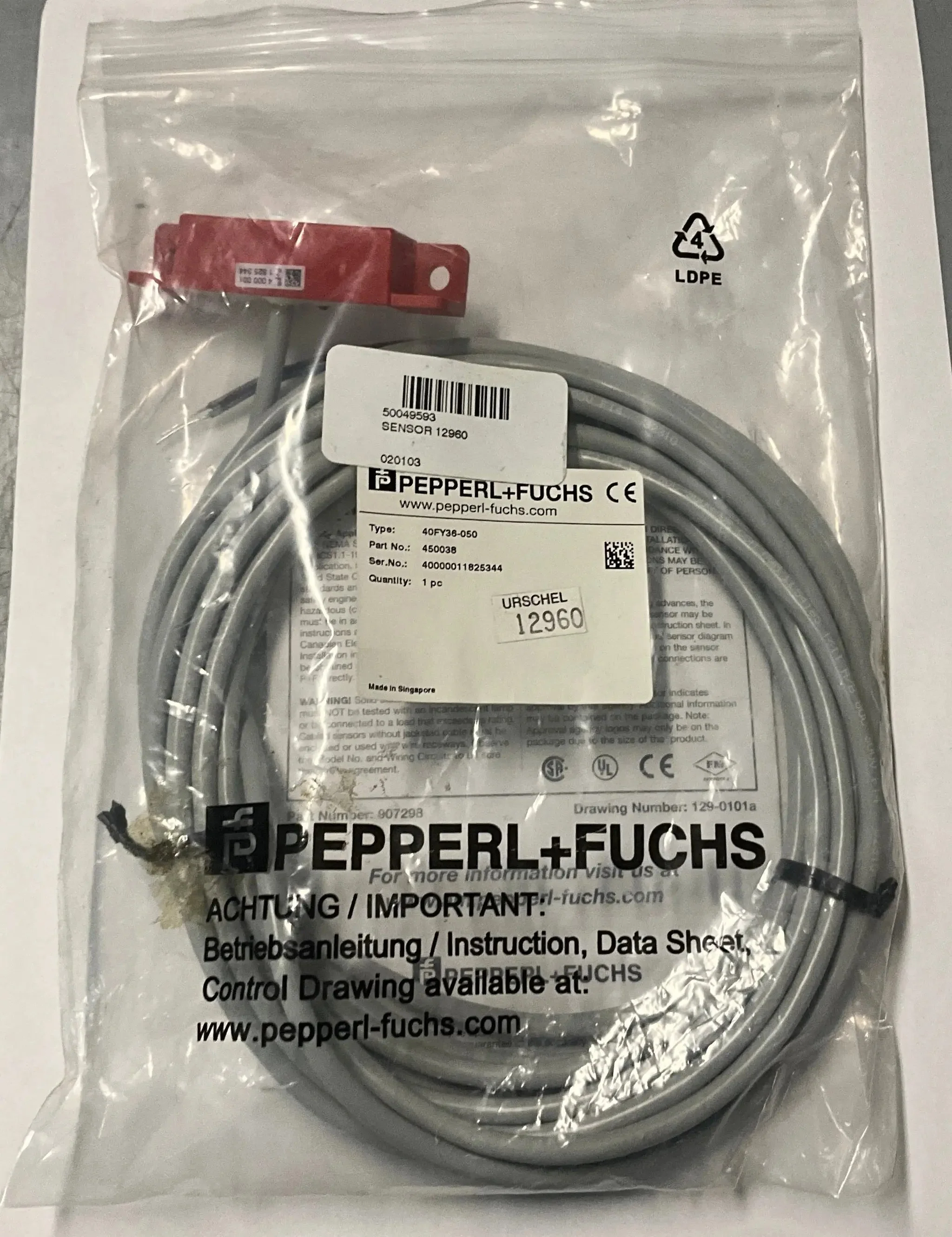

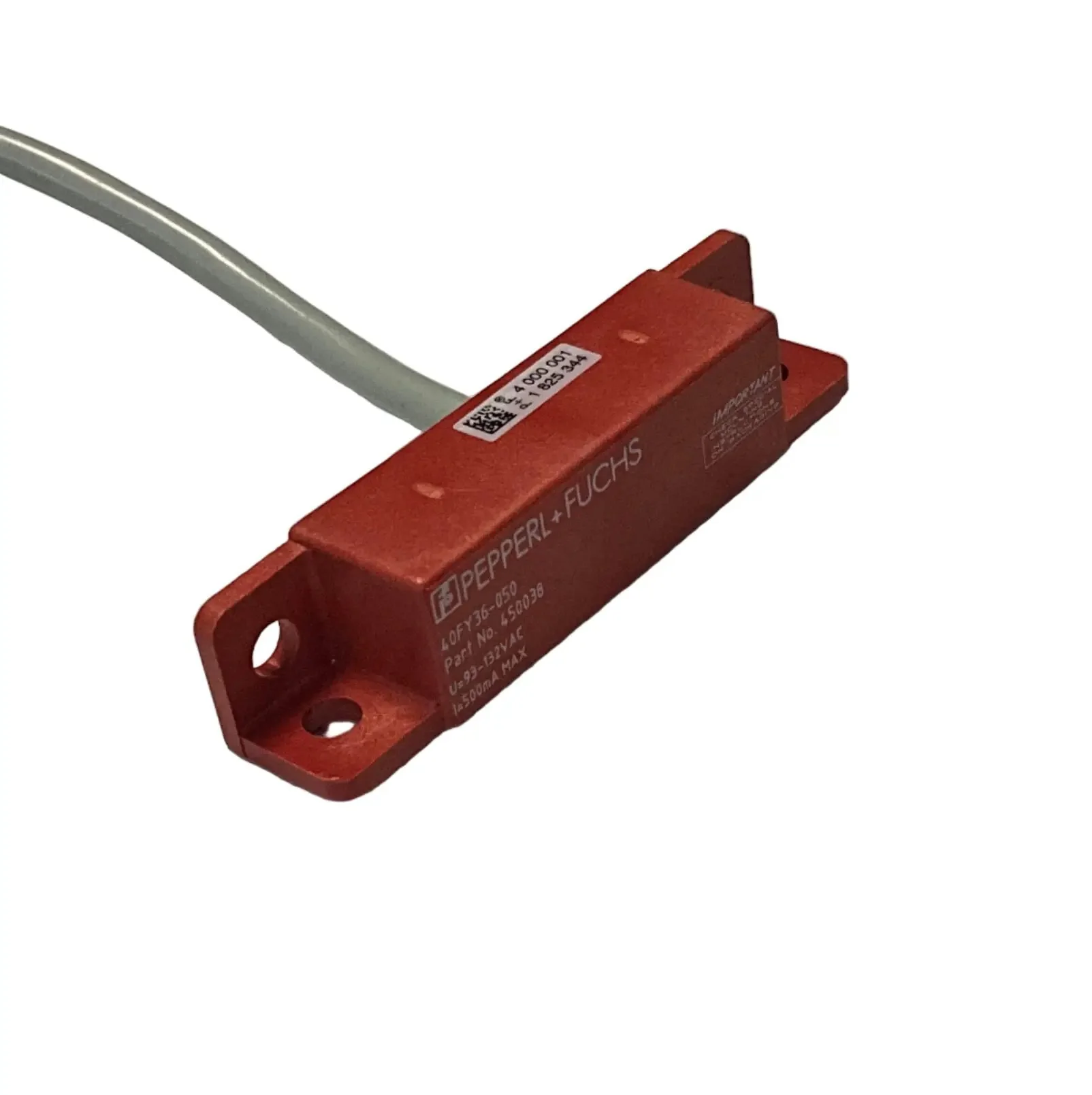

Pepperl + Fuchs 40FY36-050 Magnetic Proximity Sensor

Brand: Pepperl + Fuchs
Model: 40FY36-050
Type: Magnetic Proximity Sensor
Part Number: 40FY36-050 (Alternate Part Number: 450038)

Technical Specs:
- Sensor Type: Magnetic field sensor (Hall-effect switch)
- Output Type: Digital switch (solid-state)
- Operating Voltage: 10 to 30 V DC
- Output Configuration: PNP, normally open (NO)
- Sensing Range: 5-15 mm
- Switching Distance (with actuator): 10 mm
- Electrical Connection: Cable, 5m
- Protection Rating: IP67
- Operating Temperature Range: -25°C to 75°C
- Housing Material: Thermoplastic
- Vibration Resistance: Per IEC standards (typically 10-55 Hz)
- Mounting: Non-flush
- Certifications: RoHS compliant (ROHS3), CE
- Additional Features: Tamper-resistant design, compatible with Pepperl+Fuchs magnetic actuators

Dimension: 40 x 26 x 12 mm

Weight: 185g

Country of Origin: Germany

HS Code: 8536.50
