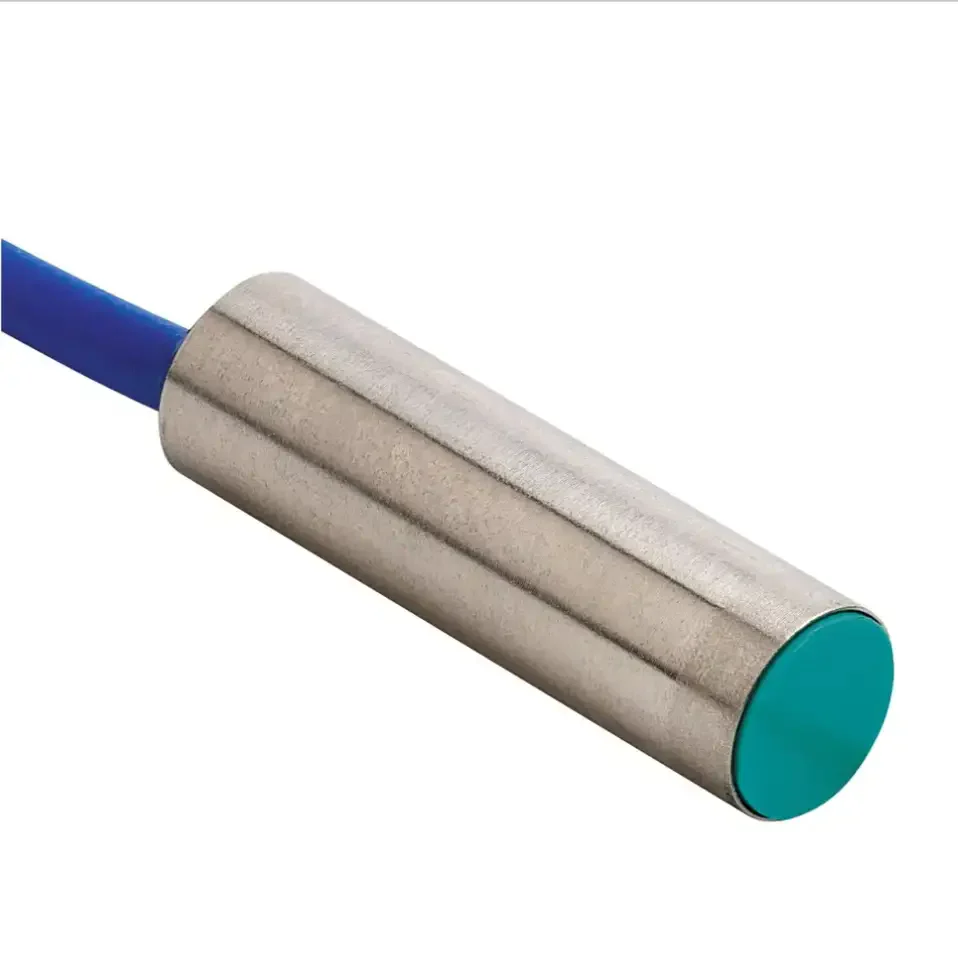

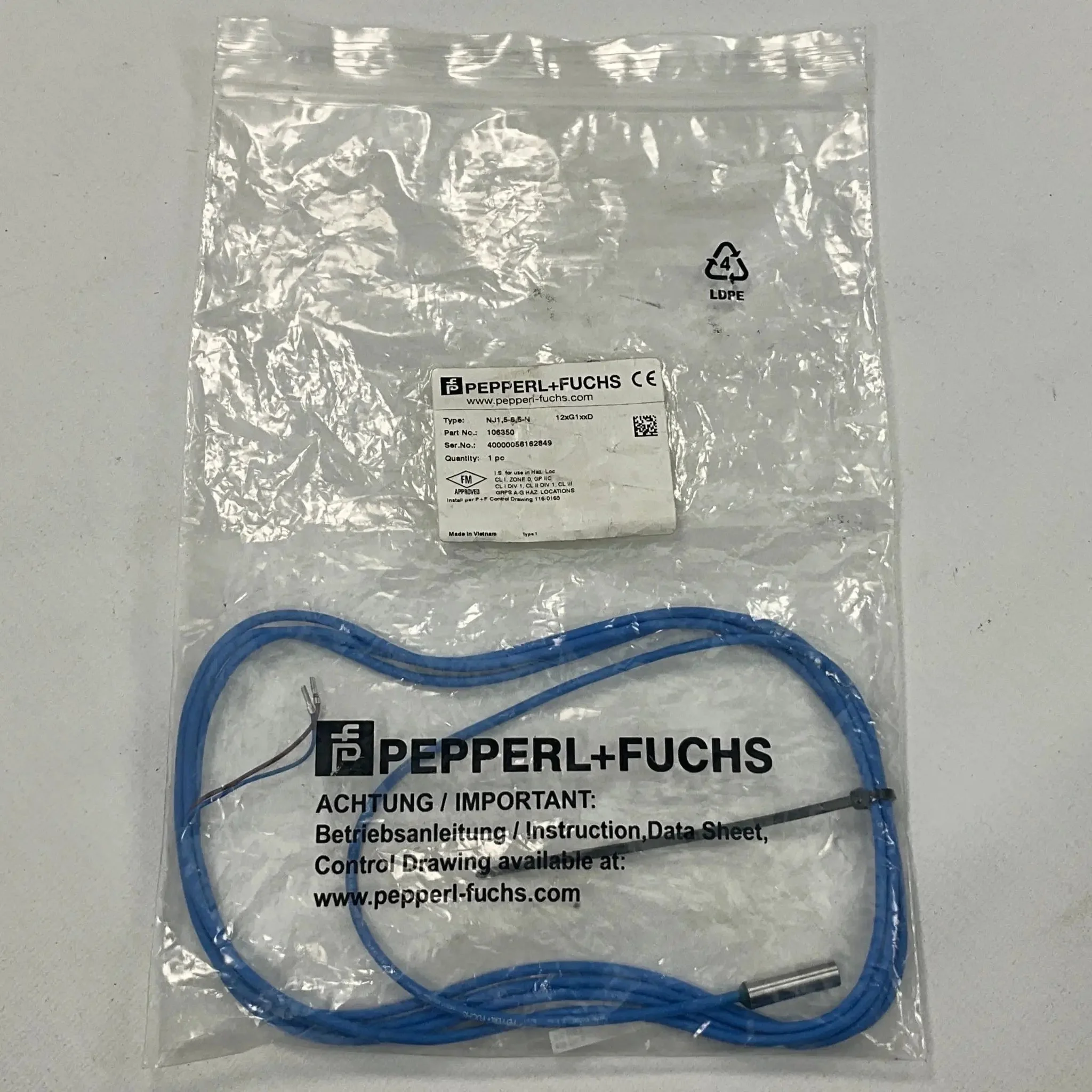

Pepperl + Fuchs NJ1,5-6,5-N Inductive Sensor

Brand: Pepperl + Fuchs

Model: 106350 (NJ1,5‑6,5‑N)

Type: Inductive Sensor

Sensing Principle: Inductive proximity (flush, NAMUR)

Switching Function: Normally Closed (NC)

Rated/Assured Distance: 1.5 mm / up to 1.215 mm

Typical Activation Distance: 1.35–1.65 mm

Output Type: NAMUR

Nominal Voltage: 8.2 V DC (Ri ≈ 1 kΩ)

Switching Frequency: Up to 5 kHz

Hysteresis: Approximately 5%

Current Consumption: ≥ 3 mA (no target) / ≤ 1 mA (with target)

Safety Compliance: SIL 2 (IEC 61508)

Standards: EN/IEC 60947‑5‑6 (NAMUR)

Approvals: UL, CSA, (CCC N/A)

Operating Temperature: –25 °C to +100 °C

Housing & Connection: Stainless steel housing; 2 m PVC cable; 0.14 mm²

Protection Rating: IP66 / IP67

Housing Diameter: 6.5 mm

Weight: 50g

HS Code: 85365019

Country of origin: Vietnam
