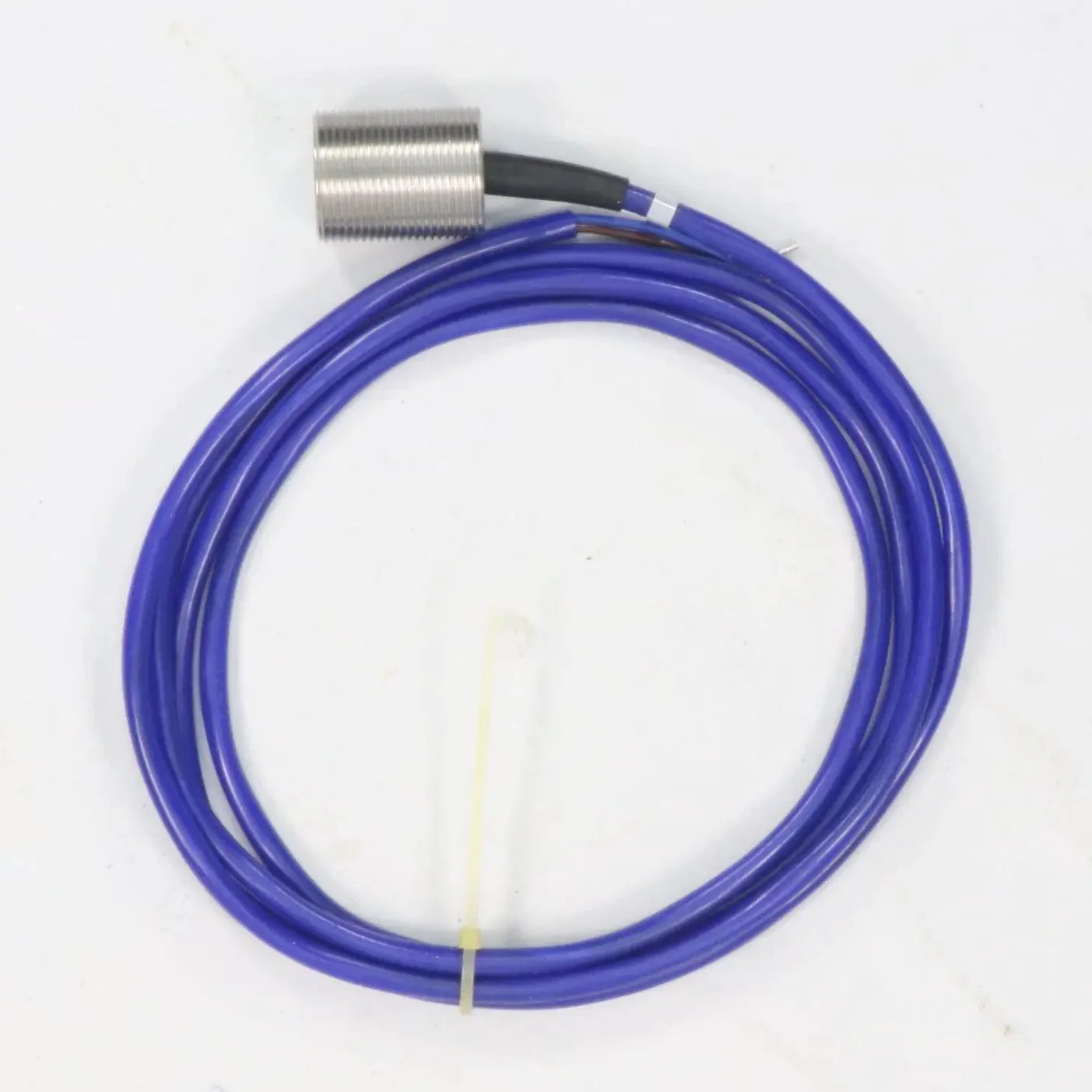

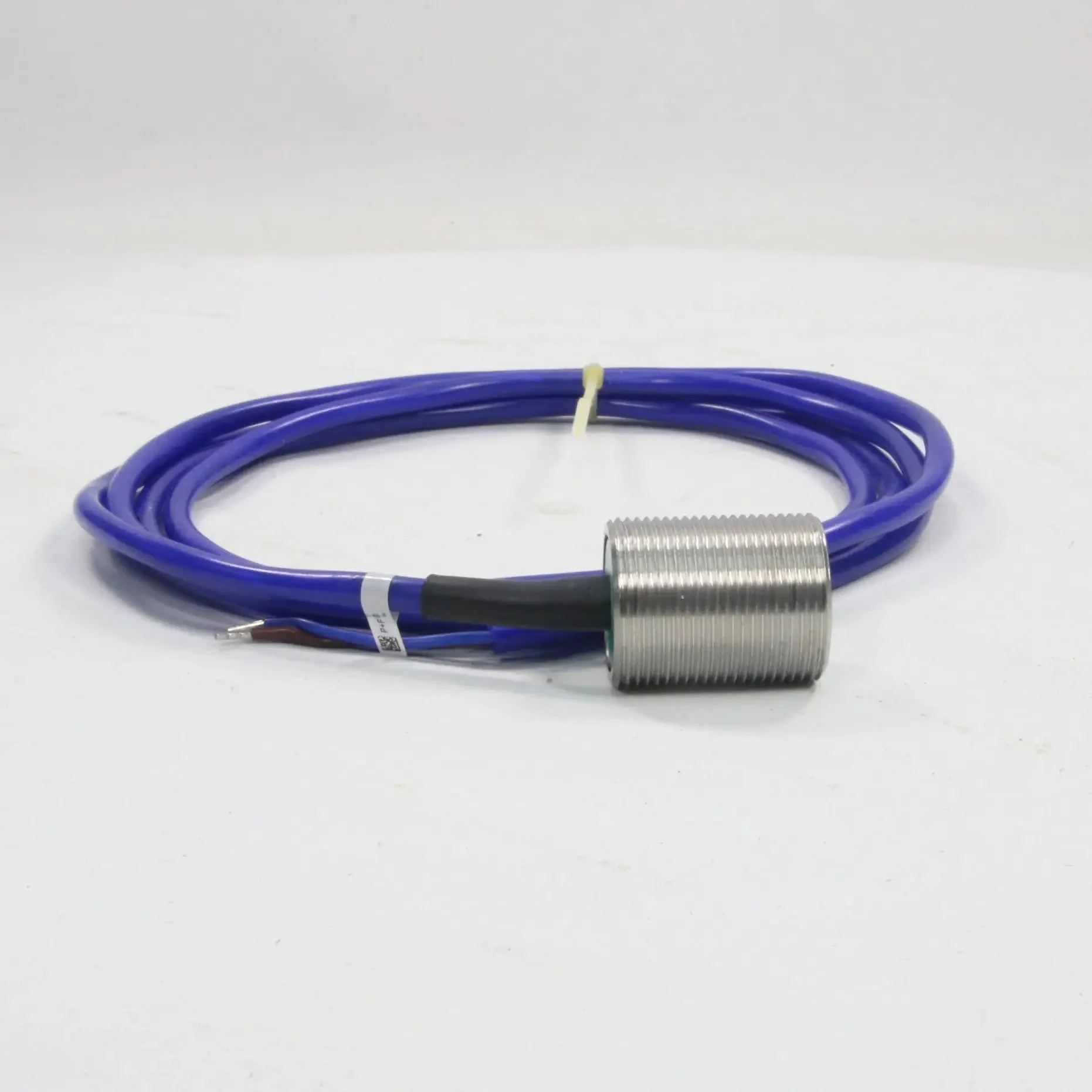

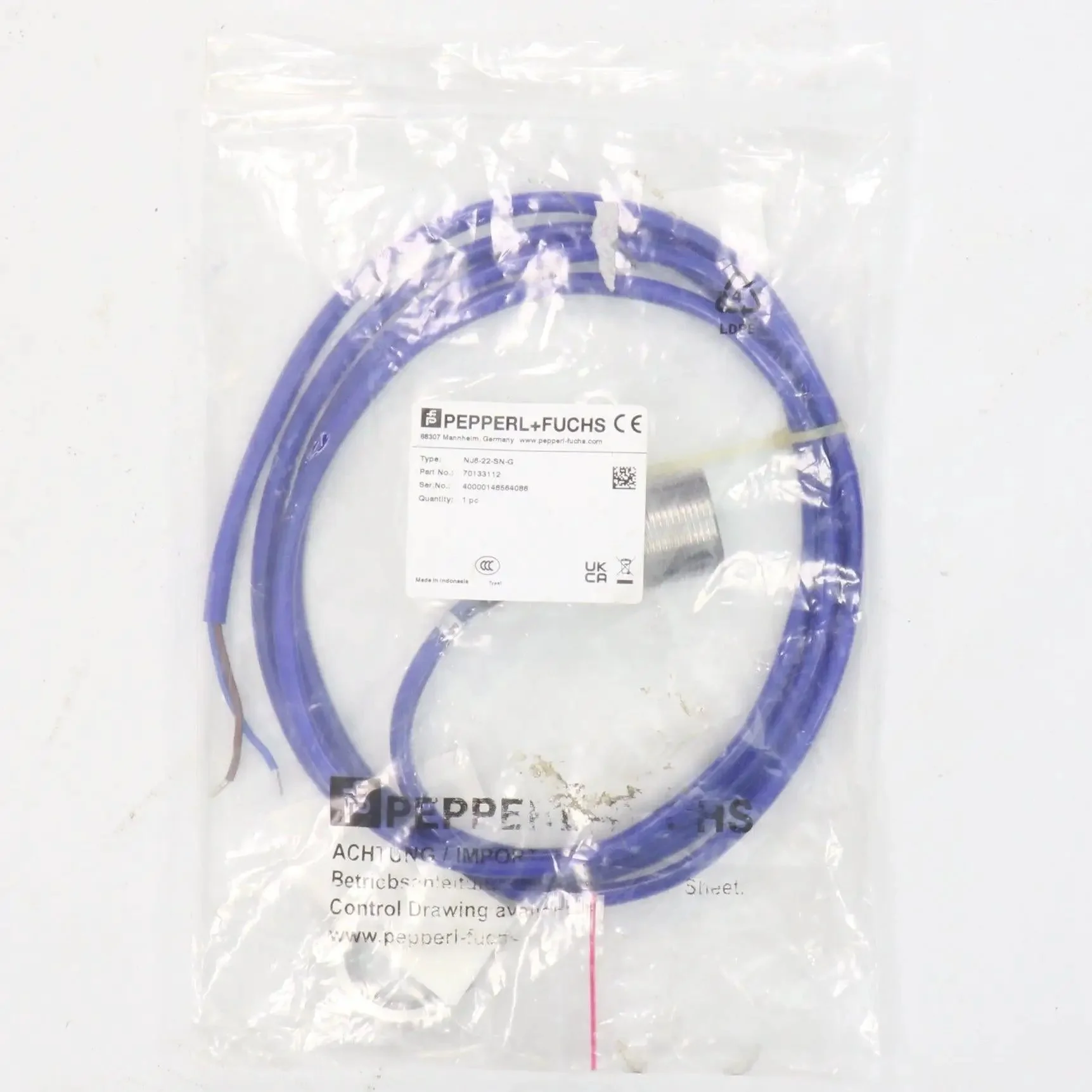

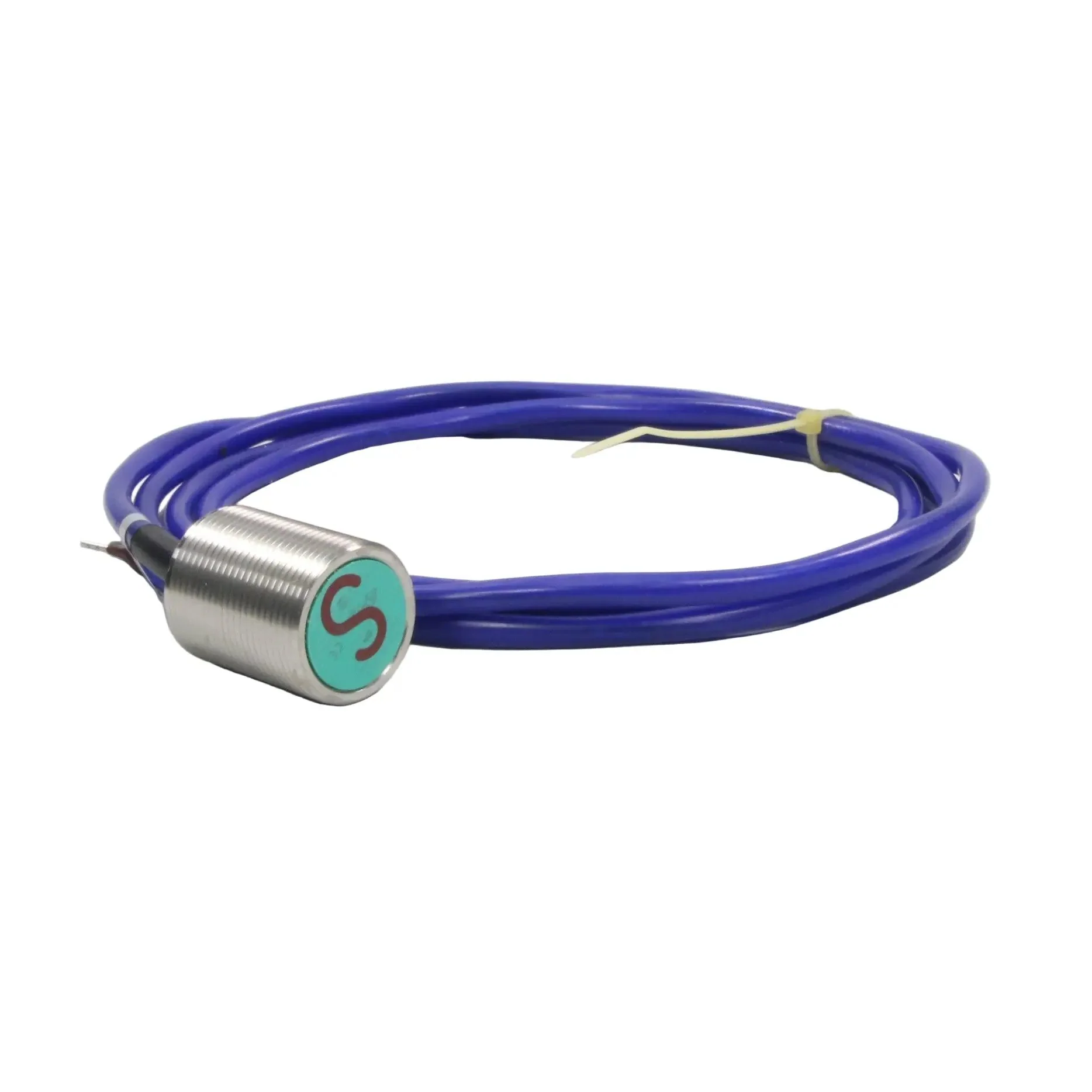

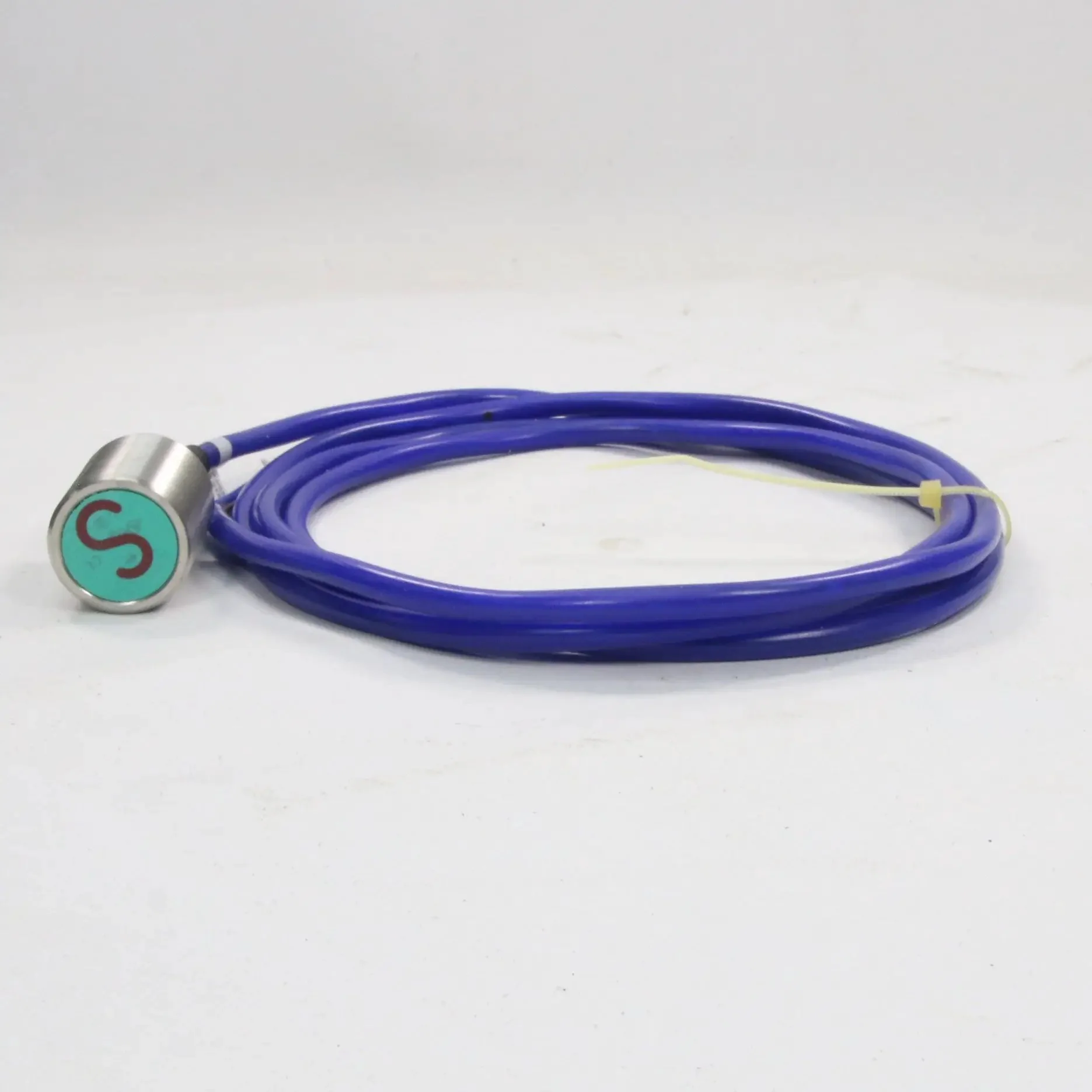

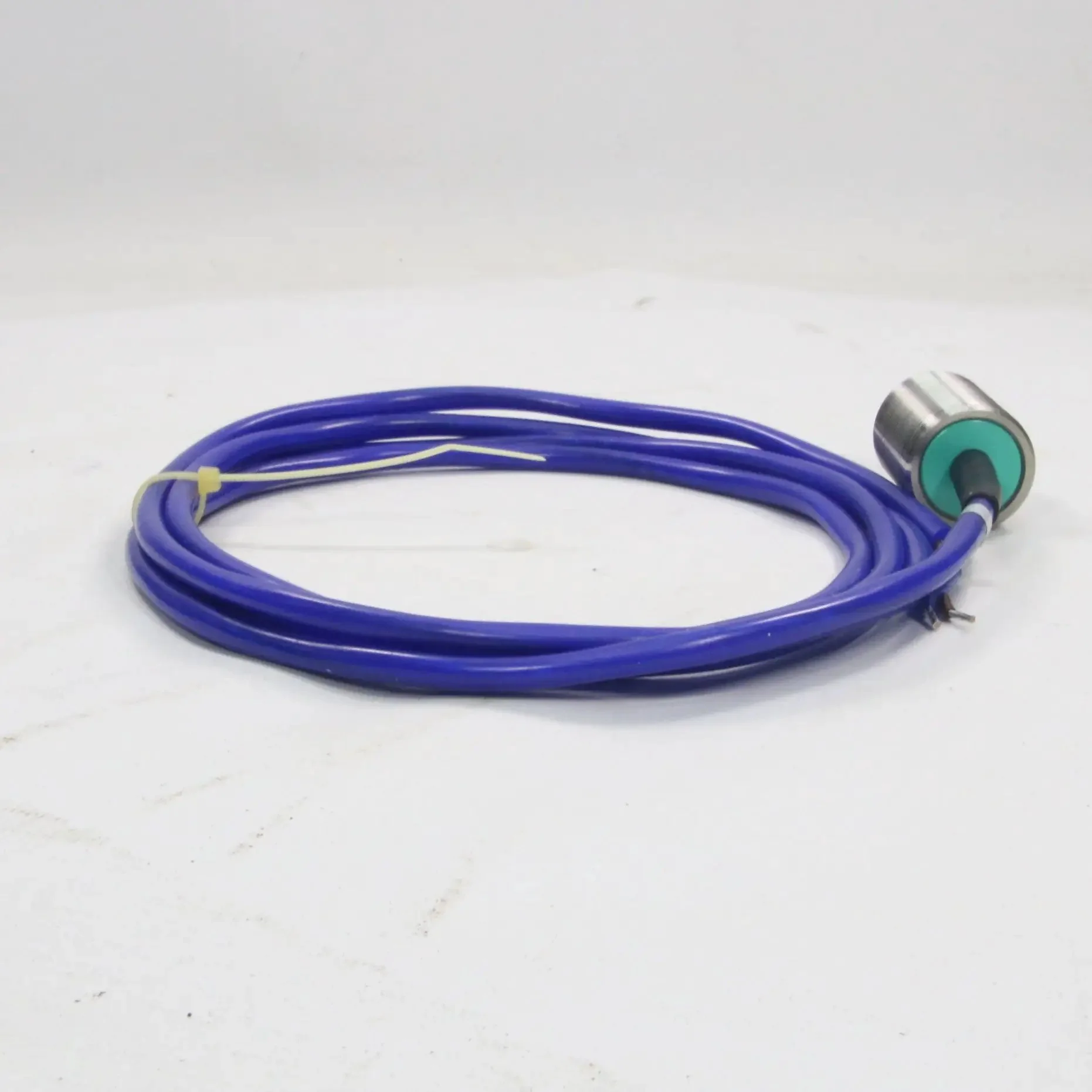

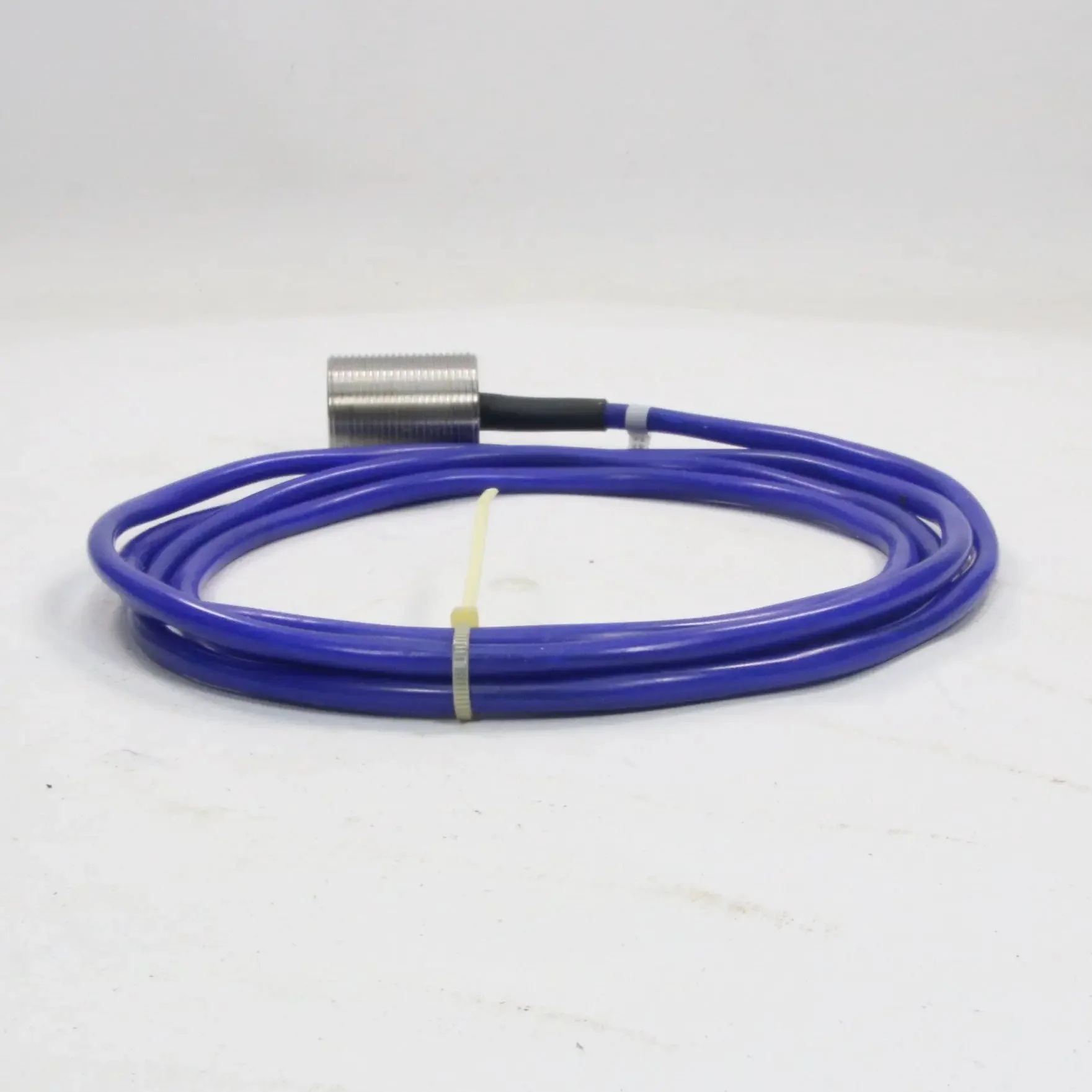

Pepperl + Fuchs NJ6-22-SN-G Inductive Sensor

Brand: Pepperl + Fuchs
Model: NJ6-22-SN-G
Type: Inductive sensor
Part number: 70133112
- Material: Stainless steel housing (1.4305/AISI 303)
- Sensing Distance: 6 mm (flush mount)
- Output Type: NAMUR (normally closed, NC)
- Operating Voltage: 8.2 VDC (via NAMUR amplifier)
- Switching Frequency: 0-2000 Hz
- Hysteresis: 2-15%
- Repeat Accuracy: ≤3% (of sensing range)
- Diagnostic Coverage: Usable up to SIL 3 per IEC 61508
- Short-Circuit Protection: Yes
- Reverse Polarity Protection: Yes
- Connection: 2 m PVC cable
- Protection Rating: IP68
- Approvals: ATEX/IECEx zone 0/1/20/21 (Ex ia IIC T6 Gb/Gb, Ex ia IIIC T4 D); zone 2/22
- Operating Temperature Range: -40°C to +100°C
- Medium: Non-contact detection of metallic objects
- Standards: IEC/EN 60947-5-6; IEC 61508 (SIL 3)
- Certification: CE; RoHS compliant; ATEX/IECEx
- Features: High safety integrity for hazardous areas; suitable for position detection in SIL 3 systems
Dimension: 28.3 mm diameter x 35 mm
Weight: 240 g
Country of Origin: Indonesia
HS Code: 8536.50
