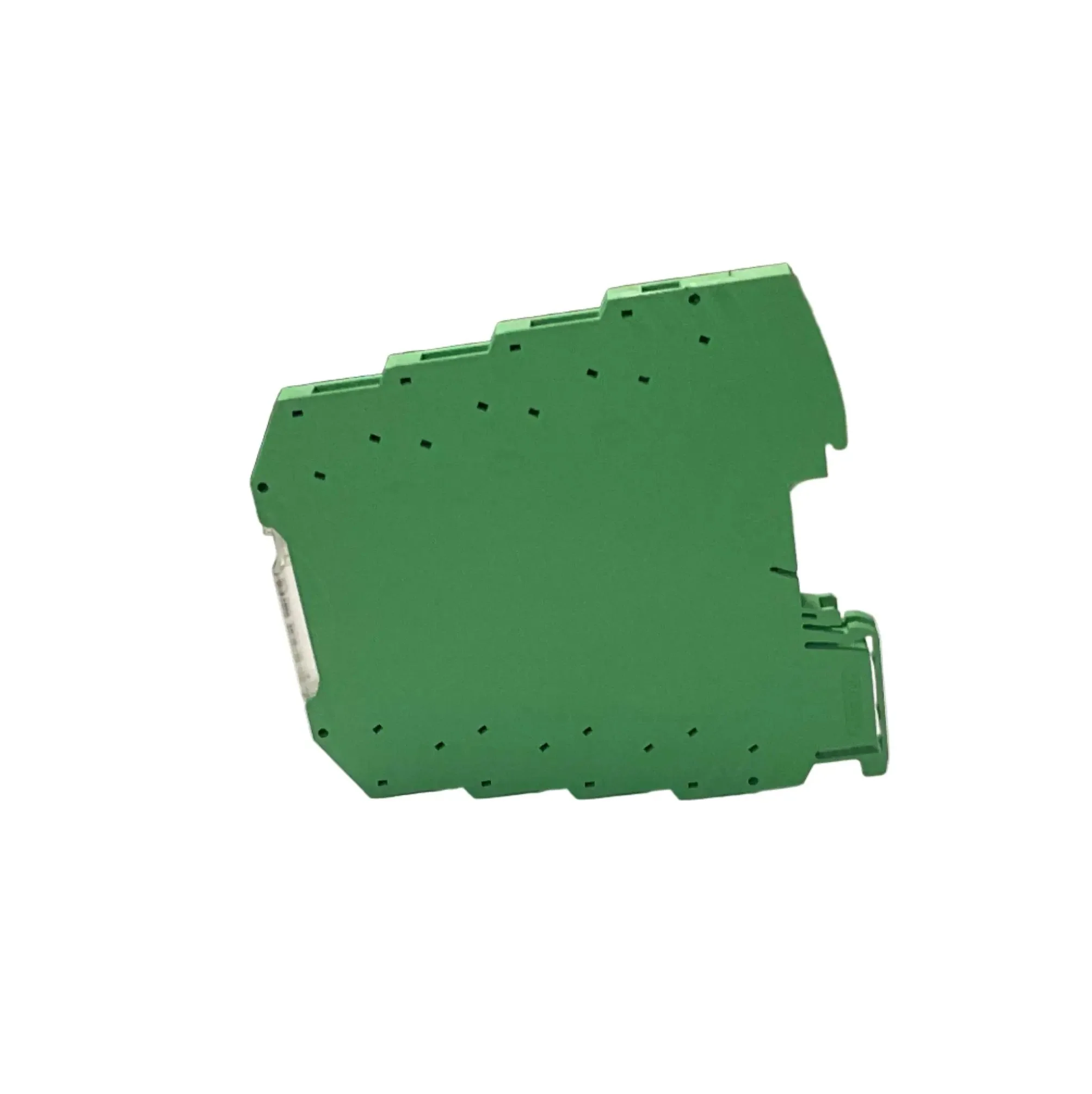

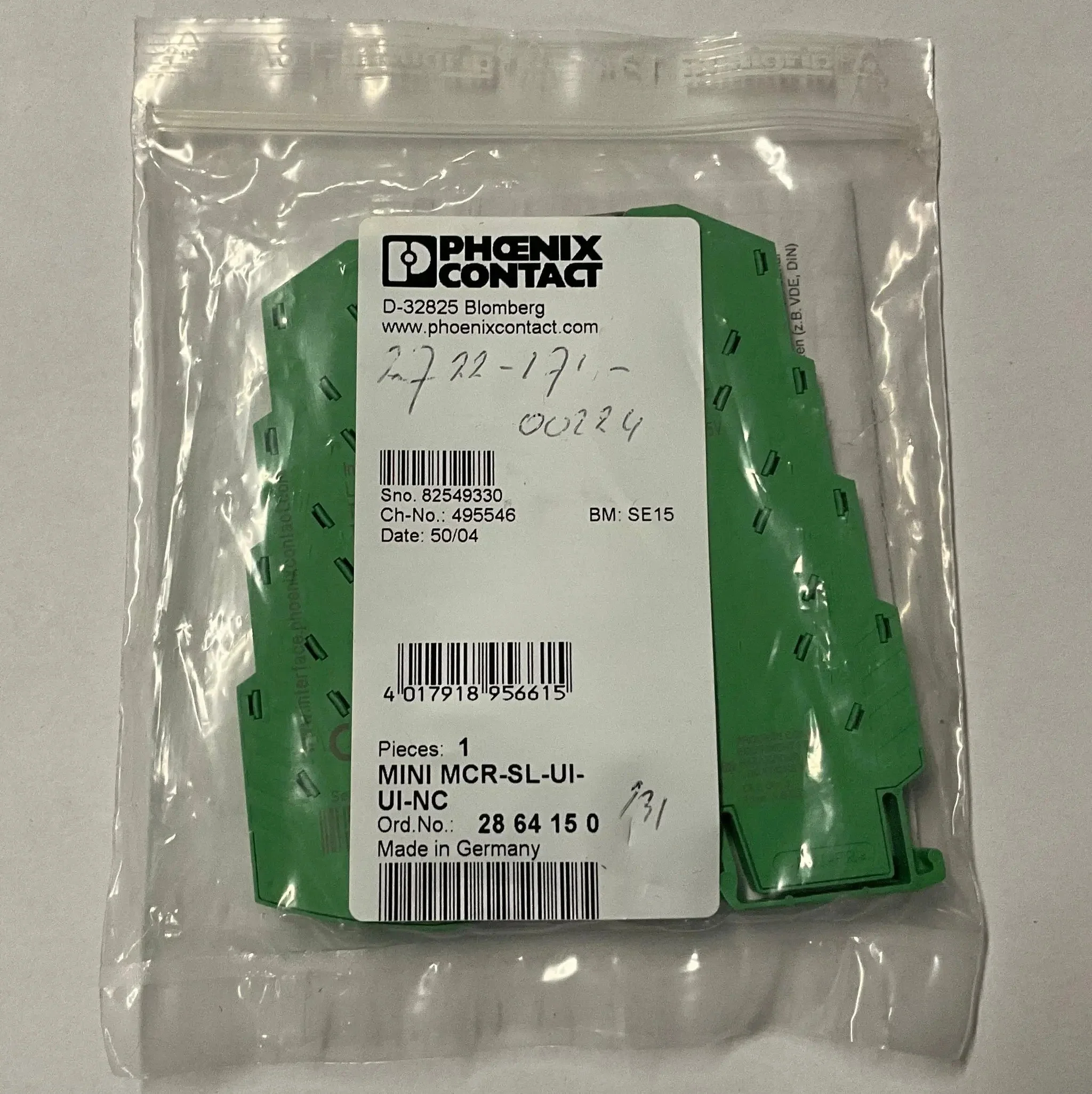

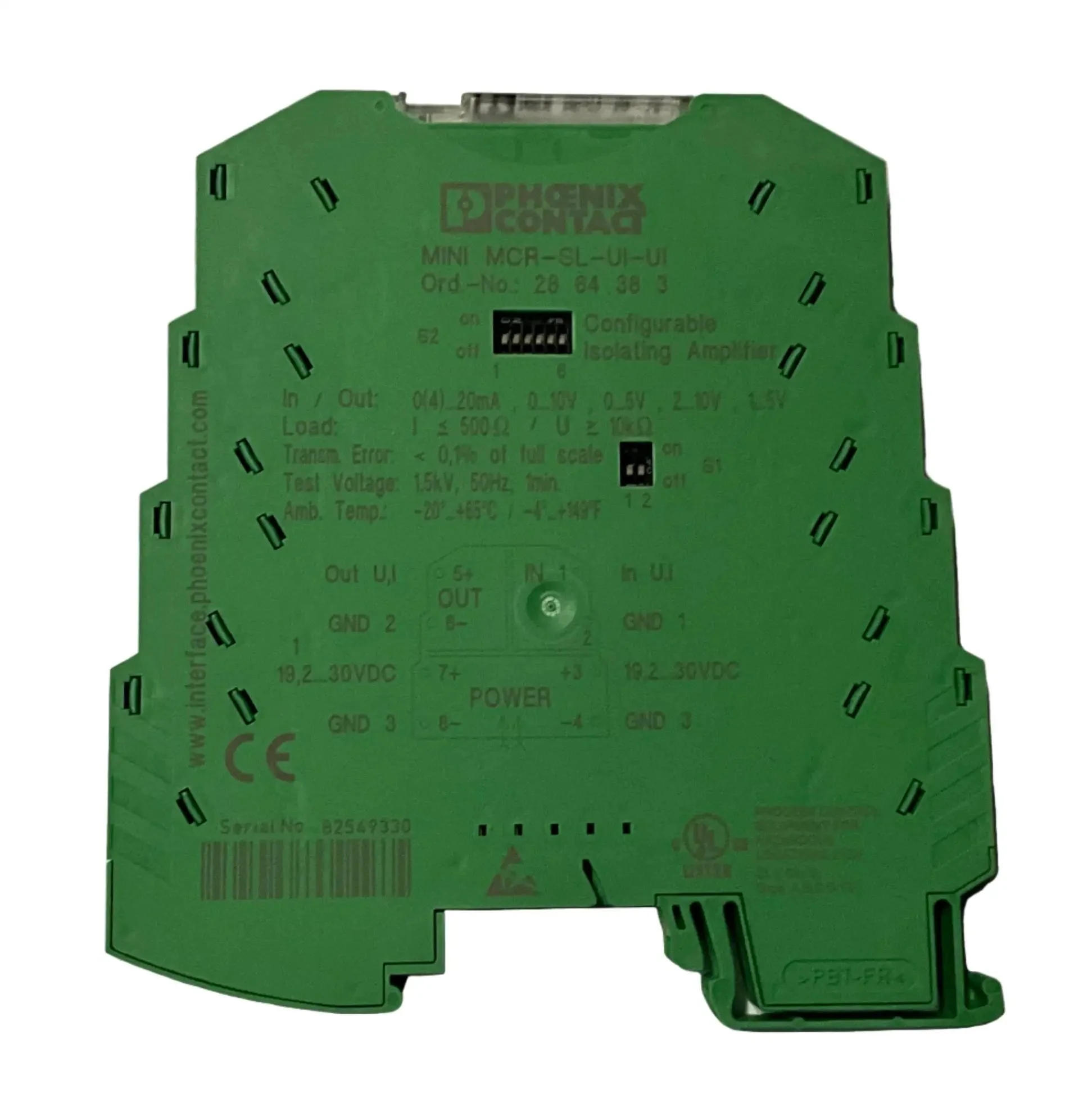

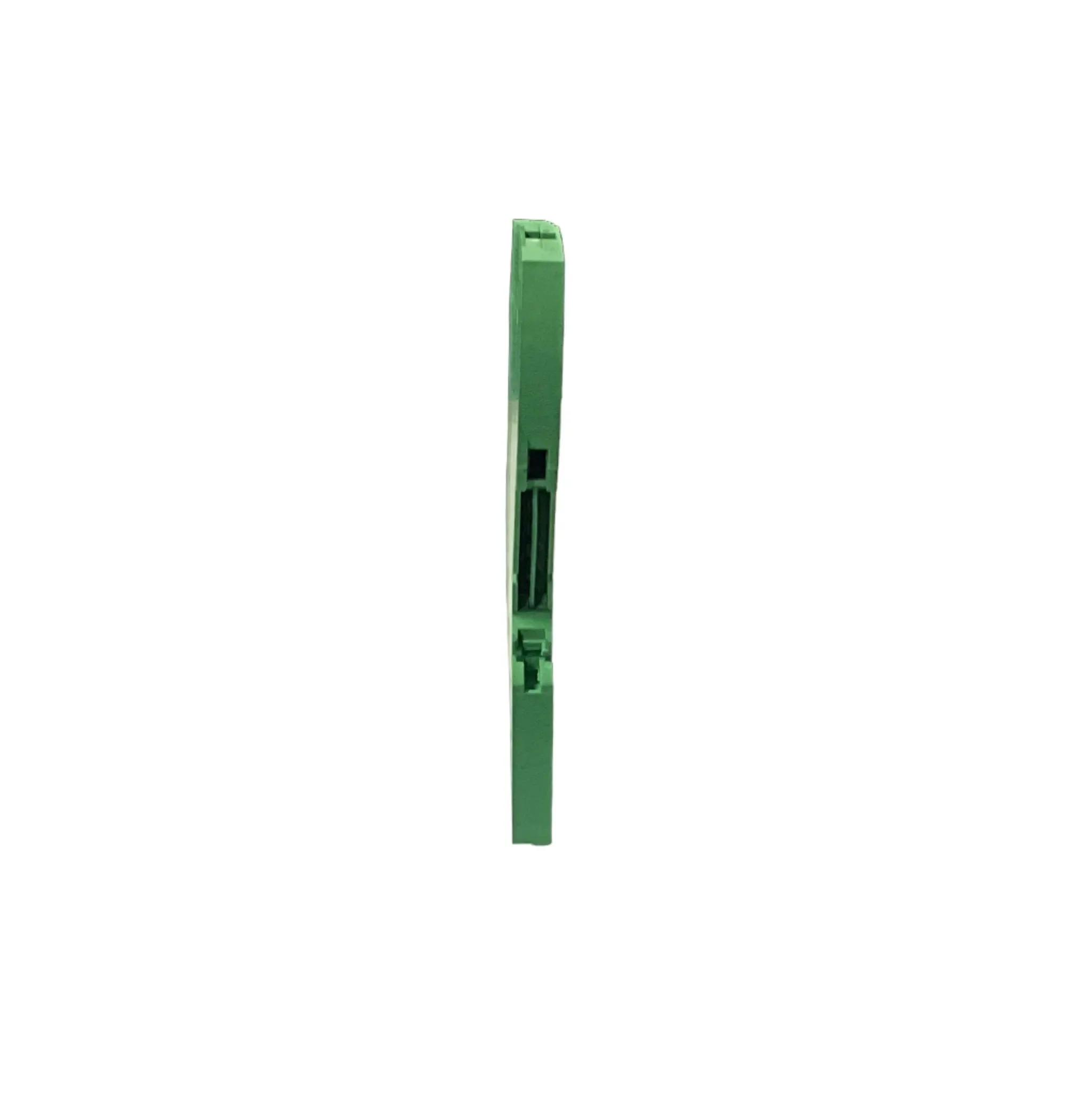

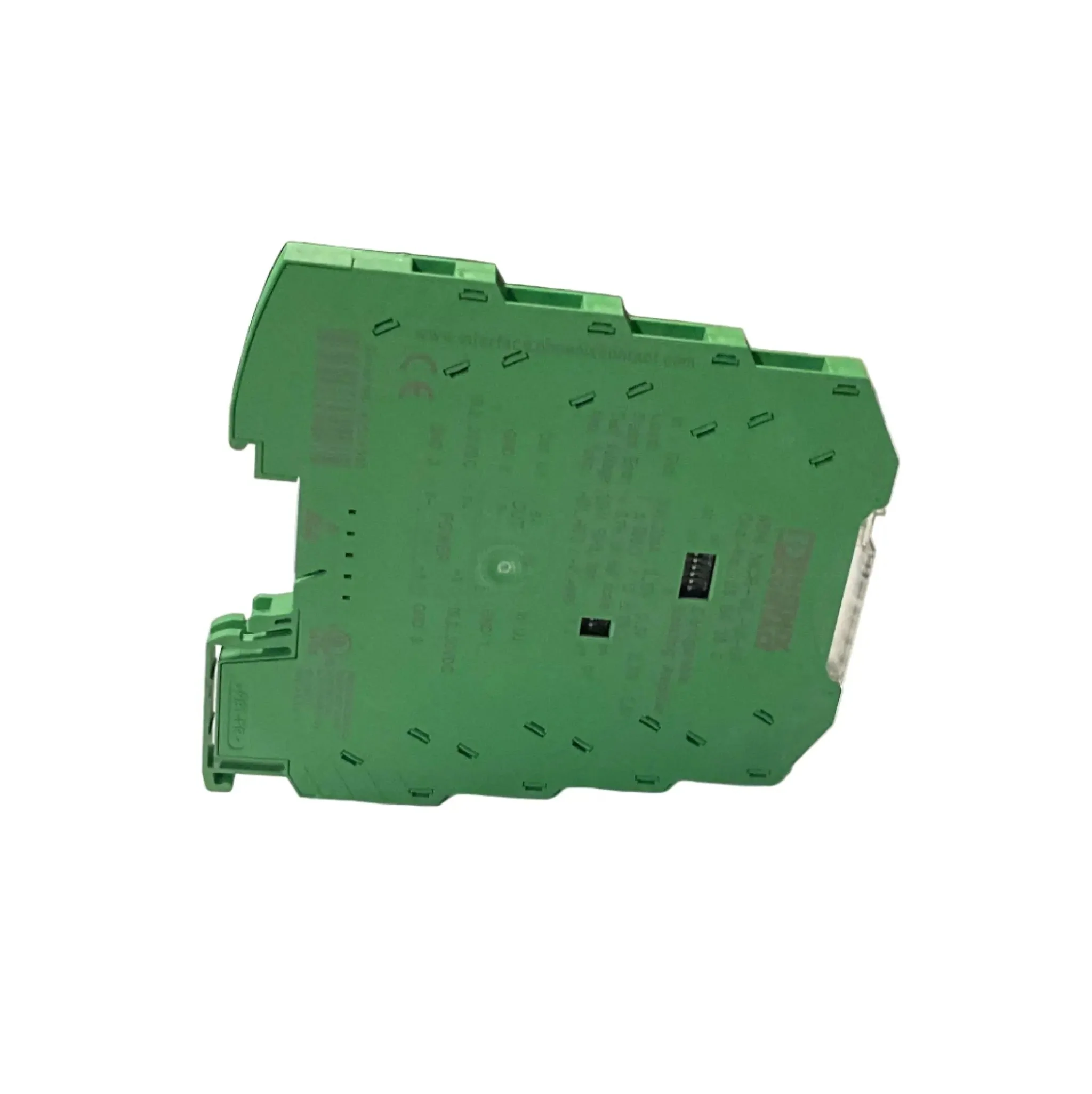

Phoenix Contact MINI MCR-SL-UI-UI-NC Signal Conditioner
Brand: Phoenix Contact
Model: MINI MCR-SL-UI-UI-NC
Type: Signal Conditioner (3-way Isolating Amplifier)
Part Number: 2864150
Technical Specs:
- Function: 3-way isolating amplifier for electrical isolation, conversion, amplification, and filtering of standard analog signals
- Input Signals: 0...20 mA, 4...20 mA, 0...10 V, 2...10 V, 0...5 V, 1...5 V
- Output Signals: 0...20 mA, 4...20 mA, 0...10 V, 2...10 V, 0...5 V, 1...5 V

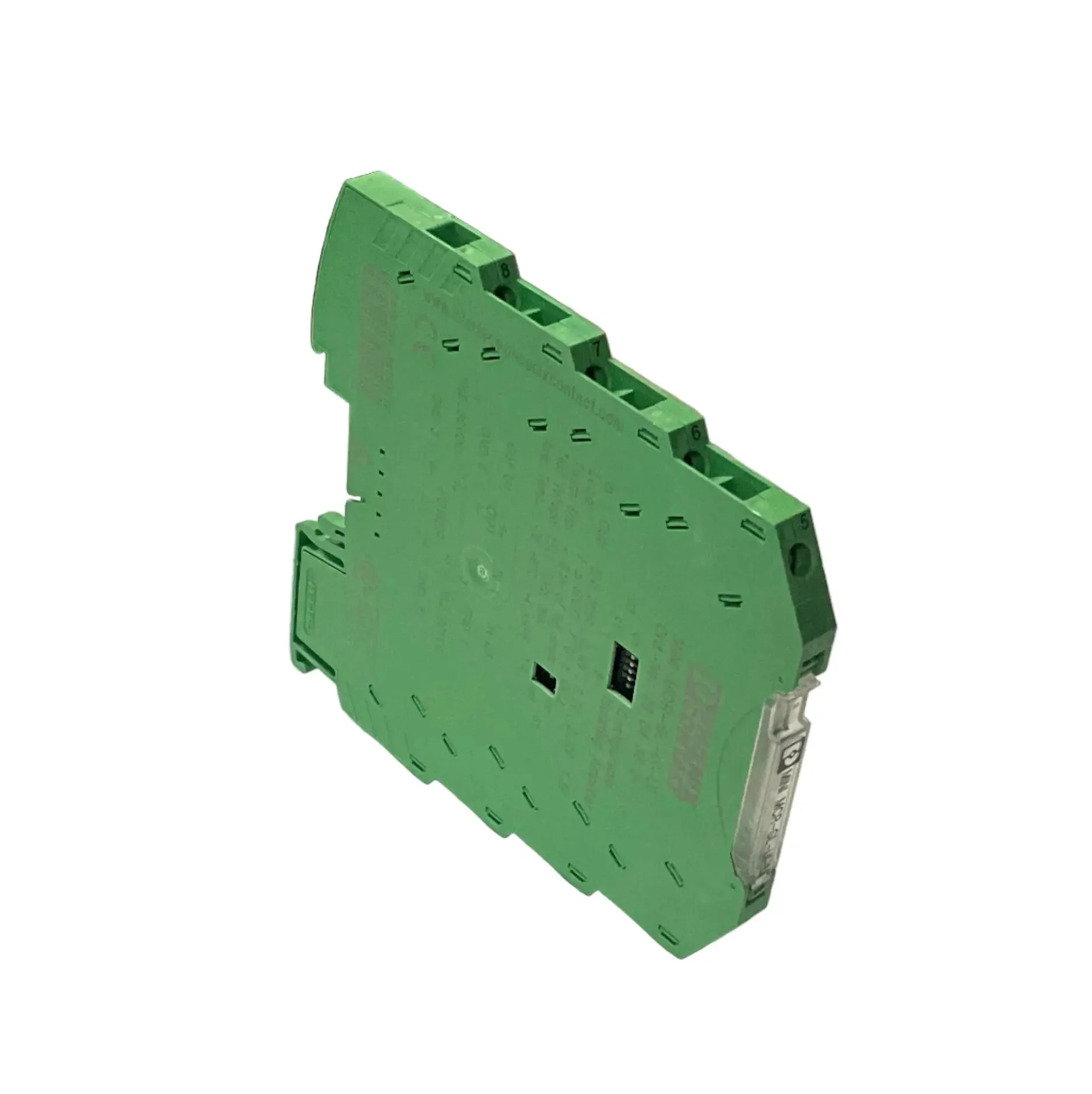

- Configuration: Via DIP switches (accessible on the side of the housing, up to 36 signal combinations)
- Electrical Isolation: 3-way isolation (input/output/power supply)
- Input Voltage Range: 0...24 V, 0...30 V
- Maximum Transmission Error: ≤ 0.2% of final value
- Temperature Coefficient: ≤ 0.01%/K
- Zero/Span Adjustment: ±4%
- Power Supply: 19.2 to 30 V DC
- Power Consumption: 450 mW
- Current Consumption: ≤ 25 mA (at 24 V DC)

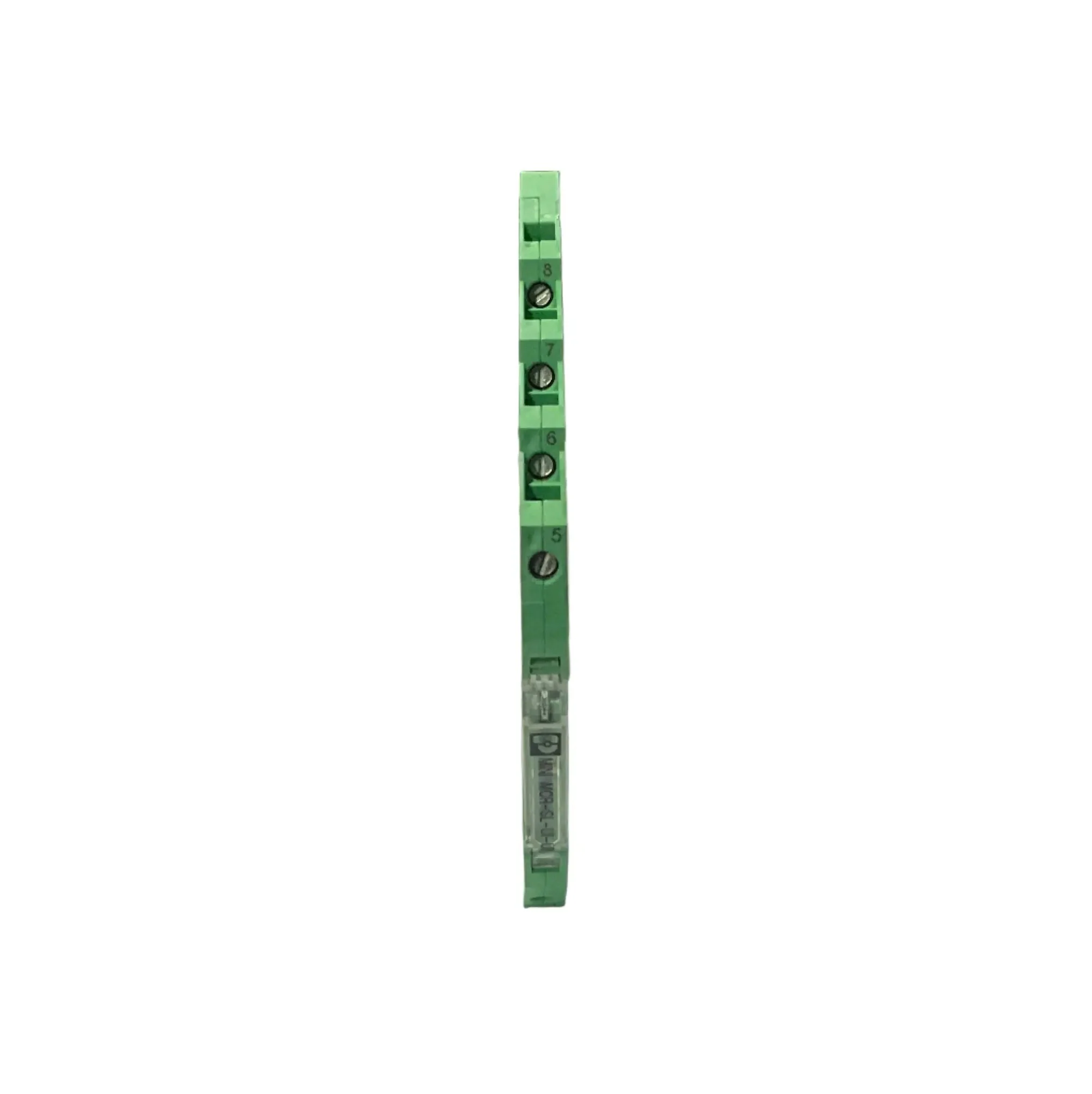

- Connection Technology: Screw connection
- Connection Terminal Blocks: 2.5 mm²
- Test Voltage: 1.5 kV (50 Hz, 1 min)
- Ambient Temperature Range: -20°C to 65°C
- Housing Material: Polyamide PA non-reinforced
- Degree of Protection: IP20
- Mounting: DIN rail (NS 35/7.5 or NS 35/15 per EN 60715)
- Approvals: CE, cULus Listed (Approval ID: E238705, E199827), ATEX, IECEx
- Additional Features:
- Highly compact design (6.2 mm width)
- Power supply possible via foot element (TBUS) or terminal blocks
- Low power consumption
- Suitable for standard analog signal processing
Dimension:
- Width: 6.2 mm (0.244 in)
- Height: 93.1 mm (3.665 in)
- Depth: 102.5 mm (4.035 in)
Weight: 70g
Country of Origin: Germany
HS Code: 8543.70
