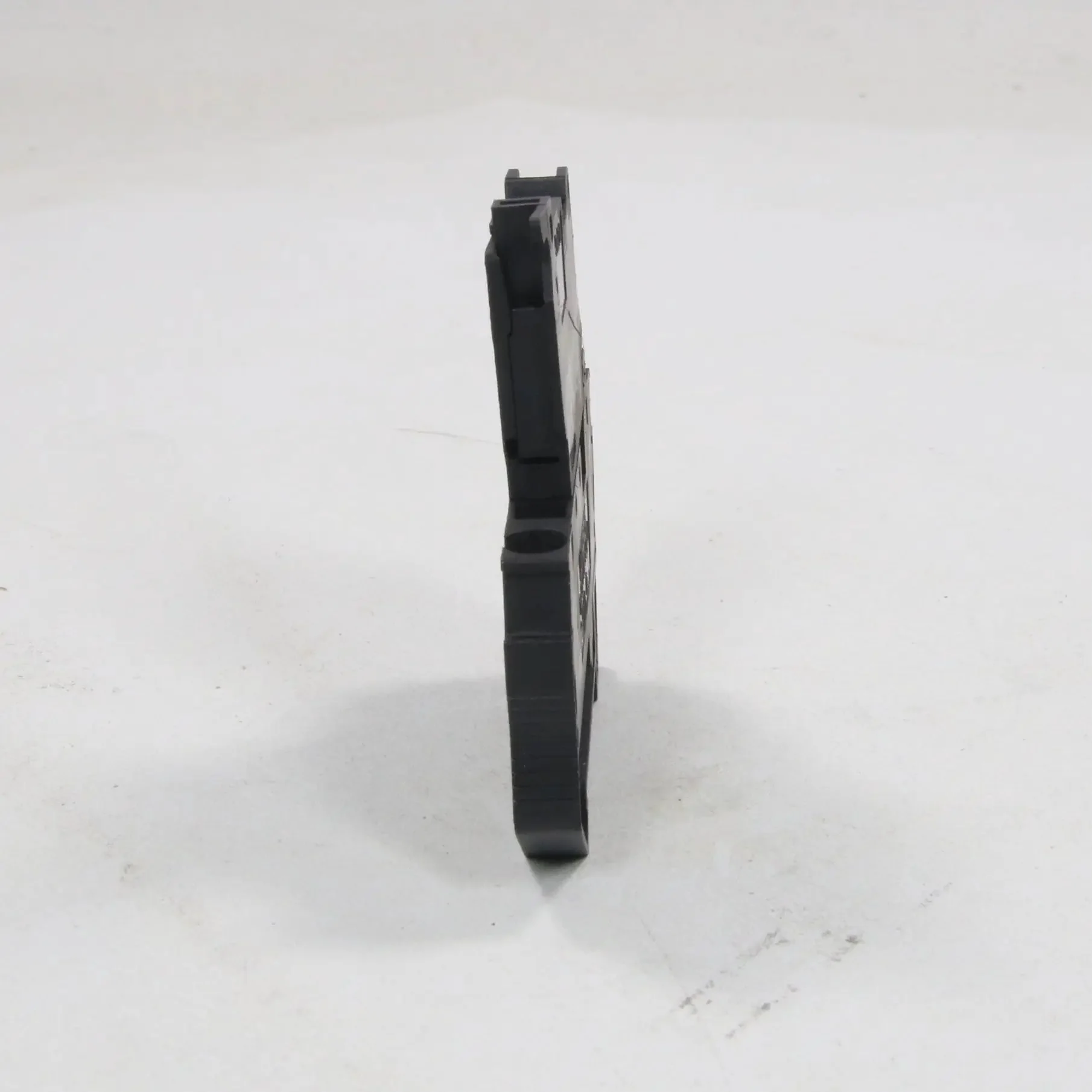

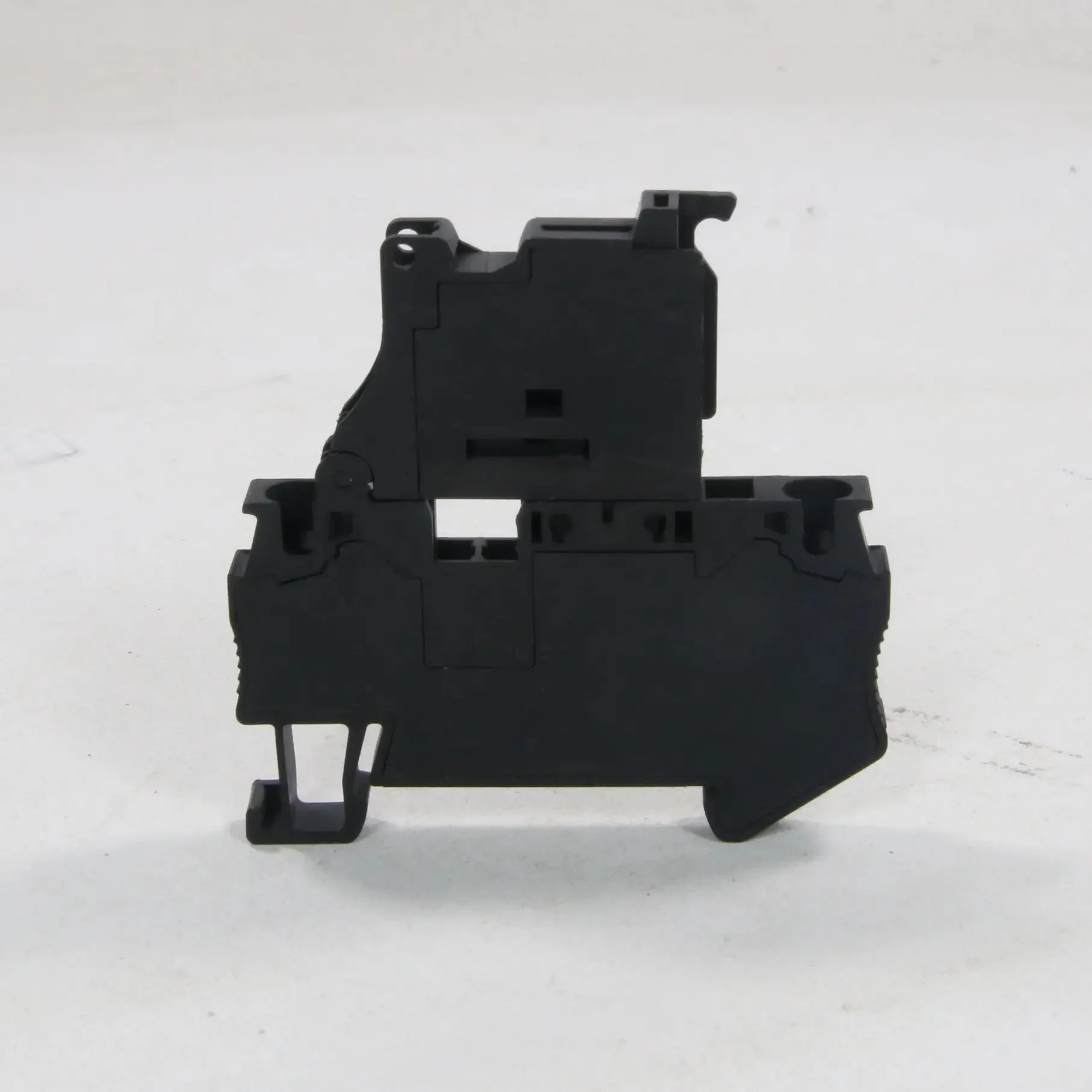

Phoenix Contact ST 4- HESI (5x20) Fuse Terminal Block (x50 pcs.)
- Brand: Phoenix Contact
- Model: ST 4-HESI (5x20)
- Type: Fuse Terminal Blocks x 50 pcs.
- Order number: 3036369
- Function: DIN rail terminal block with integrated fuse holder for 5 × 20 mm fuses (glass tube or ceramic fuses), for protecting circuits in control cabinets
- Rated Voltage: 500 V AC / 500 V DC
- Rated Current: 6.3 A (with fuse), 10 A (without fuse)
- Nominal Cross Section: 4 mm²
- Conductor Cross Section: 0.2 – 6 mm² (solid/flexible)
- AWG Range: 24 – 10
- Connection Type: Screw connection
- Fuse Type: 5 × 20 mm (glass or ceramic, max 6.3 A)
- Fuse Holder: Hinged cover
- Test Points: Test tap on both sides
- Mounting: DIN rail NS 35/7.5, NS 35/15
- Spacing: 6.2 mm (standard)
- Insulation Material: Polyamide (PA)
- Flammability Class: V0 (UL 94)
- Stripping Length: 8 mm
- Tightening Torque: 0.6 – 0.8 Nm
- Operating Temperature: -60 °C to +130 °C
- Pollution Degree: 3 (IEC 60664)
- Overvoltage Category: III
- Certifications: UL, CSA, VDE, EAC, ATEX (optional Ex versions)
- Features: Hinged fuse holder for easy replacement, double bridge shaft for potential distribution, high current carrying capacity

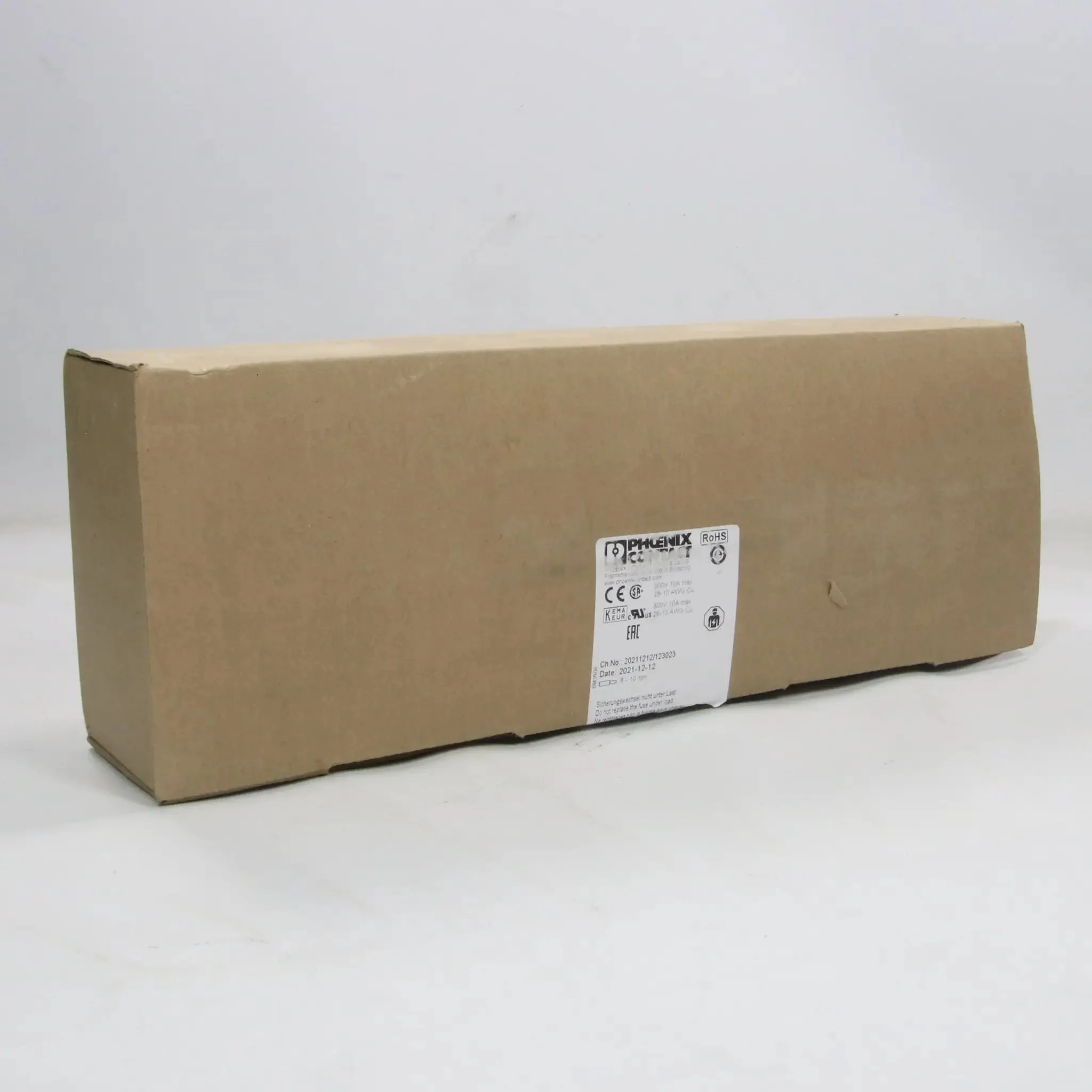

- Dimensions: 310 x 120 x 70 mm (box/50)
- Weight: 800 g (box/50)
- Country of origin: India
- HS code: 853690
Original: $20,411.17
-70%$20,411.17
$6,123.35
Description
- Brand: Phoenix Contact
- Model: ST 4-HESI (5x20)
- Type: Fuse Terminal Blocks x 50 pcs.
- Order number: 3036369
- Function: DIN rail terminal block with integrated fuse holder for 5 × 20 mm fuses (glass tube or ceramic fuses), for protecting circuits in control cabinets
- Rated Voltage: 500 V AC / 500 V DC
- Rated Current: 6.3 A (with fuse), 10 A (without fuse)
- Nominal Cross Section: 4 mm²
- Conductor Cross Section: 0.2 – 6 mm² (solid/flexible)
- AWG Range: 24 – 10
- Connection Type: Screw connection
- Fuse Type: 5 × 20 mm (glass or ceramic, max 6.3 A)
- Fuse Holder: Hinged cover
- Test Points: Test tap on both sides
- Mounting: DIN rail NS 35/7.5, NS 35/15
- Spacing: 6.2 mm (standard)
- Insulation Material: Polyamide (PA)
- Flammability Class: V0 (UL 94)
- Stripping Length: 8 mm
- Tightening Torque: 0.6 – 0.8 Nm
- Operating Temperature: -60 °C to +130 °C
- Pollution Degree: 3 (IEC 60664)
- Overvoltage Category: III
- Certifications: UL, CSA, VDE, EAC, ATEX (optional Ex versions)
- Features: Hinged fuse holder for easy replacement, double bridge shaft for potential distribution, high current carrying capacity
- Dimensions: 310 x 120 x 70 mm (box/50)
- Weight: 800 g (box/50)
- Country of origin: India
- HS code: 853690
