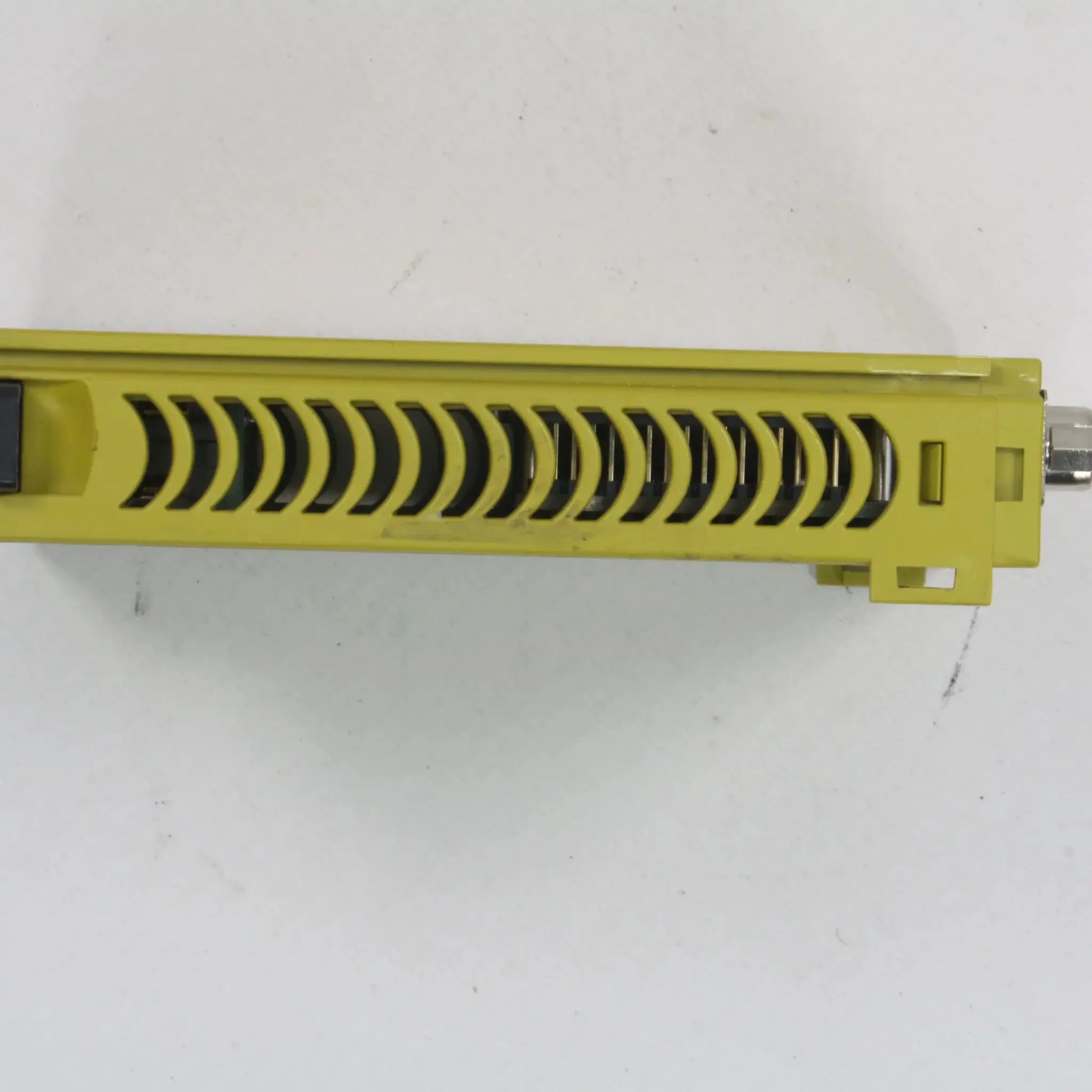

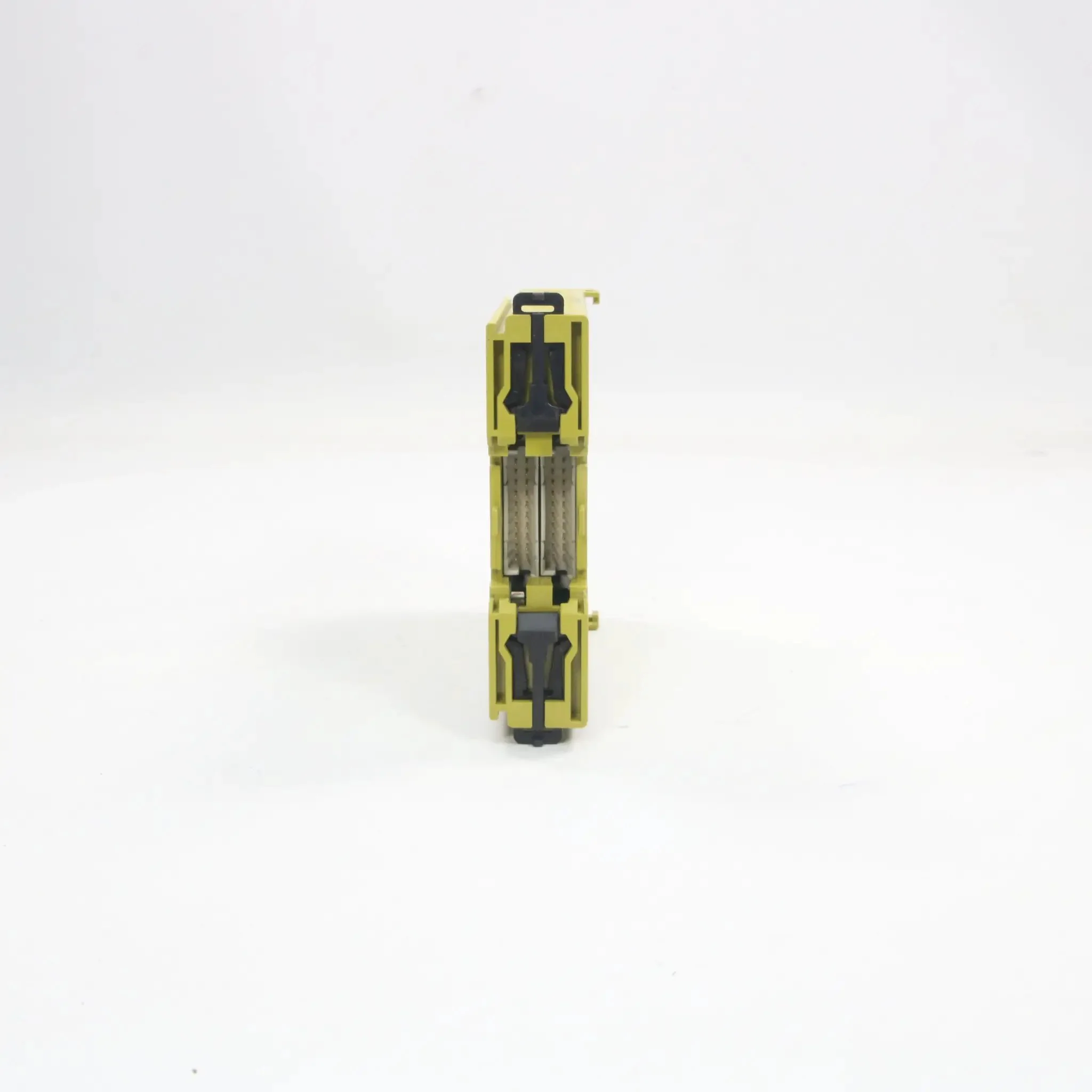

Pilz PNOZ mc6p Fieldbus Module

Pilz PNOZ mc6p Fieldbus Module Specifications:

• Product Type: Fieldbus Expansion Module (CANopen communication interface)
• Manufacturer: Pilz GmbH & Co. KG
• Model: PNOZ mc6p (variants: 773712 standard, 773727 coated for harsh environments, 773733 with updated protocol)
• Device Application: Communication between PNOZmulti configurable control systems and CANopen fieldbus networks (e.g., for monitoring safety devices like E-STOPs, gates, and light barriers)
• Certifications: CE, cULus Listed, EAC (Eurasian), KCC, KOSHA, TÜV, CCC (773727 only)
• Coated Version: Available (773727) for increased environmental resistance
• Supply Voltage: Via base unit, 5 V DC
• Voltage Tolerance: -2% / +2%
• Power Consumption: 1 W (773712, 773733); 2.5 W (773727)
• Status Indicator: LED (PWR, BUS)
• Fieldbus Interface: CANopen, Device type: Slave
• Supported Protocols: CiA DS-301 V3.0 (773712, 773727); CiA DS-301 V4.02 (773733)
• Station Address: 0–99 (selected via rotary switch x1/x10)
• Transmission Rates: 10 kbit/s, 20 kbit/s, 50 kbit/s, 125 kbit/s, 250 kbit/s, 500 kbit/s, 800 kbit/s, 1 Mbit/s (selected via rotary switch)

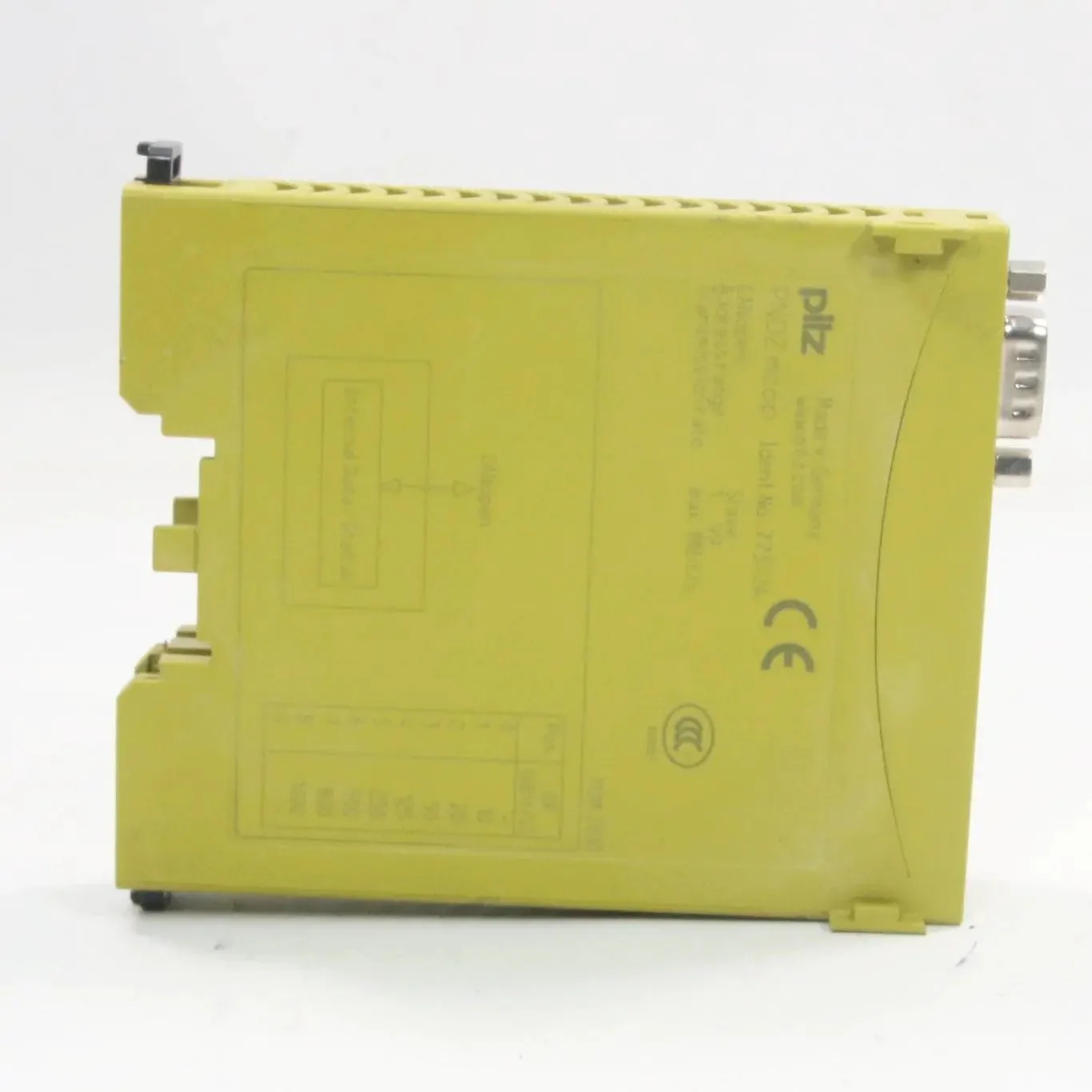

• Connection: 9-pin D-Sub male connector
• Galvanic Isolation: Yes
• Test Voltage: 500 V AC
• Supply Interruption Before De-energisation: 20 ms
• Virtual Inputs/Outputs: 24 (definable in PNOZmulti Configurator for fieldbus communication)
• Mounting Position: Horizontal on mounting rail
• DIN Rail: Top hat rail 35 x 7.5 EN 50022
• Recess Width: 27 mm
• Housing Material: Bottom: PPO UL 94 V0; Front: ABS UL 94 V0
• Mechanical Durability: High (vibration and shock resistant; exact cycles not specified)
• Ambient Air Temperature for Operation: 0–60 °C (773712, 773733); 0–50 °C (773727) (EN 60068-2-14)
• Ambient Air Temperature for Storage: -25–70 °C (EN 60068-2-1/-2)
• Climatic Suitability: EN 60068-2-30, EN 60068-2-78
• Humidity: 93% r.h. at 40 °C
• Condensation During Operation: Not permitted (short-term not permitted)
• EMC: EN 61131-2
• Vibration Resistance: Frequency 10–150 Hz, Acceleration 1g (EN 60068-2-6)
• Corrosive Gas Check: SO2: 10 ppm, 10 days (DIN V 40046-36); H2S: 1 ppm, 10 days (DIN V 40046-37) (773712 only)
• Shock Resistance: Acceleration 15g, Duration 11 ms (EN 60068-2-27)
• Max. Operating Height Above Sea Level: 2000 m
• Airgap Creepage: EN 61131-2
• Overvoltage Category: III
• Pollution Degree: 2
• Rated Insulation Voltage: 30 V
• IP Degree of Protection: Housing: IP20; Terminals: IP20; Mounting area (e.g., control cabinet): IP54 (EN 60529)
• Standards Compliance: EN 60068-2-14, EN 60068-2-1/-2, EN 60068-2-30, EN 60068-2-78, EN 61131-2, EN 60068-2-6, EN 60068-2-27, EN 60529, DIN V 40046-36, DIN V 40046-37 (773712 only)
• Special Features:
  • Plug-and-play expansion for PNOZmulti base units
  • Rotary switches for address and baud rate configuration
  • LED diagnostics for power and bus status
  • Galvanic isolation for reliable communication
  • Coated version (773727) for enhanced protection against corrosive environments
• Dimensions:
  • Height: 94 mm
  • Width: 22.5 mm
  • Depth: 119 mm
• Weight: 140 g
• HS Code: 8537.10.91
• Country of Origin: Germany
