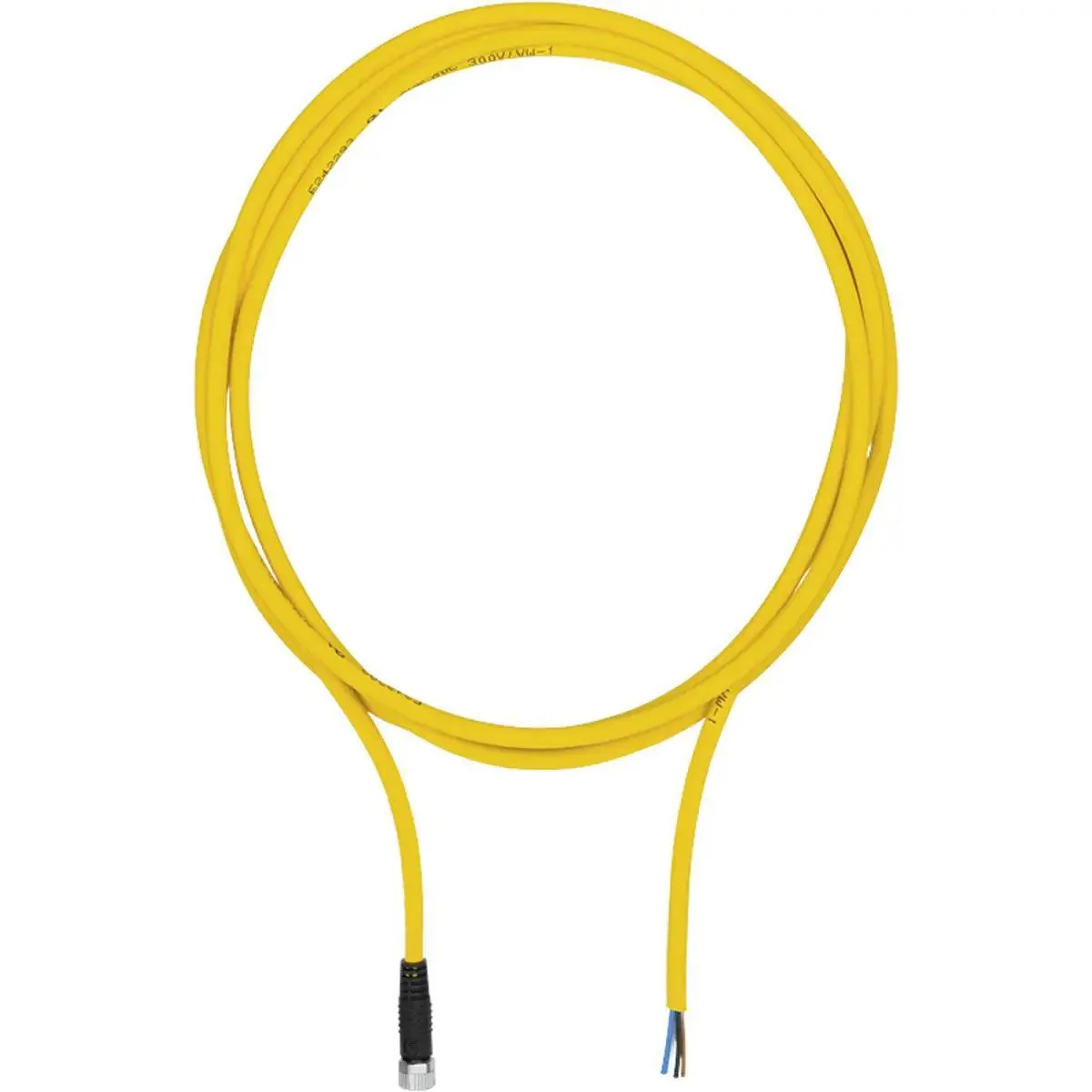

Pilz PSEN Straight Sensor Actuator Cable 533121

Brand: Pilz

Part Number: 533121

Type: PSEN Straight Sensor/Actuator Cable

Connector (Field Side):  M8 4‑pin Female (A‑coded)

Cable End (Box Side): Open conductors

Cable Length: 5 m

Jacket Material & Color: PUR, Yellow (RAL 1003)

Conductors / Poles: 4

Conductor Size: 0.25 mm² (24 AWG)

Rated Current: 4 A

Rated Voltage: ~30 V DC

Contact Material: CuZn with Gold plating

Contact Resistance: ~3 mΩ

IP Rating: IP67

Temperature Range: –25 °C to +80 °C

Cable Diameter: ~4.6 mm

Suitable for Drag Chains: Yes

Cable Type: Unshielded Multicore

Halogen-Free: Yes

Standard Compliance: IEC 60947‑5‑2

Approvals: CE, UKCA, cULus

Weight: 147 g

RoHS Compliant: Yes

HS Code: 85444290

Country of origin: Germany
