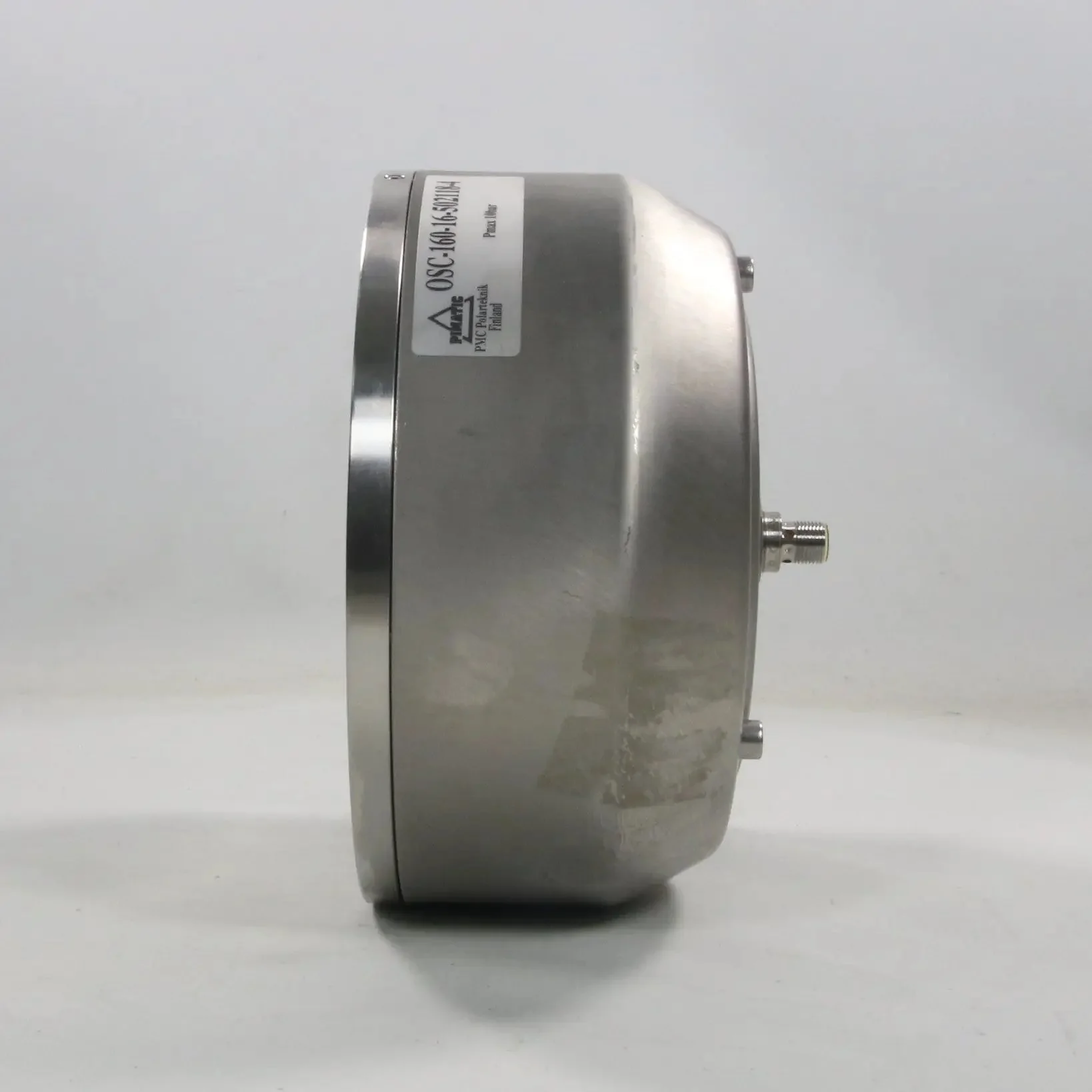

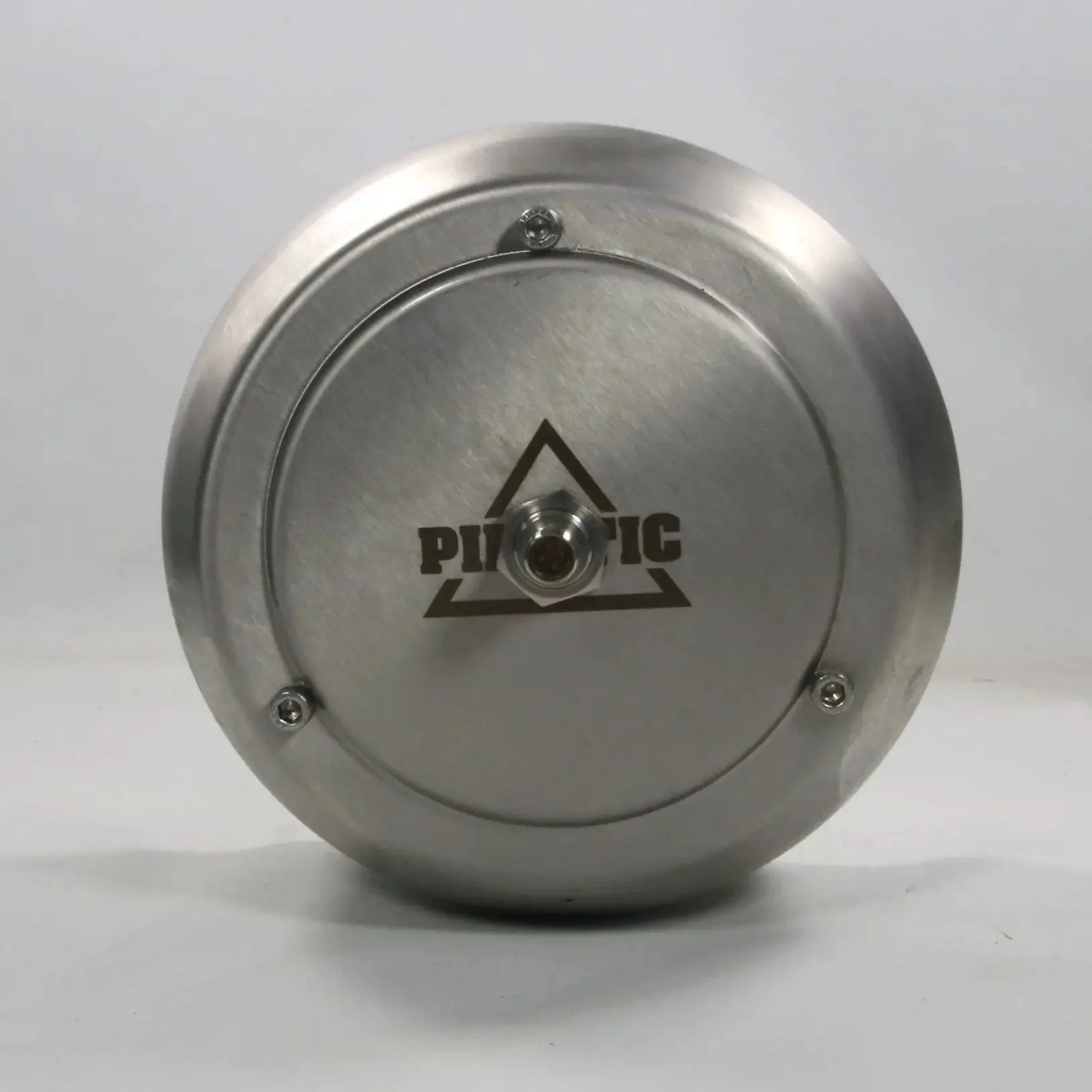

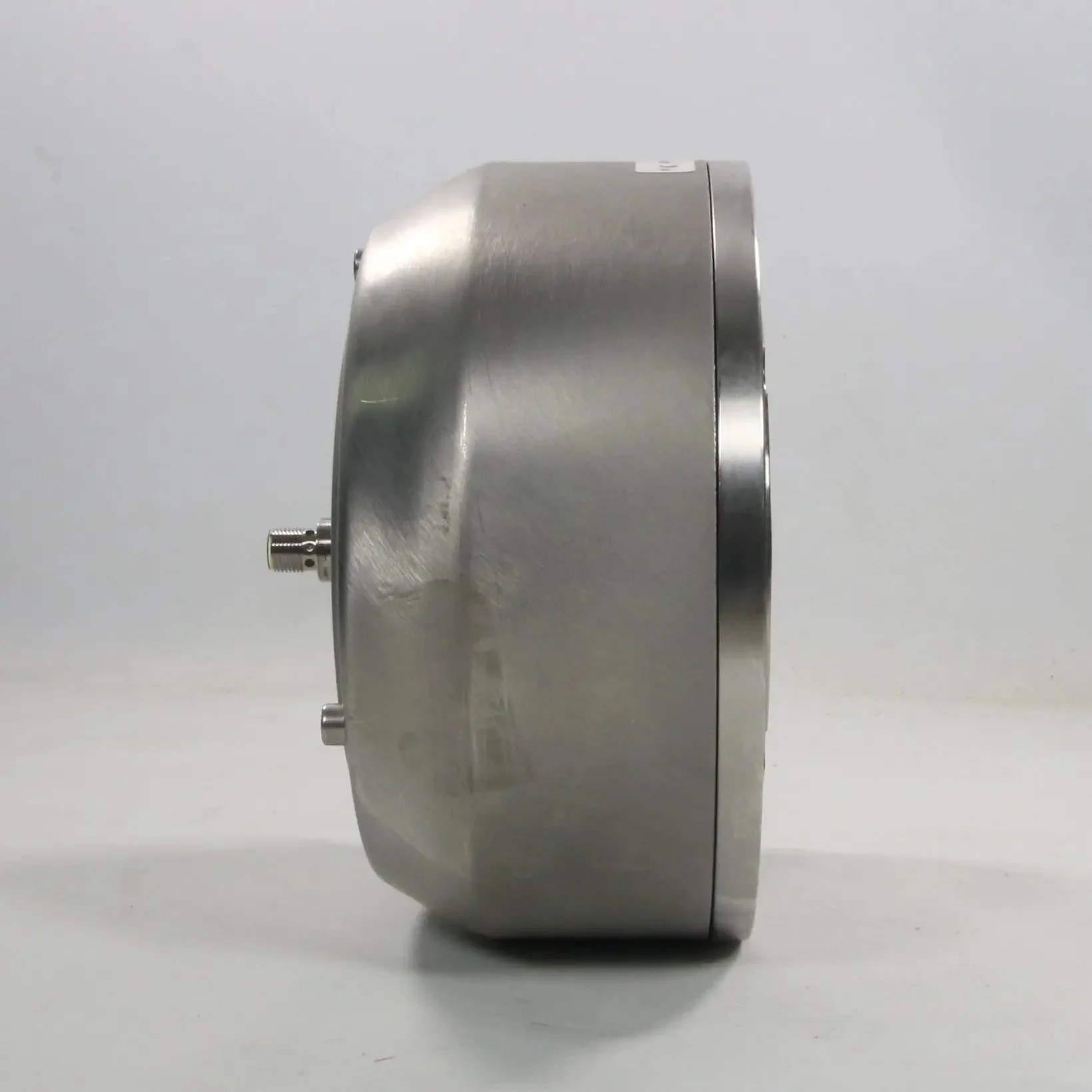

Pimatic OSC-160-16-502118-4 Compact Pneumatic Doctor Blade Oscillator

- Brand: Pimatic (Pimatic Oy)

- Model: OSC-160-16

- Type: Pneumatic Doctor Blade Oscillator (compact, lightweight pneumatic oscillator for doctor blades in paper machines)

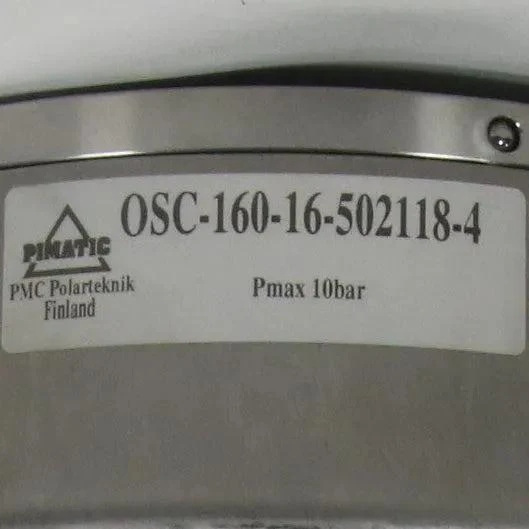

- Part number: OSC-160-16-502118-4

- Technical specifications:
- Thrust force: 11 kN at 6 bar
- Stroke length: 16 mm
- Speed range: 3–5 strokes/min (back and forth); maximum 25 strokes/min
- Air consumption: Approx. 4.2 Ndm³ per back-and-forth stroke at 6 bar
- Operating medium: Compressed air, filtered (20 micron)
- Pressure range: 2–10 bar
- Temperature range: +5°C to +150°C
- Mounting: Without mounting parts
- Materials: Stainless steel AISI316; seals PTFE / Viton
- Additional features: Effective air cushioning eliminates vibration and dwell; no lubrication required; adjustable speed and stroke; compact and lightweight generation based on 20,000+ installations worldwide
- Standards: Designed for paper industry applications; compliant with relevant industrial pneumatic norms

Weight: 9.2 kg

Dimensions: 200 dia. x 130 mm

Country of origin: Finland

HS code: 8412.31
