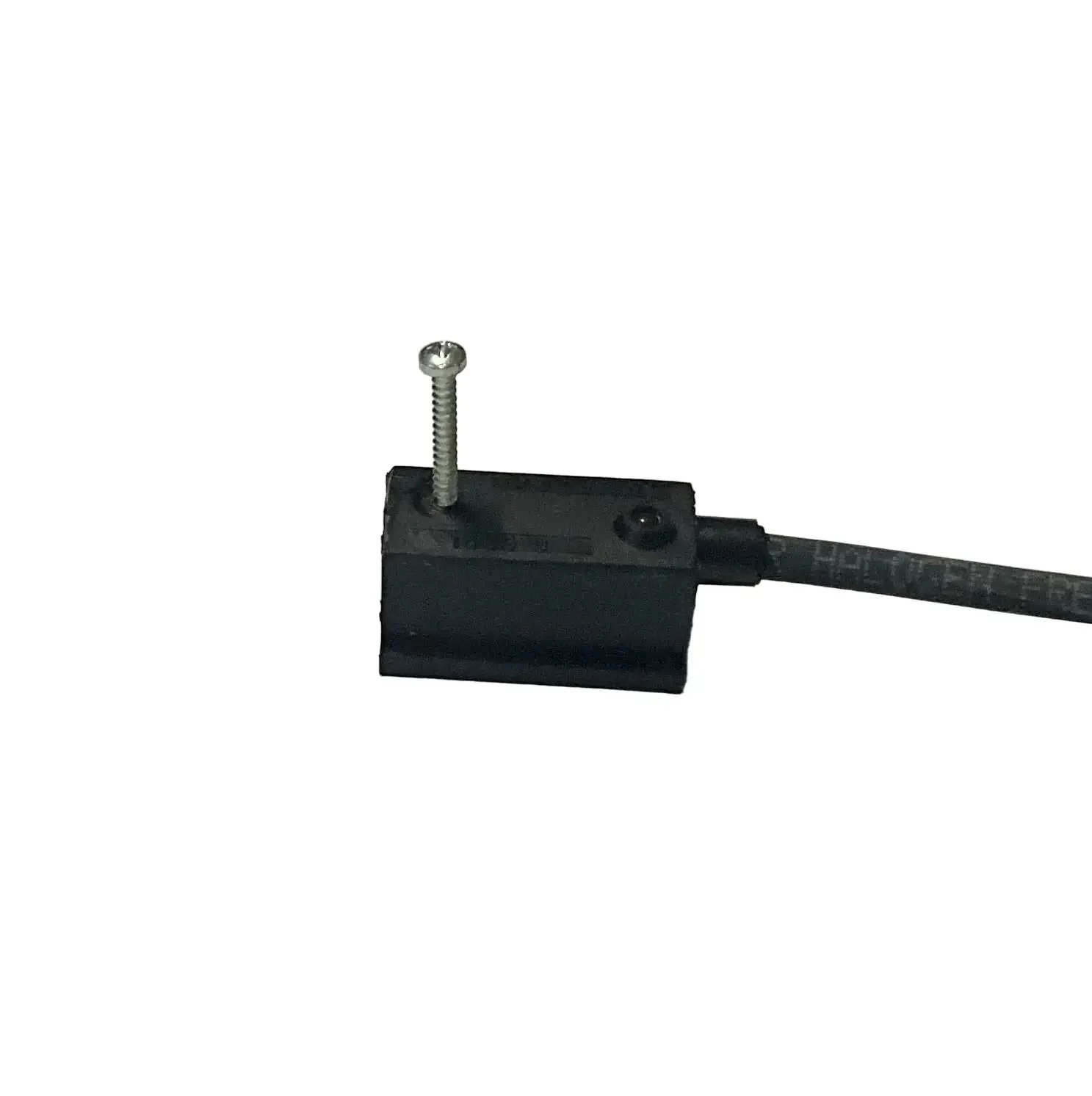

Pneumax 1500.U Magnetic Universal Sensor
Brand: Pneumax
Model: 1500.U
Type: Magnetic Universal Sensor
Part Number: 1500.U
Technical Specs:
- Sensor Type: Reed switch (magnetic)
- Output Type: Normally Open (NO) contact
- Operating Voltage: 3 to 230 V AC / 12 to 48 V DC
- Maximum Permanent Current: 0.5 A
- Maximum Current (pulses of 0.5 sec): 1 A
- Maximum Voltage Drop: 3 V
- Maximum Permanent Power: 57 W (DC)
- Switching Frequency: ~100 Hz
- Connecting Time: 2 ms
- Disconnecting Time: 1 ms
- Average Working Period: 10 million cycles
- Repetition of Intervention Point: ±0.1 mm
- Cable Type: 2-wire, 0.35 mm² cross-section
- Cable Length: 2 m
- Enclosure Rating: IP65
- Operating Temperature Range: -20°C to 70°C
- Indicator: Built-in LED for switching status
- Mounting: Designed for pneumatic cylinders and microcylinders
- Certifications: CE compliant
Dimensions: 14.5 mm x 15.5 mm x 27 mm
Weight: 50g
Country of Origin: Italy
HS Code: 8536.50
