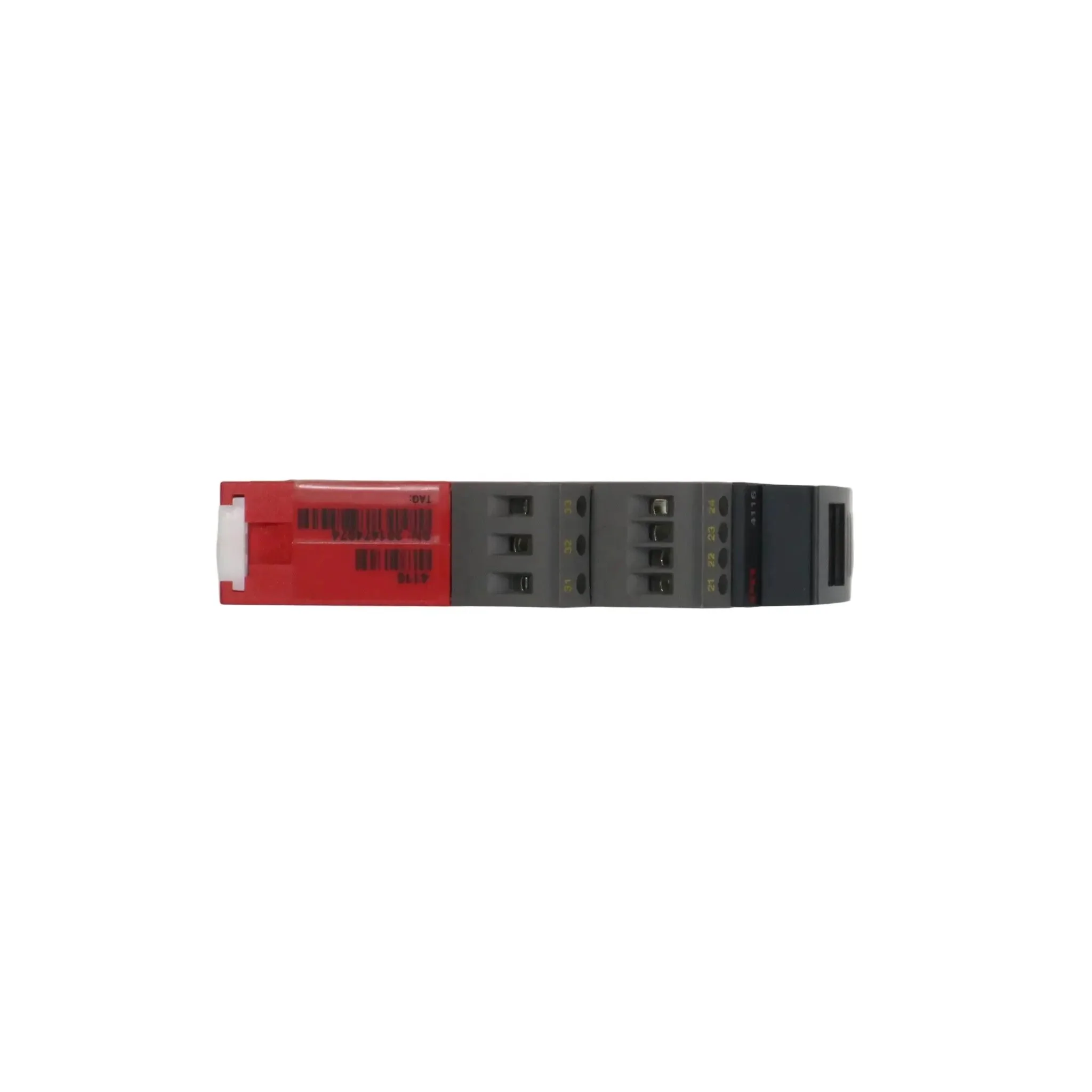

PR Electronics 4116 Universal Transmitter

- Brand: PR Electronics
- Model: 4116
- Type: Universal Transmitter / Signal Conditioner (2-wire HART-compatible)
- Technical Specifications:
  - Input Types: RTD (Pt100, Pt1000, Ni100, etc.), TC (J, K, T, E, N, R, S, B), mV, linear resistance, potentiometer, mA, V
  - Output: 4–20 mA (active/passive 2-wire loop-powered) + HART 7 digital communication
  - Supply Voltage: 24 – 250 V DC
  - Accuracy: Better than 0.1 % of selected range
  - Temperature Drift: < 0.01 %/°C
  - Isolation: 2.5 kV AC galvanic isolation
  - HART Protocol: HART 7 (fully compatible) – allows digital configuration and diagnostics
  - Programming: Via 4501 display, 4511 communication enabler, or PR Process Supervisor software (PPS)
  - Response Time: < 50 ms (0–90 %)
  - Ambient Temperature: –20 °C to +60 °C (full accuracy)
  - Protection Rating: IP20
  - Mounting: DIN rail (EN 60715 (35 mm)
  - Housing Material: Polycarbonate
  - Features: Sensor error detection, NAMUR NE43 upscale/downscale, custom linearisation, active/passive mA output, SIL 2 capable (hardware assessed)
  - Certifications: ATEX, IECEx, FM, CSA, EAC, DNV-GL Marine, UL
- Dimensions: 120 x 110 x 30 mm
- Weight: 200 g
- Country of Origin: Denmark
- HS Code: 903289
