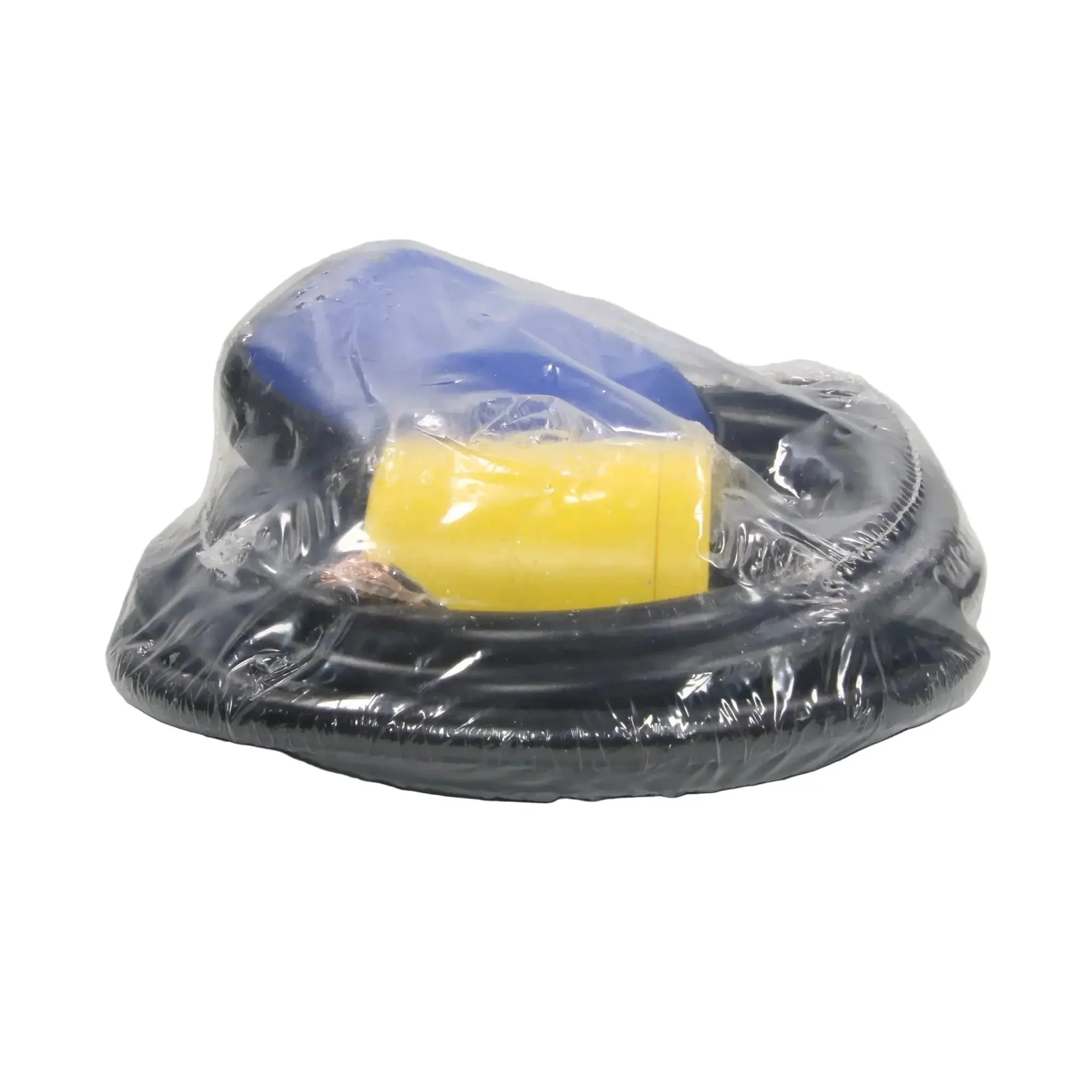

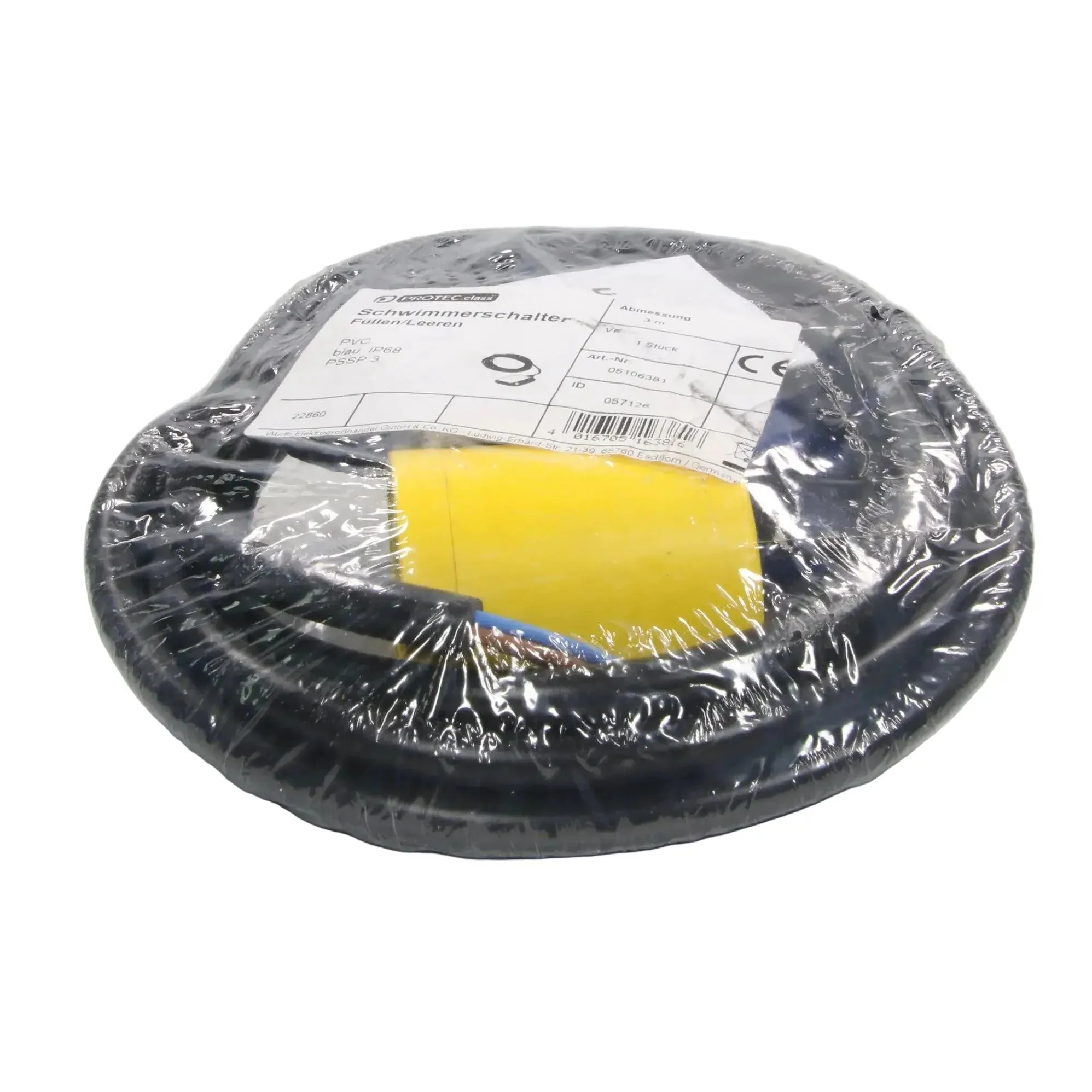

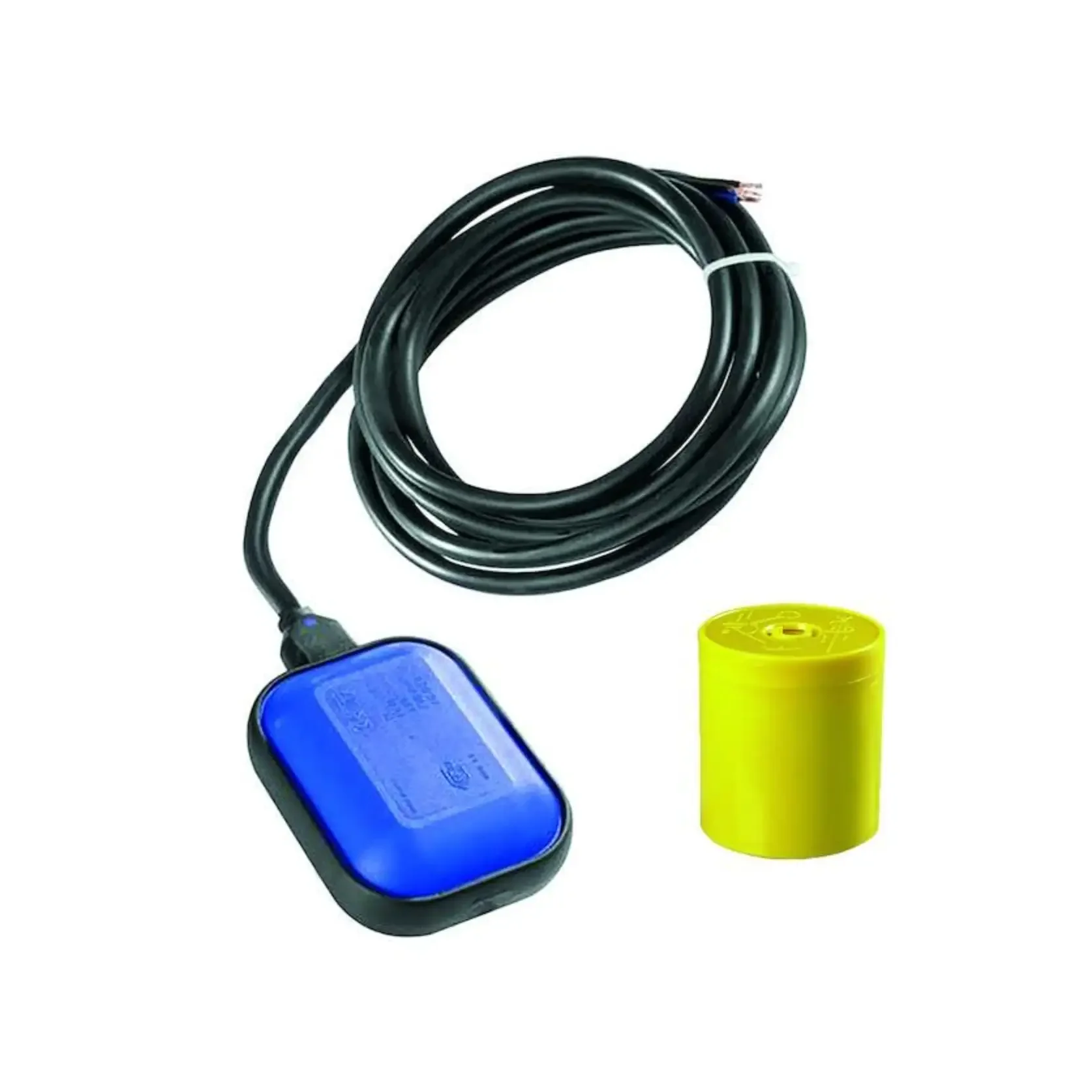

Protec.class PSSP3 Float Switch

- Brand: Protec.class

- Model: PSSP3

- Type: Float Switch (Level Switch / Float Level Sensor)

- All tech specs:
  - Function: Mechanical float switch for level detection and control in tanks, sumps, bilges and wastewater systems
  - Switching Principle: Mercury-free microswitch with counterweight (tilting float)
  - Switching Function: Change-over contact (SPDT) – pump up/pump down selectable
  - Switching Capacity: 10 (8) A / 250 V AC
  - Cable Length: 3 m (standard) – PVC insulated, 3-core (brown/black/blue)
  - Float Material: Polypropylene (PP)
  - Cable Material: PVC (standard)
  - Protection Rating: IP68
  - Max Operating Pressure: 1.5 bar
  - Max Fluid Temperature: 60 °C
  - Switching Angle: ≈ 45° tilt from vertical
  - Switching Differential: ≈ 100–150 mm
  - Max Immersion Depth: 3 m
  - Features: Double-insulated cable, corrosion-resistant, no mercury, adjustable counterweight for pump-up or pump-down operation, reliable in dirty water
  - Certifications: CE compliant

- Dimensions: Float: Ø 110 mm × 130 mm

- Weight: 800 g

- Country of origin: Germany

- HS code: 853650
