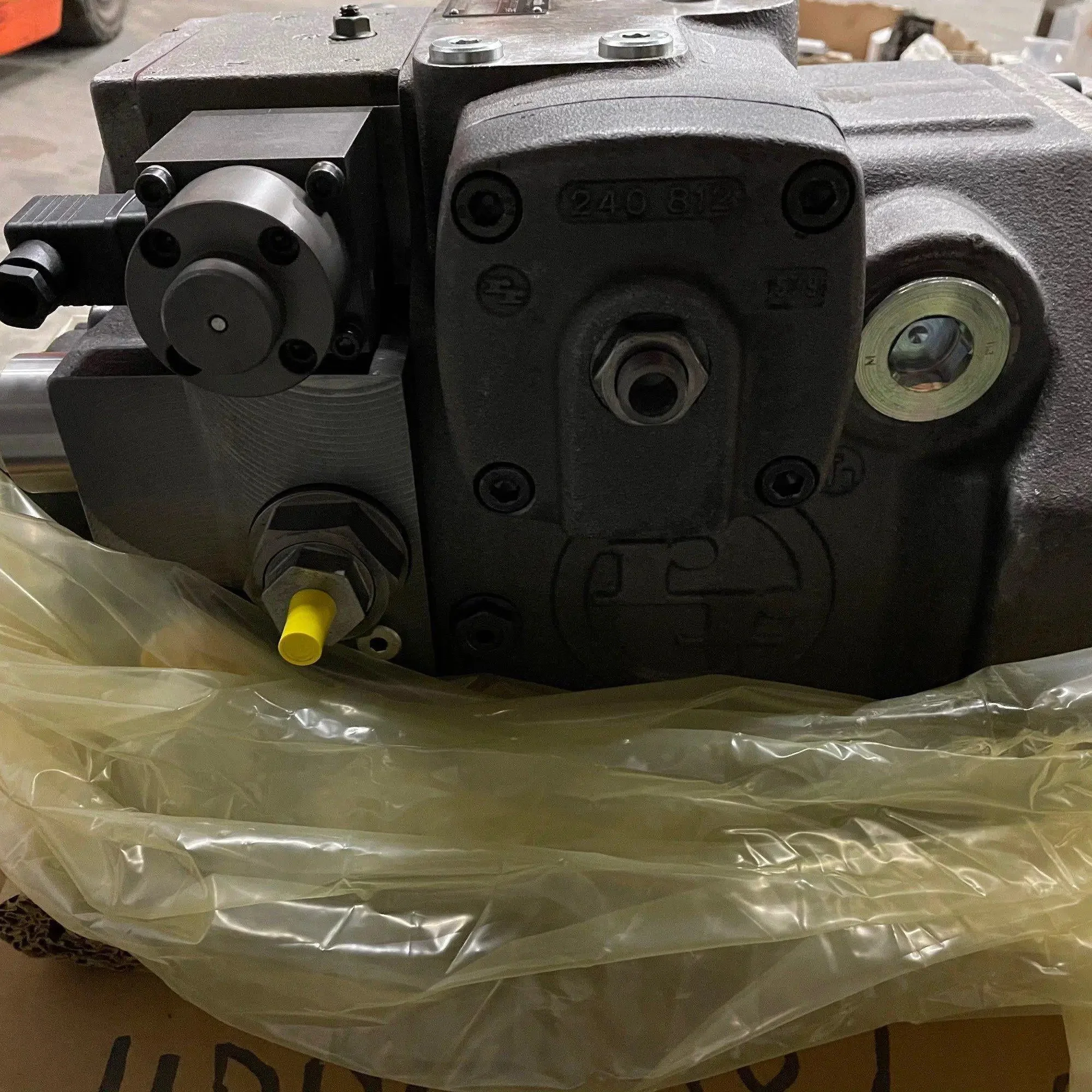

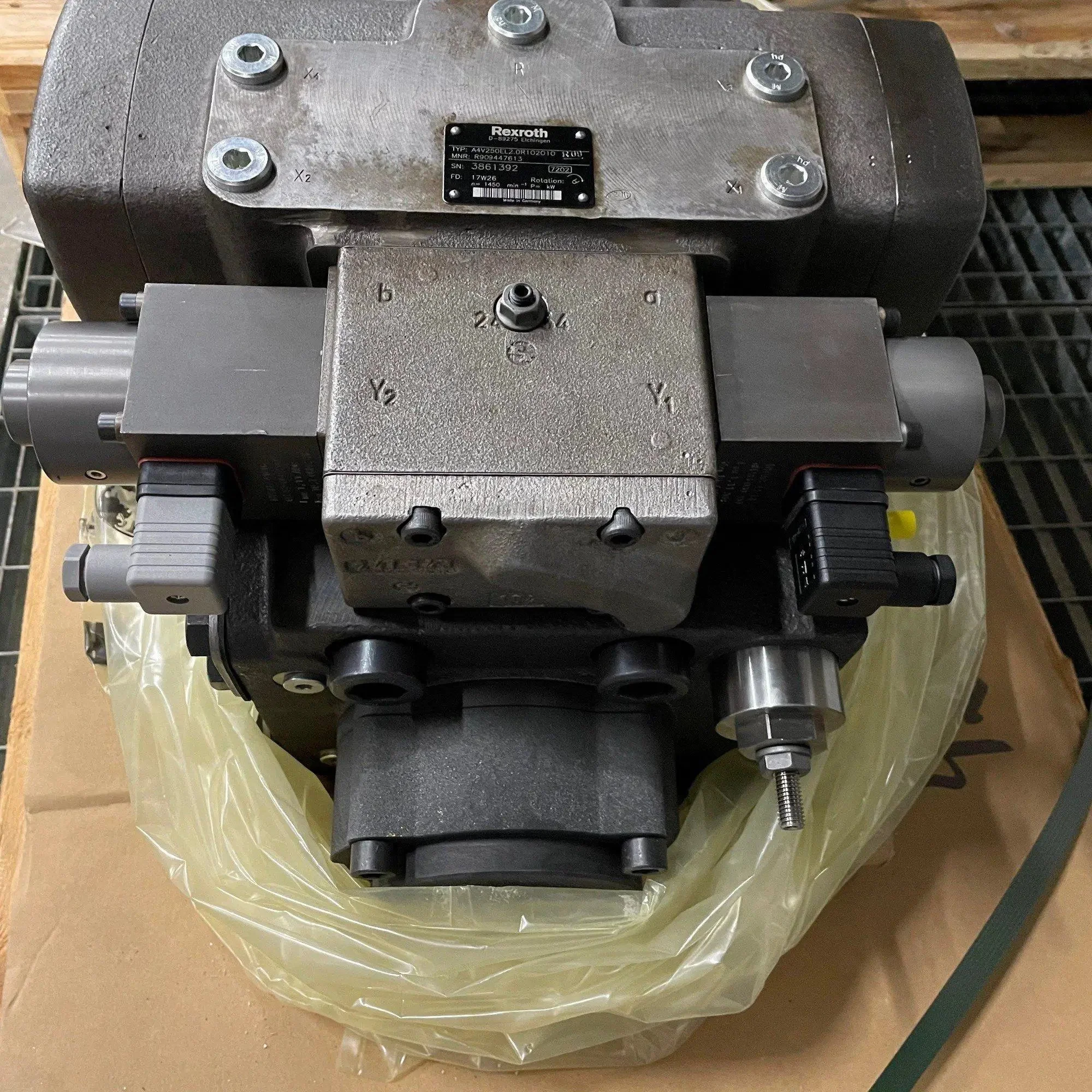

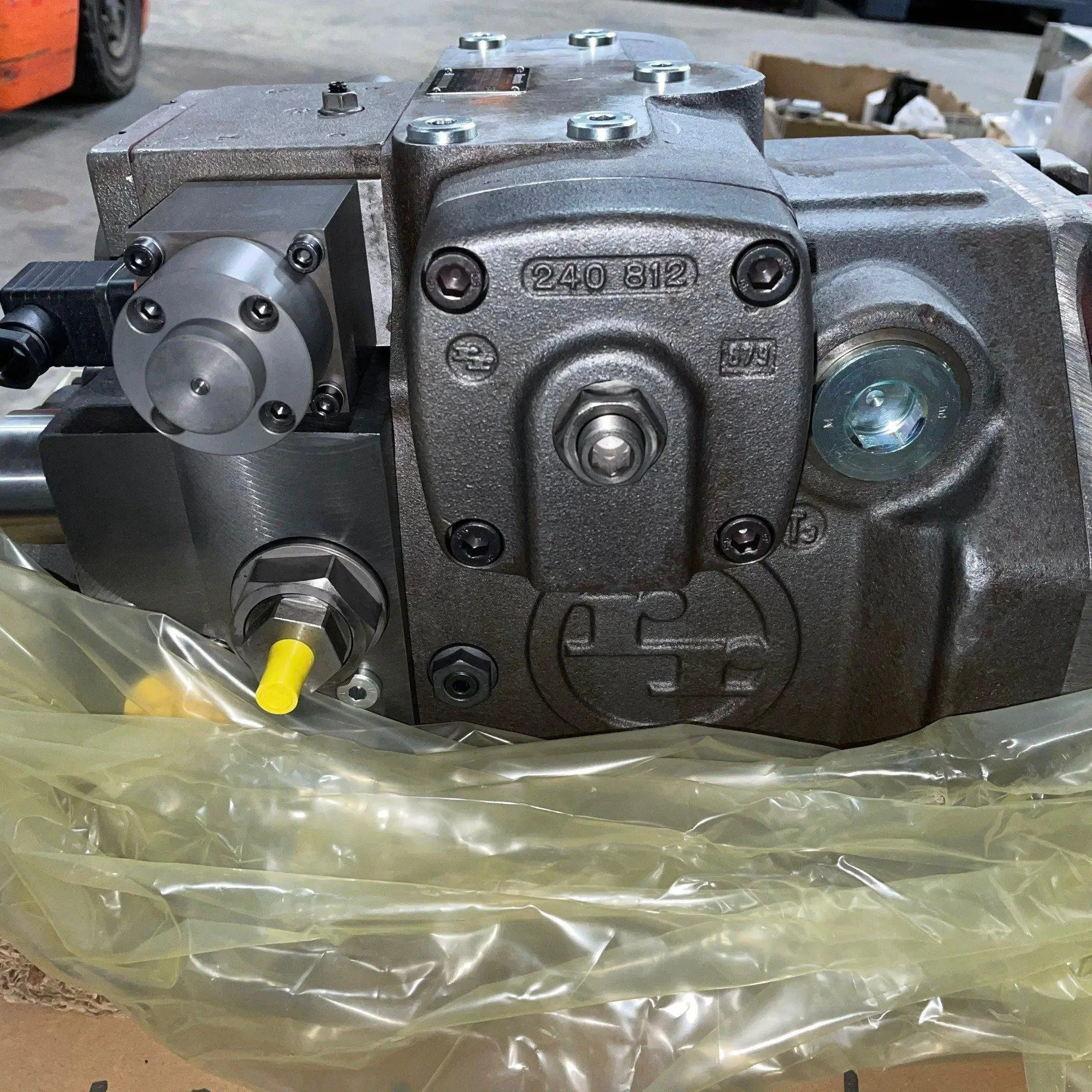

Rexroth A4V250EL2.0R102010 Variable Displacement Pump
Bosch Rexroth A4V250EL2.0R102010 Variable Displacement Pump Specifications :
- Product Type: Axial Piston Variable Displacement Pump
- Manufacturer: Bosch Rexroth

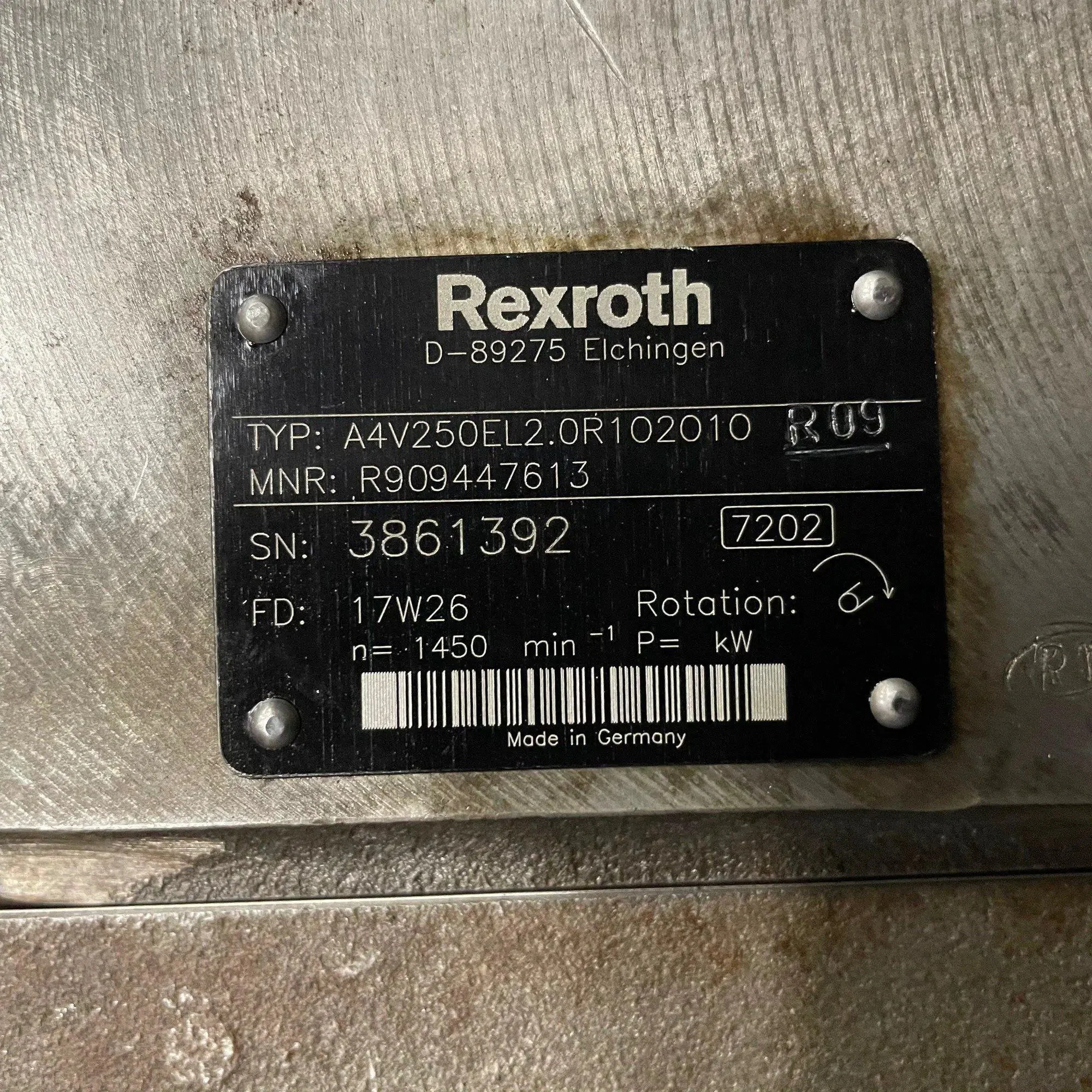

- Model: A4V250EL2.0R102010
-
- MNR: R909447613
- Device Application: Hydrostatic drives in closed circuits (e.g., industrial machinery, mobile equipment)
- Design: Axial piston with swashplate
- Nominal Displacement: 250 cm³/rev
- Nominal Pressure: 350 bar
- Maximum Pressure: 400 bar
- Flow: Proportional to drive speed and displacement, infinitely variable
- Control Type: EL (Electric proportional control with solenoid)
- Rotation Direction: Right-hand (R)
- Circuit Type: Closed circuit
- Control Device: Proportional control for stepless flow adjustment via swashplate angle
- Swashplate Adjustment: 0 to maximum angle, enabling smooth flow reversal over center
- Integrated Boost Pump: Yes, acts as feed and control oil pump
- Boost Pressure Relief Valve: Built-in, limits maximum boost pressure
- Crossline Relief Valves: Included, protects high-pressure side from overload and acts as boost inlet valves
- Through Drive: Available for mounting additional gear pump or variable pump

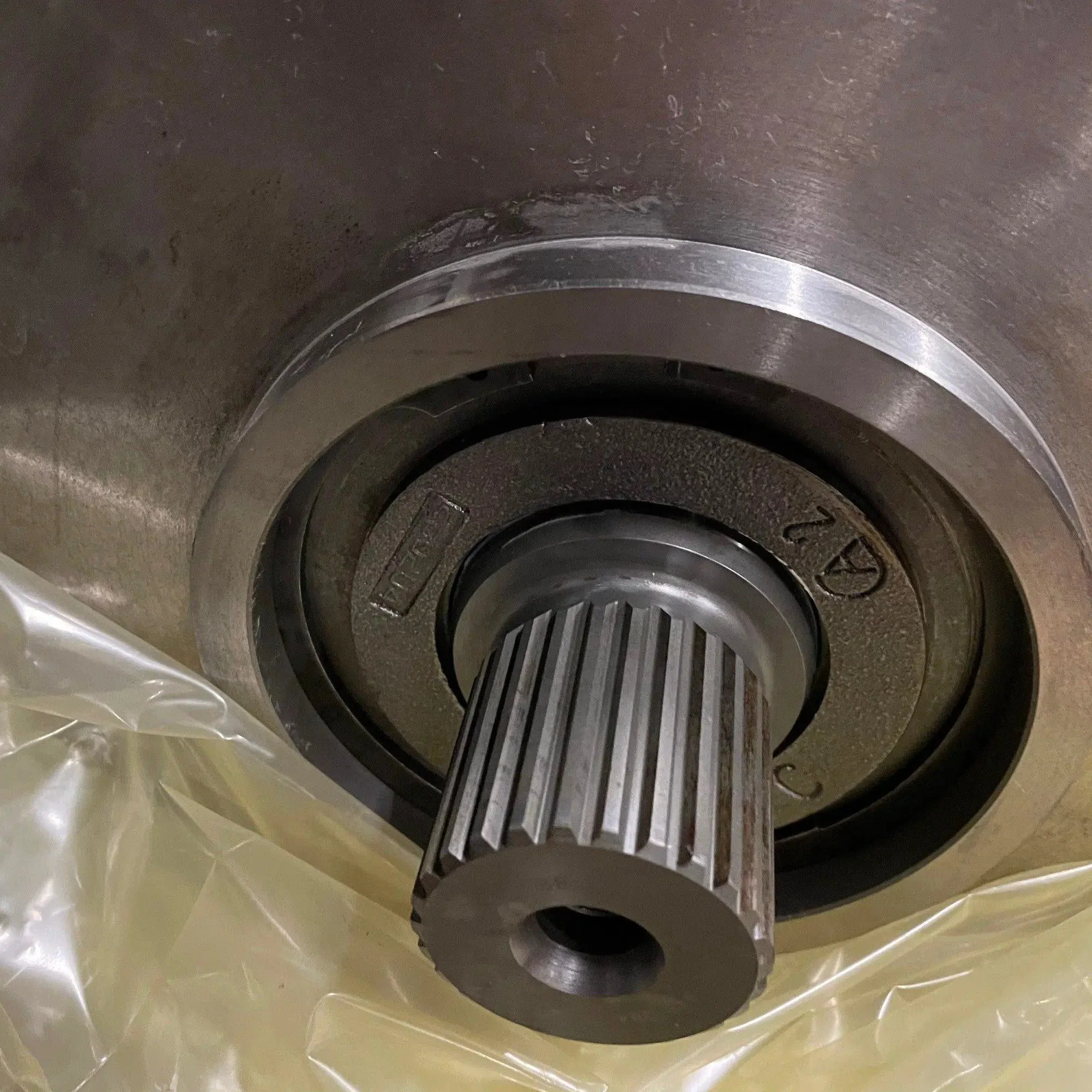

- Shaft Type: Splined shaft
- Mounting Flange: ISO 3019-2 (metric)
- Port Connections: Metric ports
- Speed Range: Typically 500–2600 rpm
- Fluid Compatibility: Hydraulic fluids per DIN 51524 HLP, HFA, HFB, HFC;
- Sealing Material: Typically NBR (Nitrile Butadiene Rubber)
- Weight: Approximately 192 kg (based on similar A4VSO 250 model; confirm with supplier)
- IP Degree of Protection: IP54
- Ambient Air Temperature for Operation: -20 to 70 °C
- Ambient Air Temperature for Storage: -40 to 80 °C
- Standards Compliance: ISO 3019-2, DIN 51524
-
Special Features:
- Robust design for high-pressure industrial applications
- Infinitely variable flow via swashplate adjustment
- Integrated pressure cut-off as standard
- Low noise emissions due to optimized swashplate design
- HS Code: 8413.50.40
- Country of Origin: Germany
$9,785.28
Rexroth A4V250EL2.0R102010 Variable Displacement Pump—
$9,785.28
Description
Bosch Rexroth A4V250EL2.0R102010 Variable Displacement Pump Specifications :
- Product Type: Axial Piston Variable Displacement Pump
- Manufacturer: Bosch Rexroth
- Model: A4V250EL2.0R102010
-
- MNR: R909447613
- Device Application: Hydrostatic drives in closed circuits (e.g., industrial machinery, mobile equipment)
- Design: Axial piston with swashplate
- Nominal Displacement: 250 cm³/rev
- Nominal Pressure: 350 bar
- Maximum Pressure: 400 bar
- Flow: Proportional to drive speed and displacement, infinitely variable
- Control Type: EL (Electric proportional control with solenoid)
- Rotation Direction: Right-hand (R)
- Circuit Type: Closed circuit
- Control Device: Proportional control for stepless flow adjustment via swashplate angle
- Swashplate Adjustment: 0 to maximum angle, enabling smooth flow reversal over center
- Integrated Boost Pump: Yes, acts as feed and control oil pump
- Boost Pressure Relief Valve: Built-in, limits maximum boost pressure
- Crossline Relief Valves: Included, protects high-pressure side from overload and acts as boost inlet valves
- Through Drive: Available for mounting additional gear pump or variable pump
- Shaft Type: Splined shaft
- Mounting Flange: ISO 3019-2 (metric)
- Port Connections: Metric ports
- Speed Range: Typically 500–2600 rpm
- Fluid Compatibility: Hydraulic fluids per DIN 51524 HLP, HFA, HFB, HFC;
- Sealing Material: Typically NBR (Nitrile Butadiene Rubber)
- Weight: Approximately 192 kg (based on similar A4VSO 250 model; confirm with supplier)
- IP Degree of Protection: IP54
- Ambient Air Temperature for Operation: -20 to 70 °C
- Ambient Air Temperature for Storage: -40 to 80 °C
- Standards Compliance: ISO 3019-2, DIN 51524
-
Special Features:
- Robust design for high-pressure industrial applications
- Infinitely variable flow via swashplate adjustment
- Integrated pressure cut-off as standard
- Low noise emissions due to optimized swashplate design
- HS Code: 8413.50.40
- Country of Origin: Germany
