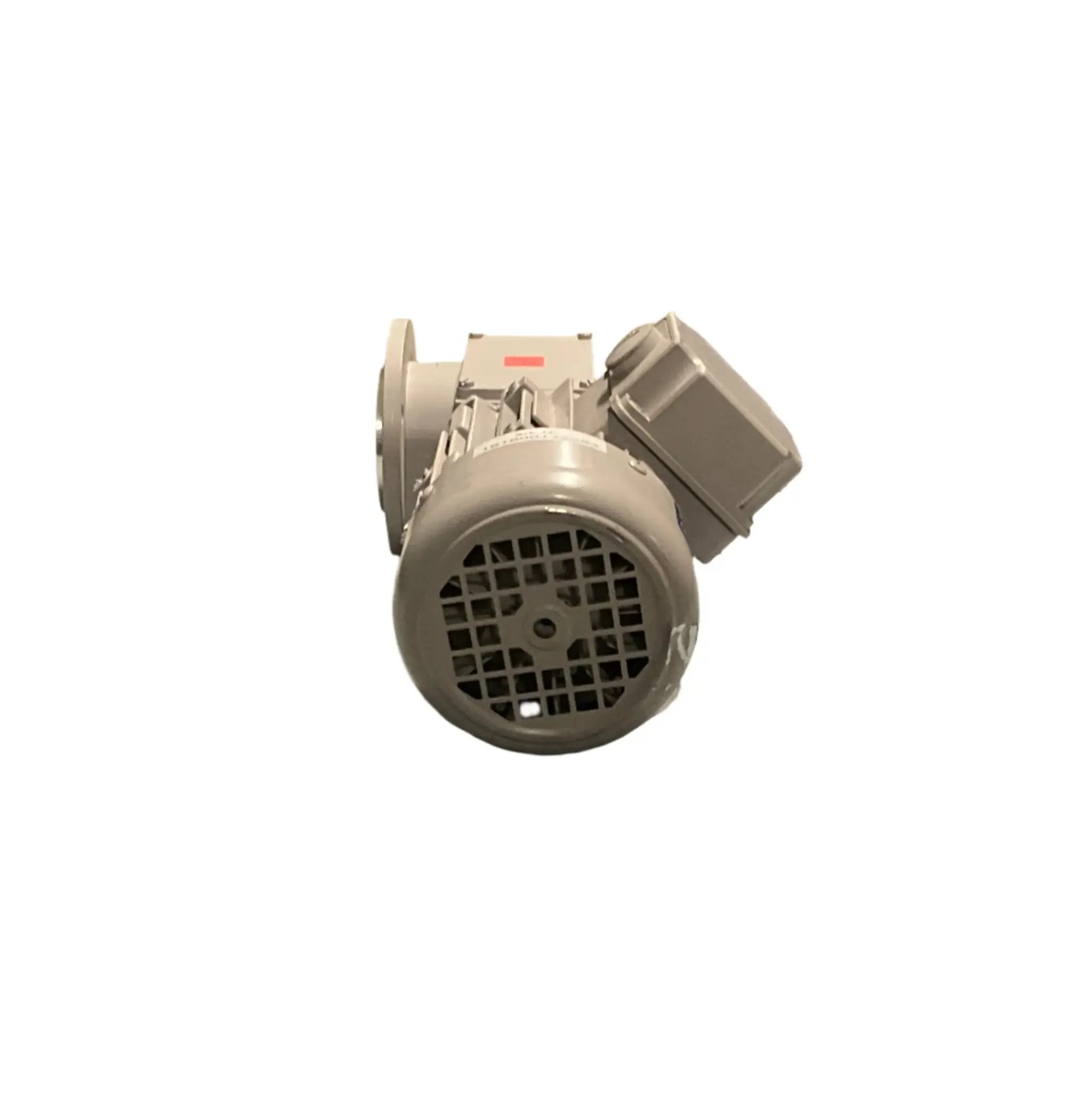

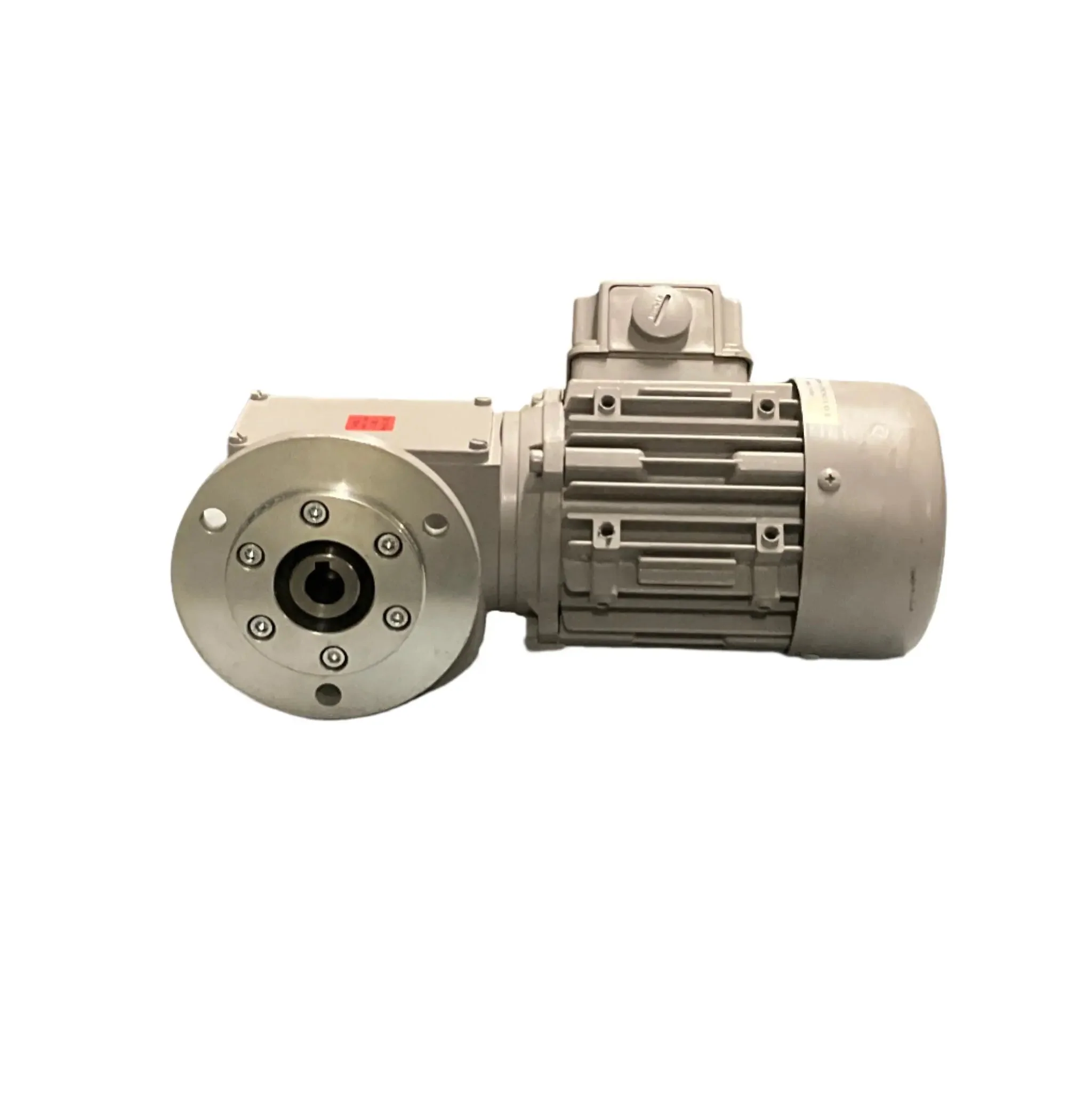

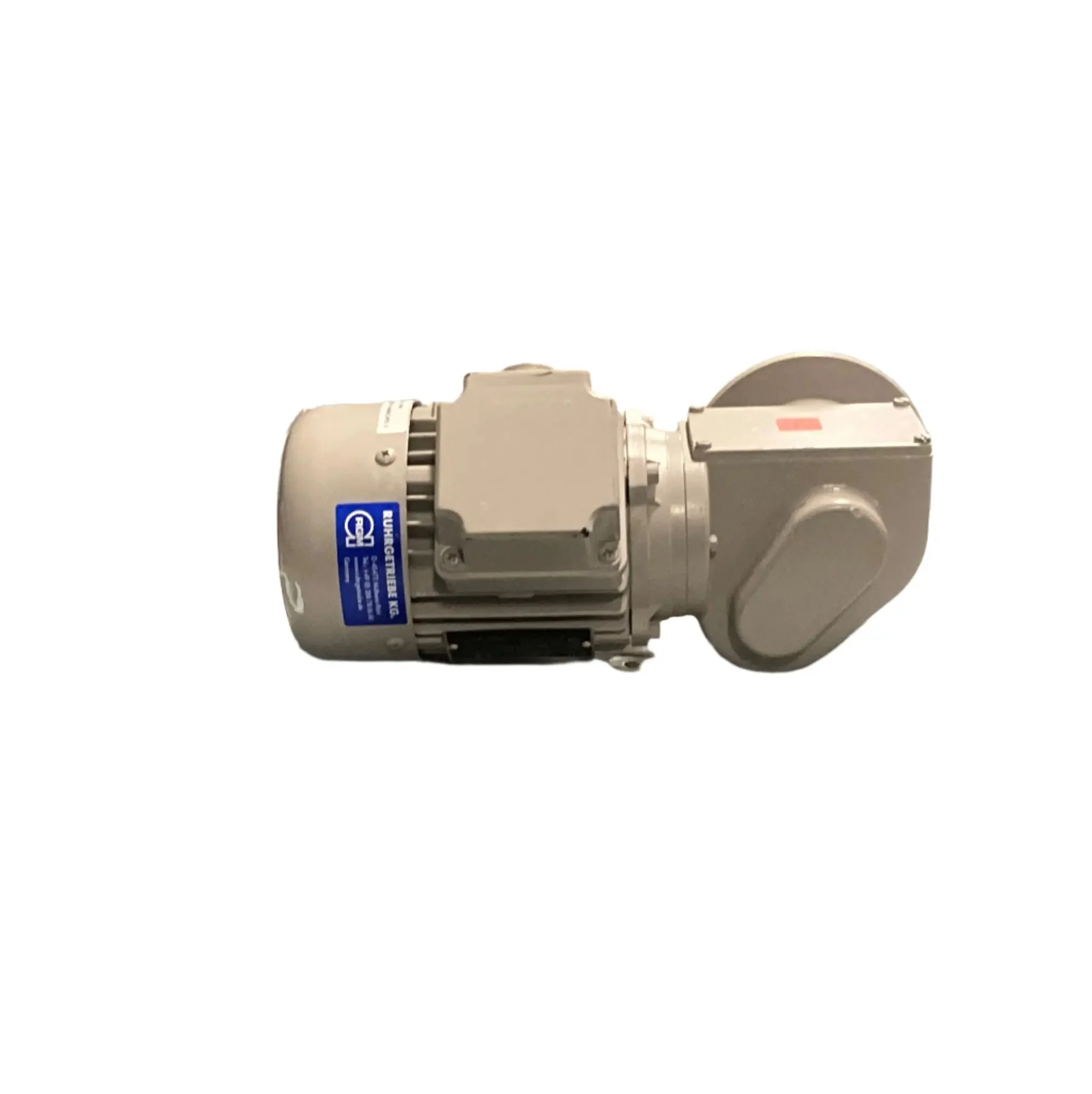

RGM Ruhrgetriebe T 56 B4 Gear Motor
Brand: RGM Ruhrgetriebe
Model: T 56 B4
Type: Gear Motor
Technical Specifications
Power: 0.09 kW (90 W)
Voltage: 200–240 V or 380–420 V (50 Hz), 200–277 V or 346–480 V (60 Hz)
Speed: Approx. 1,360 rpm at 50 Hz (1,680 rpm at 60 Hz)
Protection class: IP 54
Motor type: Three-phase asynchronous motor, S1 continuous‑duty
Mounting: A‑sided shaft design SN3
Weight: ~3.09 kg
Ratio: 190:1
Torque: 25Nm
Gearbox & Motor Integration
RGM (Ruhrgetriebe) offers a modular system of helical/spur gear motors covering torques from 15 to 380 Nm and gear ratios from ~1.14 up to ~372:1
The T56B4 motor would be paired with an appropriate gearbox stage (e.g., flange or foot-mounted helical gearbox). Specific part number details would depend on your ratio, mounting, and torque needs.
