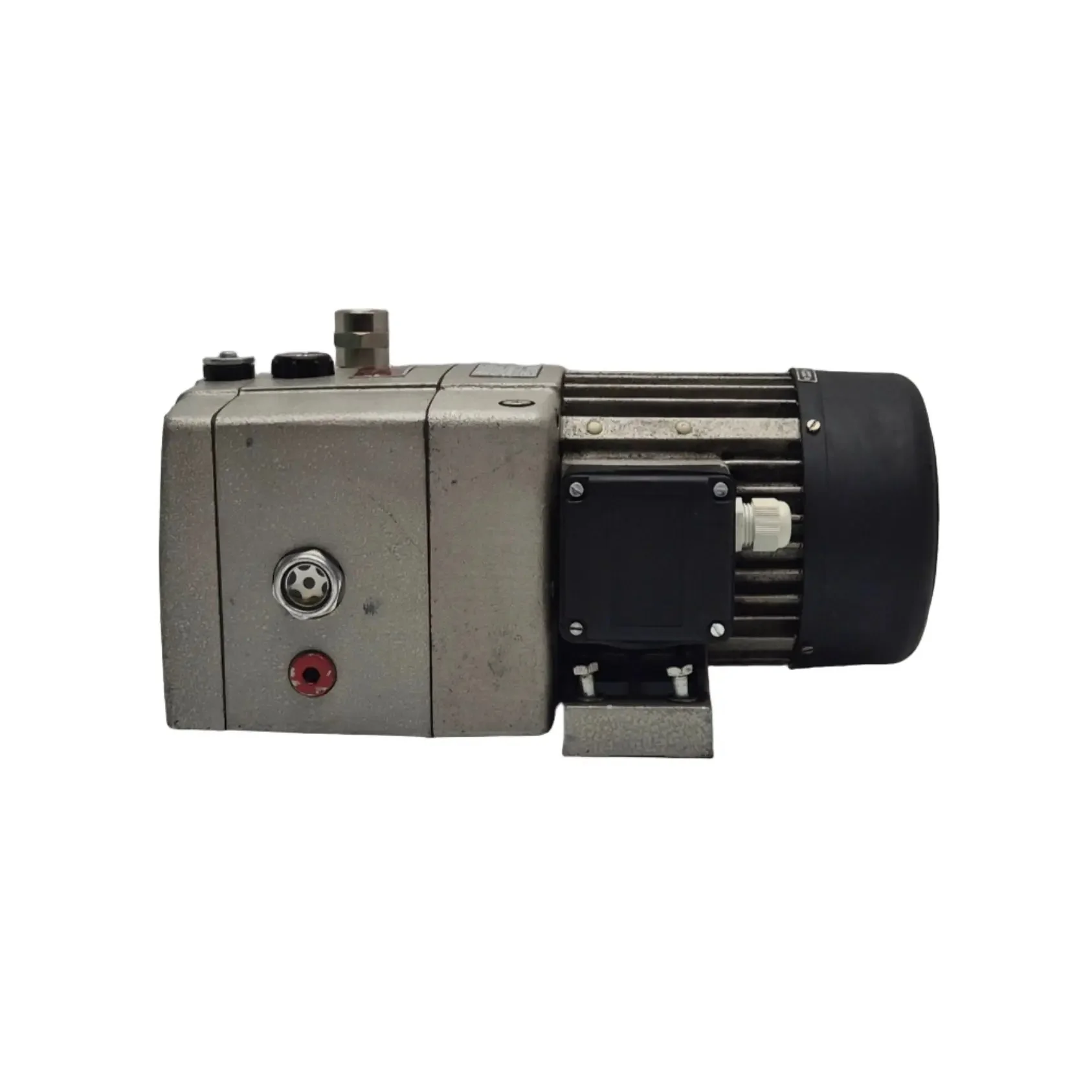

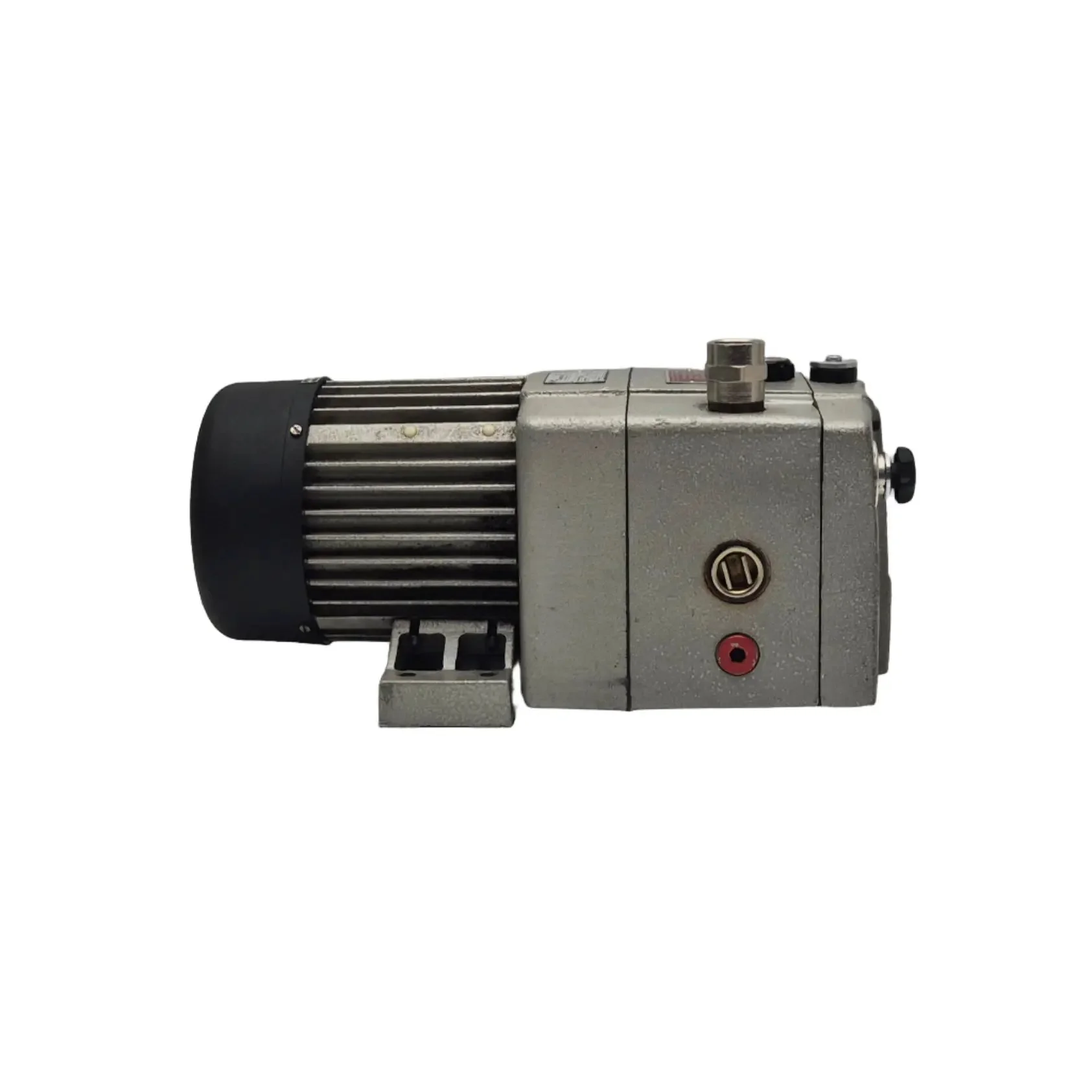

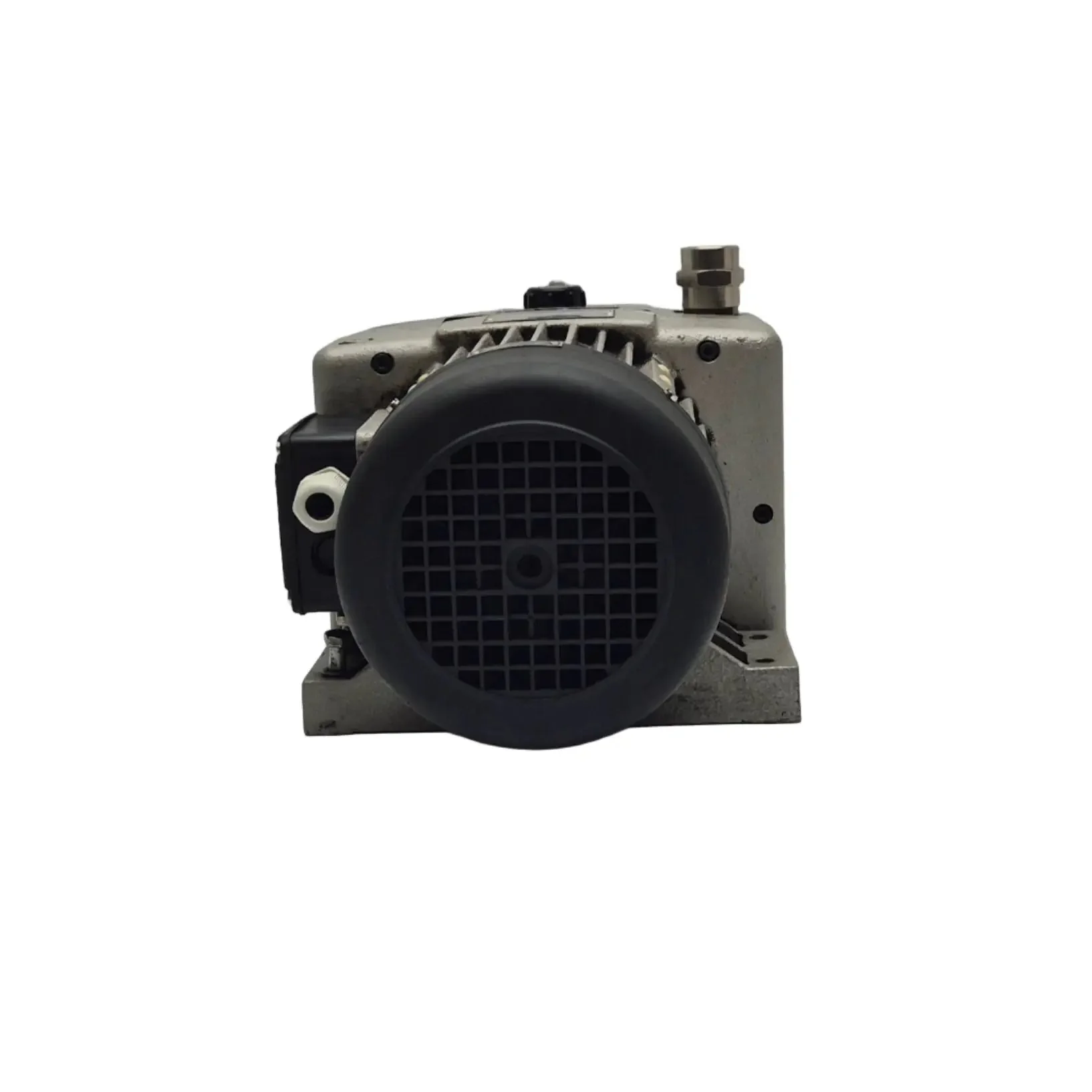

Rietschle Werie VGA-15 Vacuum Pump
Brand: Rietschle Werie
Part Number: 022889
Model: VGA‑15
Type: Vacuum Pump (oil‑lubricated rotary vane)
Capacity: 14 m³/h
Final Pressure: 20 mbar (absolute)
Rated Voltage: 220/380 V (Delta–Star connection)
Rated Power: 0.80 kW
Rated Current: 2.3 A (at one voltage), 1.3 A (at the other)
Frequency: 50 Hz
Protection Class: IP54
Insulation Class: F
Weight: Approx. 20 kg
Construction & Features:
Oil‑flooded rotary vane design
Built-in fine micro‑filter on the suction (inlet) side
Oil and oil‑mist separator on the exhaust side
Cooling system via motor‑integrated fan
Integral non‑return (check) valve to prevent back‑leakage and oil pull‑in on shutdown
Country of origin: Switzerland
HS Code: 8414.10
Description
Brand: Rietschle Werie
Part Number: 022889
Model: VGA‑15
Type: Vacuum Pump (oil‑lubricated rotary vane)
Capacity: 14 m³/h
Final Pressure: 20 mbar (absolute)
Rated Voltage: 220/380 V (Delta–Star connection)
Rated Power: 0.80 kW
Rated Current: 2.3 A (at one voltage), 1.3 A (at the other)
Frequency: 50 Hz
Protection Class: IP54
Insulation Class: F
Weight: Approx. 20 kg
Construction & Features:
Oil‑flooded rotary vane design
Built-in fine micro‑filter on the suction (inlet) side
Oil and oil‑mist separator on the exhaust side
Cooling system via motor‑integrated fan
Integral non‑return (check) valve to prevent back‑leakage and oil pull‑in on shutdown
Country of origin: Switzerland
HS Code: 8414.10
