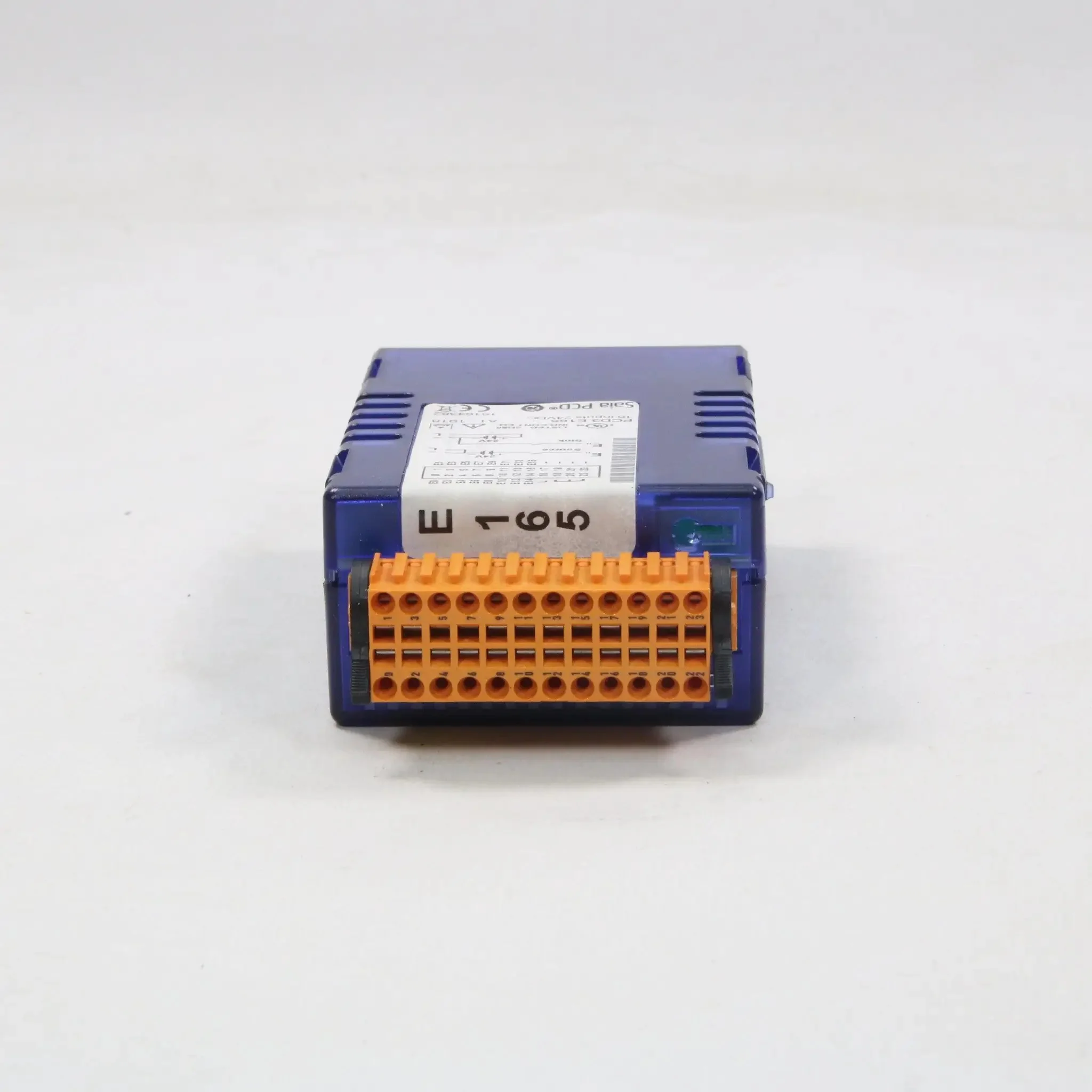

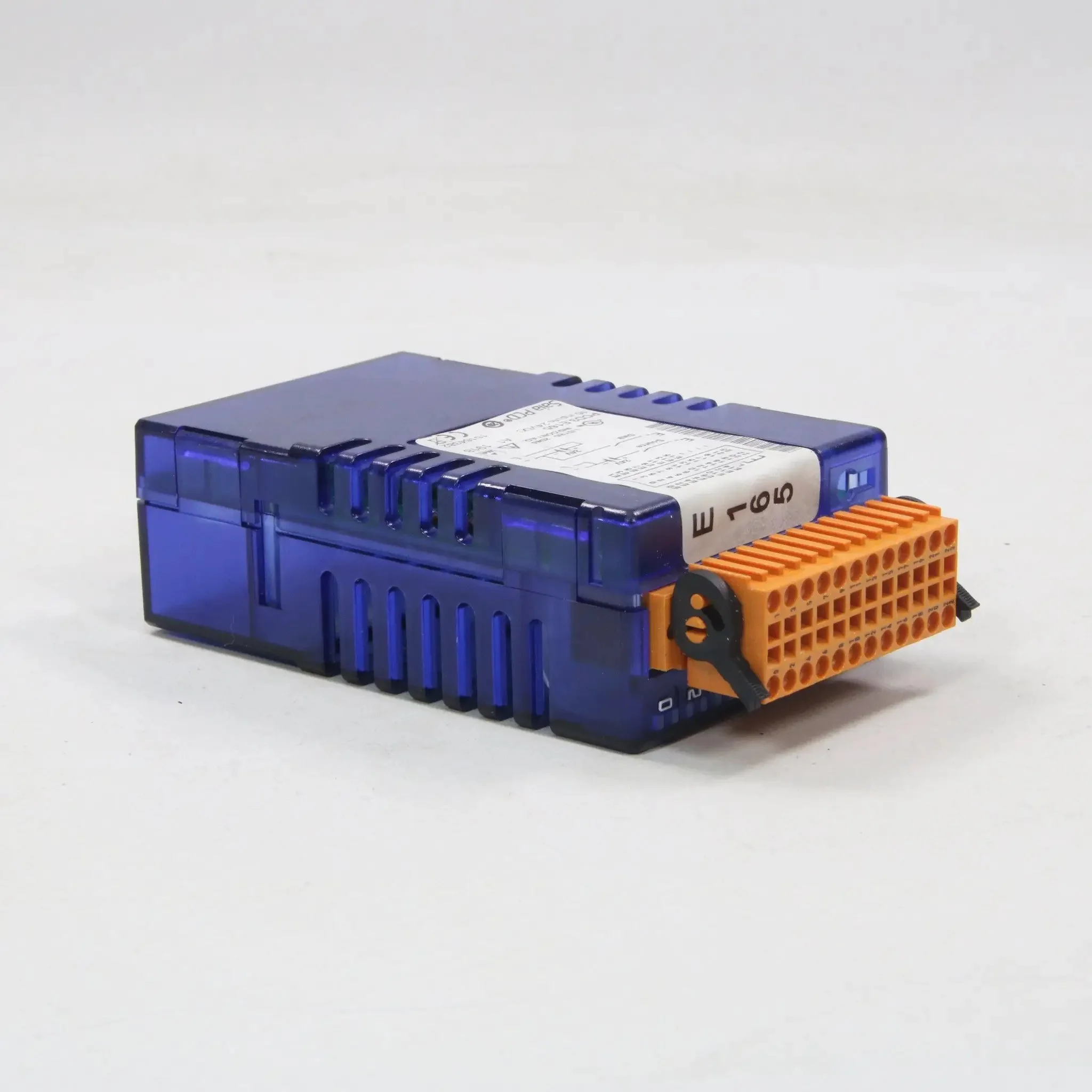

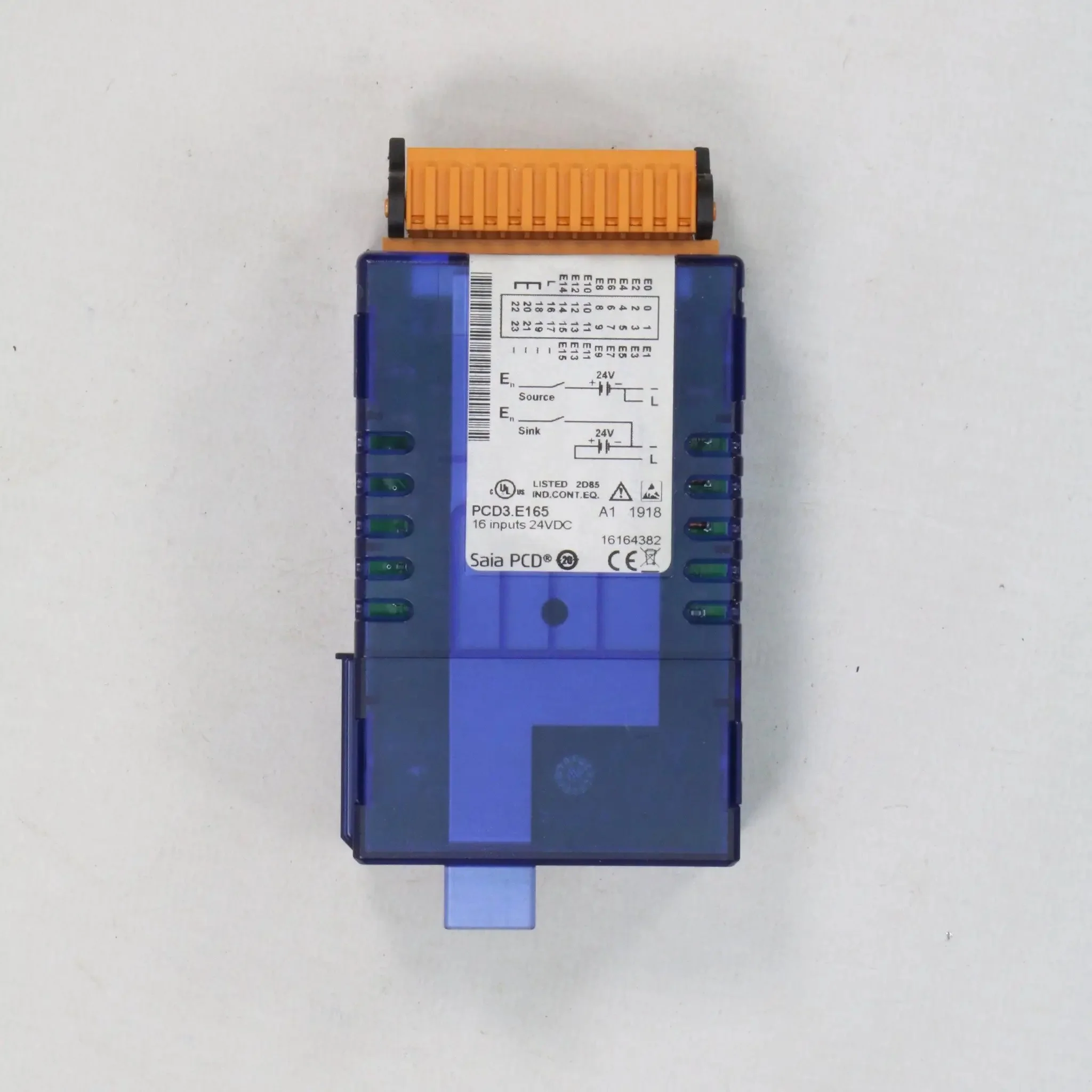

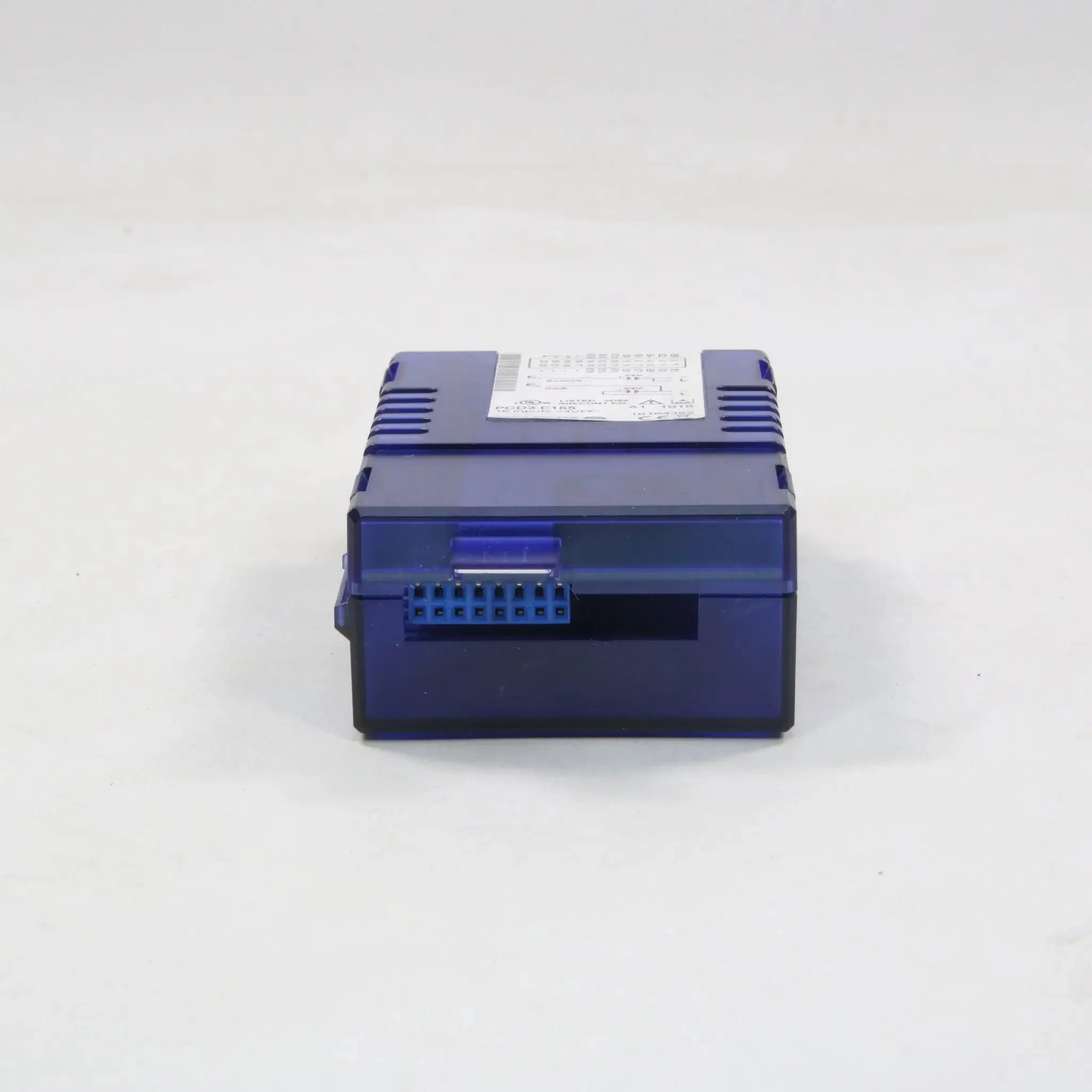

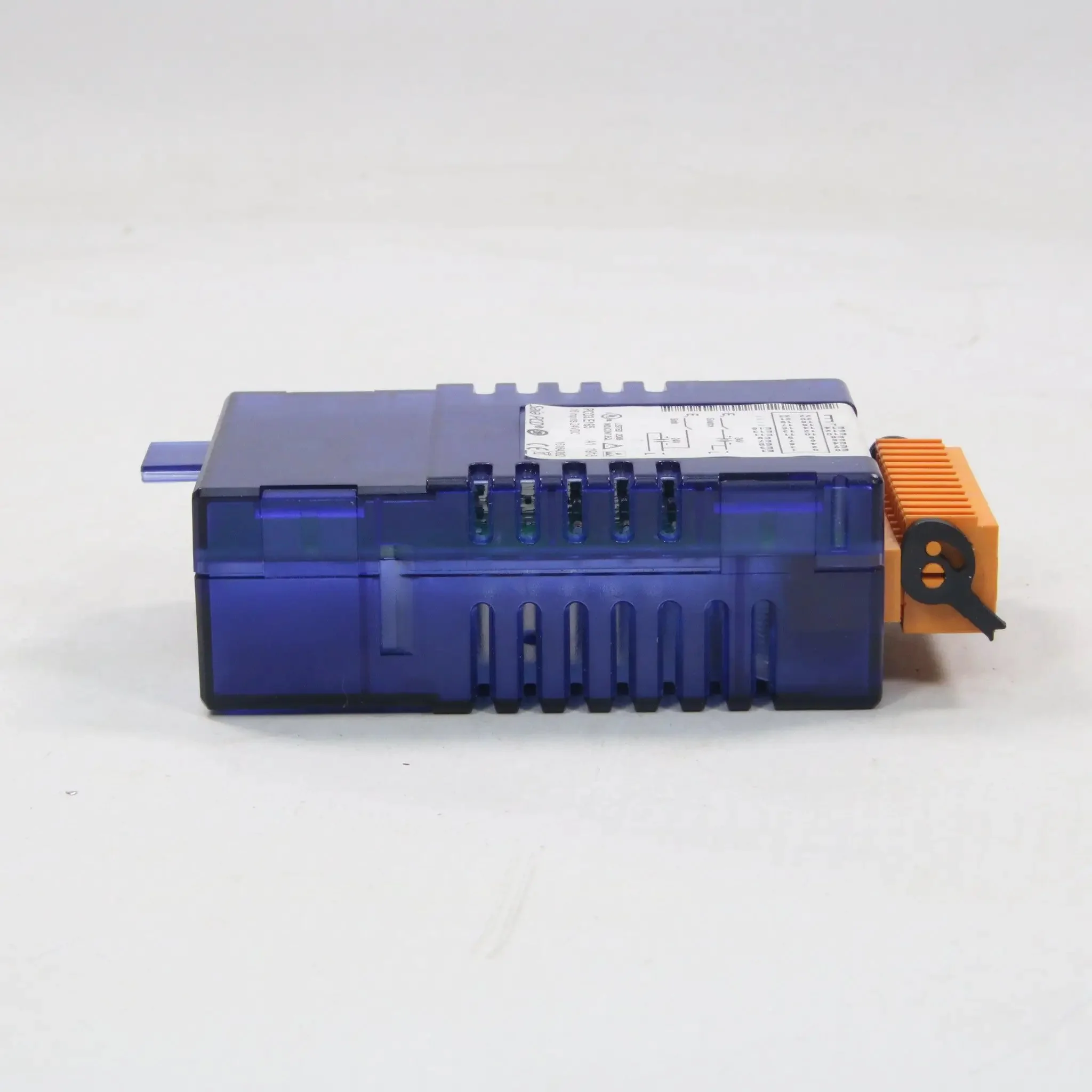

Saia PCD3.E165 Input Module
- Saia
- PCD3.E165
- Input Module
- For Source or Sink operation with 16 Inputs, Electrically Connected.
- Suitable for most Electronic and Electromechanical Switching Elements at 24 VDC.
- Number of Inputs 16 Electrically Connected, Source or Sink Operation Input voltage 24 VDC (15 … 30 VDC) Smoothed or Pulsed Input Current: 4 mA per Input at 24 VDC Input delay typically 8 ms Resistance to Interference acc. to IEC 801-4 2 kV Under Capacitive Coupling (whole trunk group) Internal Current Consumption (from +5 V bus) 1…10 mA Typically 8 mA Internal Current Consumption (from V+ bus) 0 mA External Current Consumption max. 64 mA (all inputs=1) at 24 VDC
- Terminals Pluggable 24-pole Spring Terminal Block (4 405 4956 0), for Ø up to 1 mm²
$22,452.29
Saia PCD3.E165 Input Module—
$22,452.29
Description
- Saia
- PCD3.E165
- Input Module

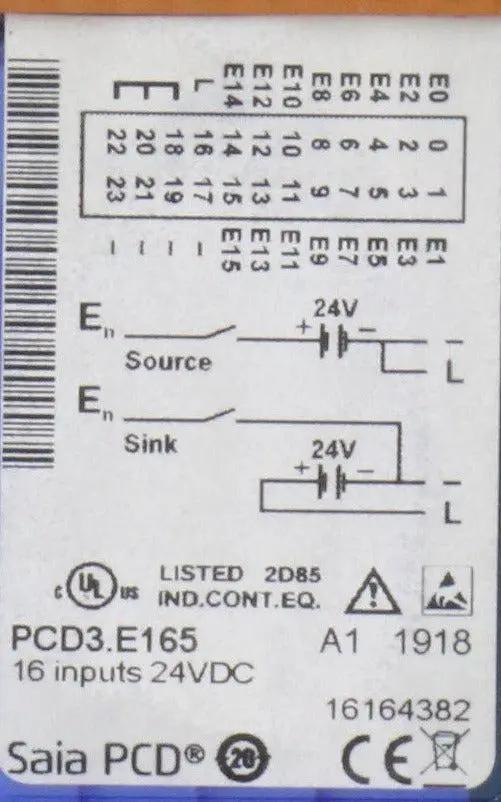

- For Source or Sink operation with 16 Inputs, Electrically Connected.
- Suitable for most Electronic and Electromechanical Switching Elements at 24 VDC.
- Number of Inputs 16 Electrically Connected, Source or Sink Operation Input voltage 24 VDC (15 … 30 VDC) Smoothed or Pulsed Input Current: 4 mA per Input at 24 VDC Input delay typically 8 ms Resistance to Interference acc. to IEC 801-4 2 kV Under Capacitive Coupling (whole trunk group) Internal Current Consumption (from +5 V bus) 1…10 mA Typically 8 mA Internal Current Consumption (from V+ bus) 0 mA External Current Consumption max. 64 mA (all inputs=1) at 24 VDC
- Terminals Pluggable 24-pole Spring Terminal Block (4 405 4956 0), for Ø up to 1 mm²
