Saia PCD7.D410VTCF Micro Browser Web Panel

Saia PCD7.D410VTCF Micro Browser Web Panel

  • Saia
  • PCD7.D410VTCF
  • Micro Browser Web Panel
  • The 10.4“ Micro-Browser Panel has a High-Quality TFT TouchDisplay with VGA Resolution
  • Screen Colours: 65, 536
  • Display: 10.4 ” TFT Resolution/Pixel VGA 640×480
  • 4 Wire Resistive Touch-Screen
  • Contrast Adjustment: Yes
  • Backlight CCFL
  • Processor: Coldfire
  • Memory for Local Web Server: 4 MB Flash
  • CFC Card Slot External: Option
  • Ethernet 10/100 M: 1 × RJ45
  • USB 12 M: 1 × Client
  • Serial (D-Sub9): 1 × RS-232
  • Serial: 1 × RS-485
  • Keyboard/Barcode: 1 × PS/2
  • Operating System: Saia PCD® COSinus
  • Browser: SBC Micro Browser
  • Server: Web-Server (HTTP D)
$311,270.36
Saia PCD7.D410VTCF Micro Browser Web Panel—
$311,270.36

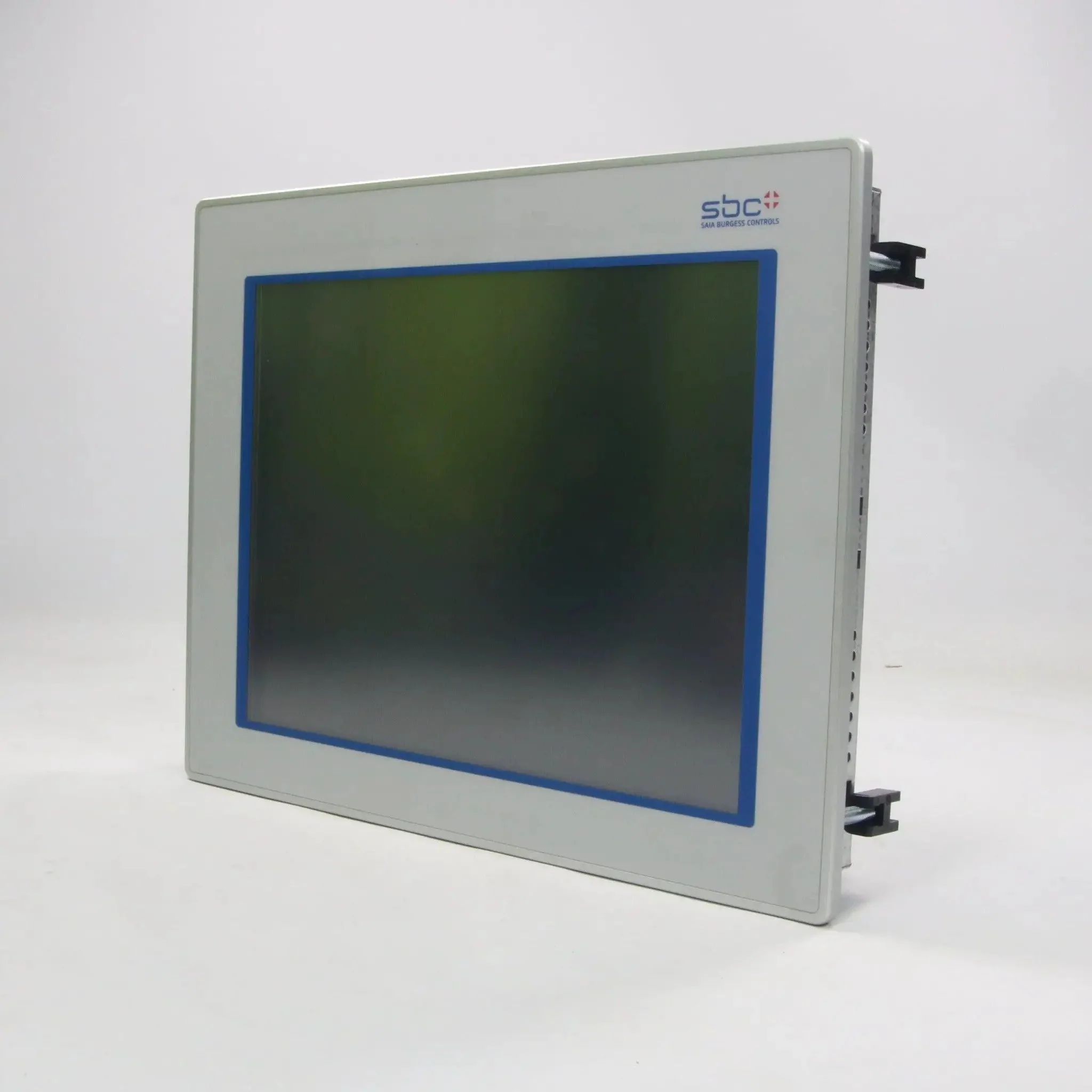

Product image 1

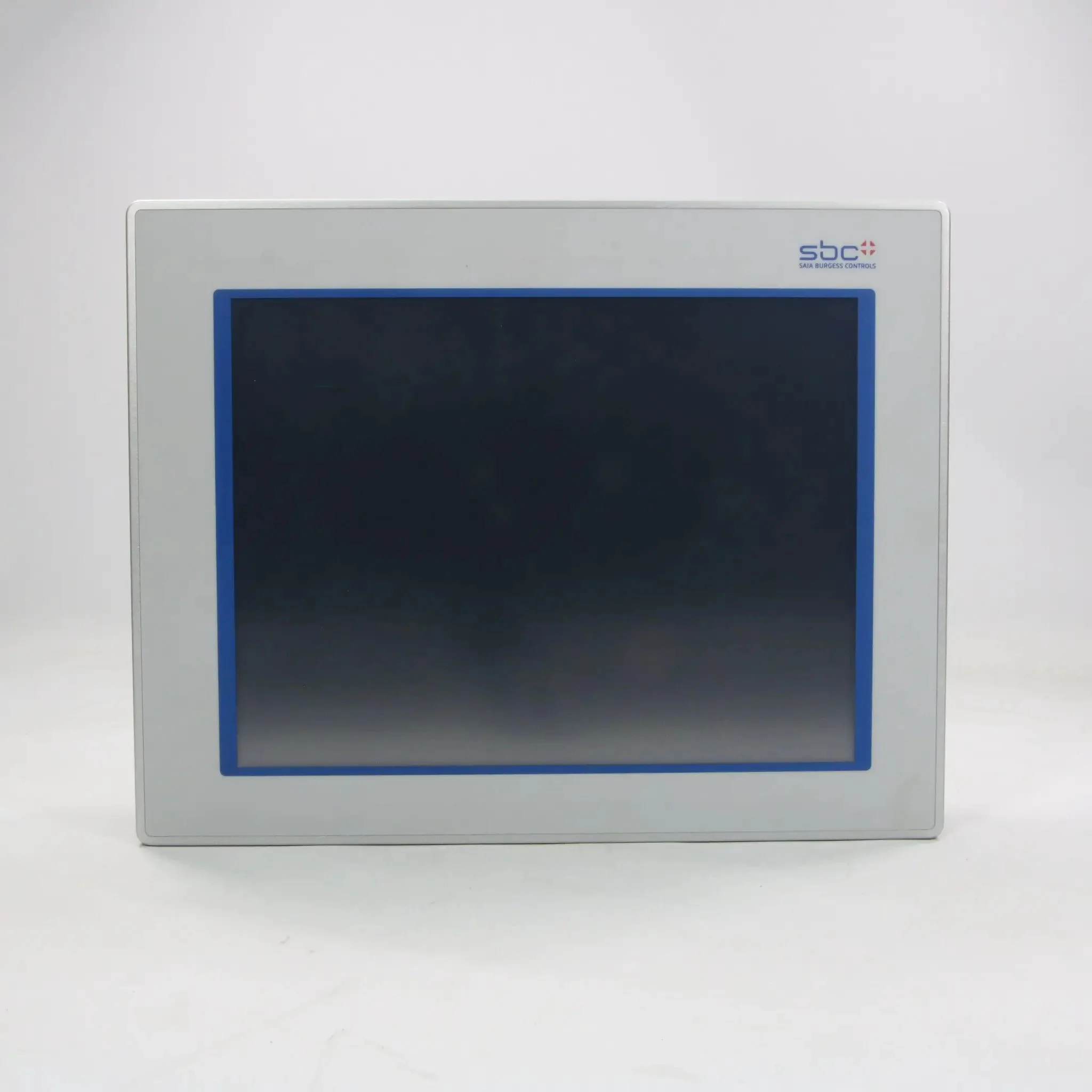

Product image 2

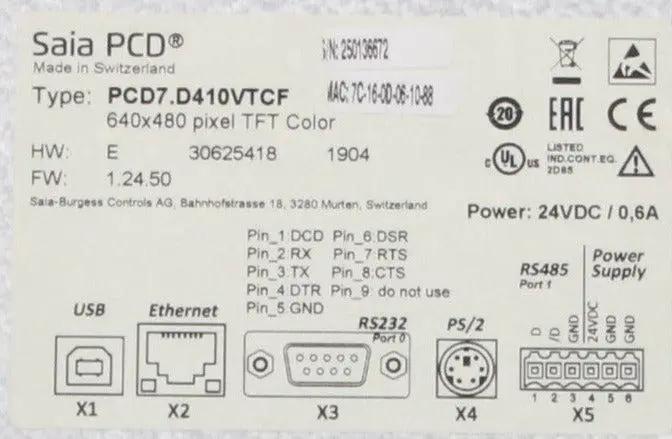

Product image 3

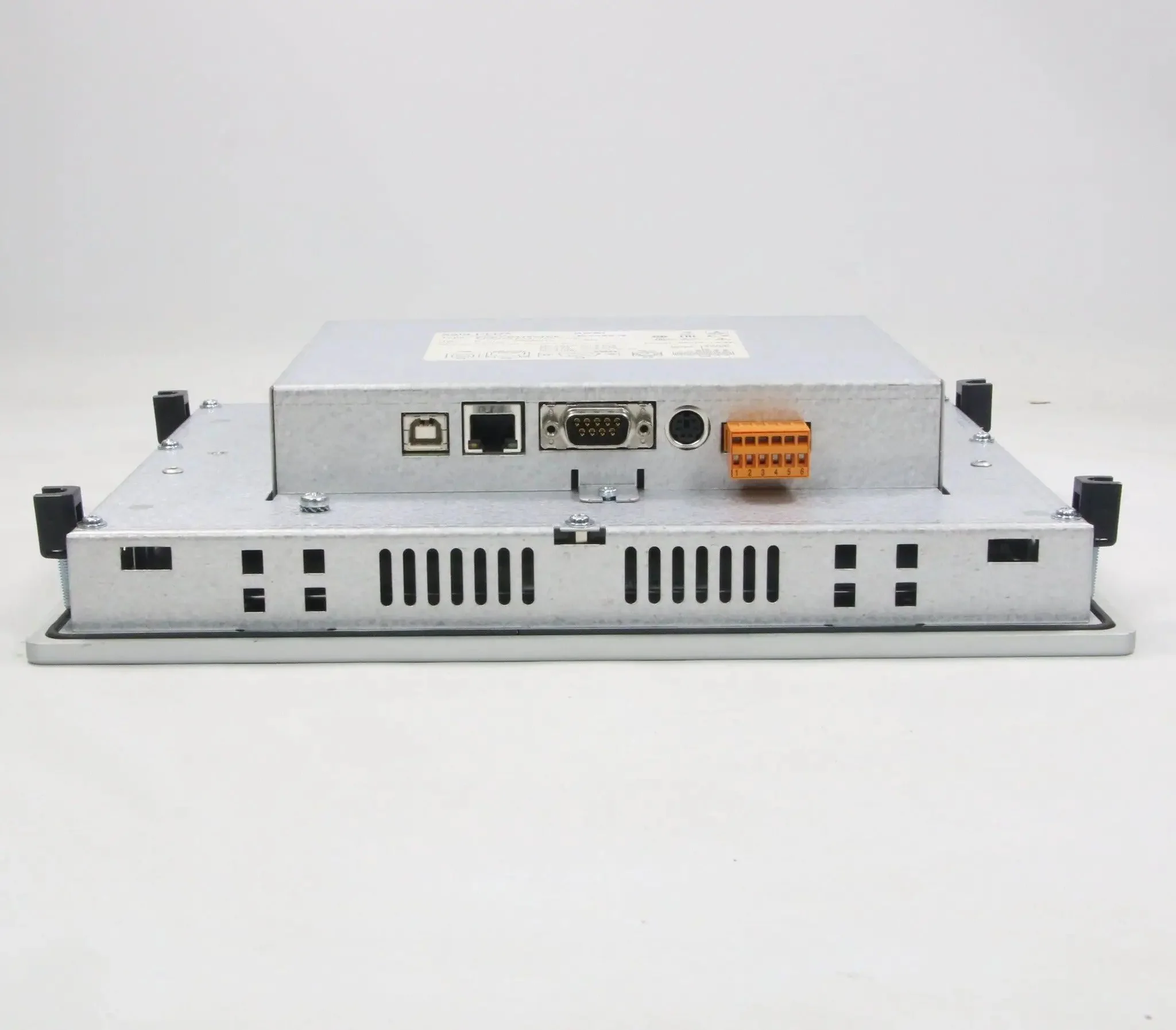

Product image 4

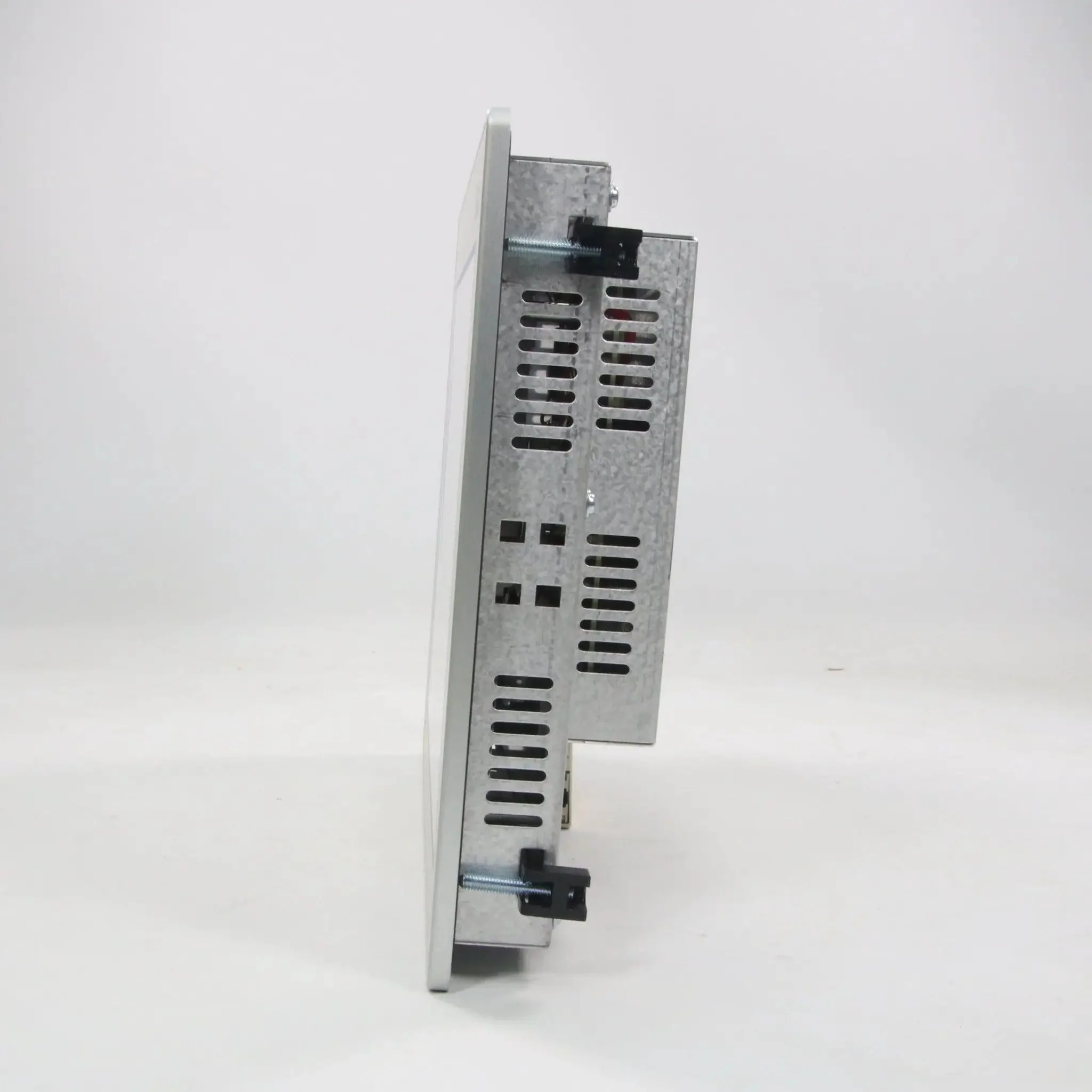

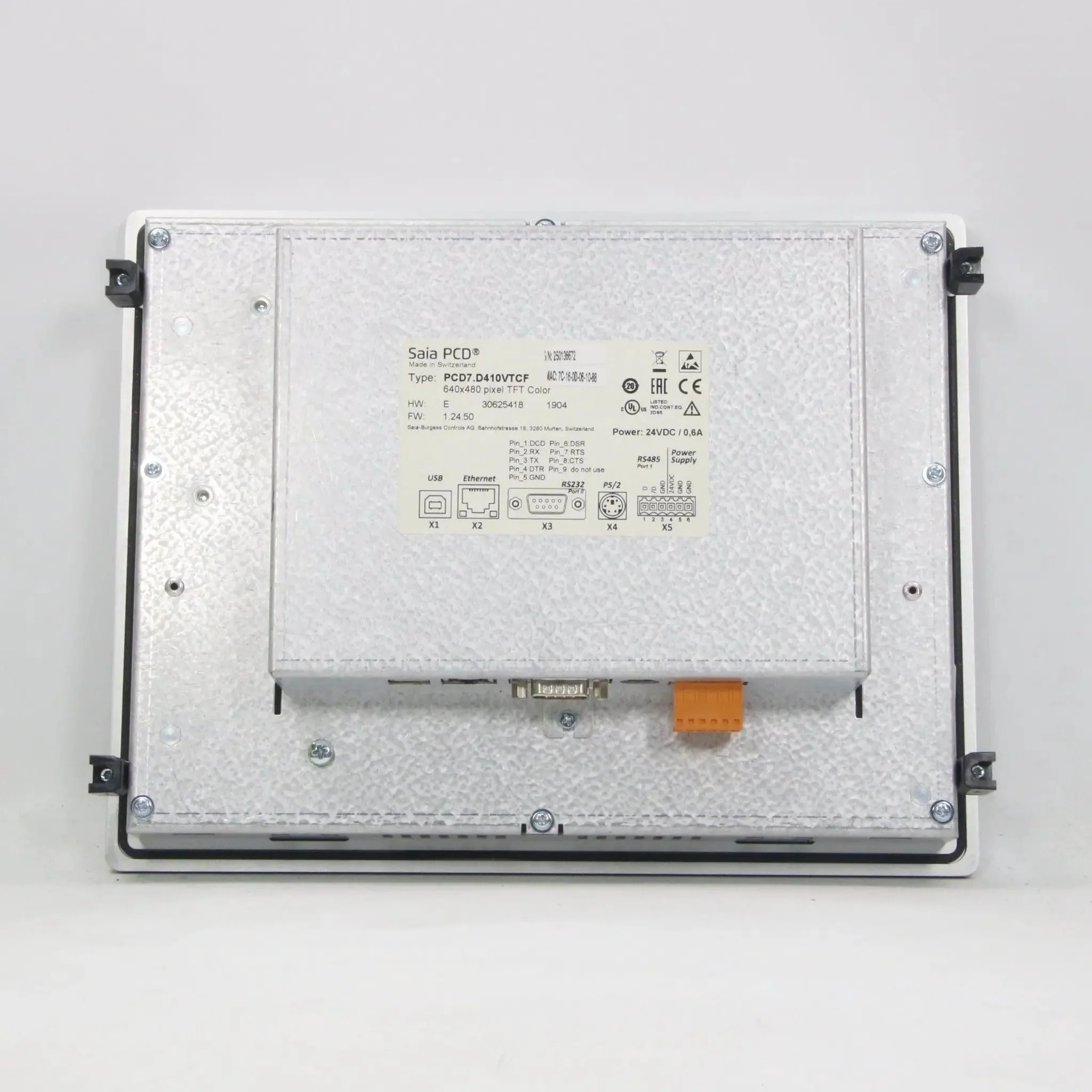

Product image 5

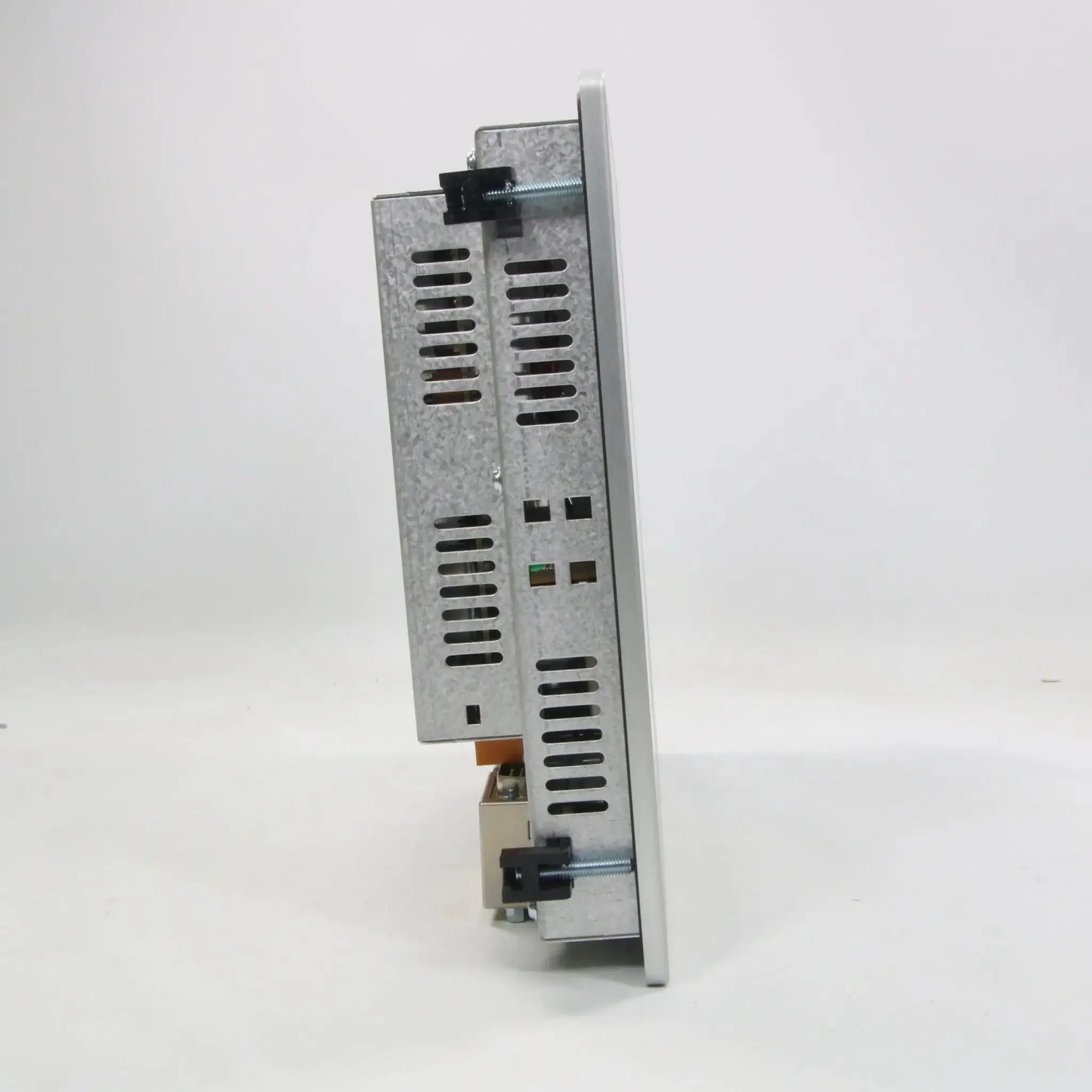

Product image 6
Product image 7

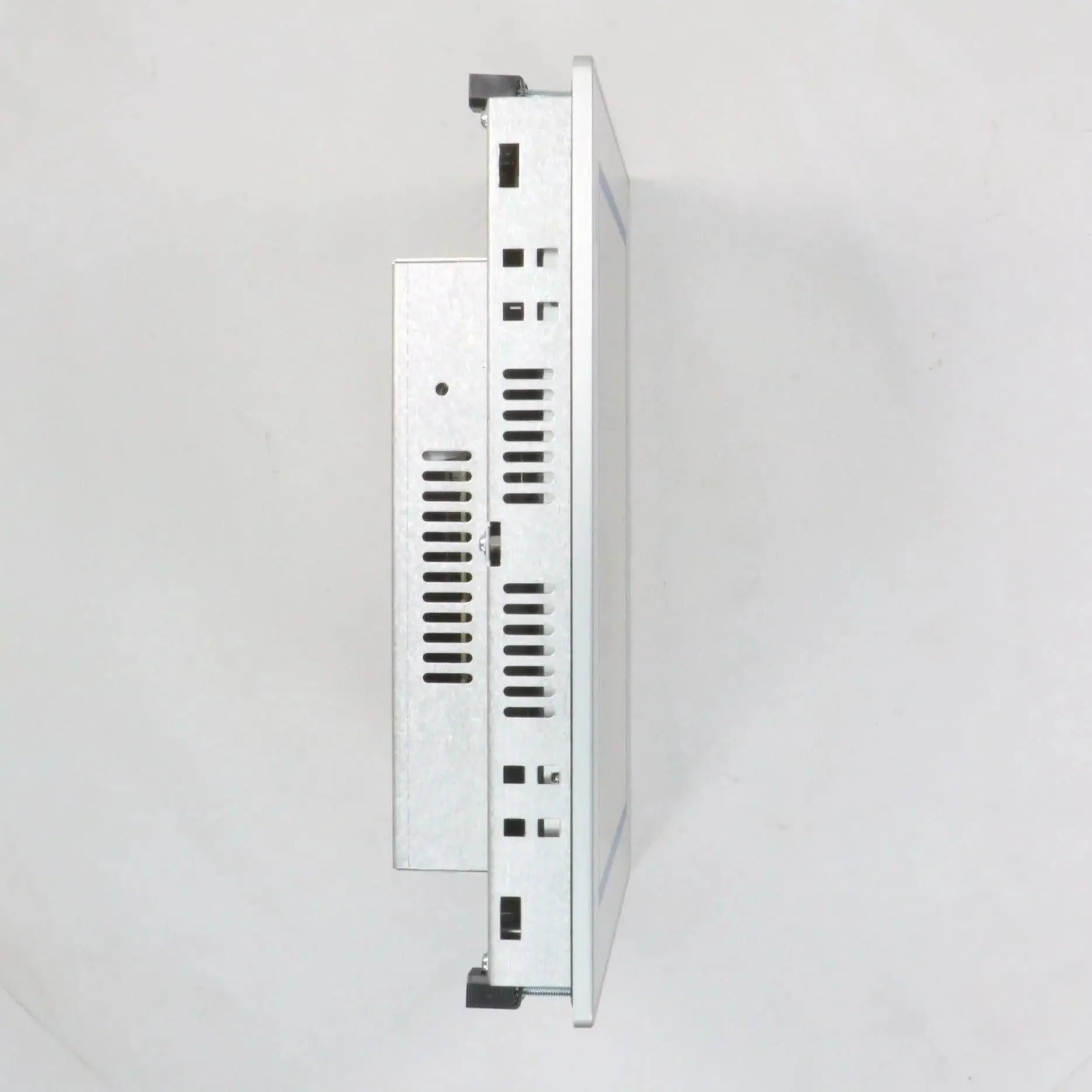

Product image 8

Description

  • Saia
  • PCD7.D410VTCF
  • Micro Browser Web Panel
  • The 10.4“ Micro-Browser Panel has a High-Quality TFT TouchDisplay with VGA Resolution
  • Screen Colours: 65, 536
  • Display: 10.4 ” TFT Resolution/Pixel VGA 640×480
  • 4 Wire Resistive Touch-Screen
  • Contrast Adjustment: Yes
  • Backlight CCFL
  • Processor: Coldfire
  • Memory for Local Web Server: 4 MB Flash
  • CFC Card Slot External: Option
  • Ethernet 10/100 M: 1 × RJ45
  • USB 12 M: 1 × Client
  • Serial (D-Sub9): 1 × RS-232
  • Serial: 1 × RS-485
  • Keyboard/Barcode: 1 × PS/2
  • Operating System: Saia PCD® COSinus
  • Browser: SBC Micro Browser
  • Server: Web-Server (HTTP D)
