Saltek FLP 12,5 V/4S Surge Protector

Saltek FLP 12,5 V/4S Surge Protector

  • Saltek
  • FLP-12,5V/4S
  • Surge Protector
  • Nominal voltage: Un 230 V AC
  • Maximum operating voltage: Uc 275.00 V AC
  • Maximum operating voltage: Uc 350.00 V DC
  • Type of network: TN Maximum overcurrent protection 160 A gL/gG
  • Short-circuit current rating: ISCCR 50.0 kA
  • Total discharge current: (10/350 µs) Total (10/350) 50.00 kA
  • Lightning impulse current (10/350 µs) imp 12.50 kA
  • Nominal discharge current (8/20 µs) In 30.00 kA
  • Maximum discharge current (8/20 µs) max 60.00 kA
  • Voltage protection level: Up 1.50 kV
  • Voltage protection level: at 5 kA Up 0.90 kV
  • Protection: IP20
$86.80

Original: $289.32

-70%
Saltek FLP 12,5 V/4S Surge Protector—

$289.32

$86.80

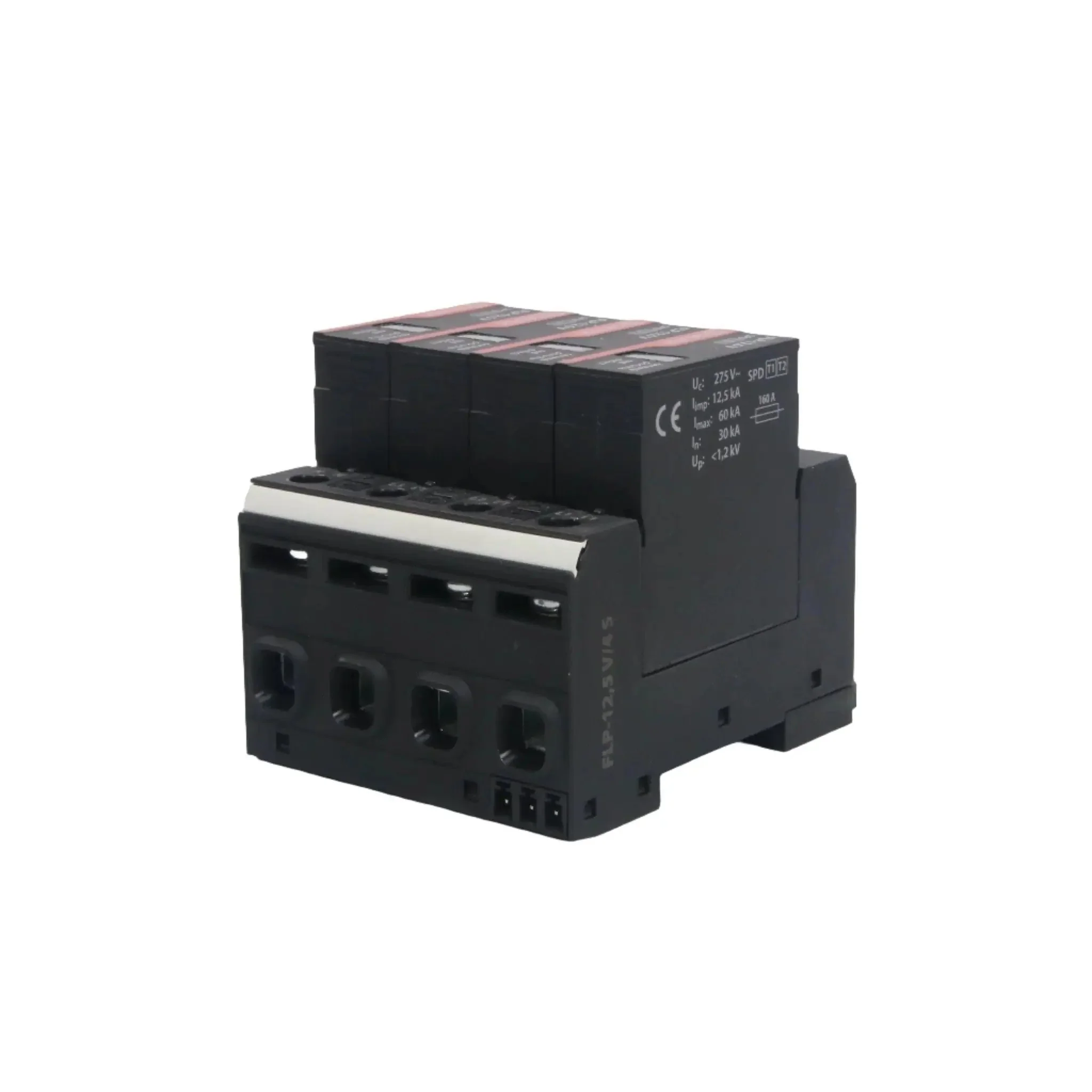

Product image 1
Product image 2

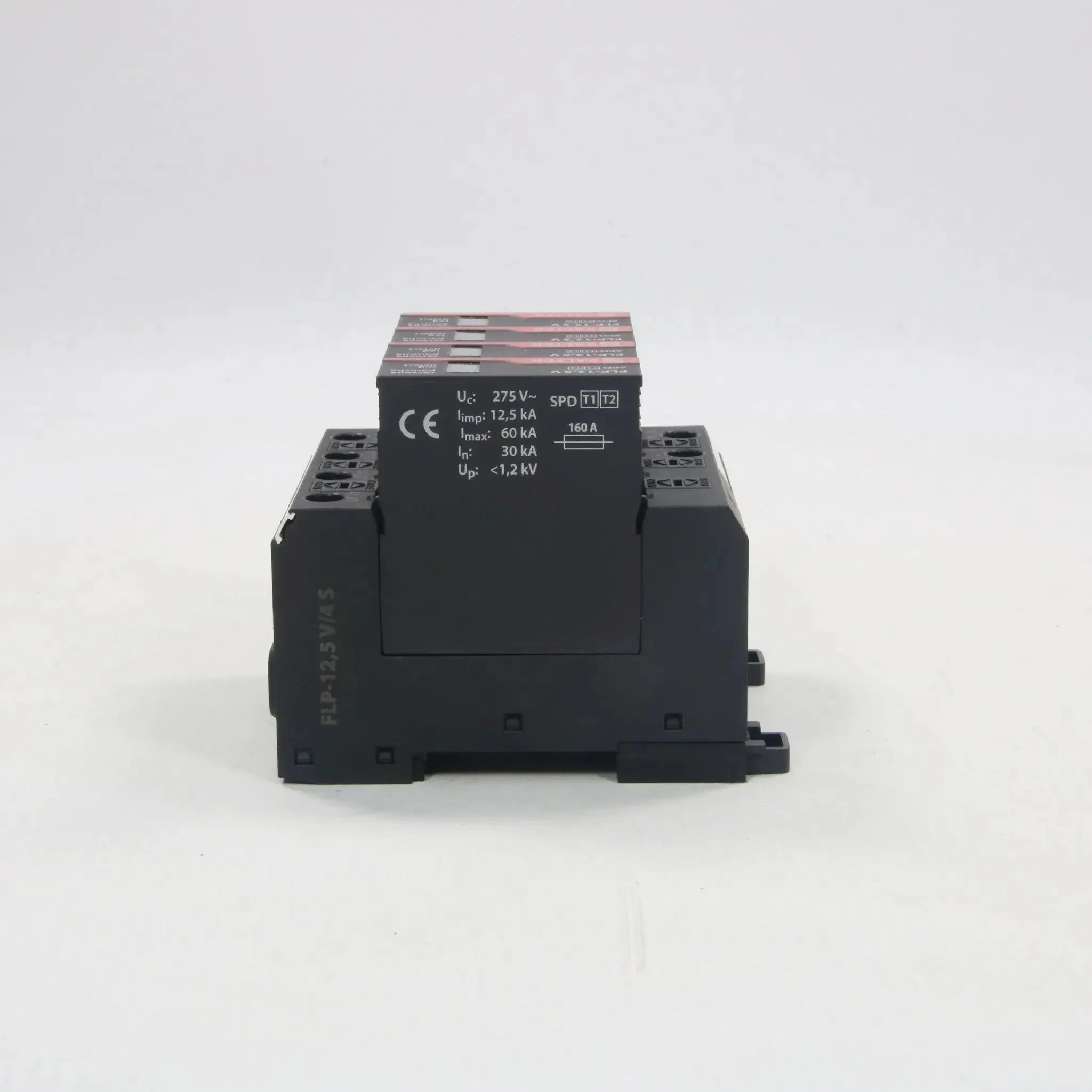

Product image 3

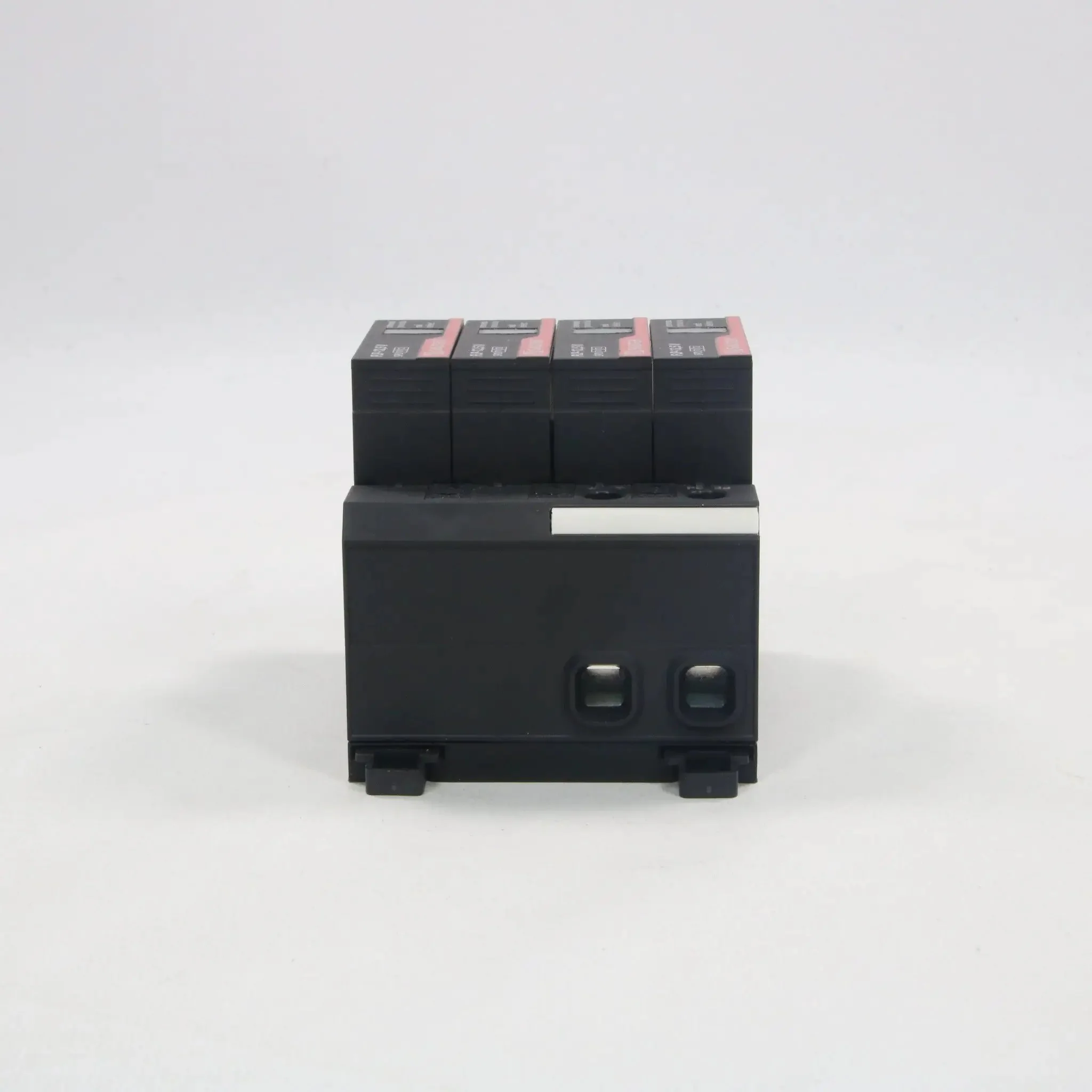

Product image 4

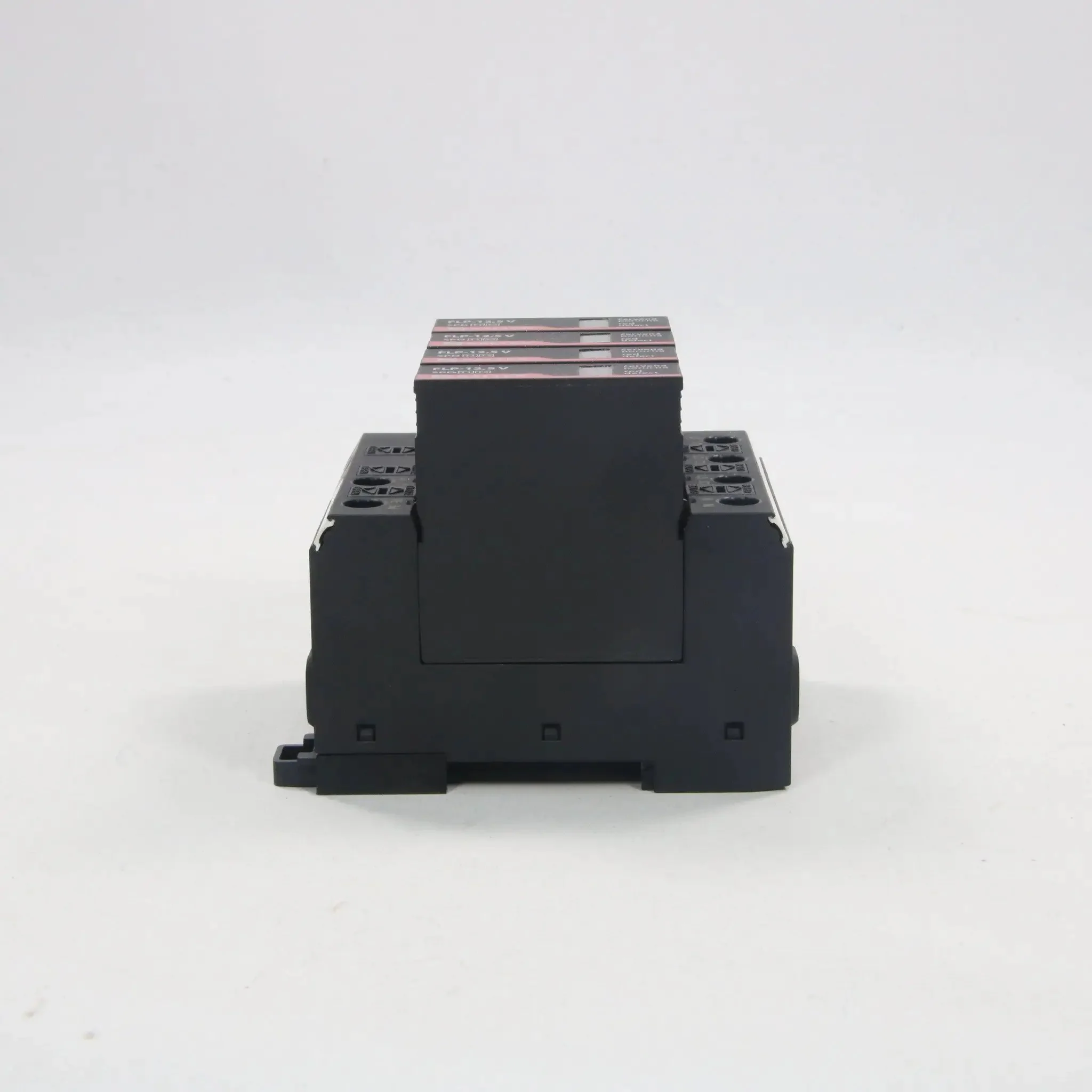

Product image 5

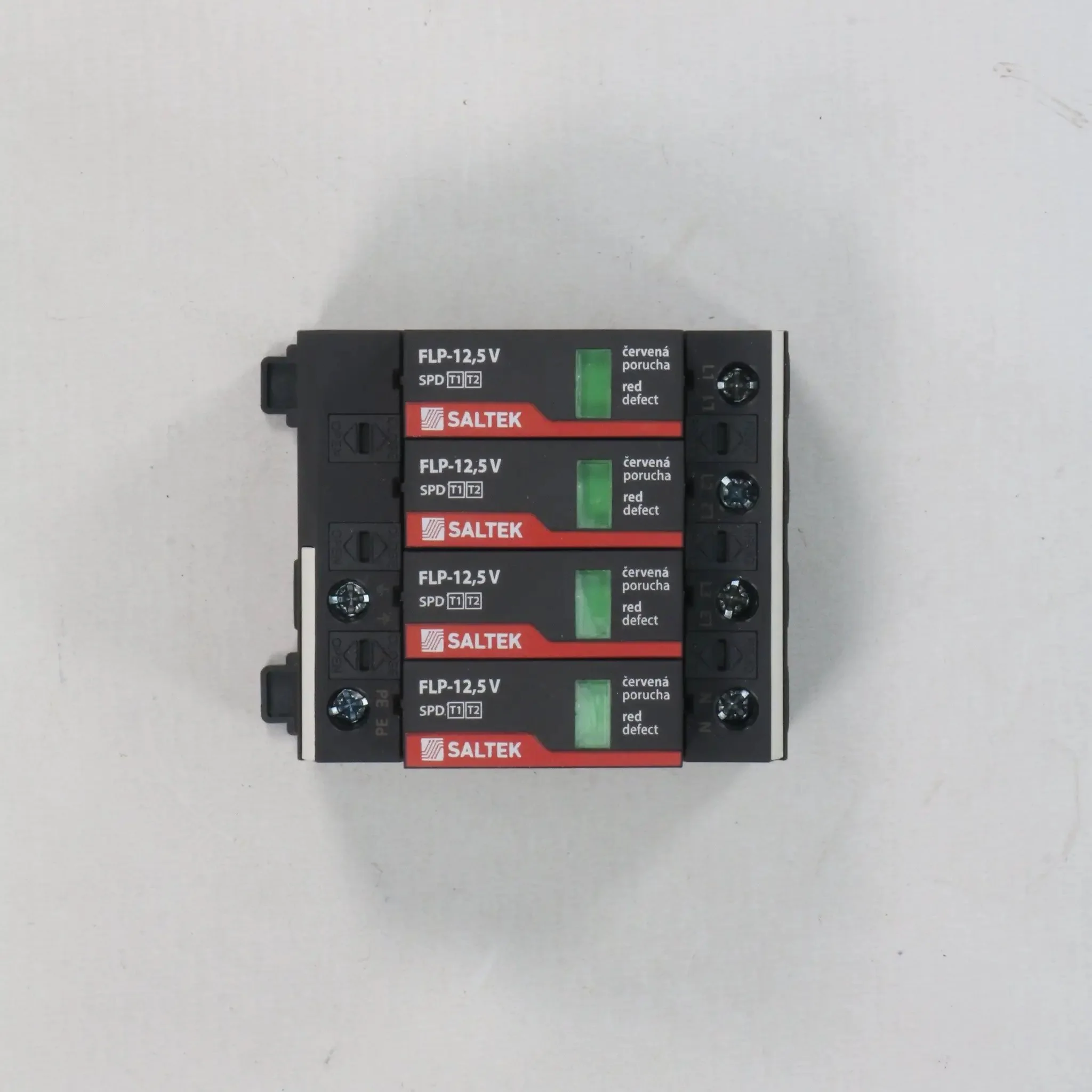

Product image 6

Description

  • Saltek
  • FLP-12,5V/4S
  • Surge Protector
  • Nominal voltage: Un 230 V AC
  • Maximum operating voltage: Uc 275.00 V AC
  • Maximum operating voltage: Uc 350.00 V DC
  • Type of network: TN Maximum overcurrent protection 160 A gL/gG
  • Short-circuit current rating: ISCCR 50.0 kA
  • Total discharge current: (10/350 µs) Total (10/350) 50.00 kA
  • Lightning impulse current (10/350 µs) imp 12.50 kA
  • Nominal discharge current (8/20 µs) In 30.00 kA
  • Maximum discharge current (8/20 µs) max 60.00 kA
  • Voltage protection level: Up 1.50 kV
  • Voltage protection level: at 5 kA Up 0.90 kV
  • Protection: IP20
