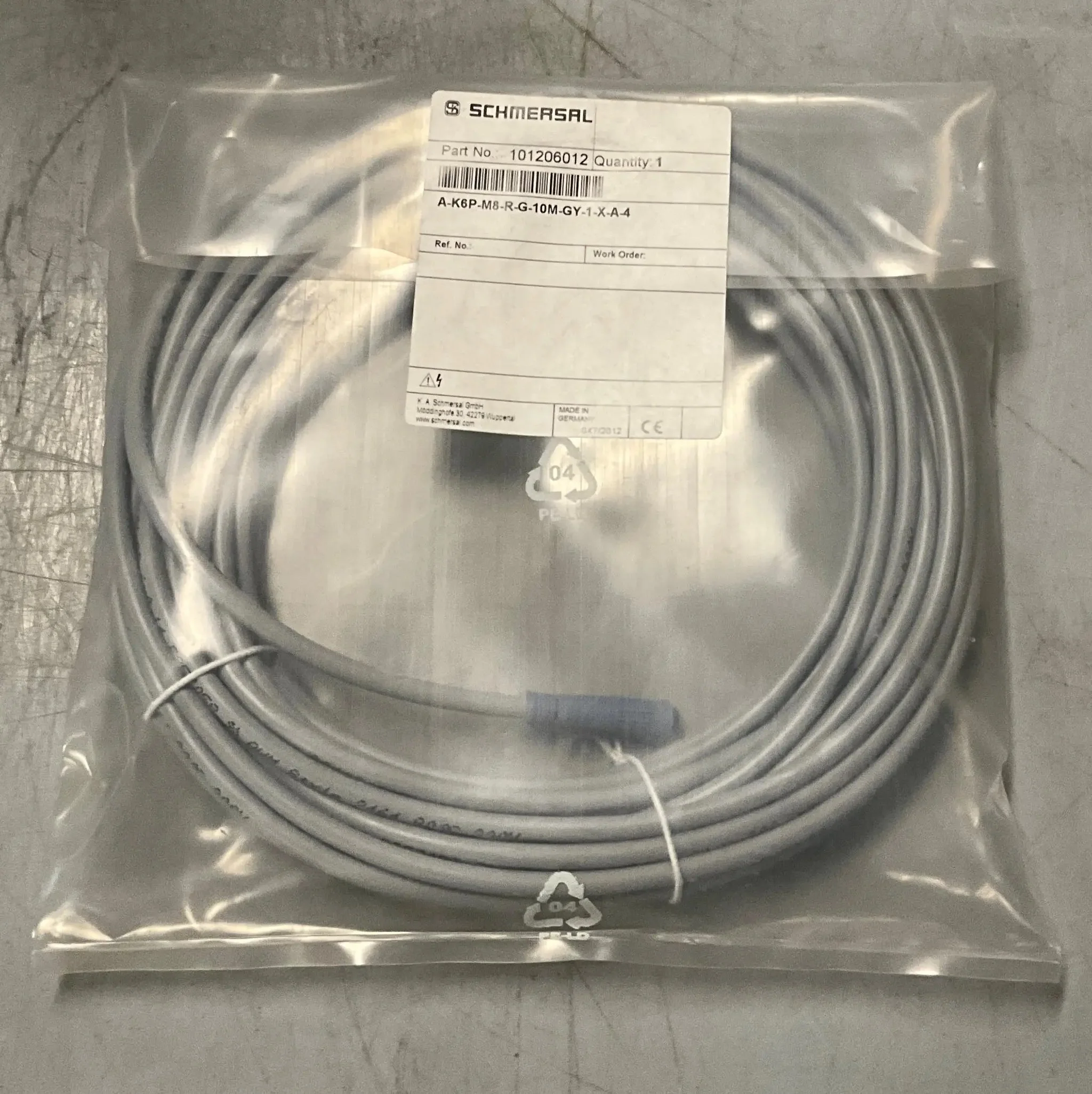

Schmersal A-K6P-M8-R-G-10M-GY-1-X-A-4 Connection Cable

Brand: Schmersal

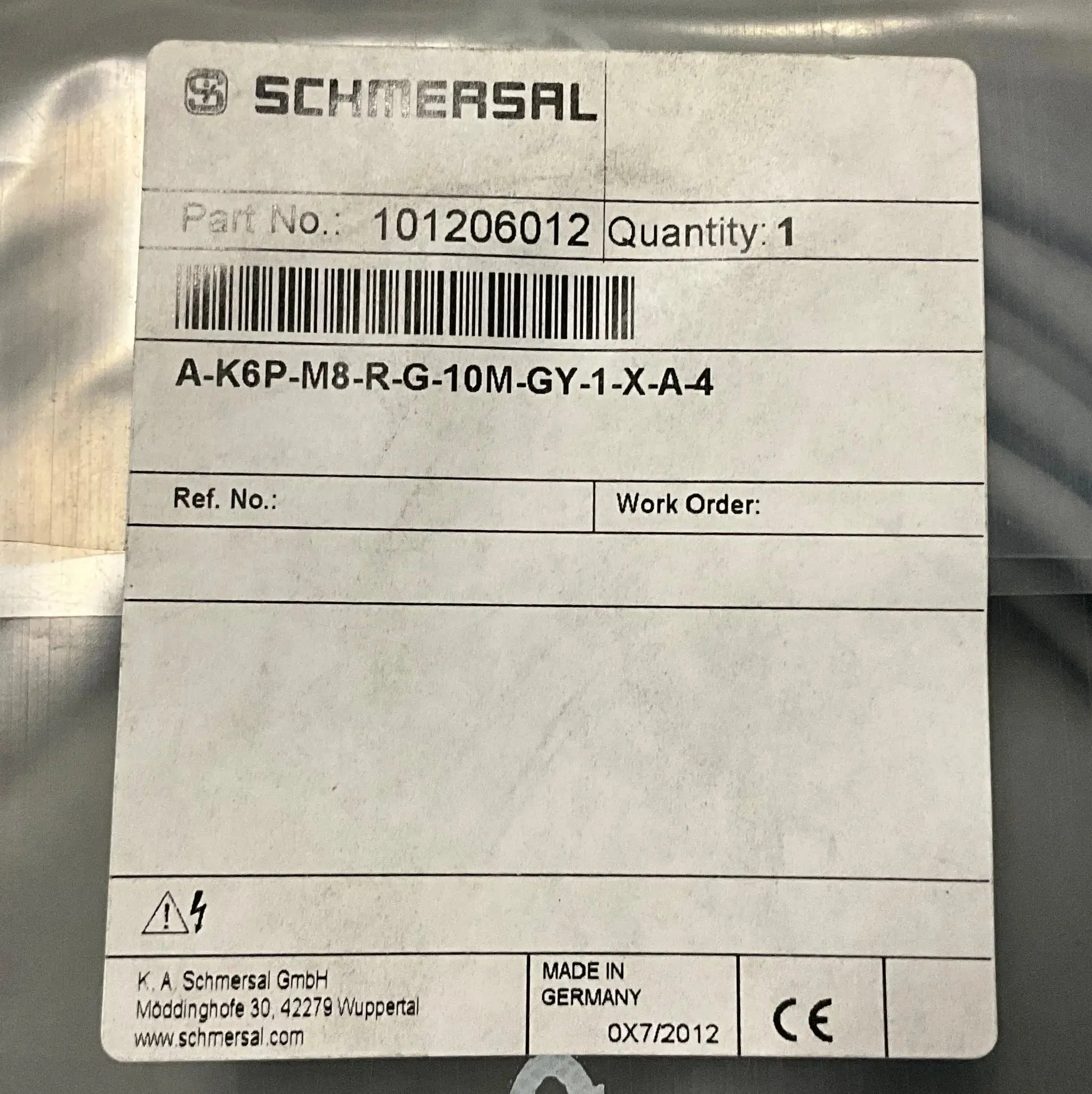

Part Number: A‑K6P‑M8‑R‑G‑10M‑GY‑1‑X‑A‑4 (Order No.: 101206012)
Type: Pre-wired M8 Female Connection Cable, 6-Pole Latching Interlock

Specifications:
Poles: 6
Cable Length: 10 m
Wire Cross-Section: 0.14 mm²
Cable Diameter: 4.9 mm
Cable Material: PVC, Color: Grey
Connector: M8 female, straight, latching interlock
Gland & Handle Material: Plastic (TPU), Handle Color: Black
Electrical Rating:
Rated Voltage: 30 VAC / 30 V DC
Operating Current: 1.5 A
Thermal Test Current: 1.5 A
Protection Rating: IP 65, IP 67, IP 69
Ambient Temperature Range:
Connector: –30 °C to +90 °C
Cable Fixed Installation: –40 °C to +80 °C
Cable Flexible Use: –5 °C to +80 °C
Mechanical Specification:
Bending Radius (Fixed): ≥ 5× Ø-cable
Bending Radius (Repeated): ≥ 10× Ø-cable
Gross Weight: 340g
Certifications: cULus
