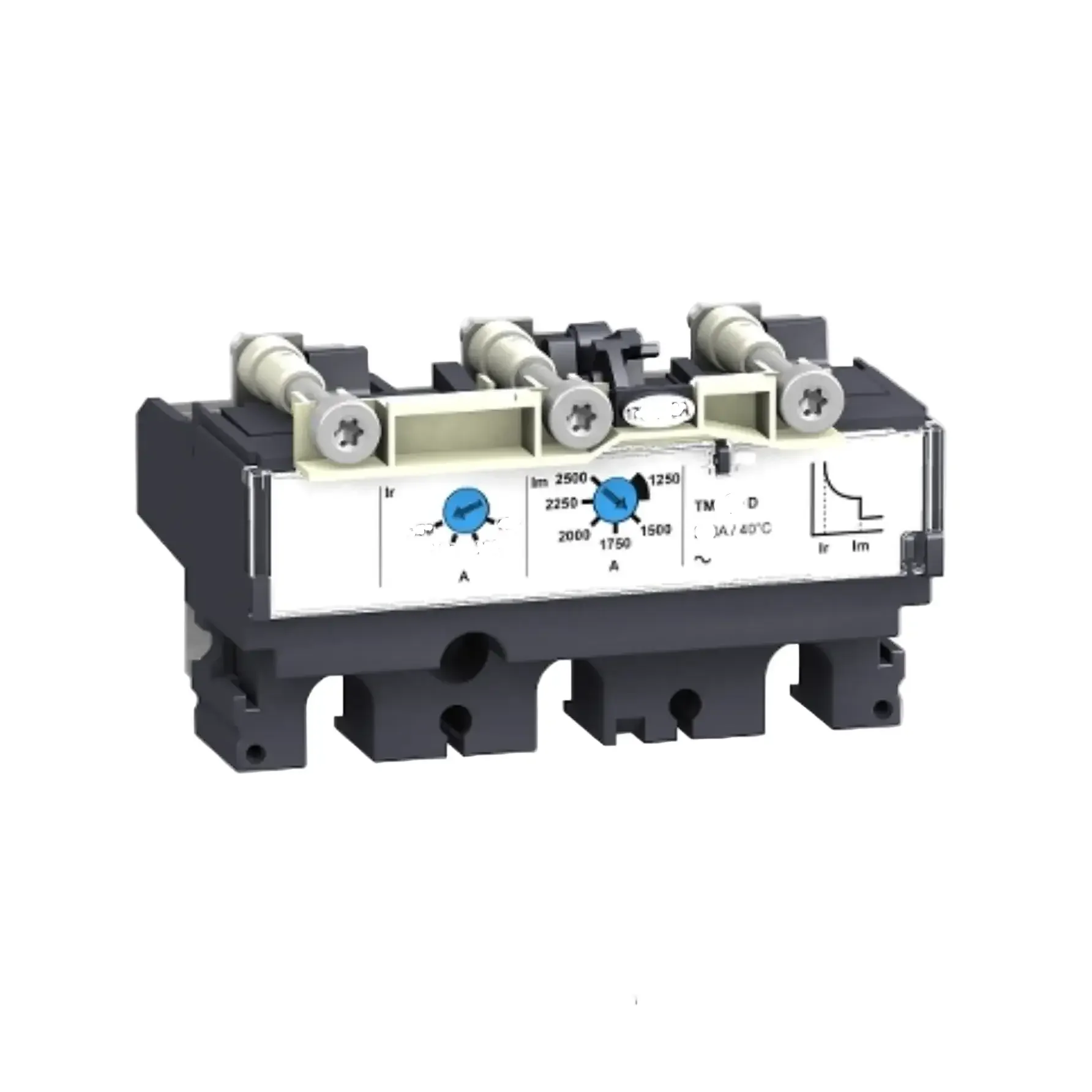

Schneider Electric 3P3D TMD Trip Unit

- Brand: Schneider Electric

- Model: TM-D thermal-magnetic trip unit series for ComPacT NSX / Compact NSX

- Type: Thermal-Magnetic Trip Unit

- Technical specifications:
- Poles: 3P (3 poles), 3D (3 protected poles with distribution protection)
- Rated current (In): See values in variants
- Protection functions: LI (L: adjustable thermal overload protection; I: fixed magnetic short-circuit protection)
- Thermal protection: Adjustable overload
- Magnetic protection: Fixed
- Rated operational voltage: Up to 690 V AC 50/60 Hz; 750 V DC
- Compatible with: ComPacT NSX 100 / Compact NSX 100 circuit breaker frames
- Standards: IEC 60947-2 compliant
- Additional features: Optimum for distribution applications; embeds adjustable thermal protection; no electronic features (basic thermo-magnetic)
- Breaking capacity: Dependent on the NSX frame

Weight: 450 g

Dimensions: 115 x 65 x 100 mm

Country of origin: Poland

HS code: 8536.30
