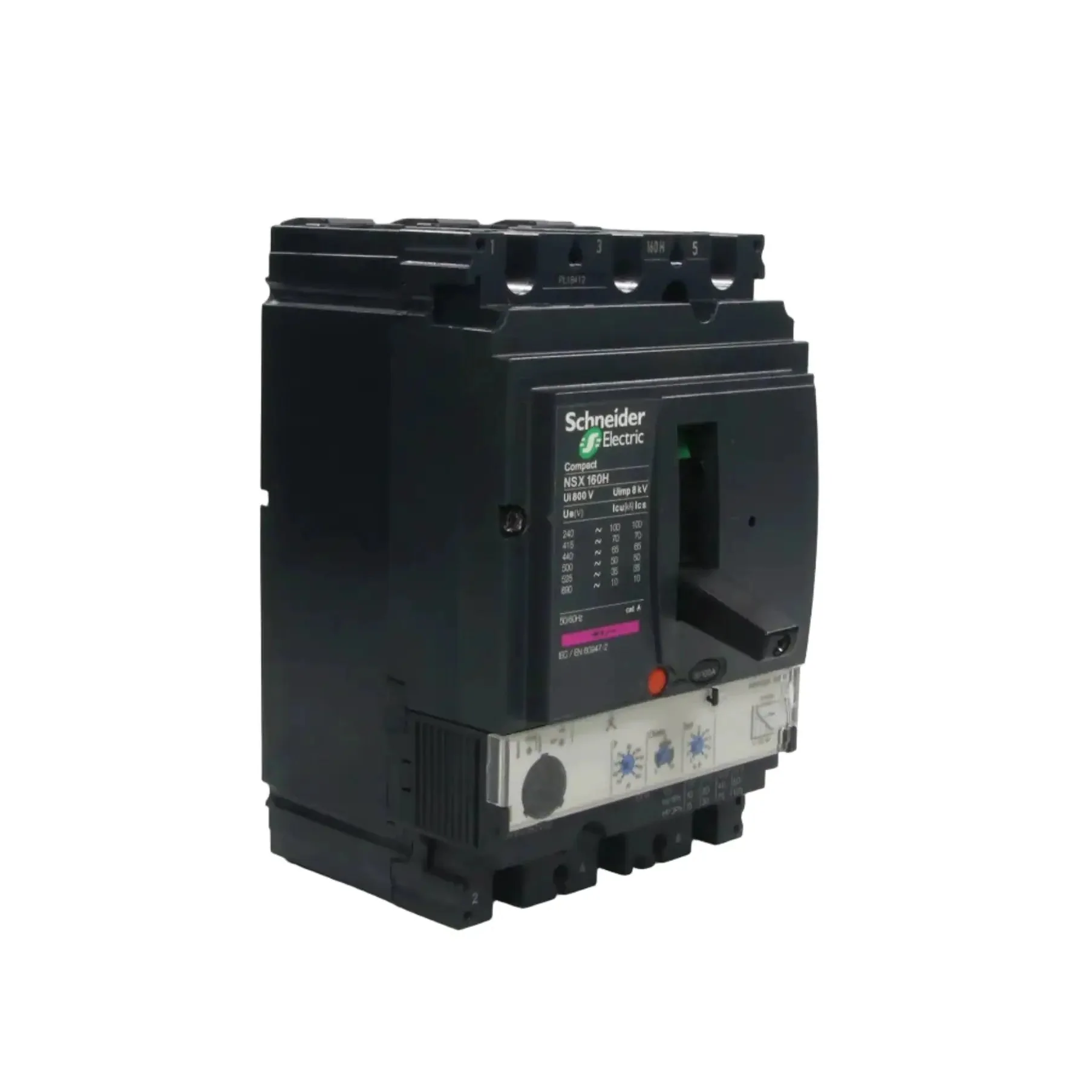

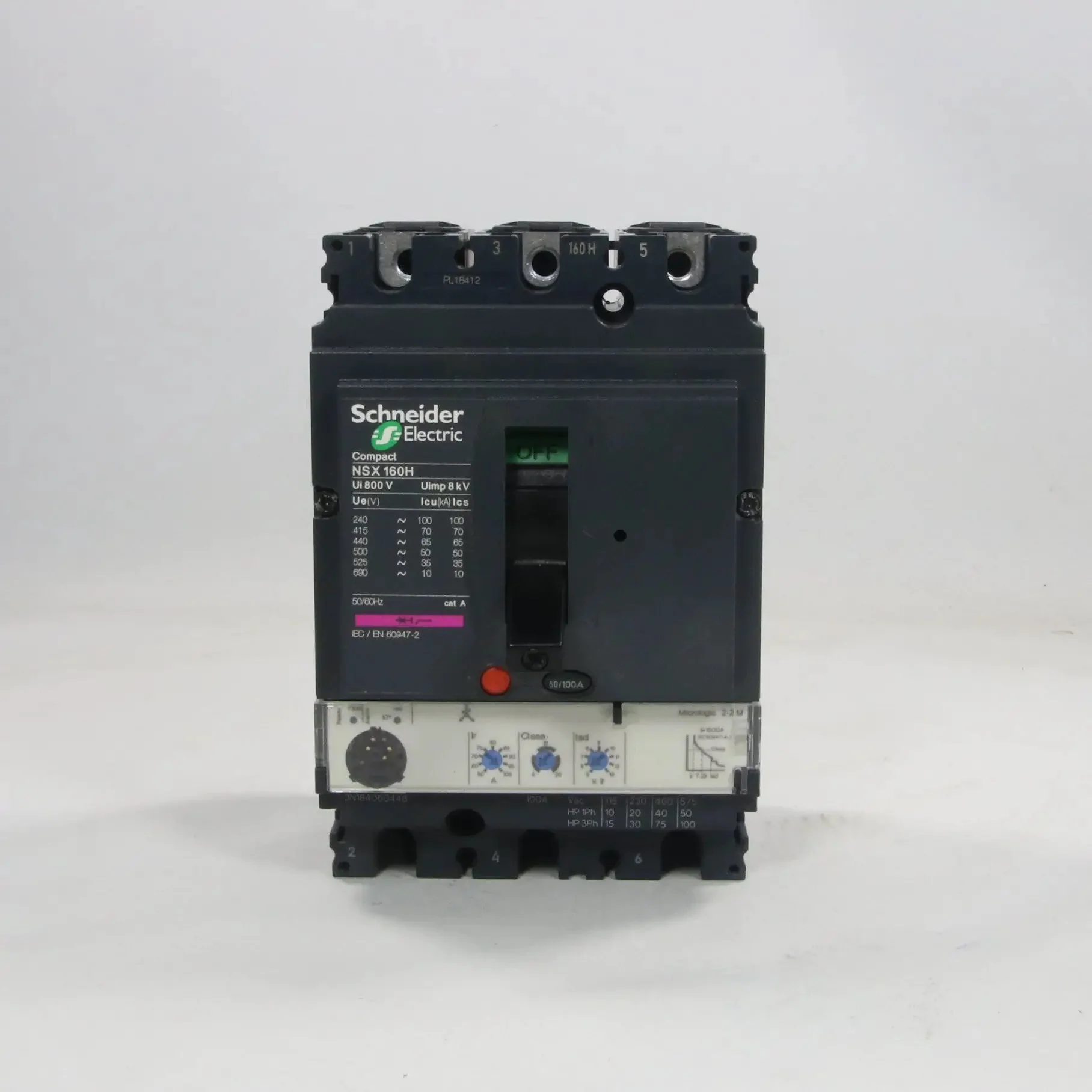

Schneider Electric Compact NSX160H Circuit Breaker

- Brand: Schneider Electric

- Model: Compact NSX160H with MicroLogic 2.2M trip unit (motor-specific variant)

- Type: Moulded Case Circuit Breaker (MCCB) / Fixed Circuit Breaker with Electronic Trip Unit

- Part number: LV430992

- Technical specifications:
- Poles: 3P (3 poles), 3d (3 protected poles)
- Rated current (In): See variants
- Frame size: NSX160H
- Trip unit: MicroLogic 2.2M 50 - 100A

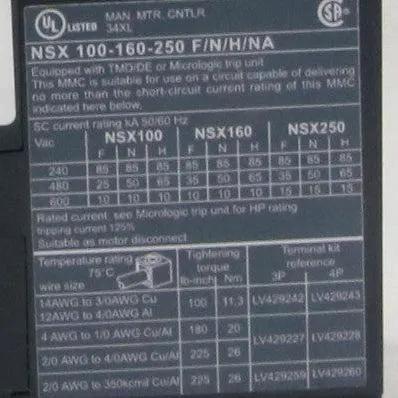

- Breaking capacity (Icu): 70 kA rms at 415 V AC 50/60 Hz (IEC 60947-2); 10 kA at 600 V AC (NEMA); higher at lower voltages
- Rated operational voltage (Ue): 690 V AC 50/60 Hz
- Impulse withstand voltage (Uimp): 8 kV
- Frequency: 50/60 Hz
- Protection functions: Adjustable long-time and short-time, fixed instantaneous; no advanced metering/communication in 2.2M
- Additional features: Fixed mounting, various connection options, compliant with IEC 60947, CCC, EAC
- Standards: IEC 60947-2 compliant
- Durability: High mechanical/electrical cycles

Weight: 1.8 kg

Dimensions: 160 x 100 x 120 mm

Country of origin: France

HS code: 8536.20
