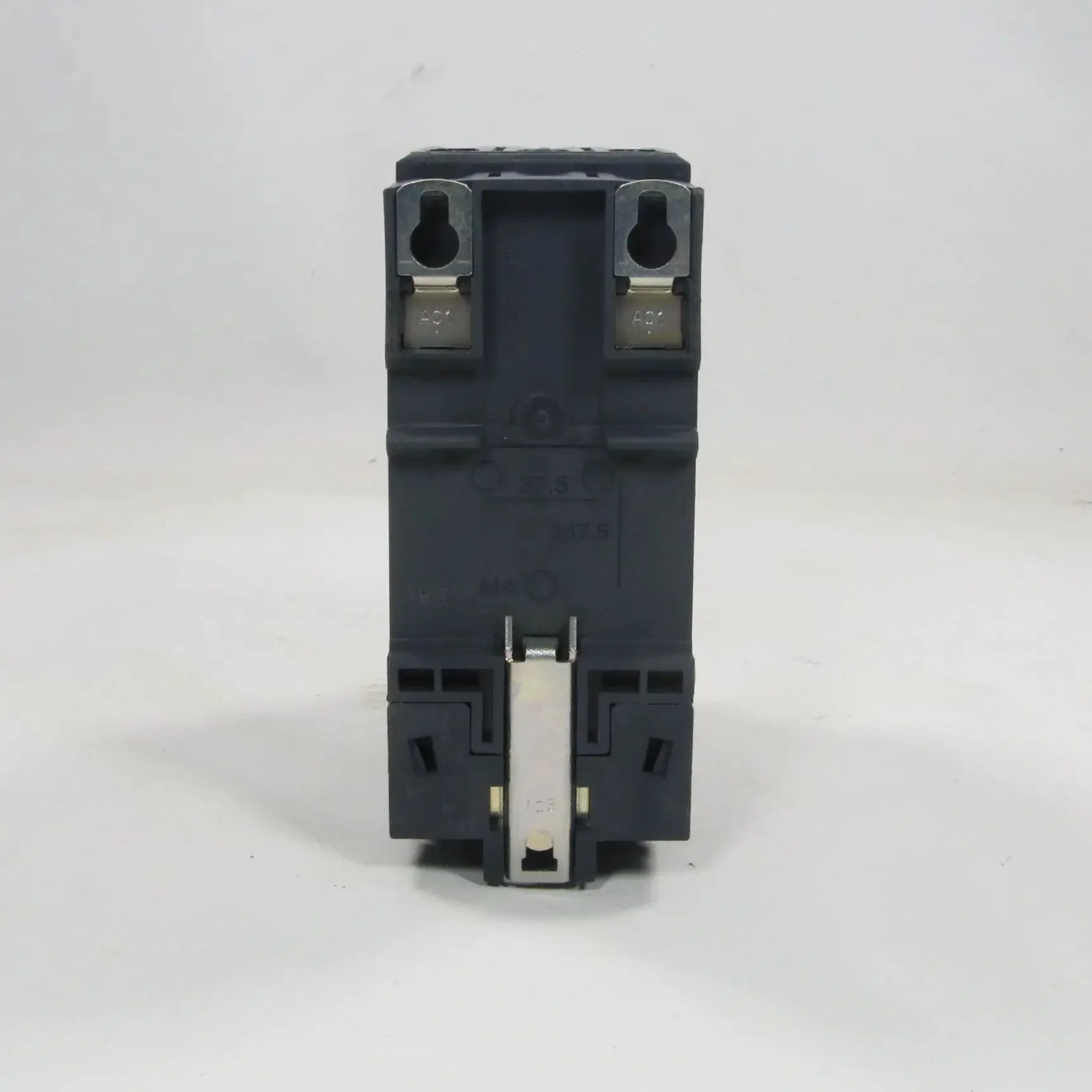

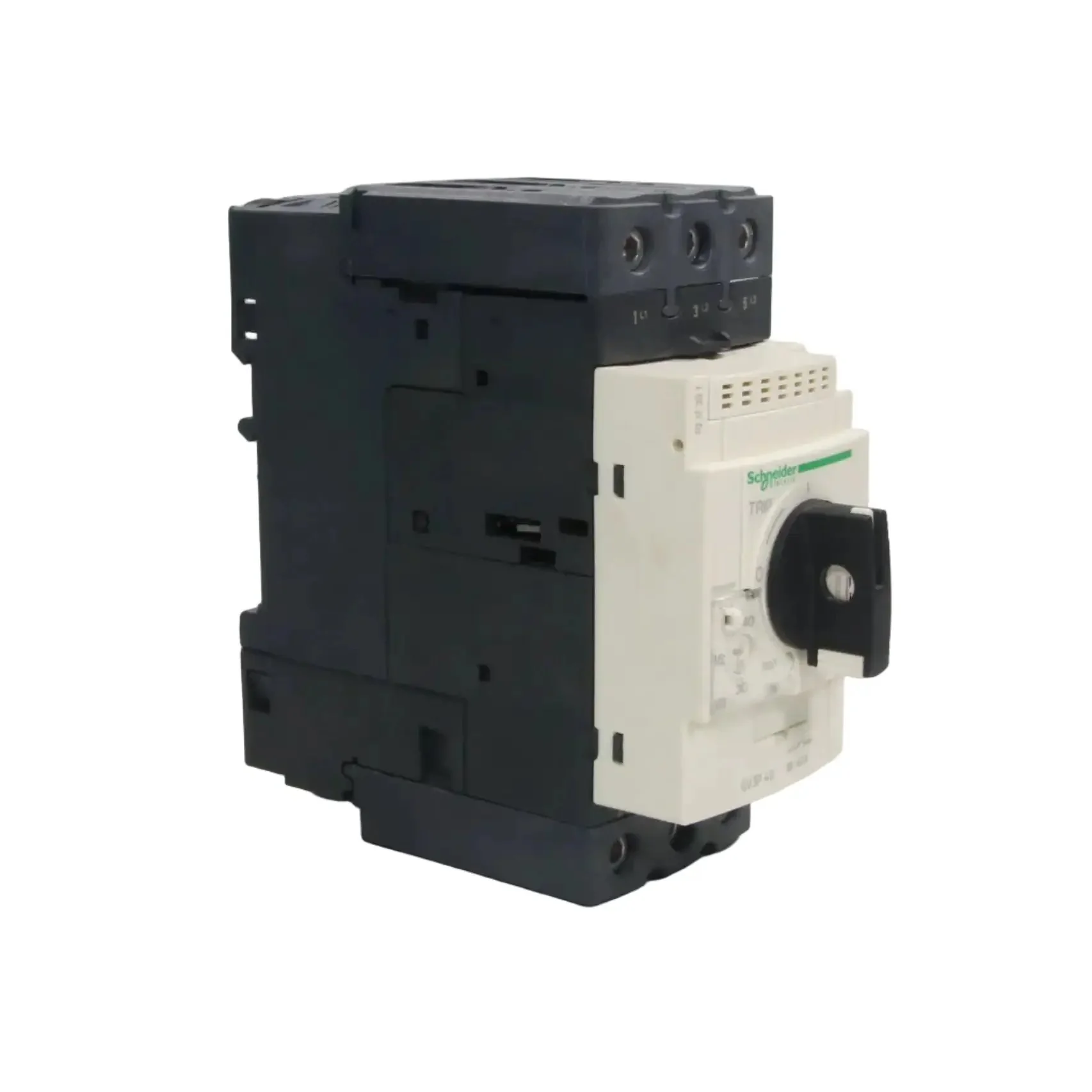

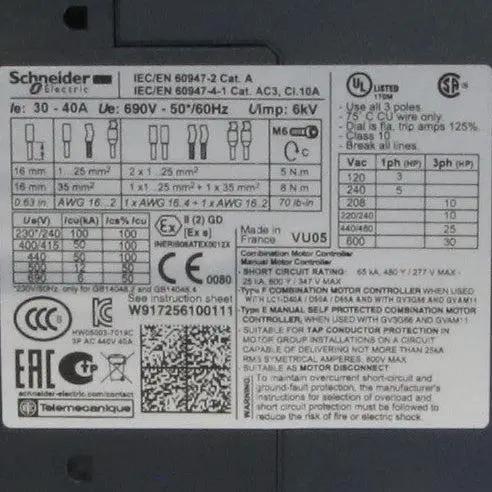

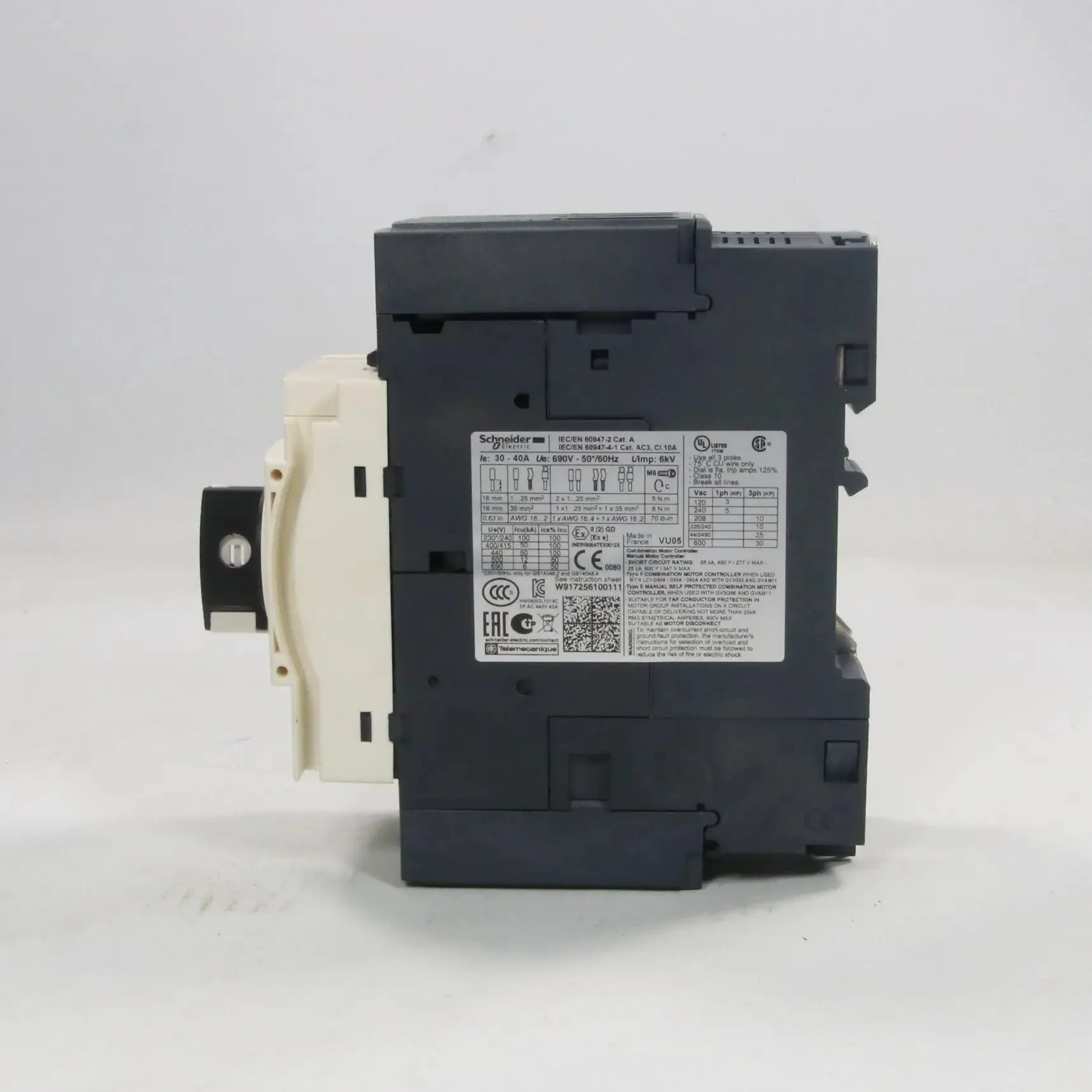

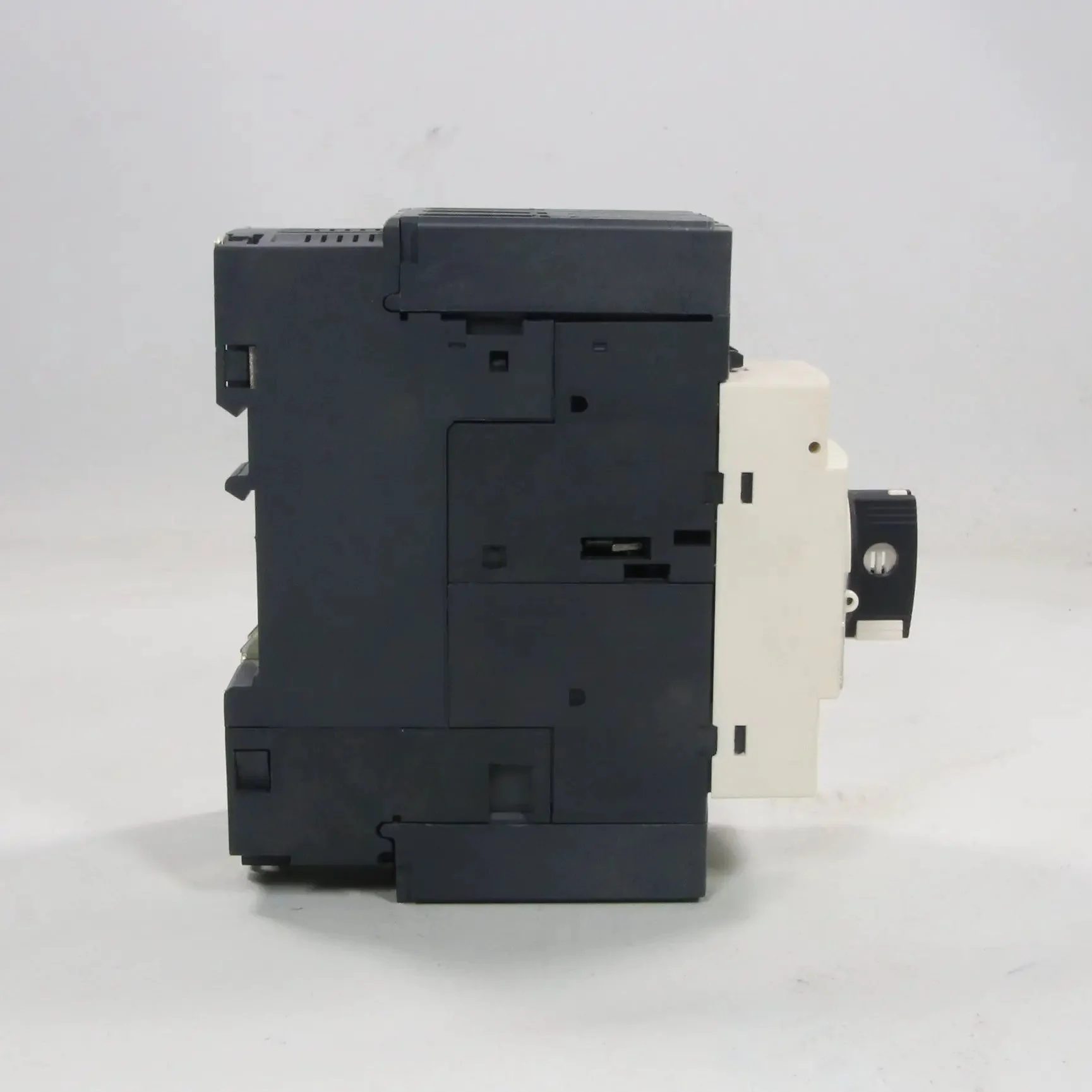

Schneider Electric GV3P40 Motor Circuit Breaker

- Brand: Schneider Electric

- Series: TeSys

- Model: GV3P40

- Type: Motor Circuit Breaker / Manual Motor Starter and Protector

- Part number: GV3P40

- Technical specifications:
- Poles: 3P
- Rated current: 40 A
- Rated operational voltage: Up to 690 V AC 50/60 Hz
- Breaking capacity (Icu): 50 kA at 400/415 V AC (IEC 60947-2); 100 kA at 230/240 V AC
- Protection type: Thermal-magnetic
- Motor power protected: 18.5 kW at 400 V AC (3-phase motors); up to 22 kW at 500 V AC

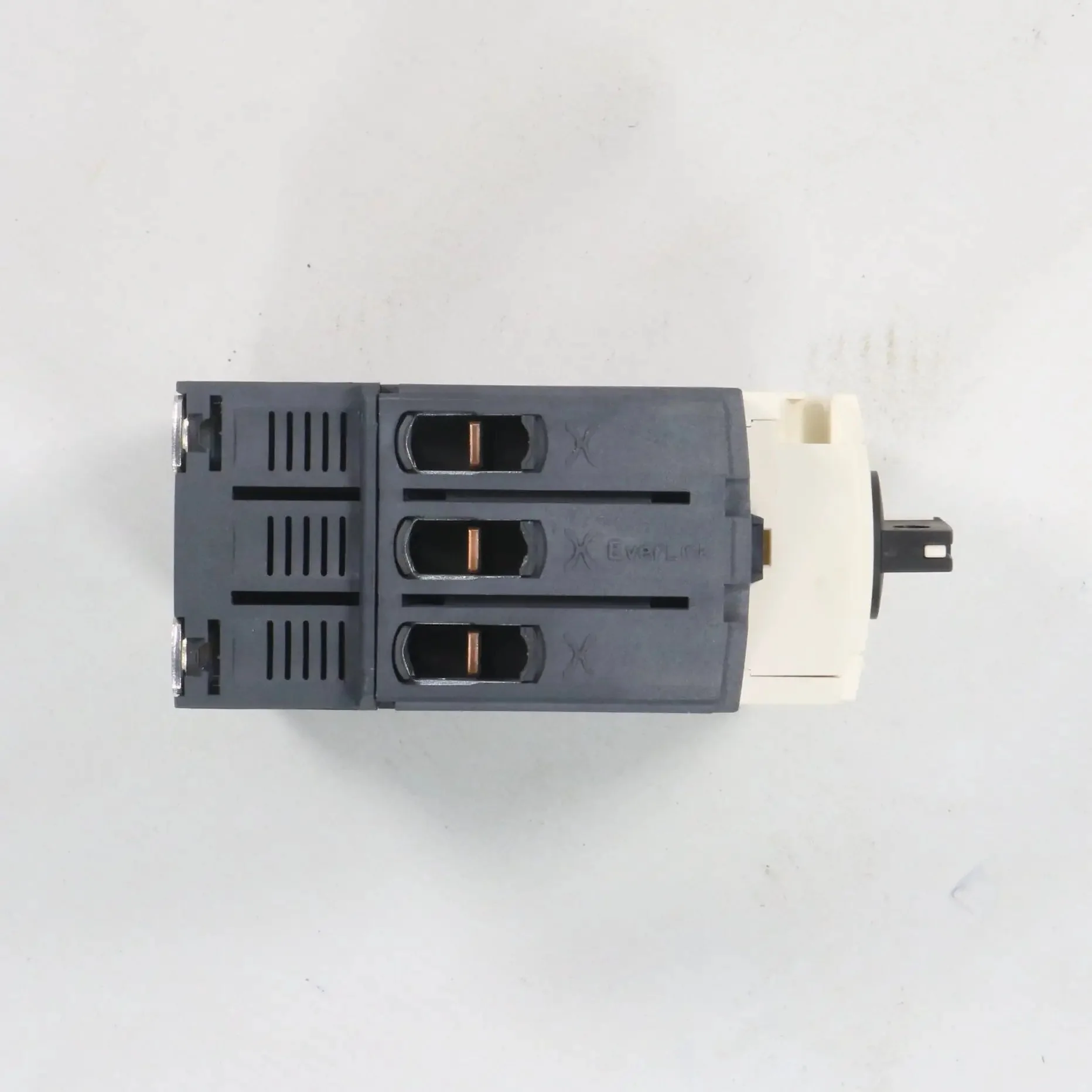

- Terminals: EverLink BTR screw connectors
- Mounting: Clipped on 35 mm symmetrical DIN rail; screwed on panel (with 3 x M4 screws); any operating position
- Additional features: Rotary knob for manual control/start-stop; padlocking in Off position; test trip mechanism; fingersafe terminals; IP20 protection;  high durability
- Operating rate: 25 cycles/hour
- Standards: IEC/EN 60947-1, IEC/EN 60947-2, IEC/EN 60947-4-1 compliant

Weight: 1.0 kg

Dimensions: 135 x 55 x 139 mm

Country of origin: France

HS code: 8536.20
