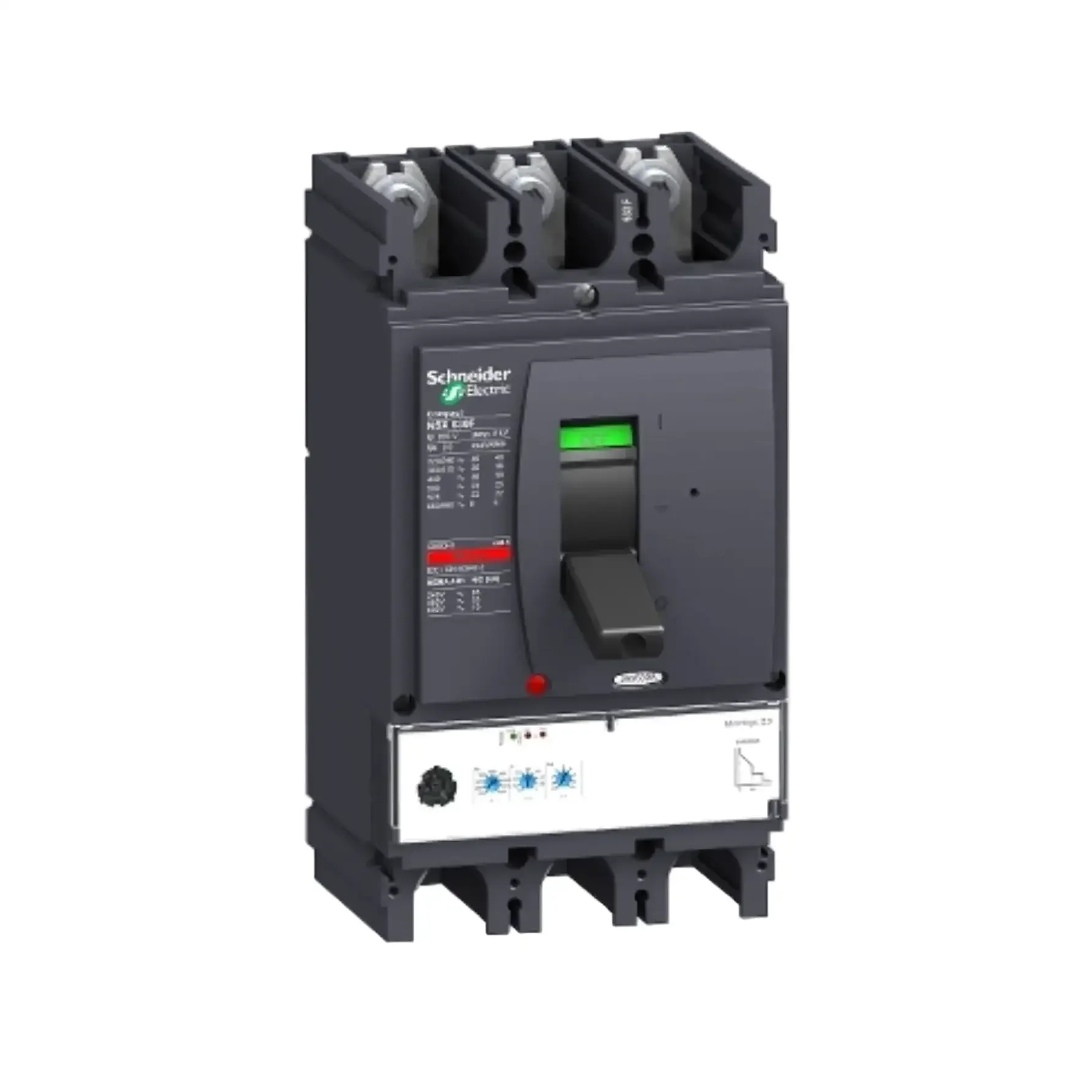

Schneider Electric LV432876 NSX630F Micrologic 2.3 Circuit Breaker

- Brand: Schneider Electric

- Model: ComPacT NSX630F with MicroLogic 2.3 trip unit

- Type: Moulded Case Circuit Breaker

- Part number: LV432876

- Technical specifications:
- Poles: 3P (3 poles), 3d (3 protected poles)
- Rated current (In): 630 A at 40°C
- Frame size: NSX630F
- Trip unit: MicroLogic 2.3
- Breaking capacity: 10 kA 2 660/690 V AC, 40 kA @ 220/240 V AC 50/60Hz
- Rated operational voltage (Ue): 690 V AC 50/60 Hz
- Impulse withstand voltage (Uimp): 8 kV
- Frequency: 50/60 Hz
- Protection functions: Adjustable Ir (long-time), adjustable Isd (short-time), fixed Ii
- Additional features: Fixed mounting, ring-lug or bolt-on connections (depending on configuration), optimised for space and high breaking capacity; LEDs/indications on trip unit for status; test capabilities
- Standards: IEC 60947-2 compliant
- Durability: High mechanical/electrical cycles typical for NSX series

Status: Discontinued

Weight: 5.8 kg

Dimensions: 290 x 160 x 150 mm

Country of origin: France

HS code: 8536.20
