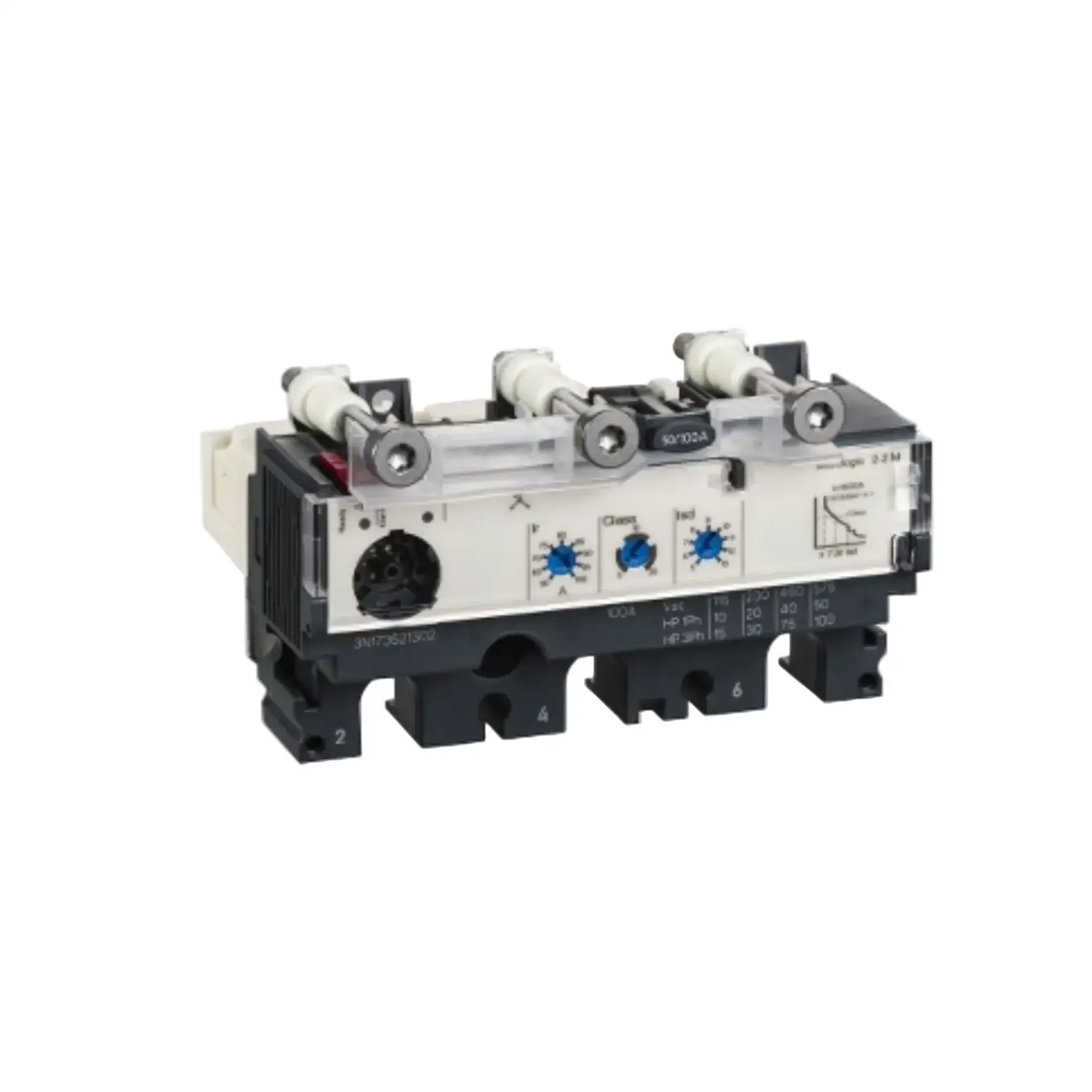

Schneider Electric Micrologic 2.2(M) Trip Unit
- Brand: Schneider Electric
- Model: MicroLogic 2.2(M)
- Type: Electronic Trip Unit (standard & motor-specific "M" versions)
Technical specifications:
- Poles: 3P
- Rated current (In): Adjustable depending on model
- Rated operational voltage: Up to 690 V AC
- Frequency: 50/60 Hz
- Tripping class / curves: Electronic with LEDs for status
- Additional features: Adjustable dials for Ir, Isd; fixed Ii; optional motor protection (2.2M version with phase unbalance, class selection); compatible with ComPacT NSX100/160/250 frames
- Standards: IEC 60947-2 compliant for circuit breaker trip units
- Indication: Ready LED, overload LEDs; no advanced metering or communication in basic 2.2
Weight: 450 g
Dimensions: 115 x 65 x 100 mm
Country of origin: France
HS code: 8536.30
Original: $43,884.01
-70%$43,884.01
$13,165.20
Description
- Brand: Schneider Electric
- Model: MicroLogic 2.2(M)
- Type: Electronic Trip Unit (standard & motor-specific "M" versions)
Technical specifications:
- Poles: 3P
- Rated current (In): Adjustable depending on model
- Rated operational voltage: Up to 690 V AC
- Frequency: 50/60 Hz
- Tripping class / curves: Electronic with LEDs for status
- Additional features: Adjustable dials for Ir, Isd; fixed Ii; optional motor protection (2.2M version with phase unbalance, class selection); compatible with ComPacT NSX100/160/250 frames
- Standards: IEC 60947-2 compliant for circuit breaker trip units
- Indication: Ready LED, overload LEDs; no advanced metering or communication in basic 2.2
Weight: 450 g
Dimensions: 115 x 65 x 100 mm
Country of origin: France
HS code: 8536.30
