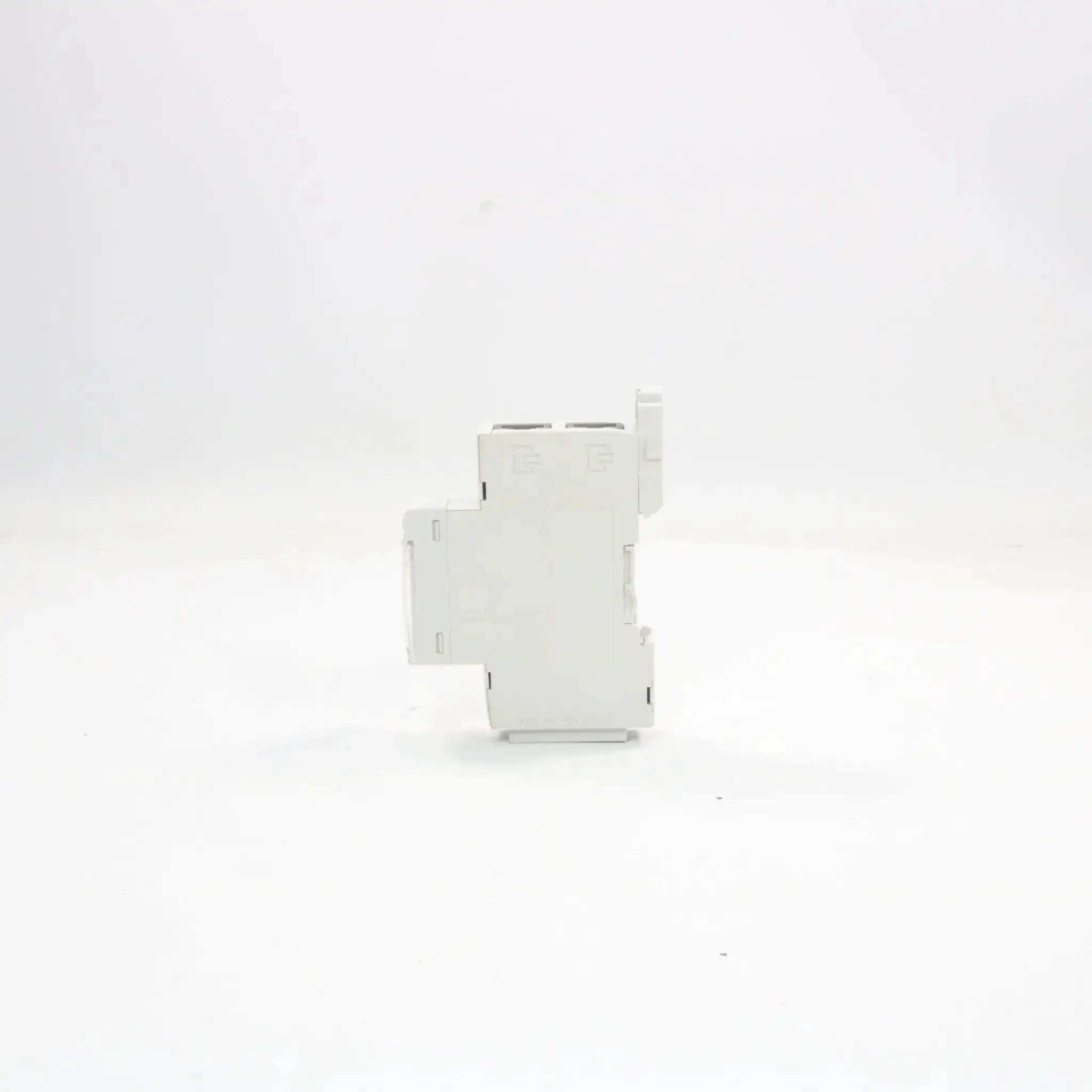

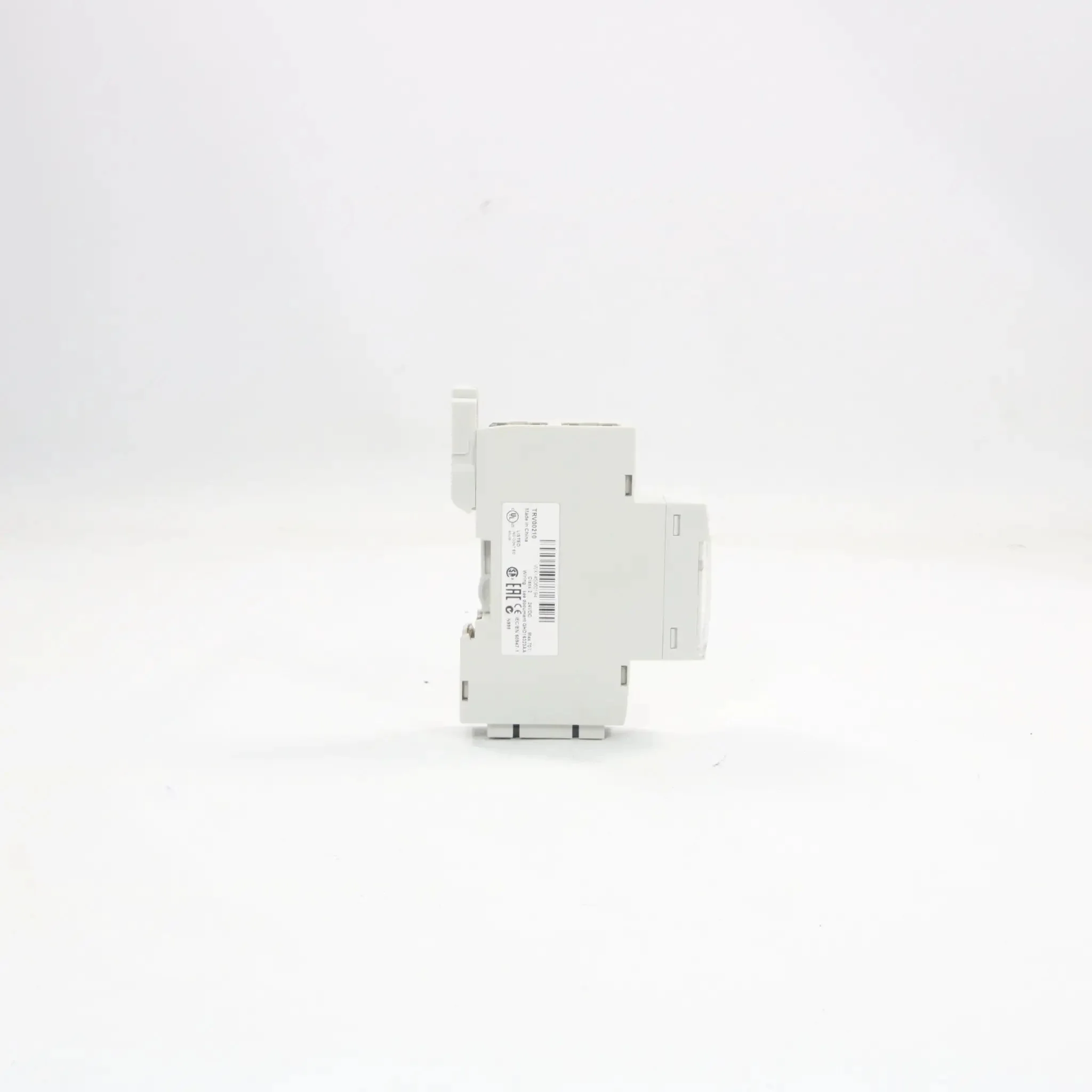

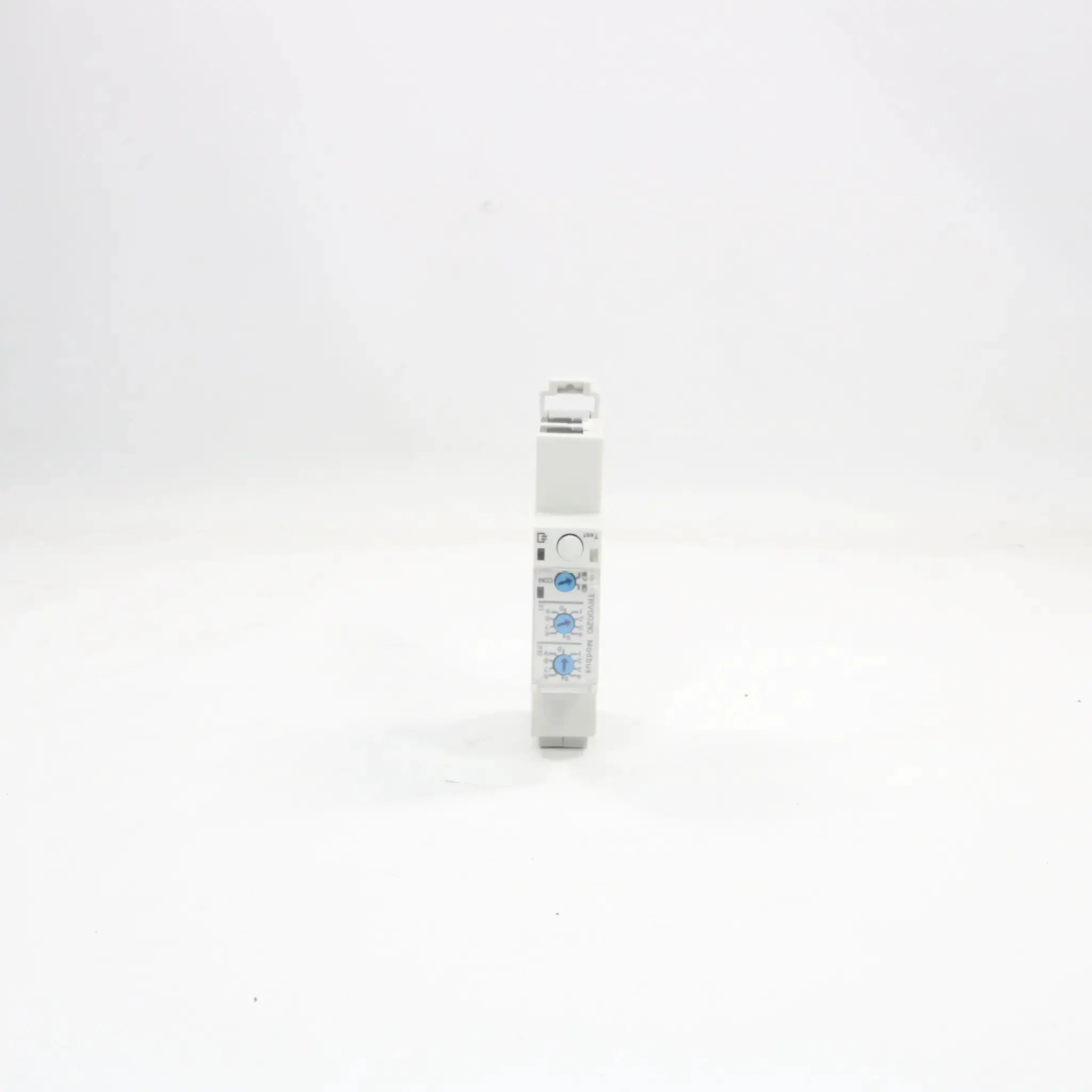

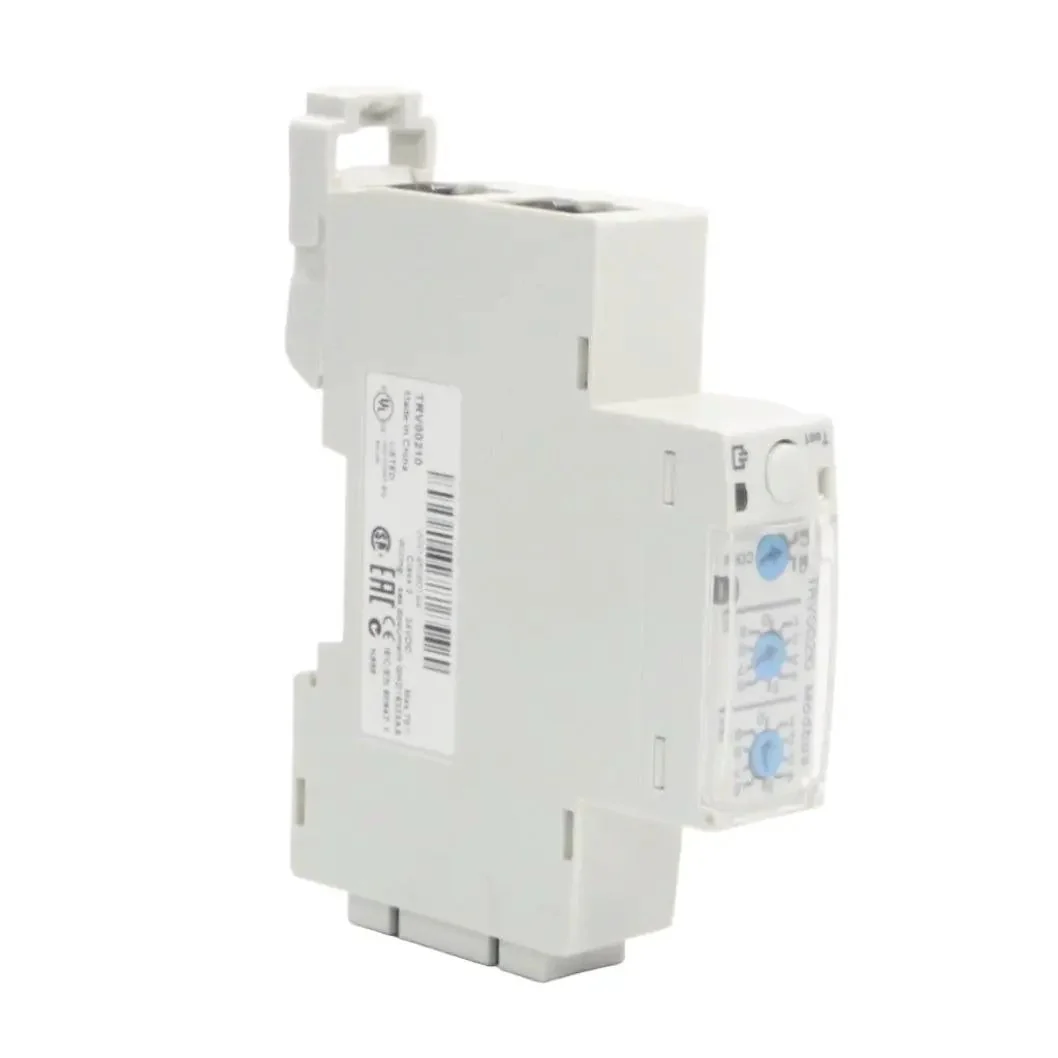

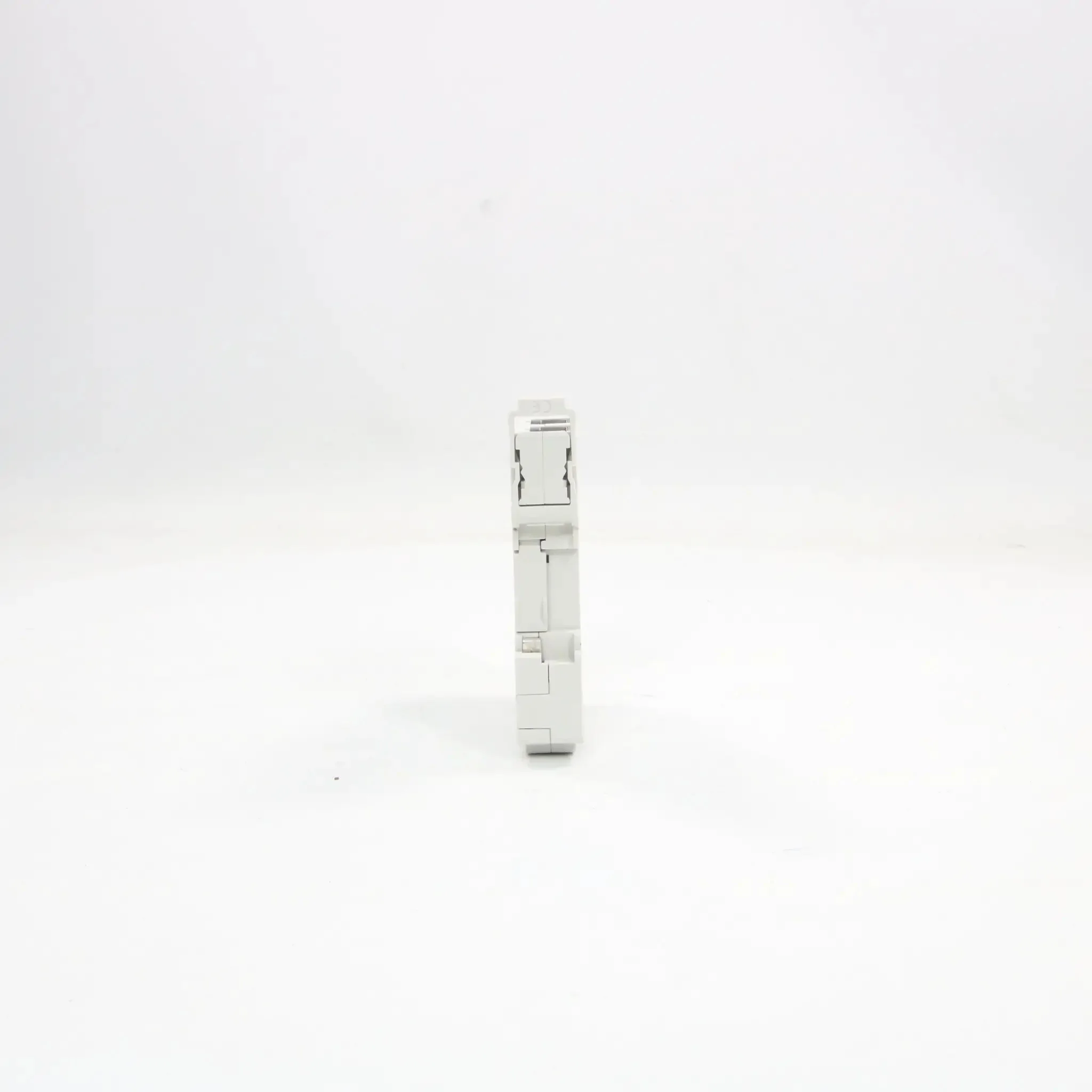

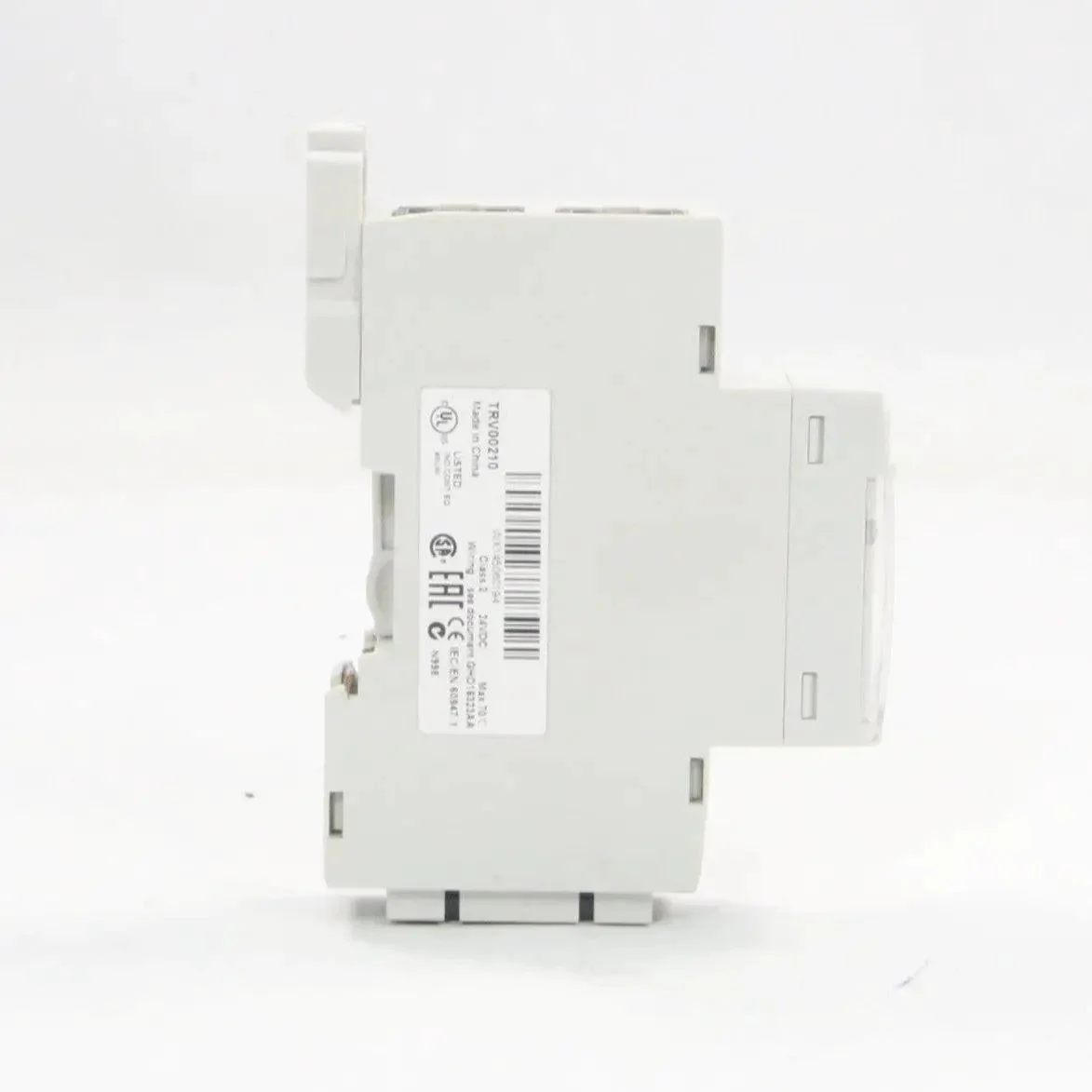

Schneider Electric TRV00210
- Brand: Schneider Electric
- Model: TRV00210
- Type: Interface Communication Module (IFM Modbus-SL)
- Technical Specifications:
- Function: Enables Modbus communication for low-voltage circuit breakers, connecting to a supervisor or master Modbus device
- Protocol: Modbus RTU (RS-485 serial line network)
- Supported Circuit Breakers: Compact NSX, Compact NS, Masterpact NW, Masterpact NT
- Voltage Range: Compatible with circuit breaker control voltages (typically 24 V DC)
- Power Supply: 24-25 V DC, consumption approximately 30 mA, max supply current 3 A
- Communication Ports: 1x RJ45 ULP port, 1x RS-485 port (2-wire)
- Configuration:
- Automatic configuration (Auto-Speed sensing ON, factory setting) detects baud rate and parity
- Manual configuration via EcoStruxure Power Commission software (baud rates: 4800, 9600, 19200, 38400; parity: even, odd, none)
- Modbus Slave Address: Set via two rotary switches (1-99)
- Transmission Format: Binary, 1 start bit, 8 data bits, 1 stop bit (even/odd parity), 2 stop bits (no parity)
- Operating Temperature: 0°C to +50°C (typical for IFM modules)
- Protection: IP20 (rear), IP65 (front with proper installation)
- Features:
- Auto-Speed sensing algorithm (requires 25 frames from Modbus master)
- Supports intelligent modular units (IMU) with MicroLogic trip units
- Compatible with BCM ULP and BSCM modules
- Legacy firmware version (TRV00210 is an older variant compared to LV434000)
- LED indicators for status
- Applications: Industrial automation, power distribution monitoring, circuit breaker control
- Standards: Compliant with Modbus protocol specifications
- Dimensions: Approximately 90 mm x 70 mm x 50 mm (varies with mounting setup)
- Weight: 100 gram
- Country of Origin: China
- HS Code: 85389091
