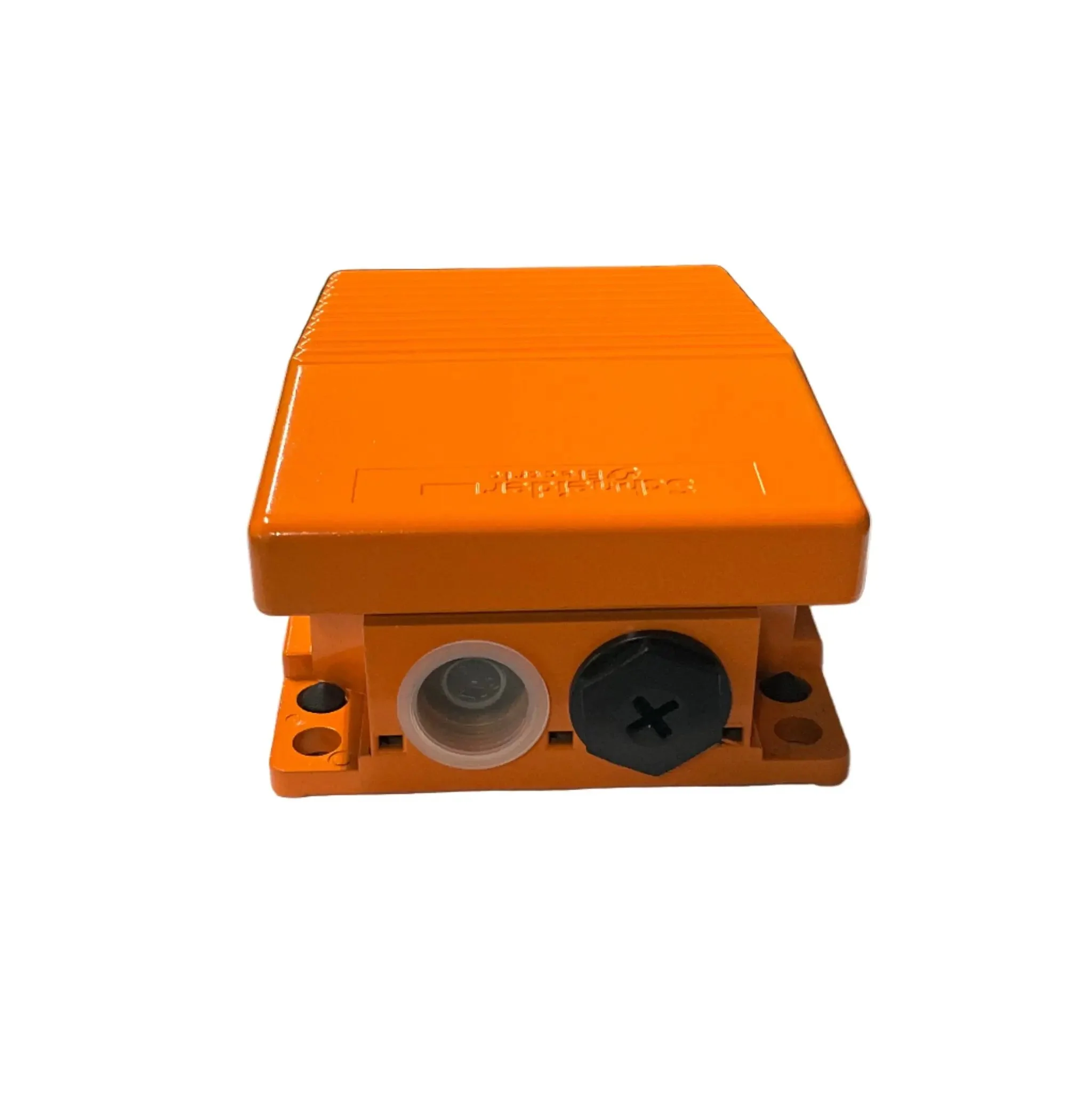

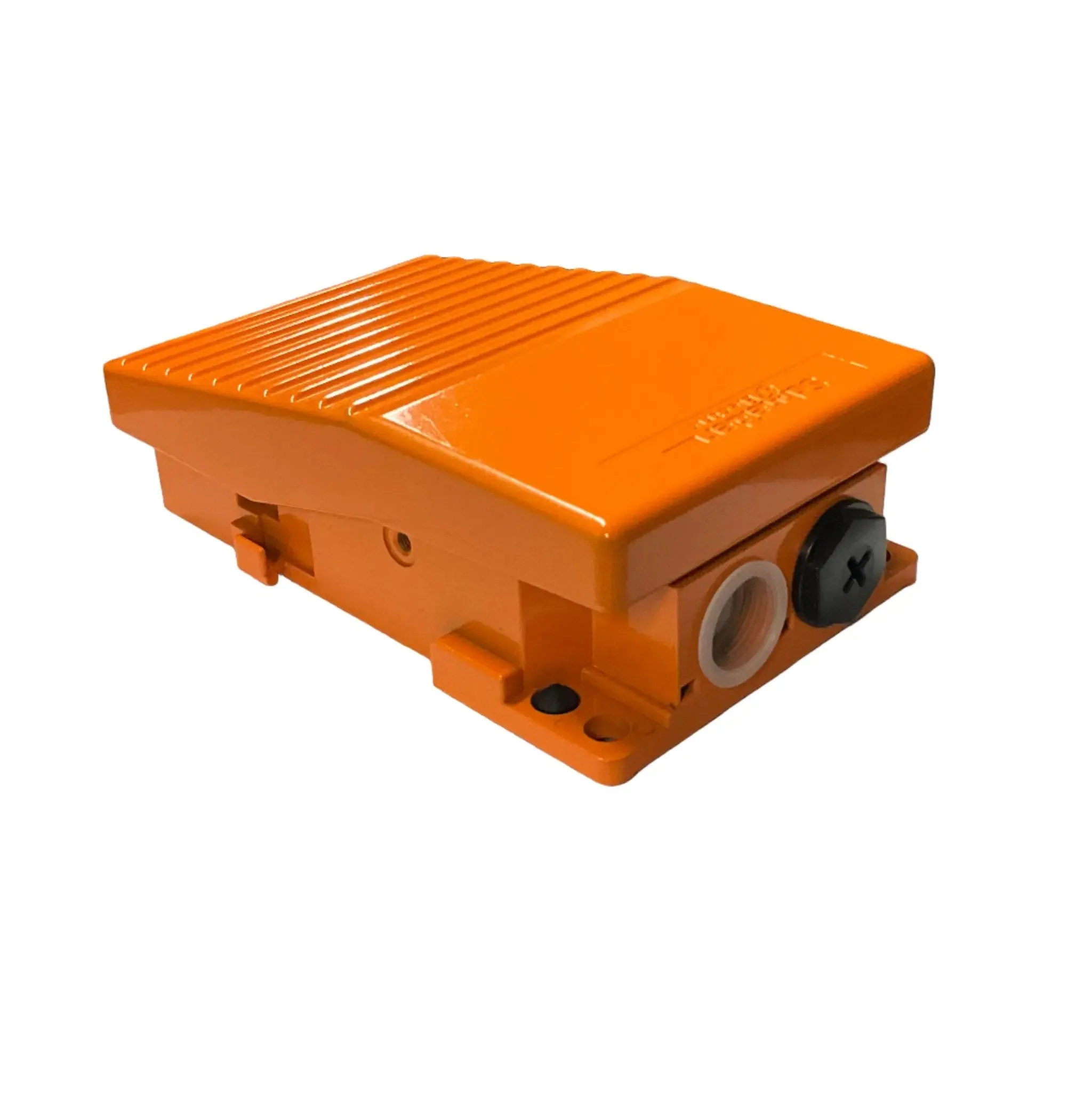

Schneider Electric XPE R110 Foot Switch

Brand: Schneider Electric
Model: XPER110
Type: Foot Switch

Technical Specs:
- Function: Single foot switch, momentary on-off operation
- Contact Configuration: 1 Normally Closed (NC) + 1 Normally Open (NO)
- Contact Type: SPDT (Single Pole Double Throw)
- Rated Voltage: 240 V AC
- Rated Current: 3A
- Insulation Voltage: 6 kV
- Operating Frequency: 3600 cycles/hour (load factor 0.5)
- Enclosure Rating: IP66
- Body Material: Metal
- Color: Orange
- Protective Cover: Without cover
- Operating Temperature Range: -25°C to 70°C
- Electrical Connection: Cable gland entries (2 entries: 1 ISO M20 + 1 ISO M16)
- Certifications: CE, UL, CSA, GOST
- Additional Features:
  - Designed for industrial automation and machinery control
  - Resistant to hydraulic oil and various greases for long life in harsh conditions
  - Ergonomic design for operator comfort and compliance with safety standards
  - Suitable for high-risk areas where accidental activation must be minimized

Weight: 1.4kg

Country of Origin: France

HS Code: 8536.50
