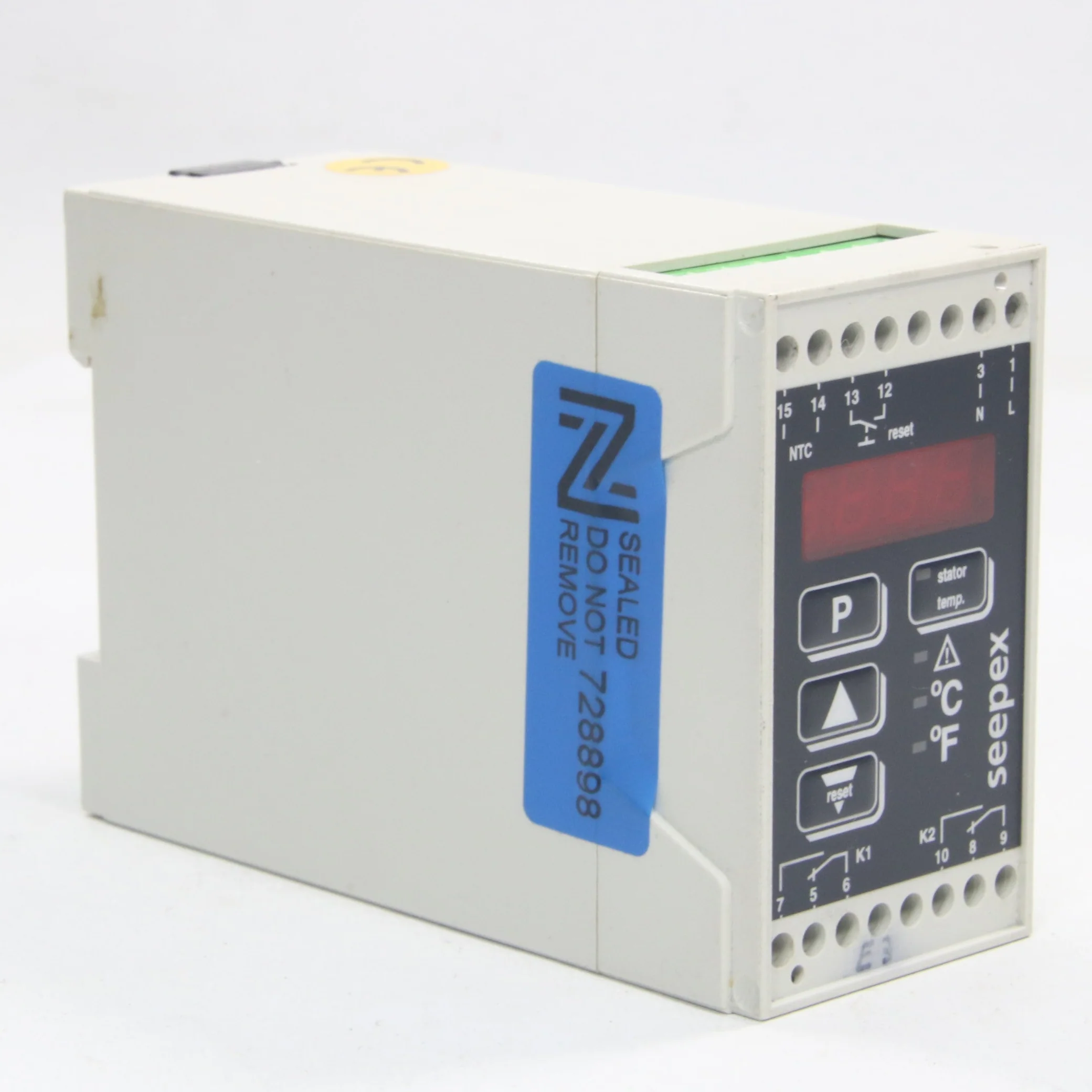

Seepex SGRTSE Temperature Controller

- Brand: Seepex
- Model: SGRTSE (220V variant)
- Type: Temperature controller (for pump stator monitoring)
- All Tech Specs:
  - Material: Polycarbonate or ABS housing (industrial-grade plastic)
  - Voltage: 220V AC (50/60 Hz)
  - Switching Power: 500 VA
  - Sensor: NTC 10 kOhm at 25°C (negative temperature coefficient sensor)
  - Temperature Range: 0–150°C (32°F to 302°F)
  - Functional Principle: Continuous stator temperature monitoring; shuts off pump when set temperature is reached
  - Operating Mode: Compares stator temperature to set limit; two relays switch to shut off drive motor via potential-free contacts; triggers alert requiring manual acknowledgement to prevent automatic restart
  - Protection Rating: IP40 (casing); IP20 (terminals)
  - Connection: Screw terminals (standard for industrial controllers)
  - Certification: CE marked; RoHS compliant
  - Features: LED indicators for status; designed for integration with Seepex progressive cavity pumps
- Dimension: 45 mm width x 75 mm height x 110 mm depth (1.77 in x 2.95 in x 4.33 in)
- Weight: 0.32 kg (320 g, approximate)
- Country of Origin: Germany
- HS Code: 9032.89 (automatic regulating or controlling instruments)
