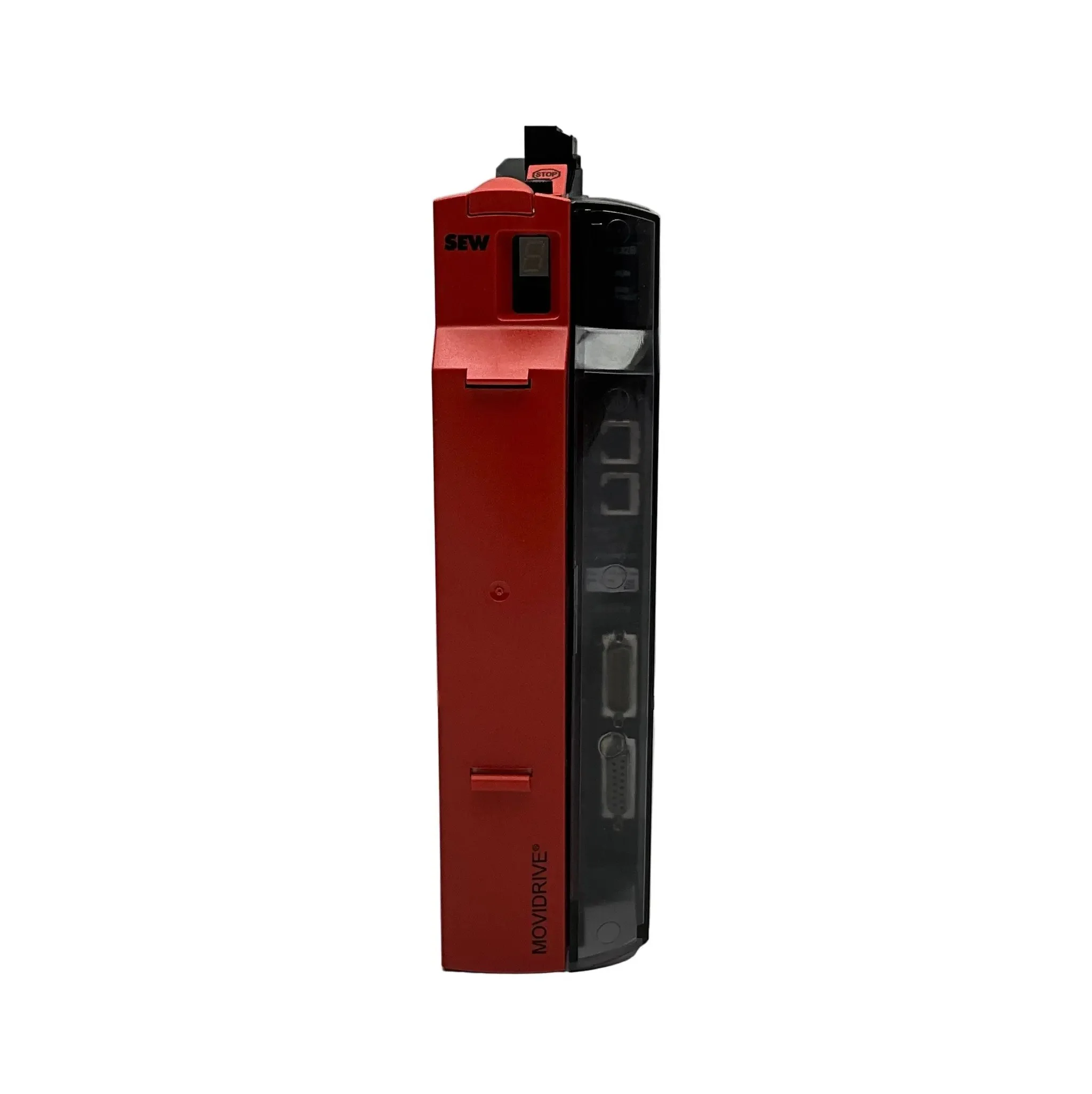

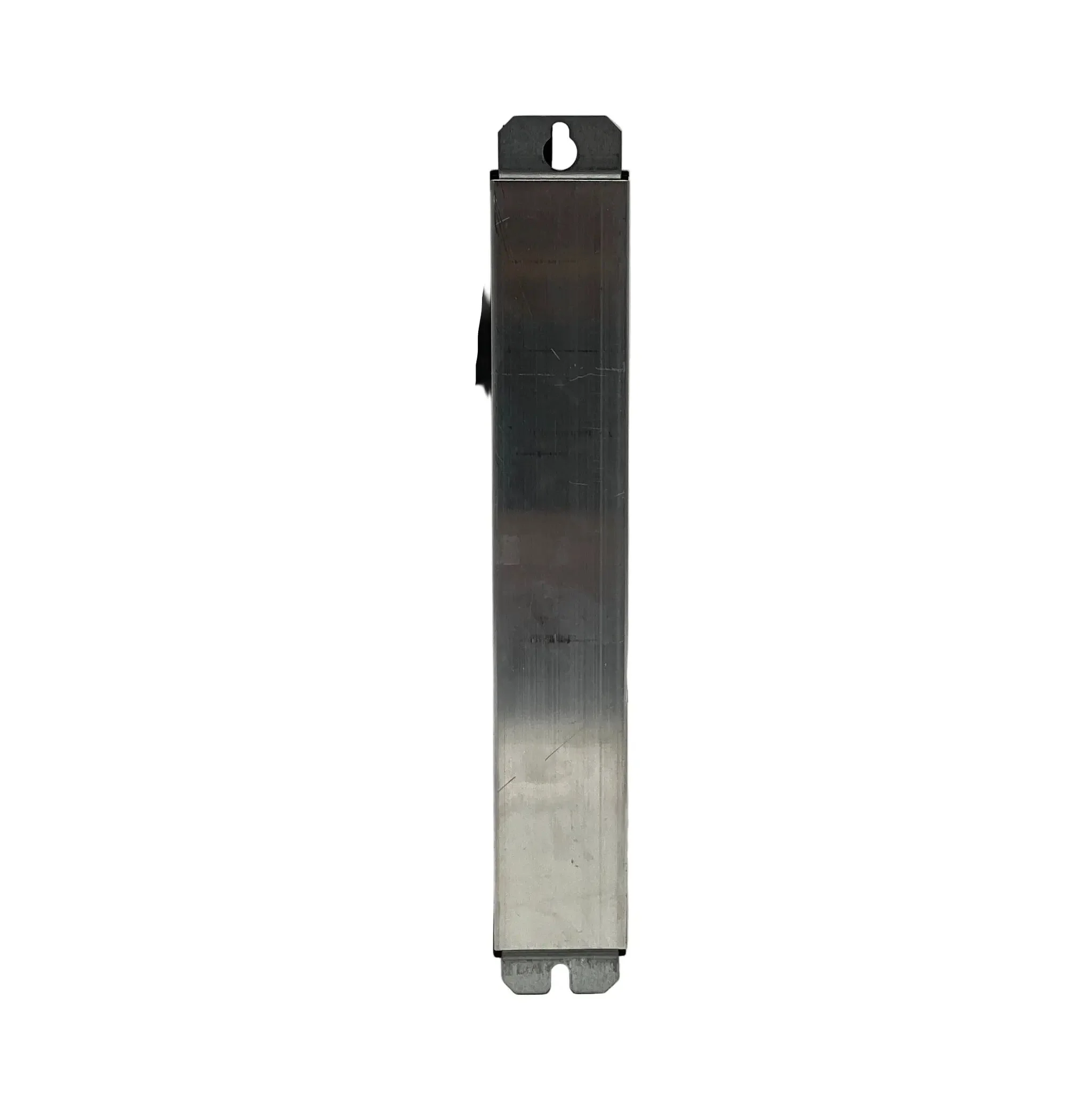

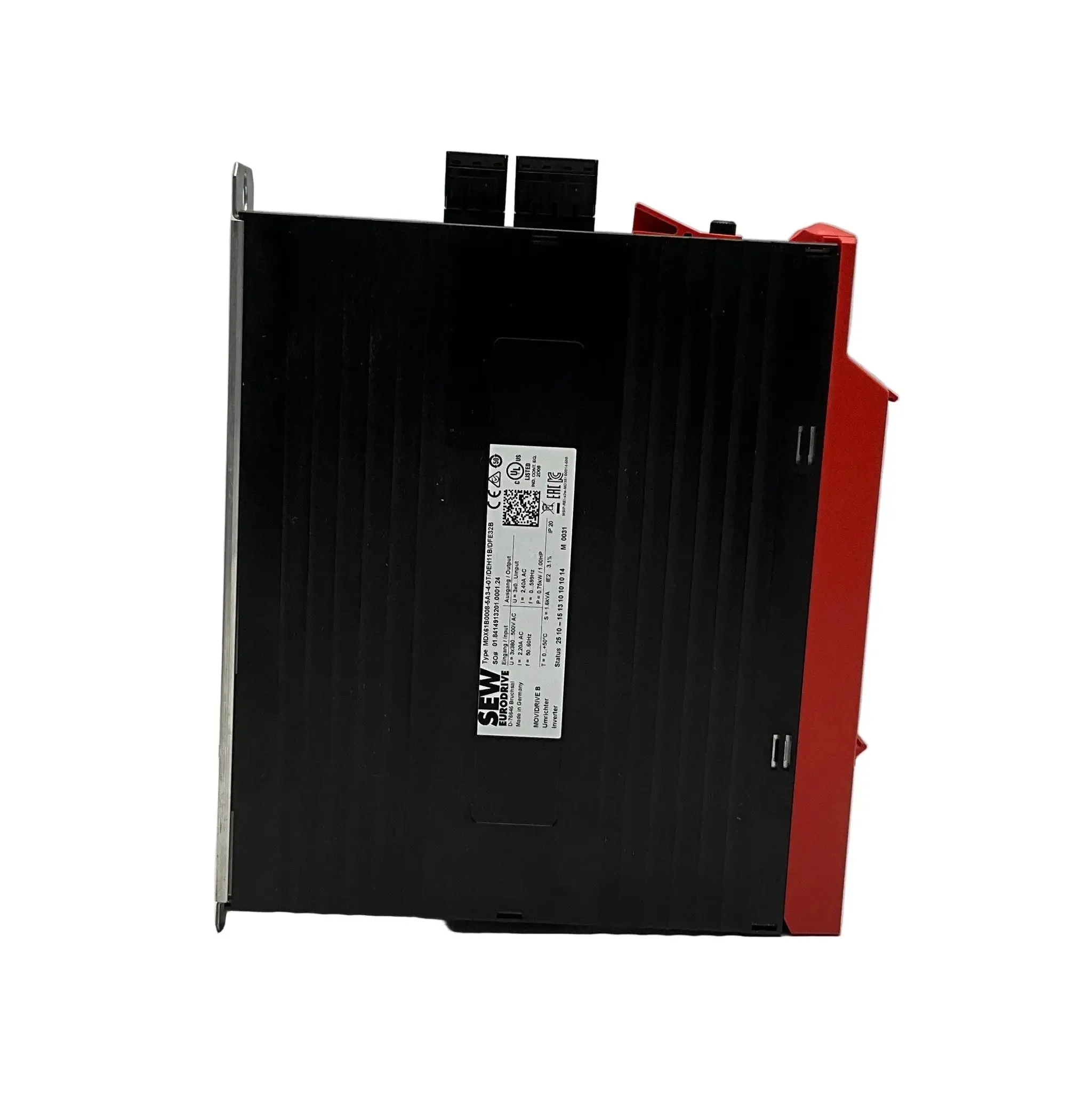

SEW Eurodrive MDX61B0008-5A3-4-0T Movidrive B Inverter

Brand: SEW Eurodrive
Model: MDX61B0008-5A3-4-0T
Type: MOVIDRIVE B Inverter (AC Drive)
Part Number: MDX61B0008-5A3-4-0T/DEH11B/DFE32B

Technical Specs:
- Power Rating: 0.75 kW (1 HP)
- Rated Input Voltage: 3-phase 380-500 V AC, 50/60 Hz
- Rated Input Current: 2.2 A
- Rated Output Voltage: 3-phase 0-380-500 V AC
- Rated Output Current: 2.4 A
- Output Frequency Range: 0-599 Hz
- Control Method: VFC (Variable Frequency Control)
- Technology Version: VFC/CFC/SERVO
- Options: DEH11B (Hiperface Encoder Card), DFE32B (PROFINET IO RT Fieldbus Interface)
- Enclosure Rating: IP20
- Ambient Temperature Range: -10°C to +50°C
- Relative Humidity: 90% RH
- EMC Filter: Integrated (Category C2)
- Communication: PROFINET IO RT (2 x RJ45 ports for star/line cabling)
- Functions: Electronic cam, internal synchronous operation, up to 10 process data and diagnostic parameter transfers

Dimensions: 560 x 370 x 240 mm

Weight: 6 kg

Country of Origin:  Germany

HS Code:  8504.40
