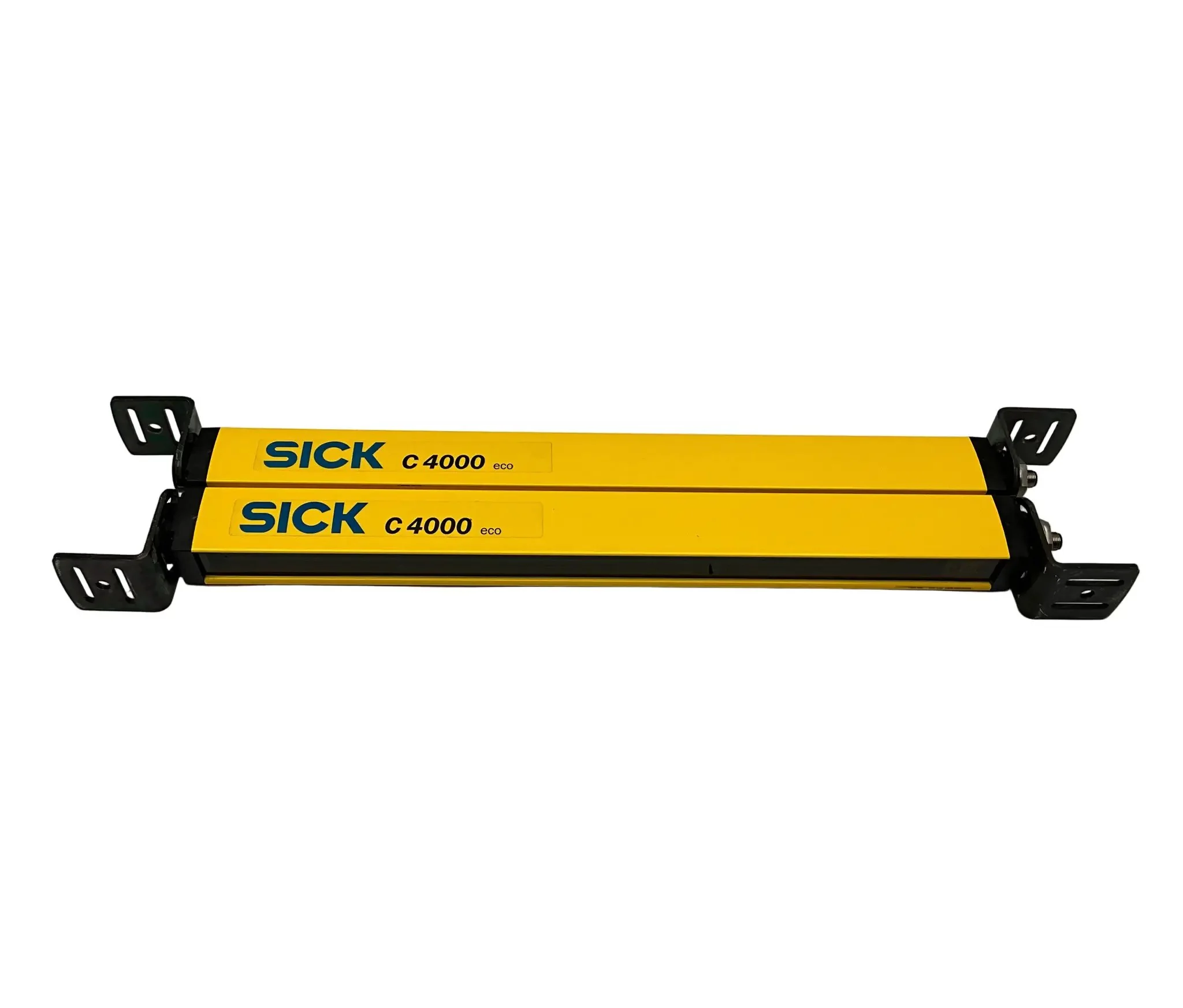

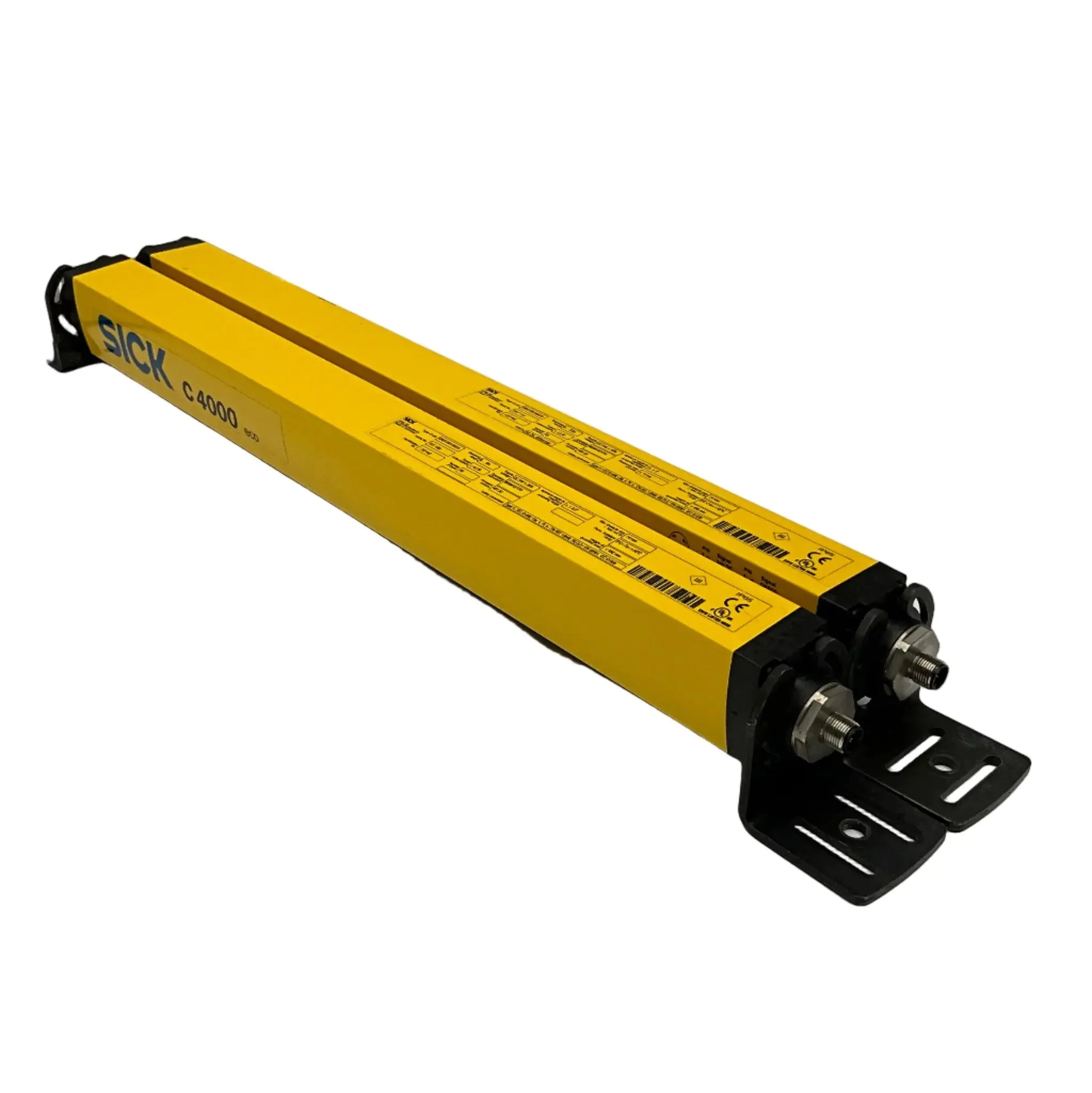

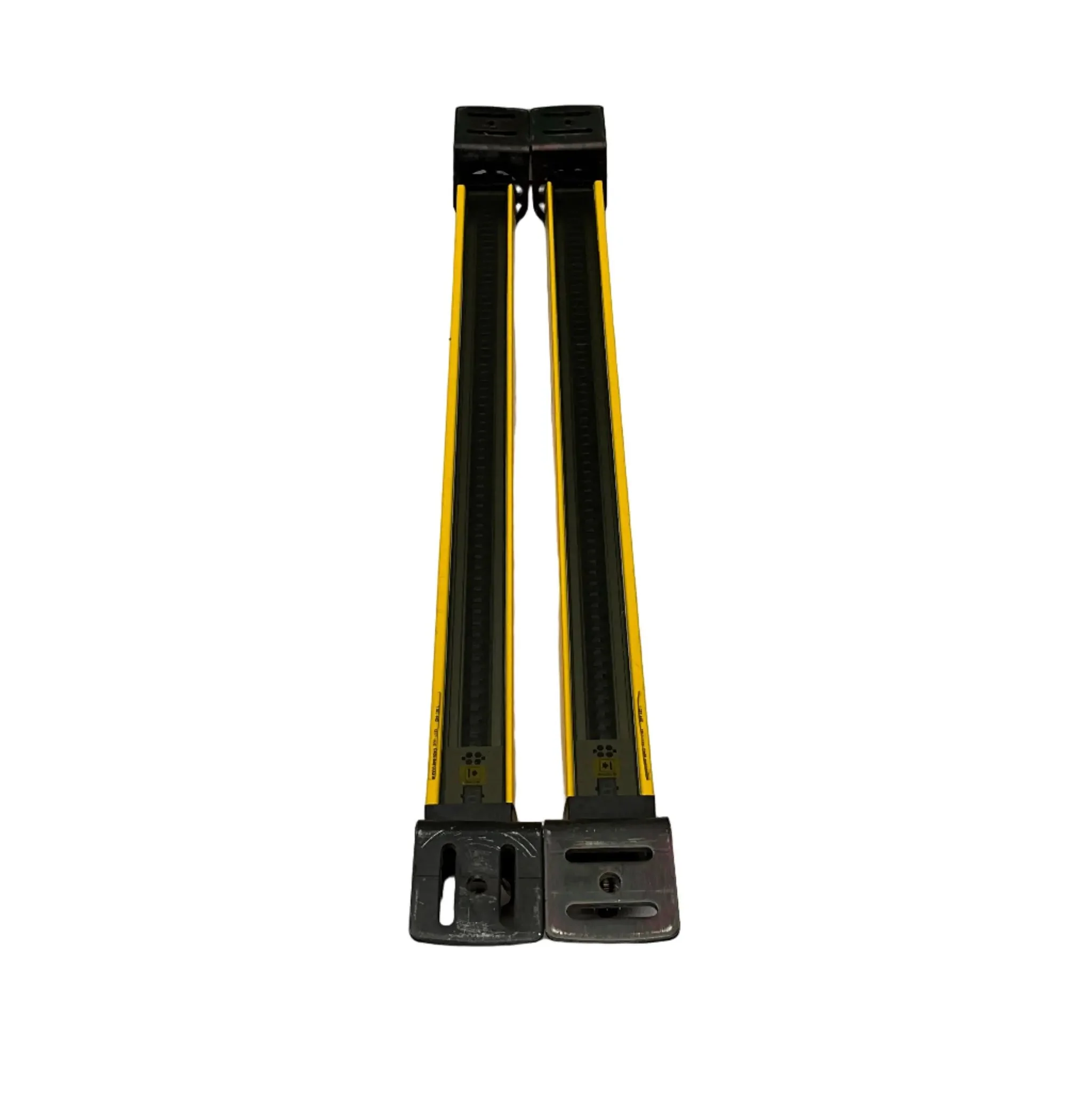

Sick C4000 Eco Light Safety Curtain Set
Brand: SICK
Model: C 4000 Eco
Type: Safety Light Curtain

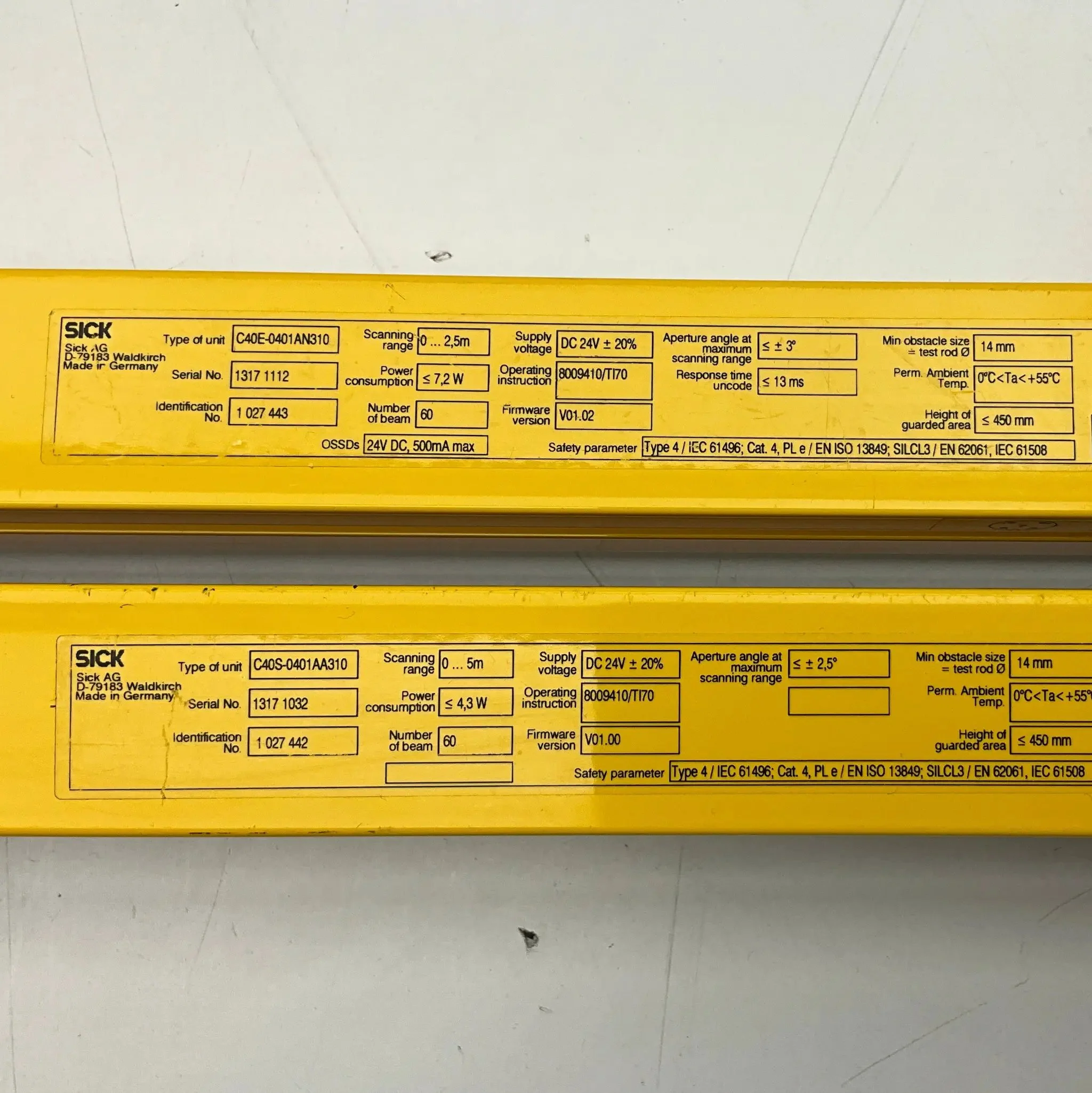

Part Numbers: Receiver: C40E-0401AN310 (1027442)/Sender: C40S-0401AA310 (1027443)
Technical Specs:
- Protective Field Height: 450 mm
- Resolution: 14 mm
- Scanning Range: 0 to 2.5m
- Synchronization: Optical synchronization
- Supply Voltage: 24 V DC (±20%)
- Power Consumption:
- Sender: ≤ 0.1 A
- Receiver: ≤ 0.2 A (without load)
- Output Type (Receiver): 2 PNP semiconductors, short-circuit protected, cross-circuit monitored
- Output Current (Receiver): ≤ 500 mA
- Response Time: ≤ 13 ms
- Safety Integrity Level: SIL3 (IEC 61508), SILCL3 (EN 62061)
- Category: Category 4 (EN ISO 13849)
- Performance Level: PL e (EN ISO 13849)
- PFHD (Mean Probability of Dangerous Failure per Hour)**: 15 x 10⁻⁹ (EN ISO 13849)
- TM (Mission Time): 20 years (EN ISO 13849)
- Safe State in Event of Fault: At least one OSSD (Output Signal Switching Device) in the OFF state
- Enclosure Rating: IP65
- Operating Temperature Range: 0°C to 55°C
- Storage Temperature Range: -25°C to 70°C
- Housing Material: Aluminum, extrusion
- Front Screen Material: Polycarbonate
- Vibration Resistance: 5 g (10-55 Hz, per IEC 60068-2-6)
- Shock Resistance: 10 g (16 ms, per IEC 60068-2-29)
- Additional Features:
- Compact and robust construction for easy integration

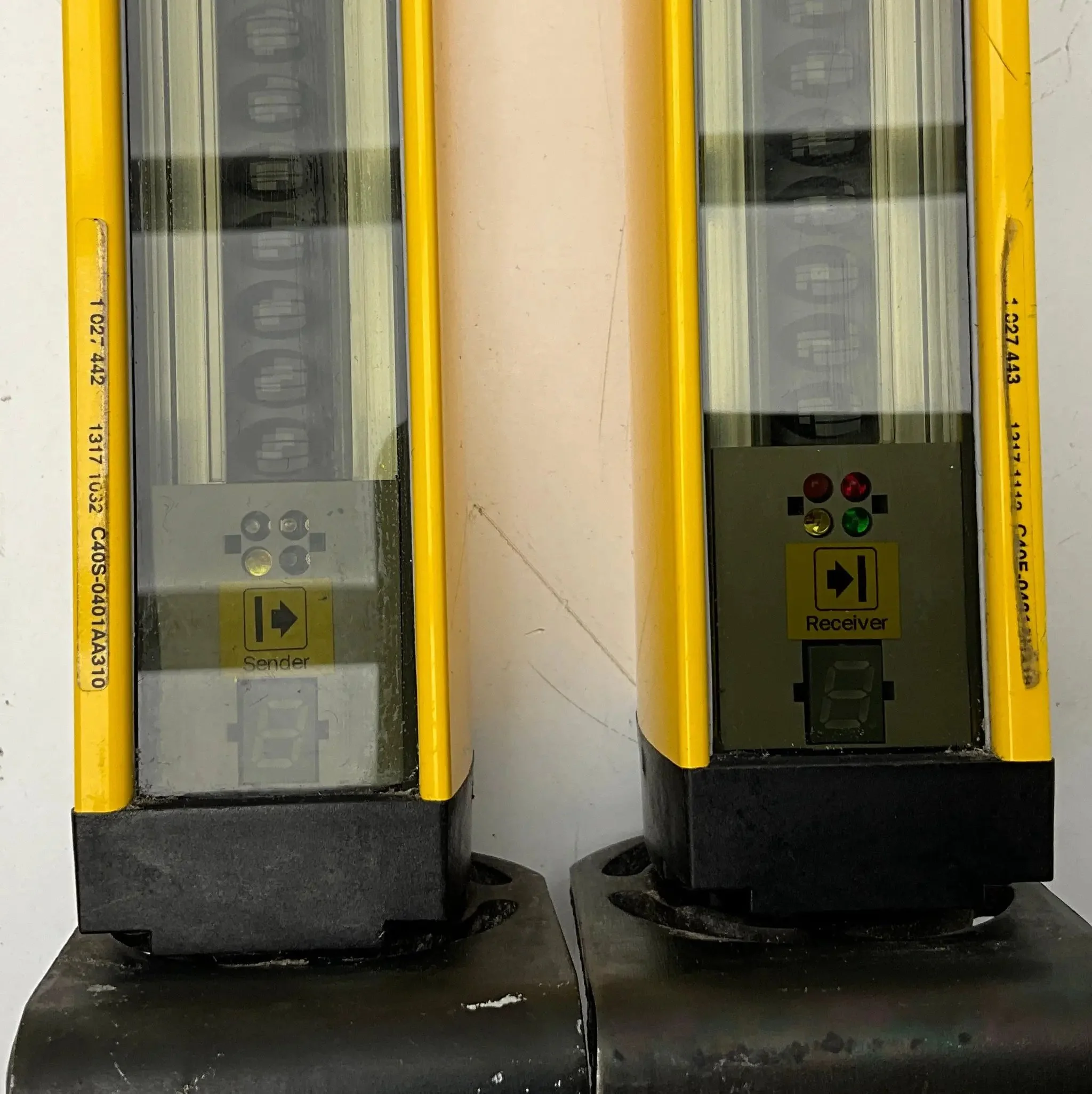

- LED indicators for status and diagnostics
- Compatible with SICK safety controllers and accessories
- Certifications: CE, cTÜVus, cULus Listed
Dimensions:
- Cross Section: 40 mm x 48 mm
- Length (Protective Field Height): 450 mm
- Total Length: 640 mm (incl brackets)
Weight:
- Sender: 1.4kg
- Receiver: 1.4kg
Country of Origin: Germany
HS Code: 9031.49
