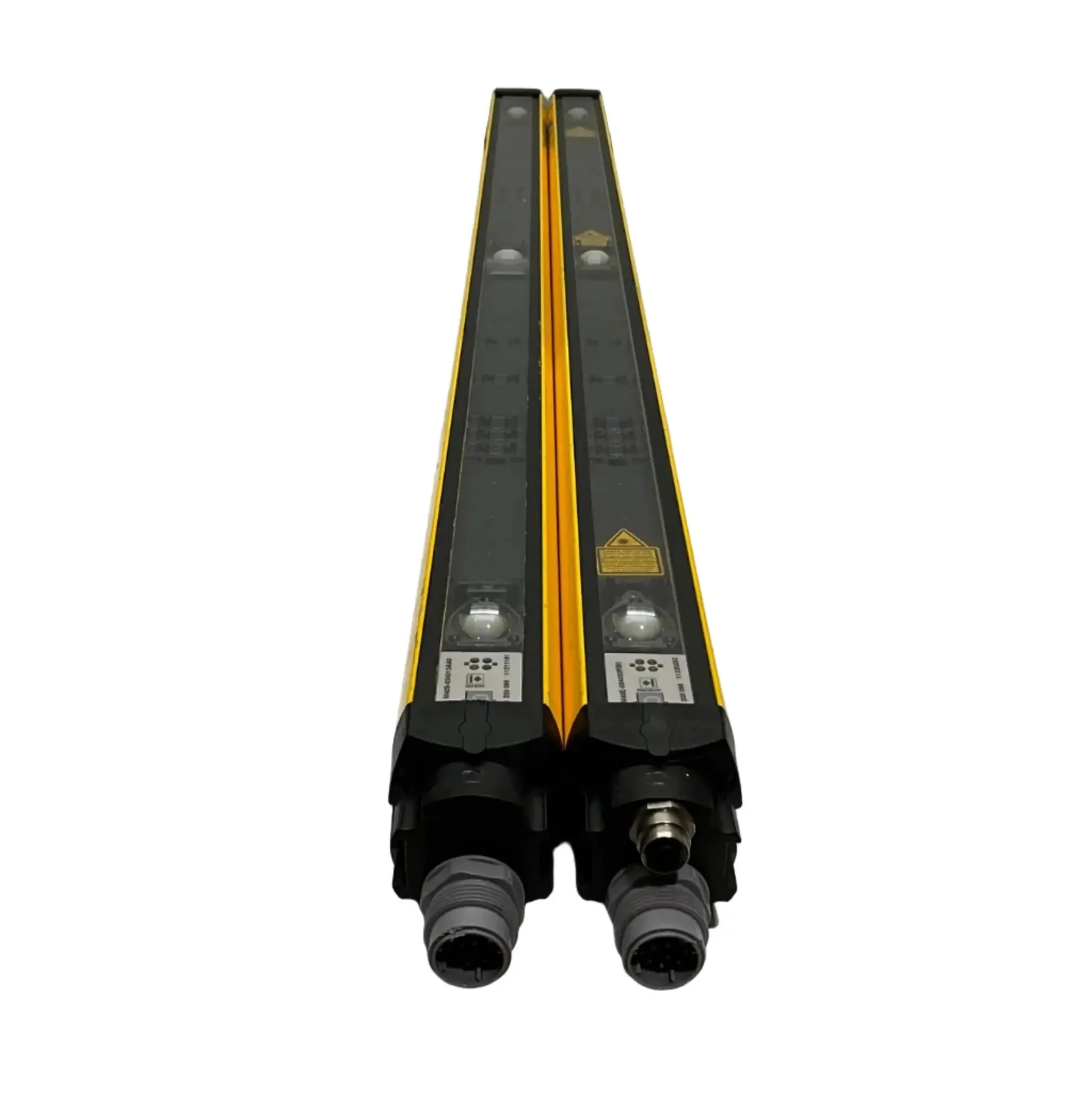

Sick M4000 Advanced Safety Light Curtains - 1 200 068/069

- Brand: SICK
- Model: M4000 Advanced
- Type: Multiple Light Beam Safety Device (Active/Passive System)
- Part Numbers:
- Sender: M40S-034013AA0 (1200069)
- Receiver: M40E-034033RB0 (1200068)

Technical Specs:
- System Type: Type 4 electro-sensitive protective equipment (ESPE), SIL 3, PL e
- Number of Beams: 3
- Beam Separation: 400 mm
- Protective Field Height: 800 mm (from lowest to highest beam)
- Scanning Range: 0.5 – 70 m (configurable low/high range)
- Resolution: Effective resolution depends on beam spacing
- Response Time: ≤ 10 ms (system)
- Safety Outputs (OSSD): 2 PNP (receiver)
- Supply Voltage: 24 V DC ±20%
- Power Consumption: Sender ~3 W, Receiver ~10 W (without load)
- Connection: Hirschmann plug (M26, 12-pin)
- Enclosure Rating: IP65
- Operating Temperature: -30 °C to +55 °C
- Housing Material: Aluminium
- Additional Features:  EFI interface for safe device communication, configurable beam coding, external device monitoring (EDM), restart interlock

- Dimensions (per unit): 1050 x 52 x 52 mm (including connectors)

- Weight (per unit): 3 kg

- Country of Origin: Germany

- HS Code: 9031.80
