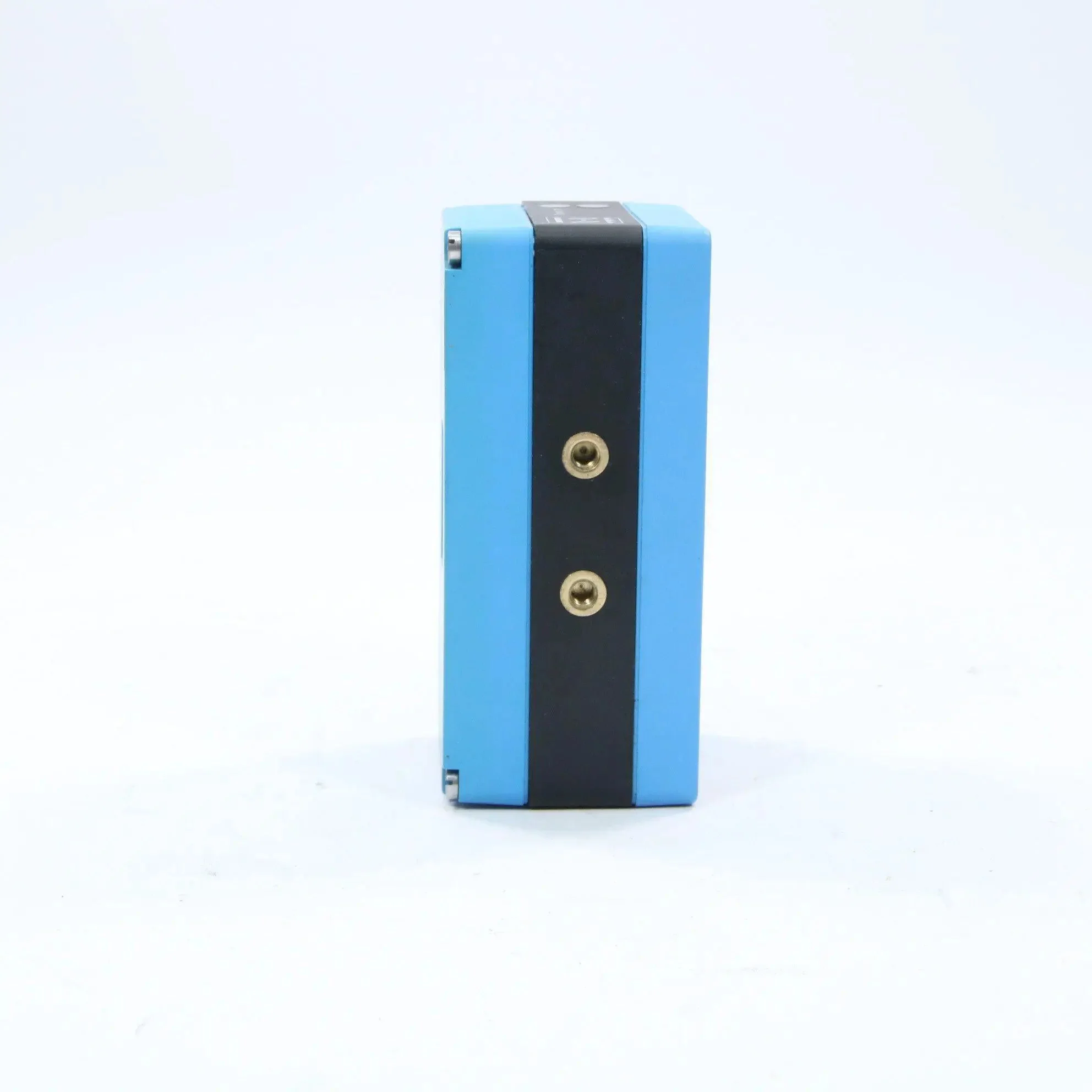

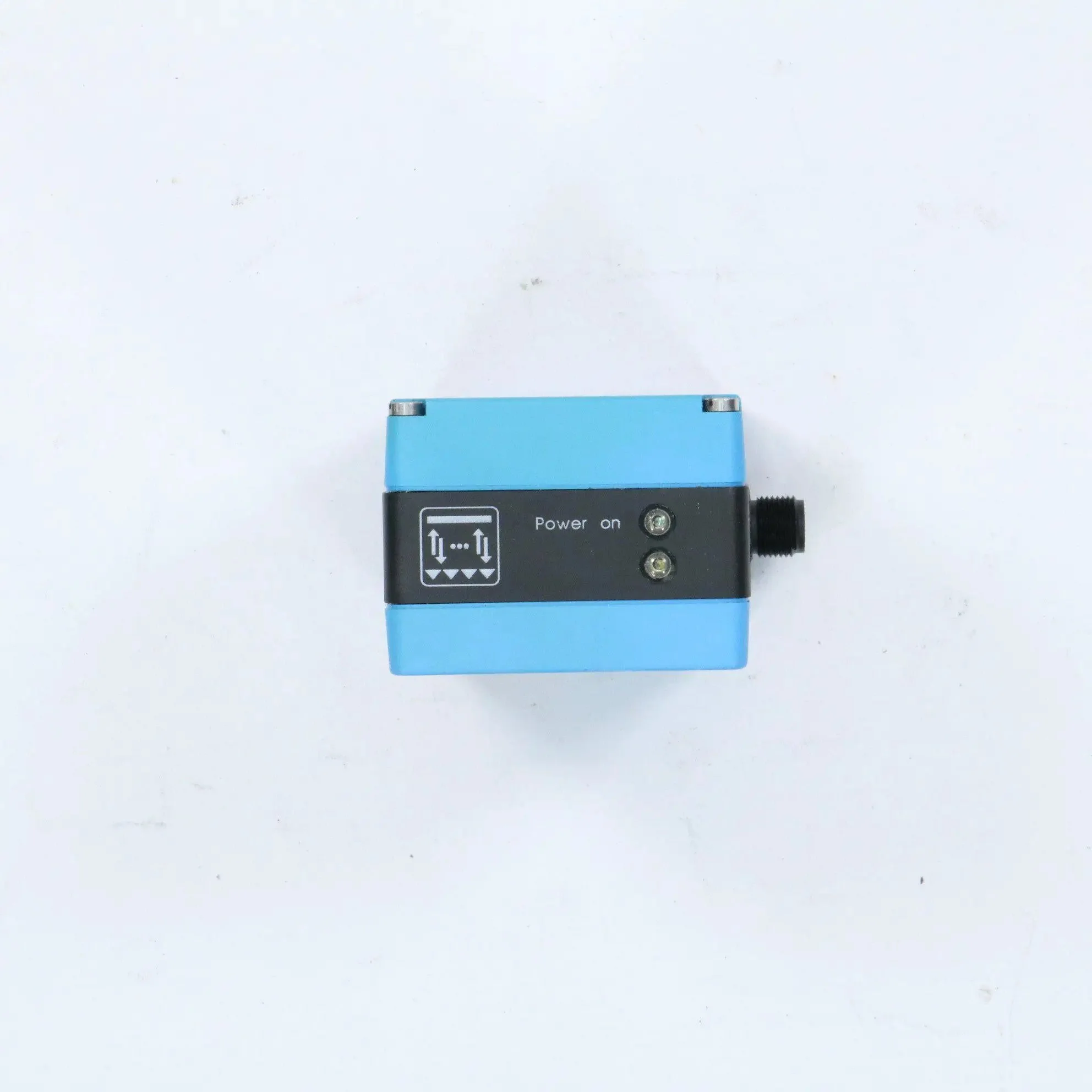

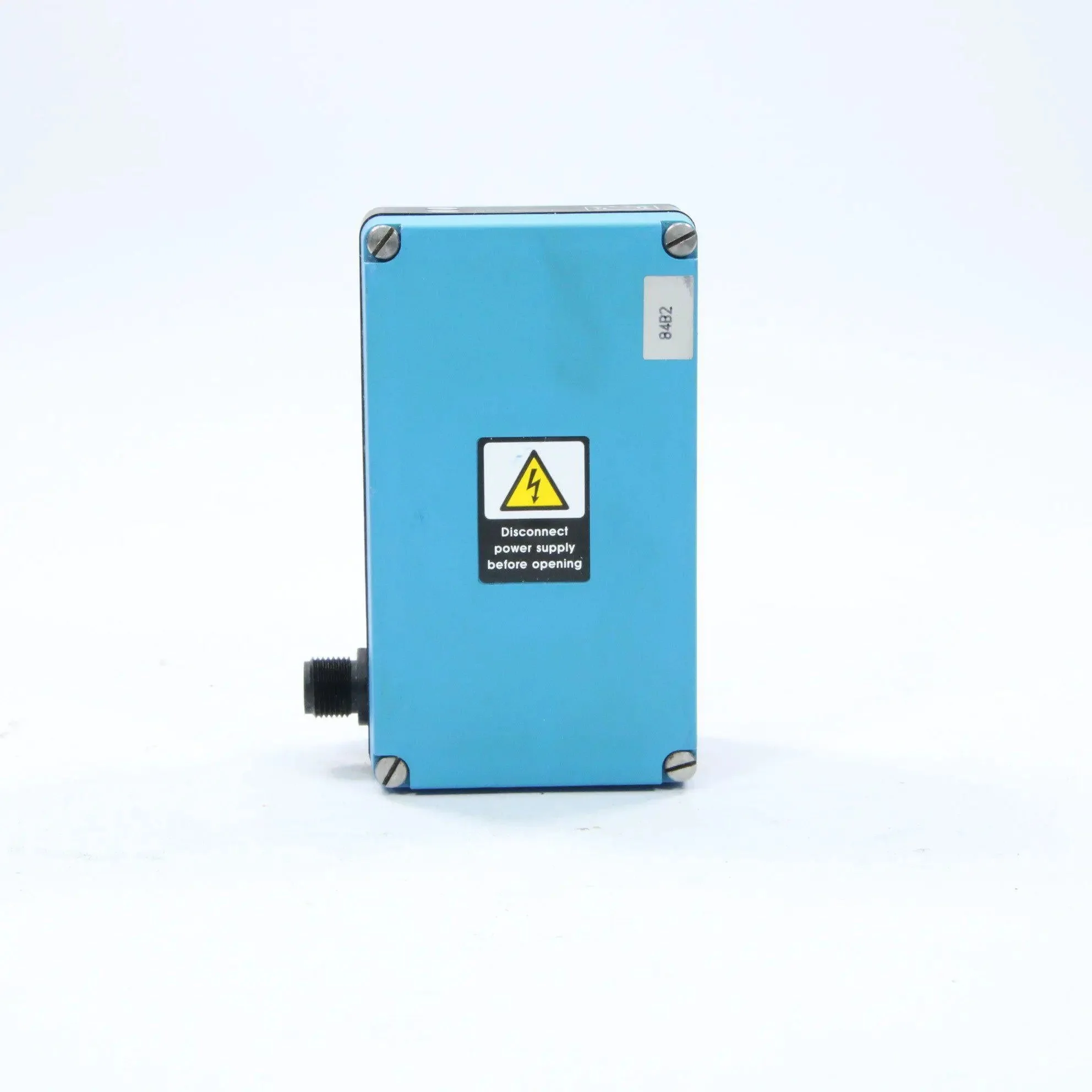

Sick WLG12-P537 Switching automation light grids

Sick WLG12-P537 Switching automation light grids

• Wave length 650 nm
• Supply voltage Vs DC 18 V ... 30 V 1)
• Power consumption sender 80 mA
• Ripple < 5 Vpp
• Output current Imax. ≤ 100 mA
• Output load capacitive 100 nF
• Output load inductive 1 H
• Initialization time 0.6 s
• Switching output 2 x PNP 2)
• Output mode Q dark switching 3)
• Teach-in input PNP
• Dimensions (W x H x D) 62 mm x 106 mm x 46.6 mm
• Connection type Male connector M12, 5-pin
• Housing material Plastic
• Indication LED
• Enclosure rating IP67
• Circuit protection
• UV connections, reverse polarity protected
• Output Q short-circuit protected
• Interference pulse suppression
