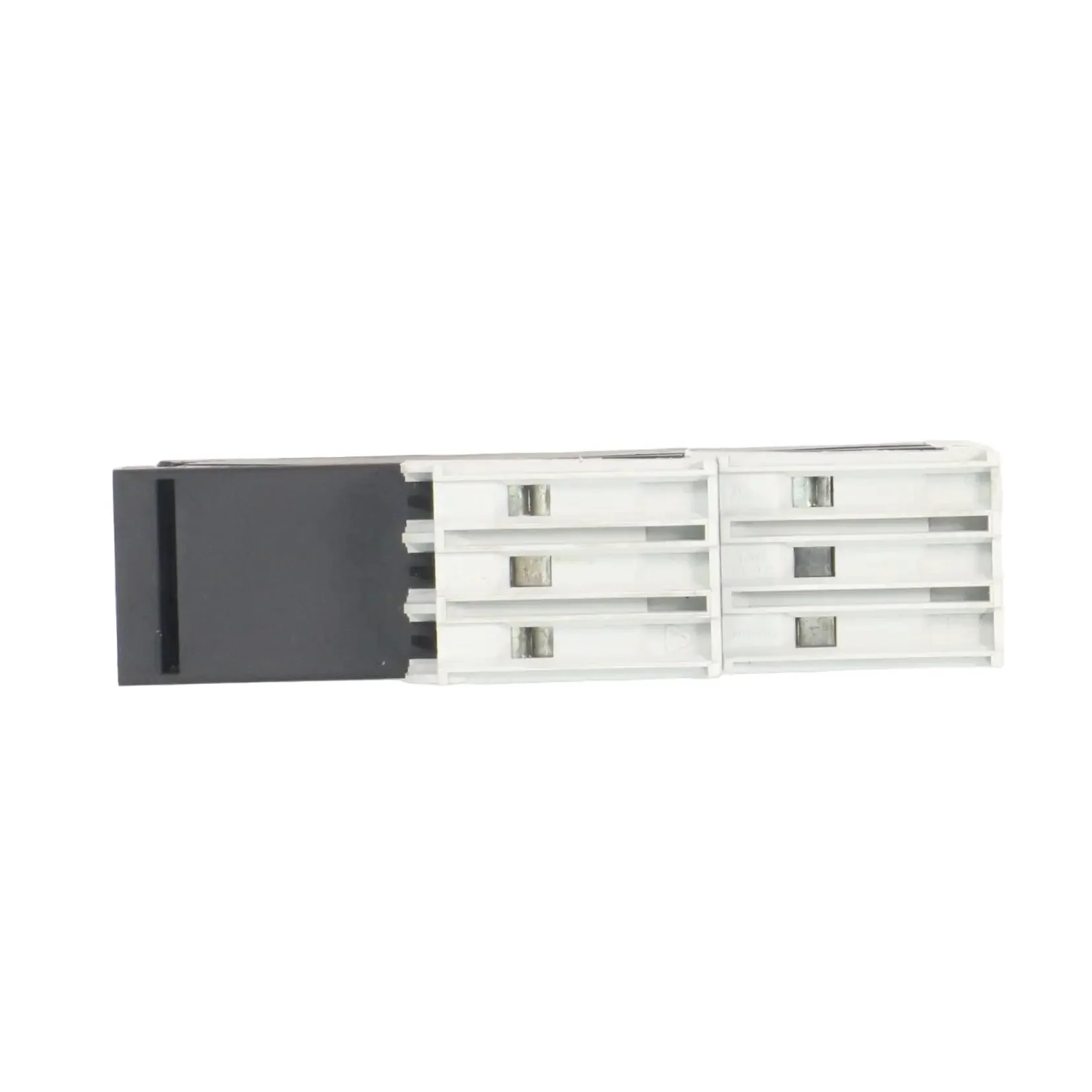

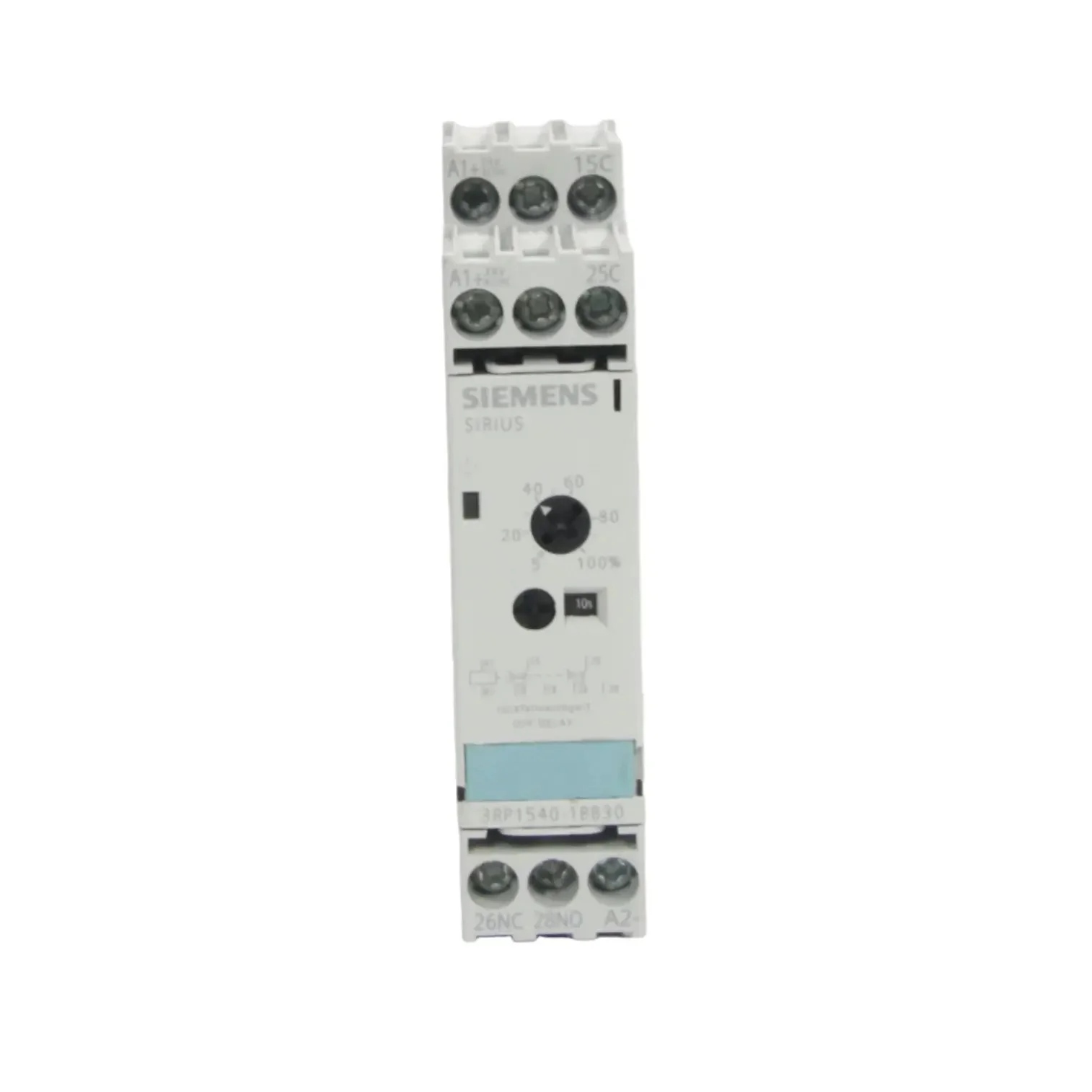

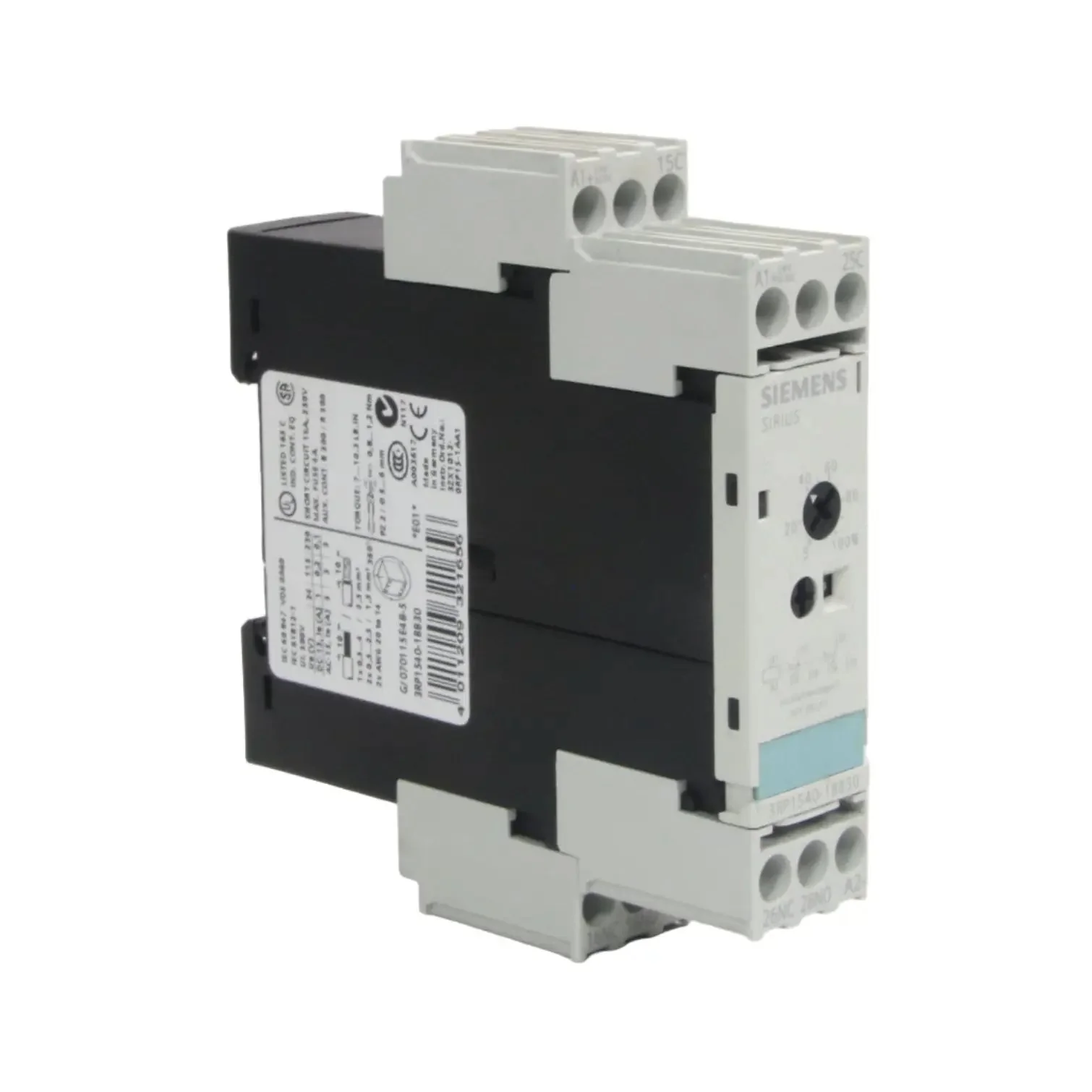

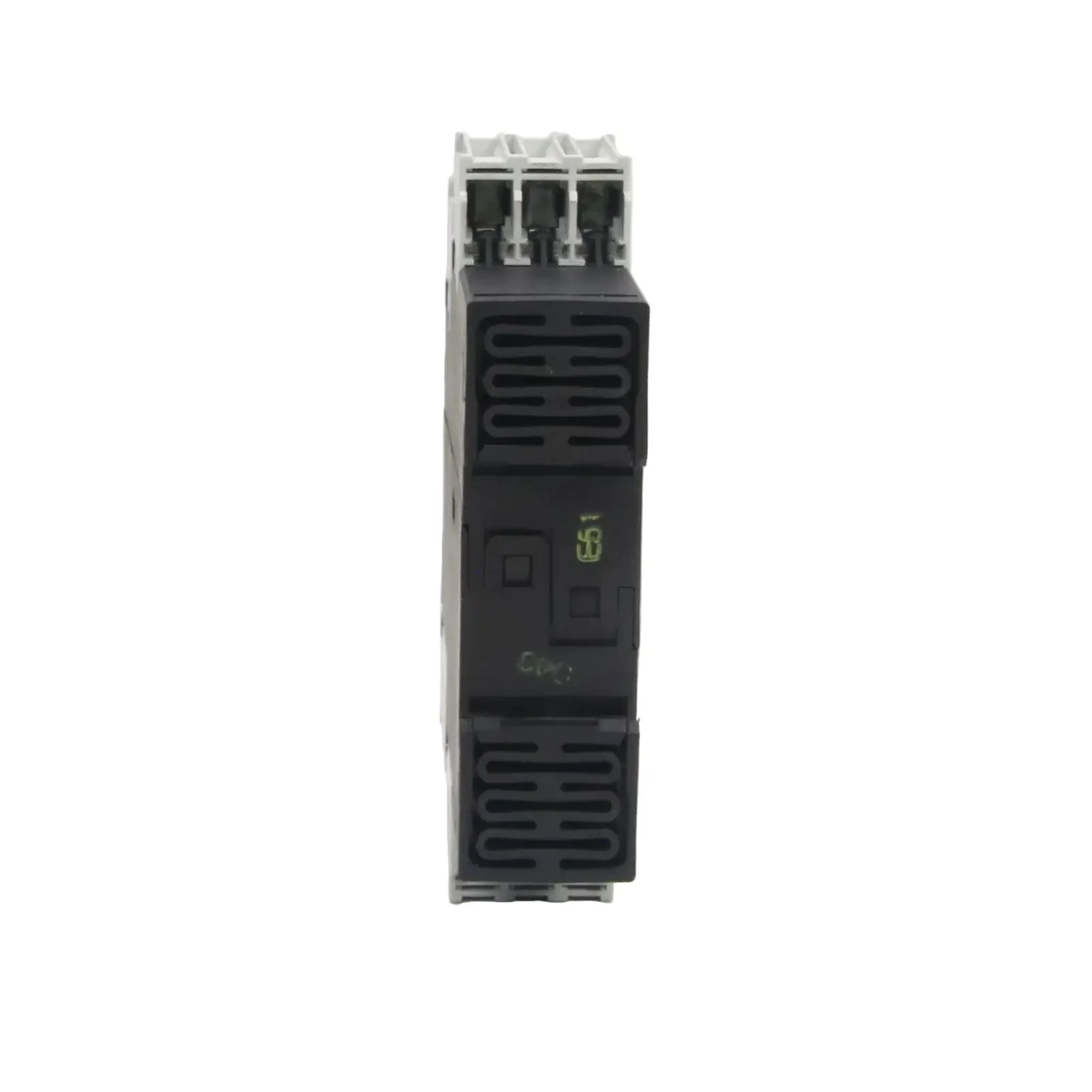

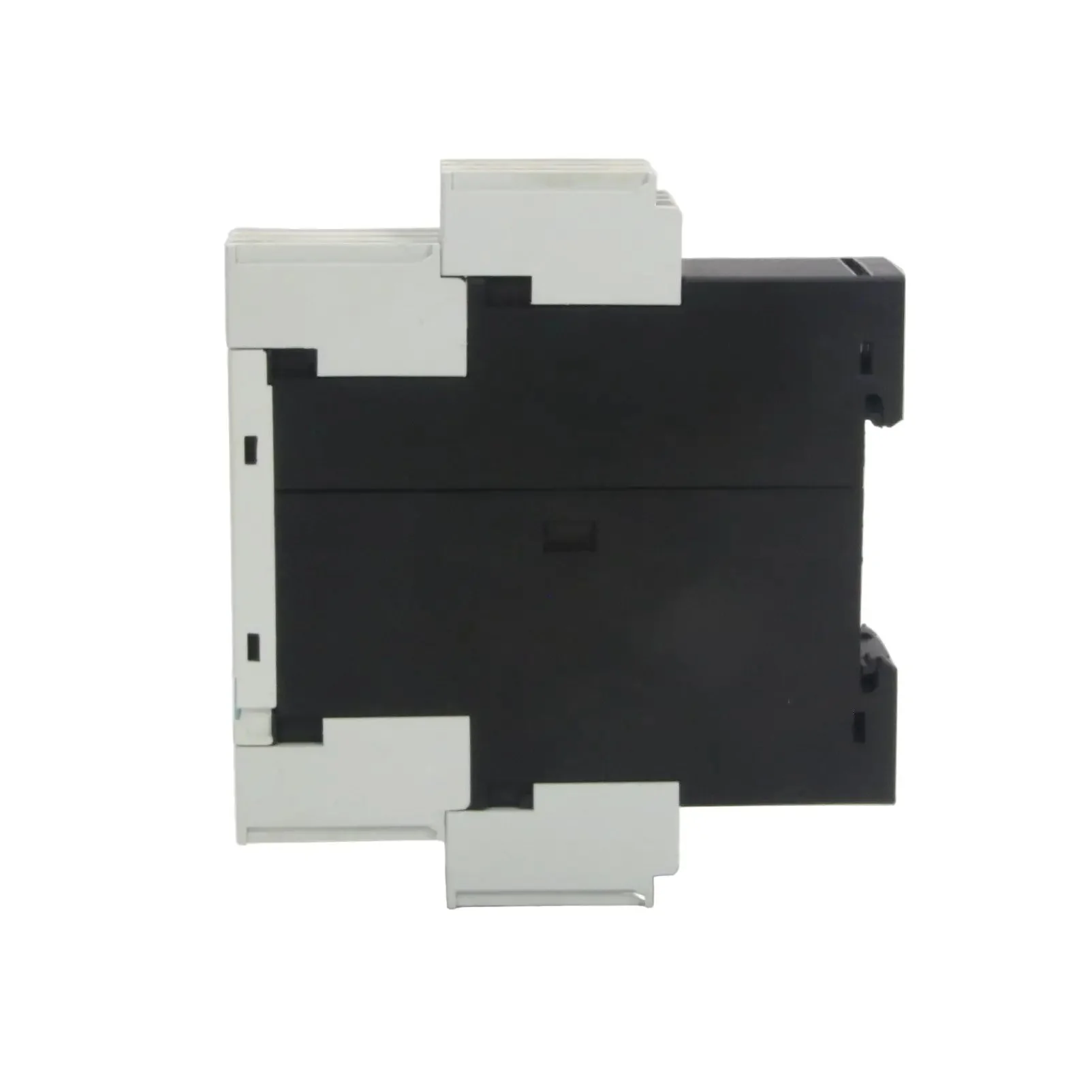

Siemens 3RP1540-1BB30 Timer Relay

Brand: Siemens
Model: 3RP1540-1BB30
Type: Timer Relay
All Tech Specs:
- Material: Thermoplastic housing for insulation and durability in control panels
- Configuration: 1 changeover contact (SPDT, 1 C/O)
- Operating Mode: Off-delay
- Time Ranges: 9 selectable ranges from 0.05 s to 600 s
- Supply Voltage: AC/DC 24 V
- Rated Current: 4 A
- Contact Rating: AC-15 230 V / 3 A; DC-13 24 V / 0.55 A
- Power Consumption: ≤1.5 VA (AC) / ≤1 W (DC)
- Reset Time: <50 ms
- Repeat Accuracy: ±1%
- LED Indicator: Yes
- Mounting: DIN rail
- Connection: Screw terminals
- Operating Temperature Range: -25°C to +60°C
- Storage Temperature Range: -40°C to +85°C
- Protection Rating: IP20
- Status: Discontinued product
- Certification: CE; RoHS compliant; cULus listed
- Features: Plug-in design for easy replacement; manual override optional; suitable for on-delay/off-delay applications in motor control and sequencing; compact for space-saving

Dimensions: 100 x 90 x 25 mm

Weight: 150 g

Country of Origin: Germany

HS Code: 8536.49
