Siemens MP 277 10" 6AV6 643-0CD01-1AX1 Multi Panel

Brand: Siemens
Model: 6AV6643-0CD01-1AX1
Type: SIMATIC MP 277 Multi Panel
All Tech Specs:

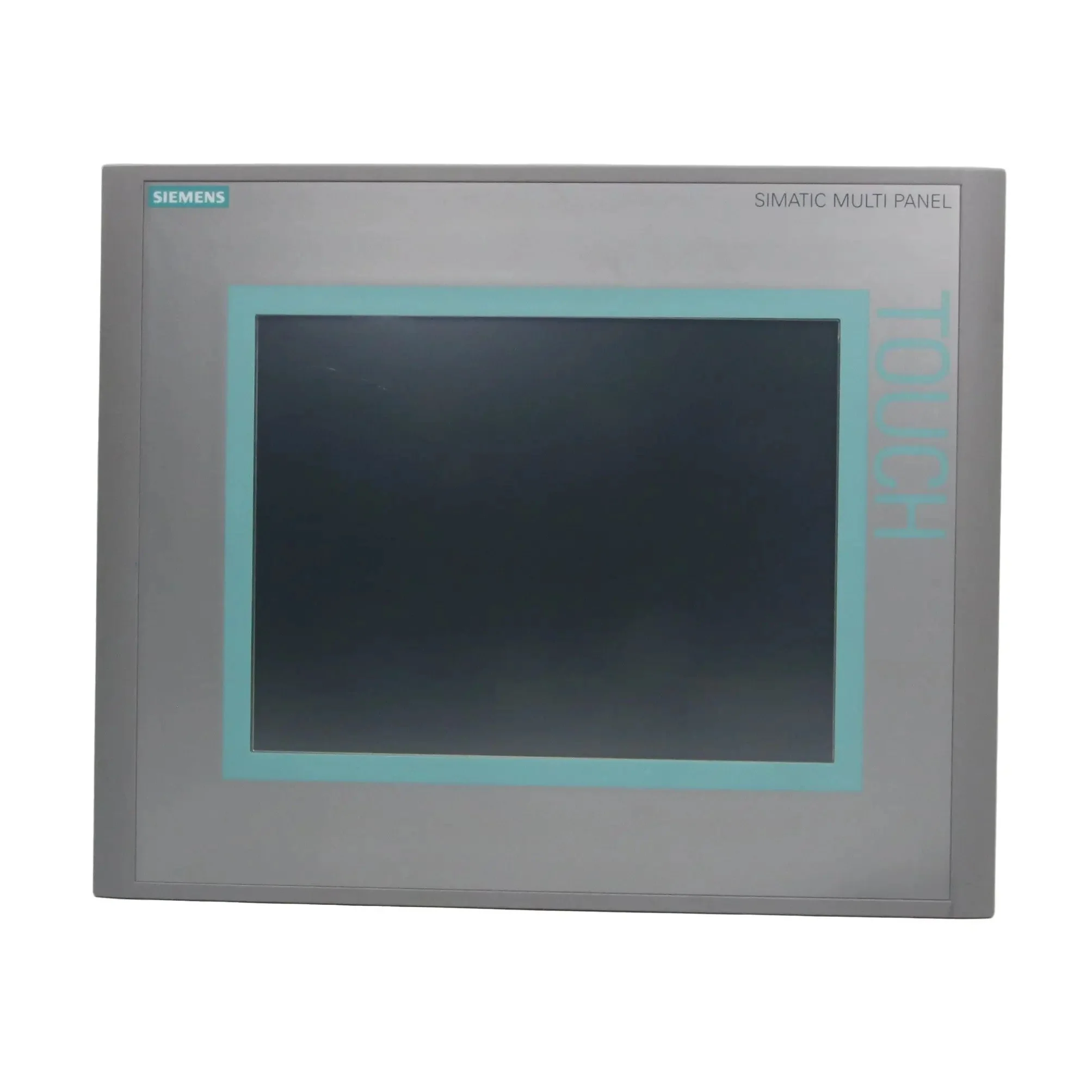

- Display Type: 10.4-inch TFT colour LCD - 640 x 480 VGA resolution
- Touch Type: Analog resistive touchscreen
- Processor: ARM-based CPU
- Memory: 6 MB configuring memory (Flash ROM); 128 MB RAM

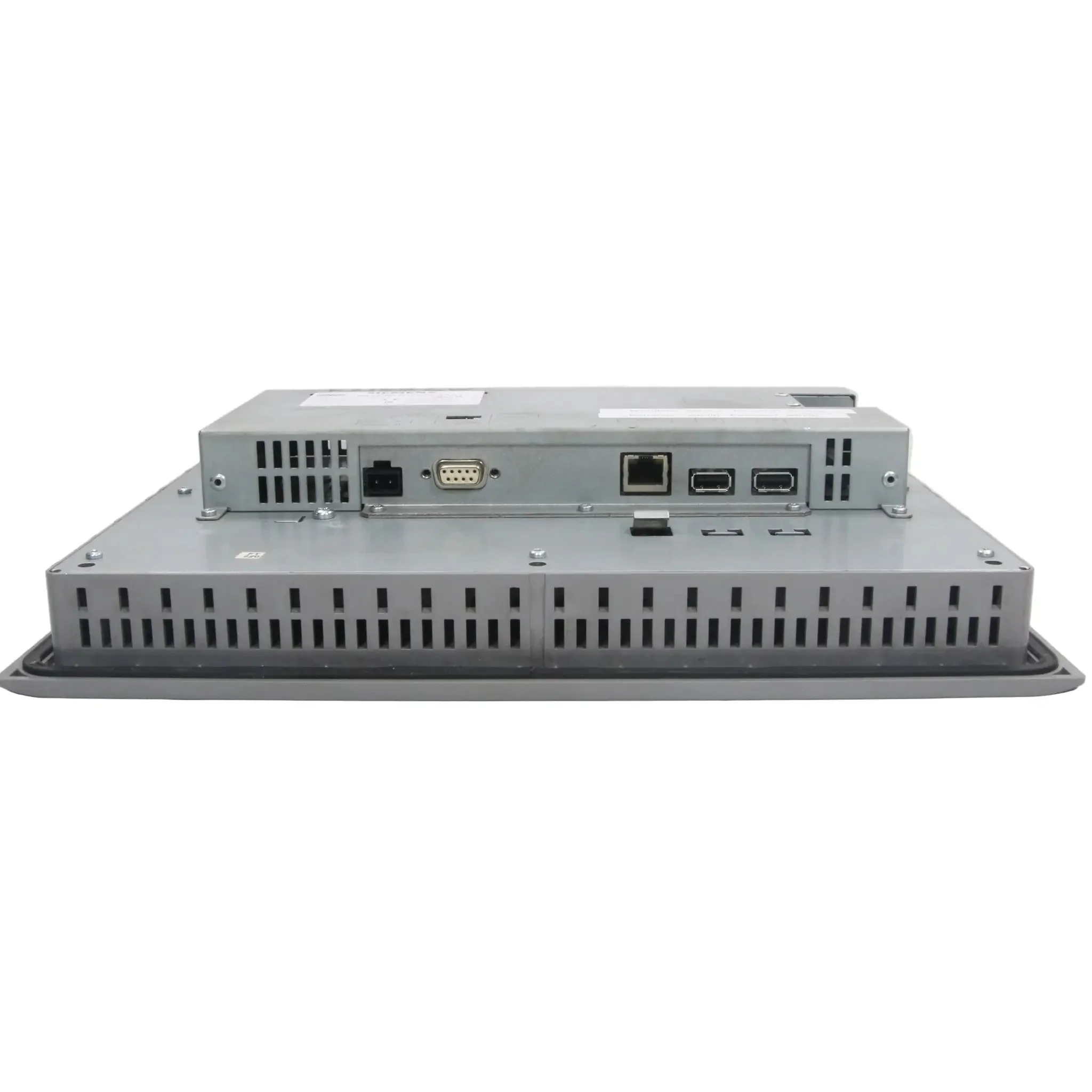

- Interfaces: 1 x RS-422/485 (12 Mbit/s, MPI/DP/PPI); 1 x Ethernet RJ-45 (10/100 Mbit/s, IE/PN); 1 x SD/MultiMedia card slot; 2 x USB ports
- Power Supply: 24 VDC
- Power Consumption: ≤20 W
- Operating System: Windows CE
- Programming Software: WinCC Flexible Standard 2005 SP1
- Backlight: LED
- Operating Temperature Range: 0°C to +50°C
- Protection Rating: IP65
- Vibration Resistance: 9.8 m/s² (10-55 Hz)
- Shock Resistance: 147 m/s² (11 ms)
- Standards: IEC/EN 61131-2; CE marked; EMC compliant

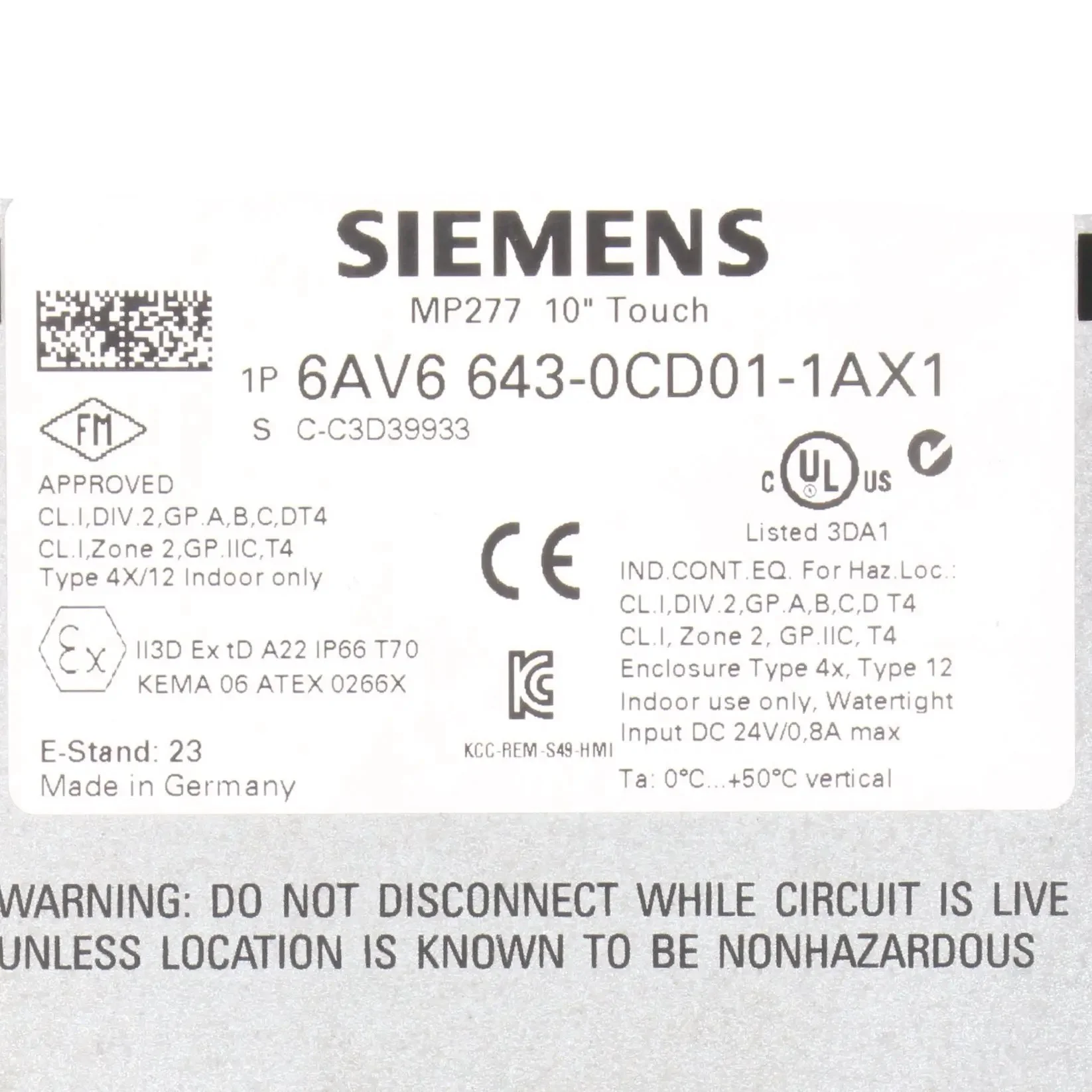

- Certification: CE; RoHS compliant; UL listed
- Features: Retentive memory for data retention; multilingual support; suitable for SCADA/HMI in machinery control; Discontinued
Dimension: 335 x 270 x 70 mm
Weight: 2.7 kg
Country of Origin: Germany
HS Code: 8537.10
