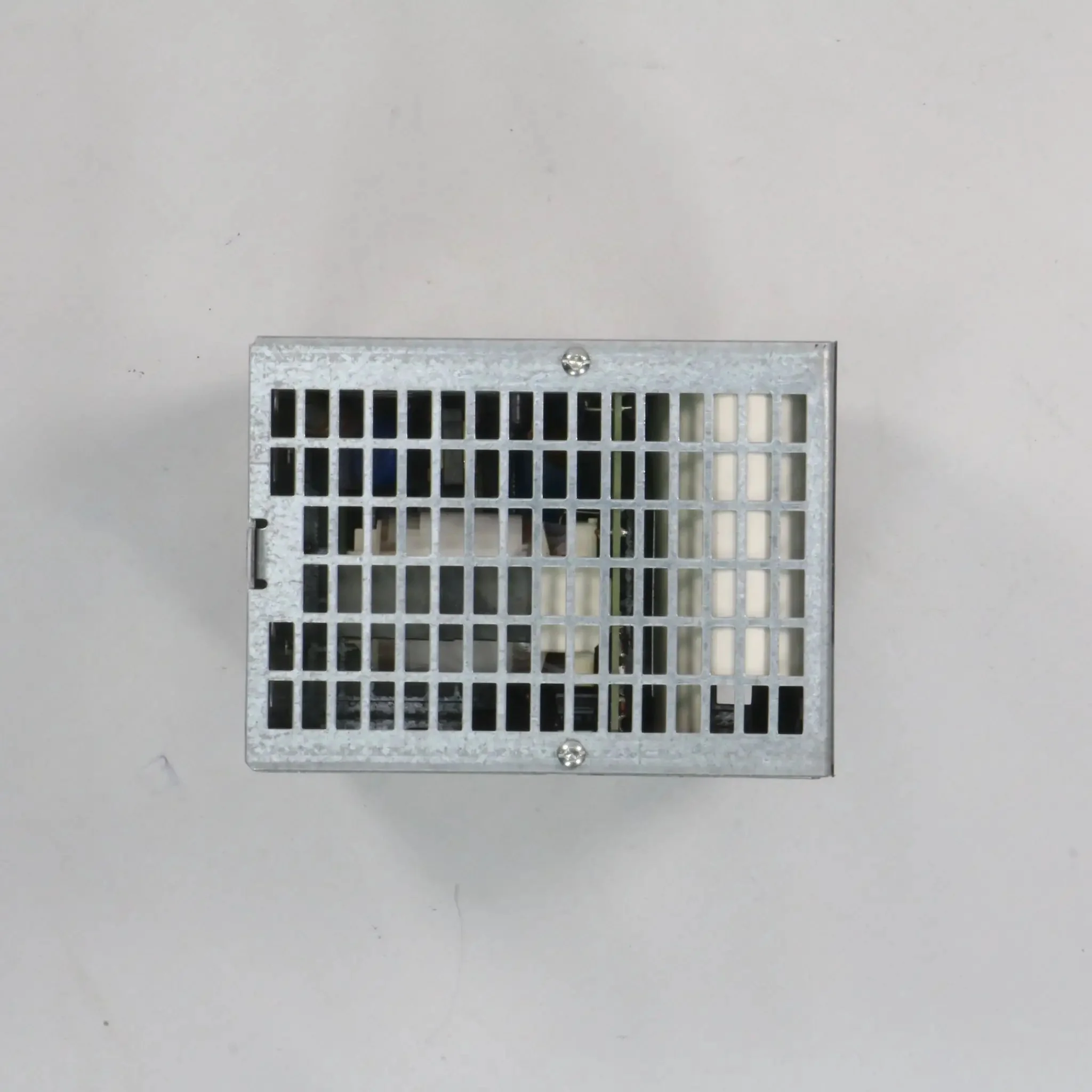

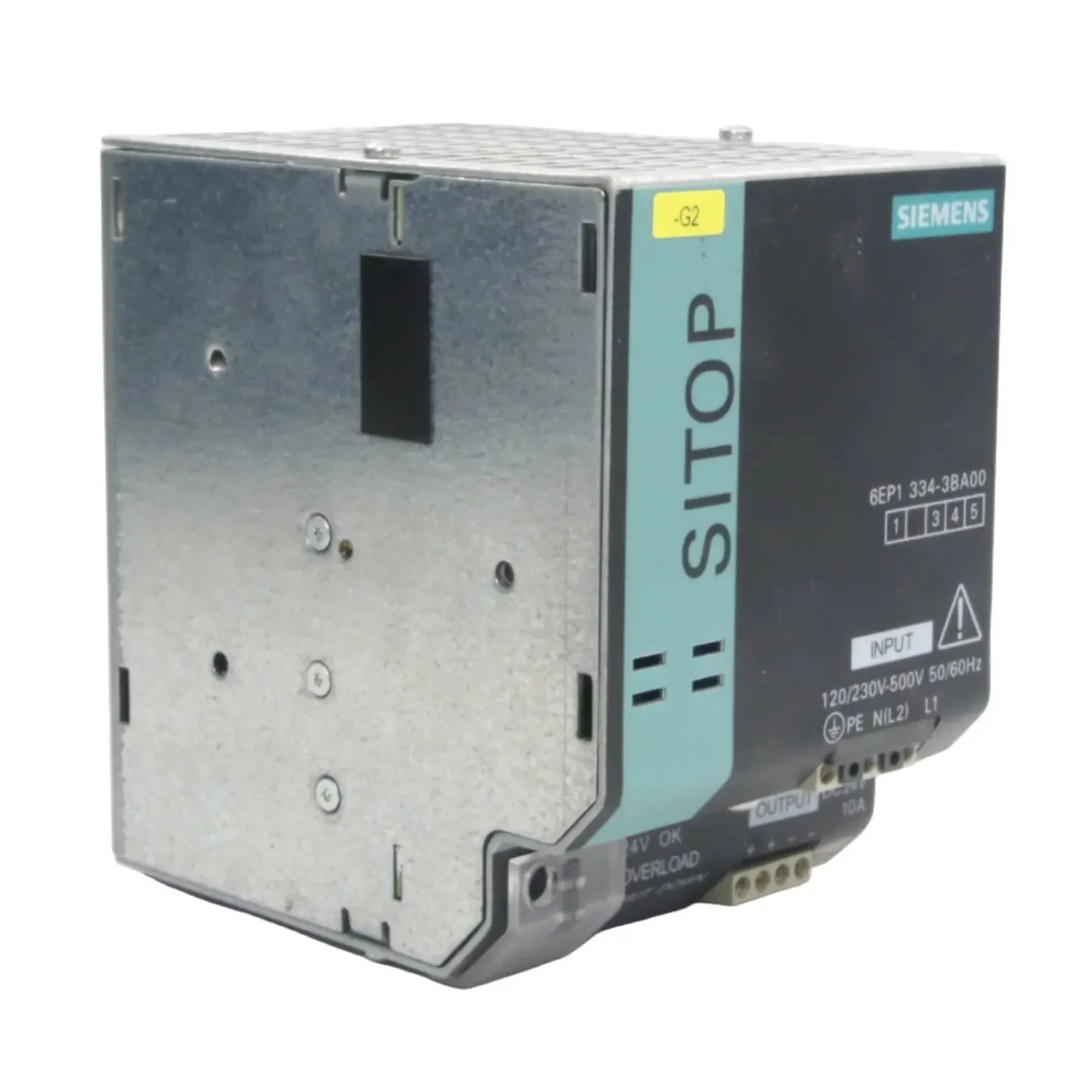

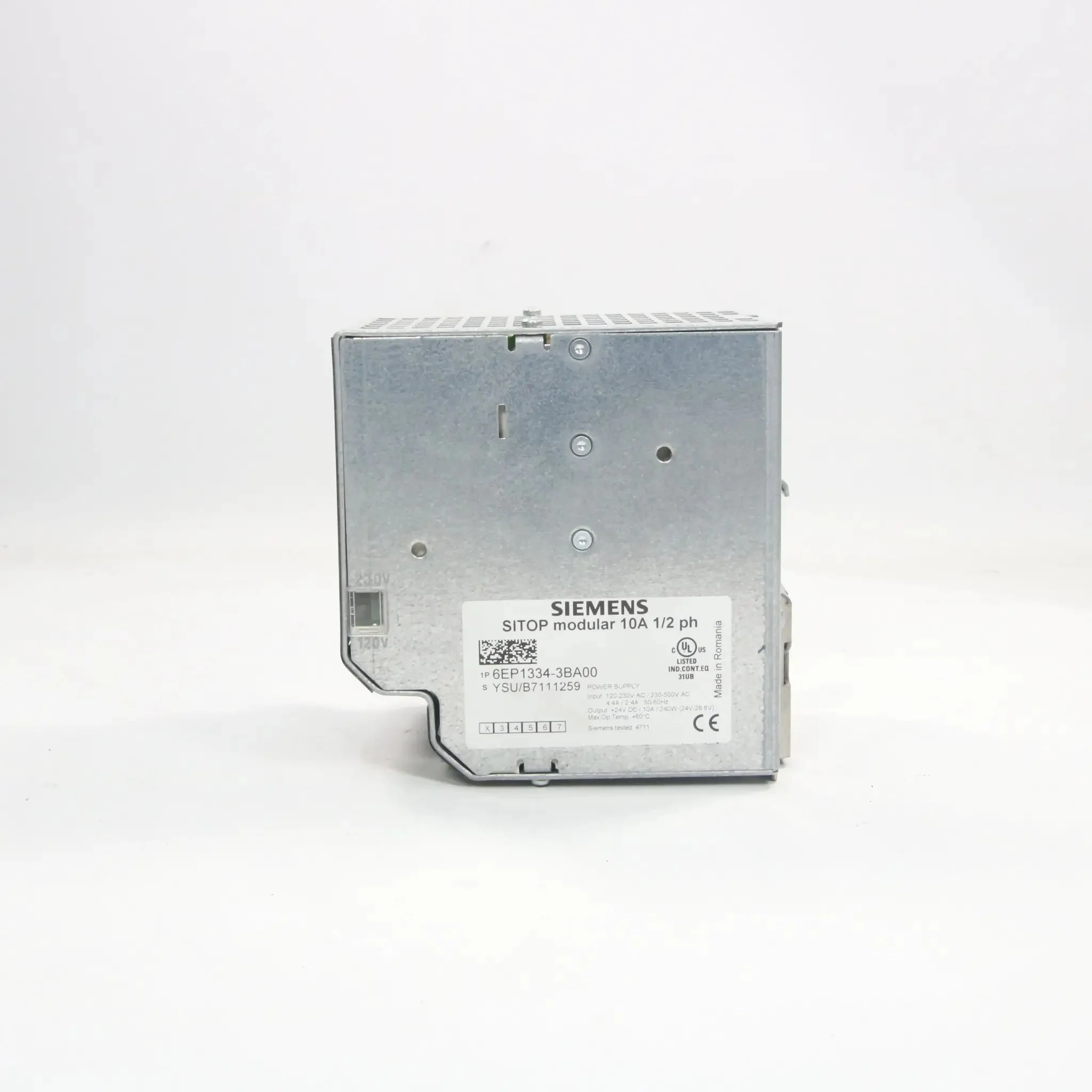

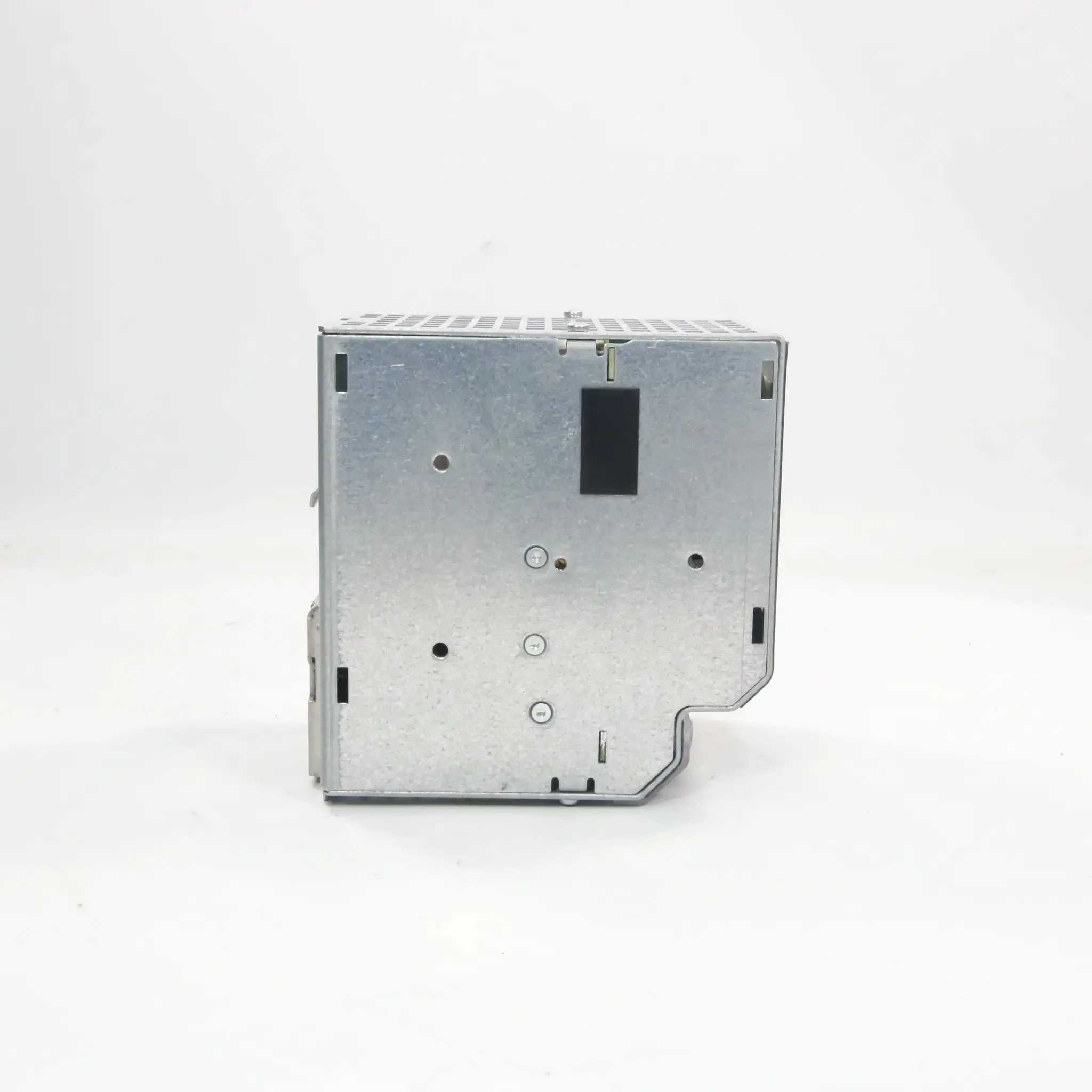

Siemens 6EP1334-3BA00 Power Supply
- Brand: Siemens
- Model: 6EP1334-3BA00
- Type: Stabilized power supply (SITOP PSU200M, AC/DC DIN rail mount)
- All Tech Specs:
- Material: Aluminum (rugged metal enclosure for industrial use)
- Input Voltage: 120/230–500V AC (single-phase and two-phase, wide range)
- Input Frequency: 47–63 Hz
- Output Voltage: 24V DC (adjustable 24–28.8V DC)
- Output Current: 10 A (maximum)
- Output Power: 240 W (nominal)
- Efficiency: Up to 90% (typical at nominal load)
- Inrush Current: <35 A (at 230V AC)
- Overload Behavior: Constant current characteristic with automatic recovery
- Short-Circuit Protection: Electronic shutdown, automatic restart
- Connection: Screw terminals (input: 2 x 0.5–2.5 mm²; output: 4 x 0.5–2.5 mm²)
- Operating Temperature Range: -25°C to +70°C (-13°F to +158°F) without derating
- Storage Temperature Range: -40°C to +85°C (-40°F to +185°F)
- Protection Rating: IP20 (protected against solid objects; no water protection)

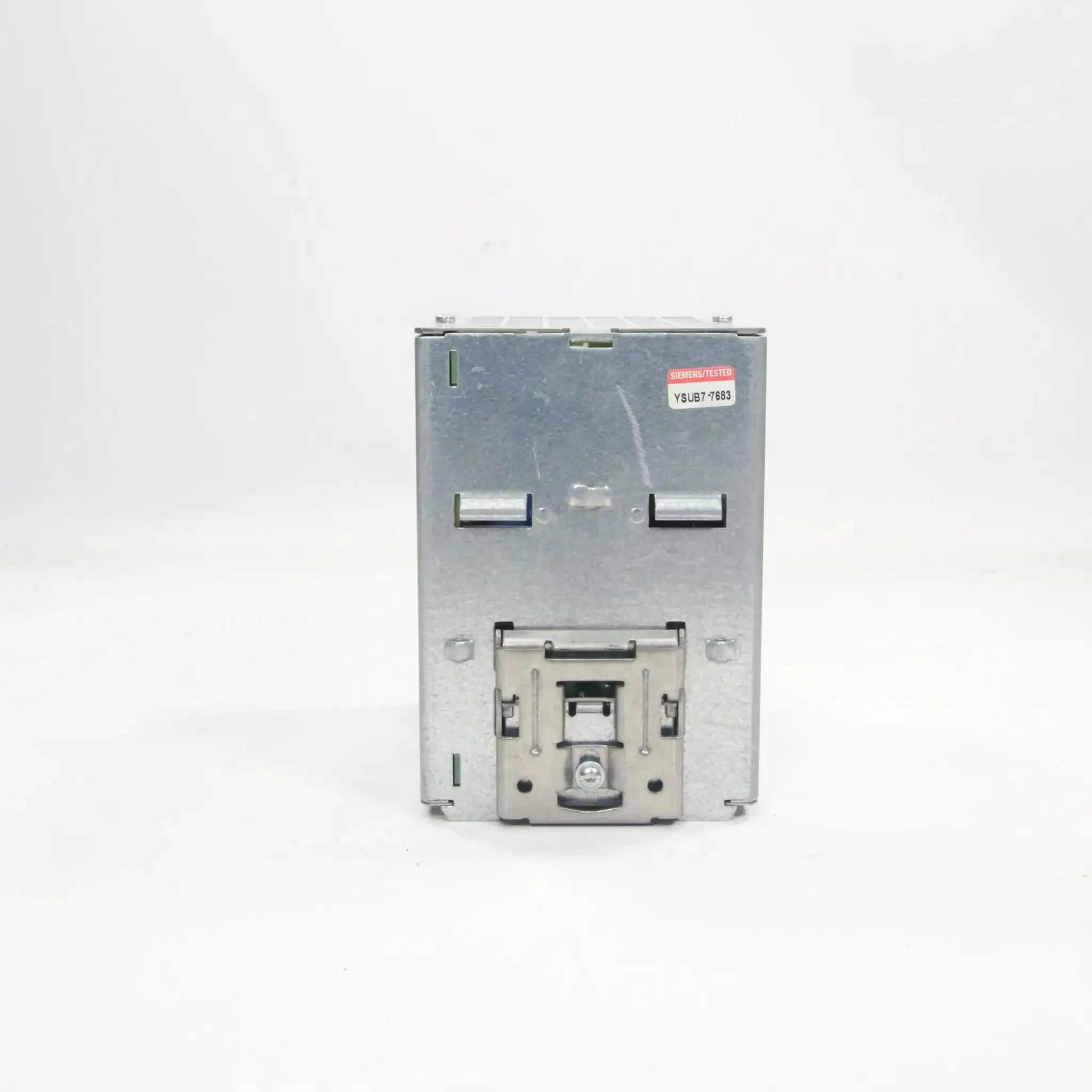

- Mounting Type: DIN rail (EN 60715 35x7.5/15)
- Cooling: Natural convection (no fan)
- Certification: CE marked; RoHS compliant; UL listed (UL 508); ATEX, IECEx for hazardous areas; GL, ABS for marine applications
- Features: LED indicators (green for OK, red for fault); parallel operation capability; adjustable output voltage
- Vibration Resistance: 1g per IEC 60068-2-6
- Electrical Life: >500,000 hours (MTBF at 40°C)
- Dimension: 70 mm width x 125 mm height x 121 mm depth (2.76 in x 4.92 in x 4.76 in)
- Weight: 1.5 kg (approximate)
- Country of Origin: Austria
- HS Code: 8504.40 (static converters, including power supplies)
Original: $201.58
-70%$201.58
$60.47
